GEPRC M10 DI GPS Module

Name: GEPRC M10 DI GPS Module
Brand: GEPRC
SKU: GEPRC-M10-DI-GPS
Price: 2799 INR
Availability: InStock

₹2,799Incl. GST

SKU GEPRC-M10-DI-GPS

Compass Included: YesMade in India: NoBrand: GEPRCRTK Support: No

Dispatched within 2 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

100% genuine parts
GST invoice with every order
Secure payments — cards, UPI & net banking via Razorpay
7-day returns on wrong or damaged items

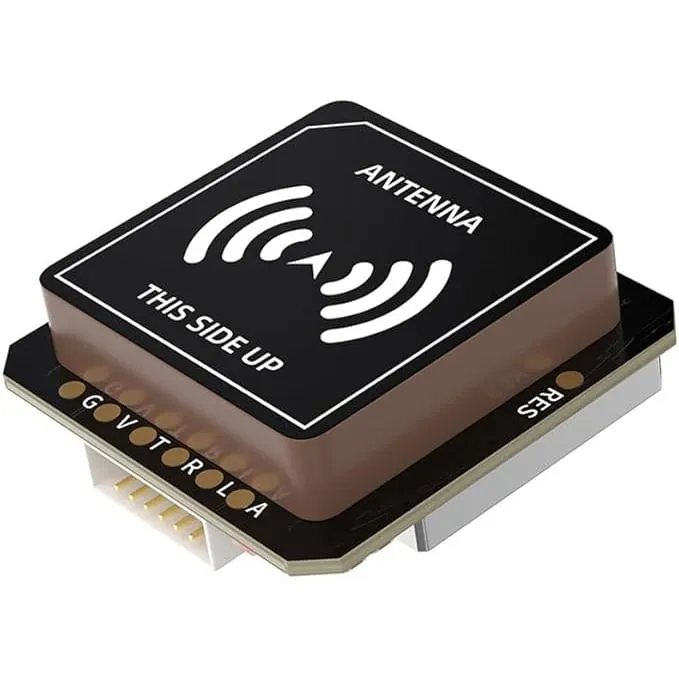

The GEPRC M10 DI is a GPS and compass module for long-range FPV quads, cinelifters and autonomous builds, built around the u-blox M10050 chipset with an integrated IST8310 compass and barometer for reliable positioning and altitude hold.

Key features

u-blox M10050 chipset tracks GPS, GLONASS, BDS, Galileo and QZSS together for faster, more reliable satellite locks
Up to 32 satellites across 72 channels for quicker fixes than older single-constellation modules
Built-in flash memory and a farad capacitor retain configuration data for fast hot starts
Integrated IST8310 compass and barometer supply heading and altitude data to INAV, ArduPilot or Betaflight GPS rescue
UART output for GPS data plus I2C for the compass and barometer keep wiring straightforward on modern flight controllers

Specifications

GNSS chipset: u-blox M10050
Satellite systems: GPS, GLONASS, BDS, Galileo, QZSS

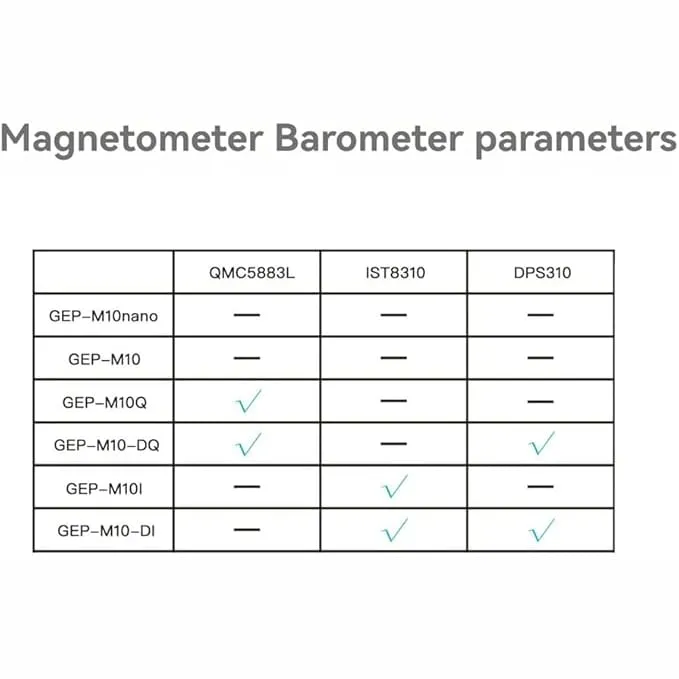

Compass: Integrated IST8310
Barometer: DPS310 (DPS368 on newer units)
Input voltage: 3.3-5 V
Baud rate: 115200 bps
Update rate: 10 Hz
Output: UART (GPS), I2C (barometer/compass)

Mount the module away from power leads, motors and video transmitters to keep the compass reading clean, and confirm your flight controller firmware supports u-blox M10 output before flashing.
