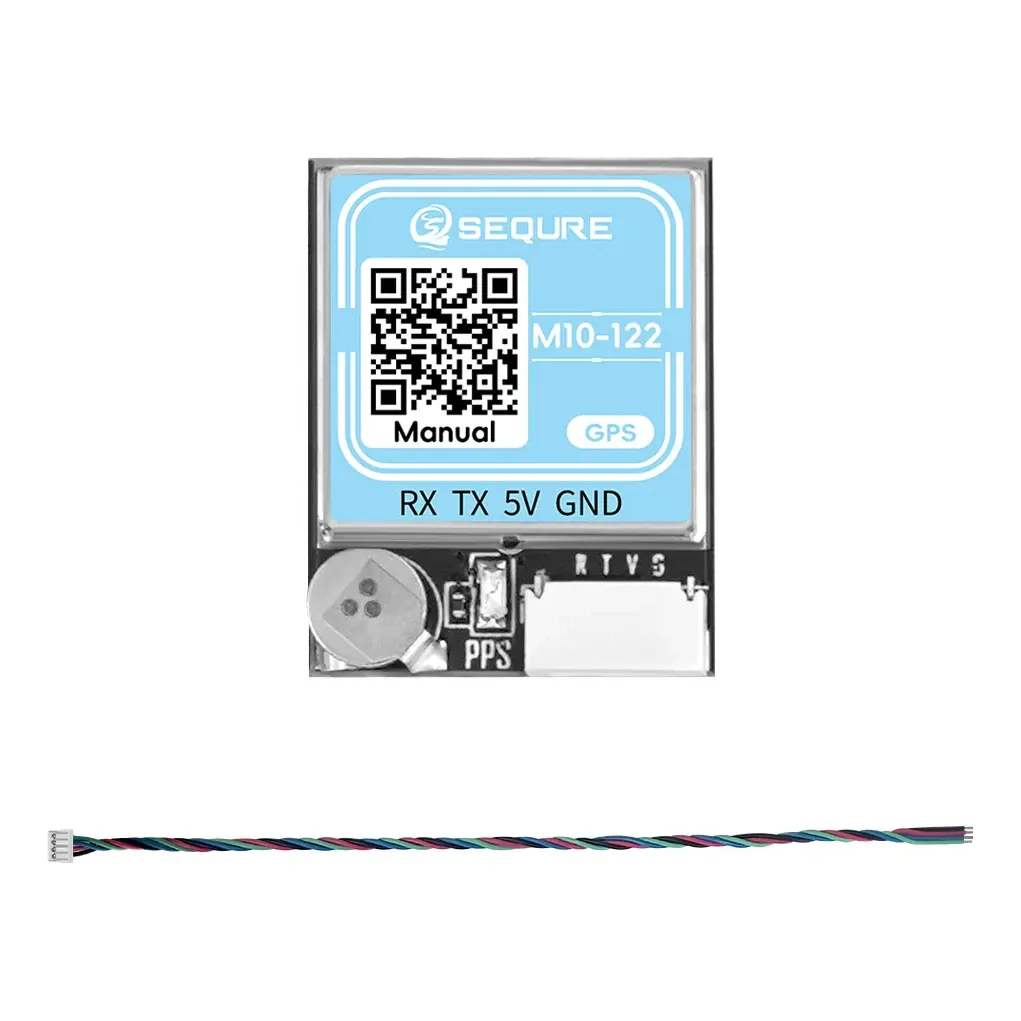

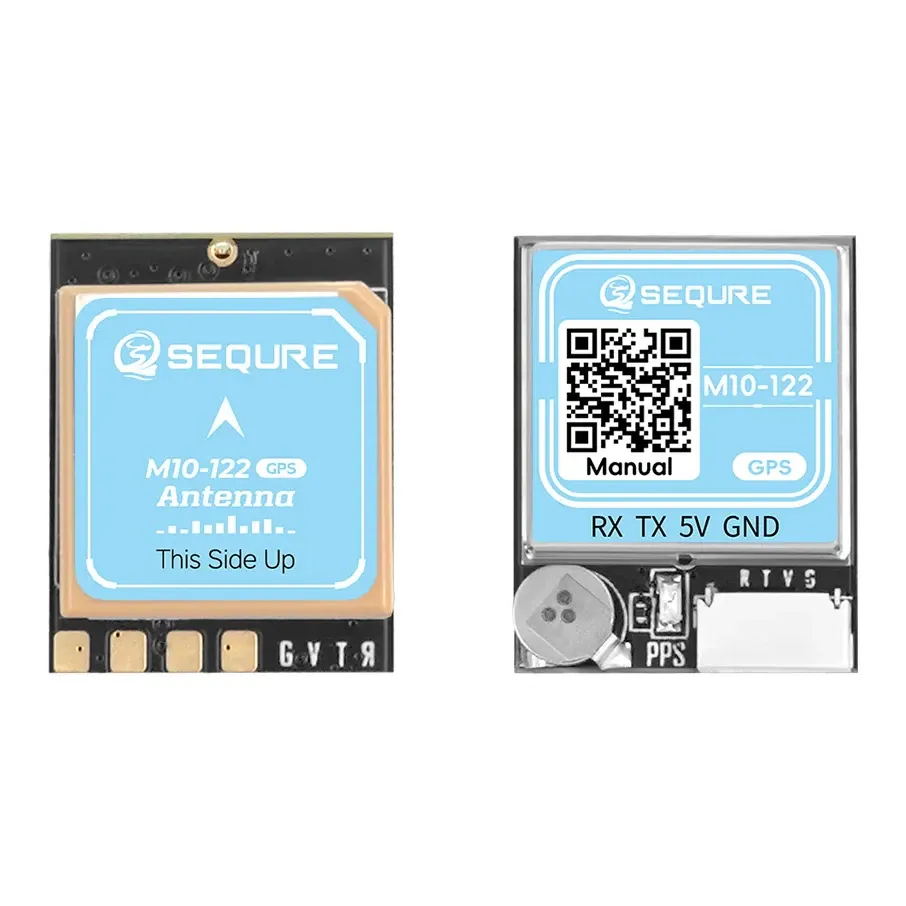

SEQURE M10-122 GPS Module

The Sequre M10-122 is an ultra-compact GPS module built around the high-performance 10th-generation u-blox M10 chipset. Measuring just 12x12mm, this receiver is engineered for micro drones, sub-250g cinewhoops, and dense freestyle frames where top-plate mounting space is severely limited. Despite the minimal footprint of its ceramic patch antenna, the M10 architecture ensures rapid satellite acquisition and strong multi-path interference rejection, giving you reliable coordinates for Betaflight GPS Rescue operations.

Key features

• 10th-generation u-blox M10 chipset for fast cold starts and tight positional accuracy.
• Concurrent multi-constellation tracking across GPS, Galileo, GLONASS, and BeiDou.
• Ultra-small 122-series form factor easily fits inside micro TPU mounts or on crowded top plates.
• Standard UART interface (TX/RX/5V/GND) for straightforward integration with any modern flight controller.

Specifications

• GNSS receiver: u-blox M10
• Supported constellations: GPS, GLONASS, Galileo, BeiDou
• Dimensions: 12 x 12 mm
• Input voltage: 5V
• Protocol: UBLOX

Due to its ultra-compact 12mm footprint, this module does not include a built-in magnetometer (compass). It is perfectly suited for Betaflight return-to-home functions, but pilots planning full INAV autonomous waypoint missions should opt for a larger module equipped with a compass.
