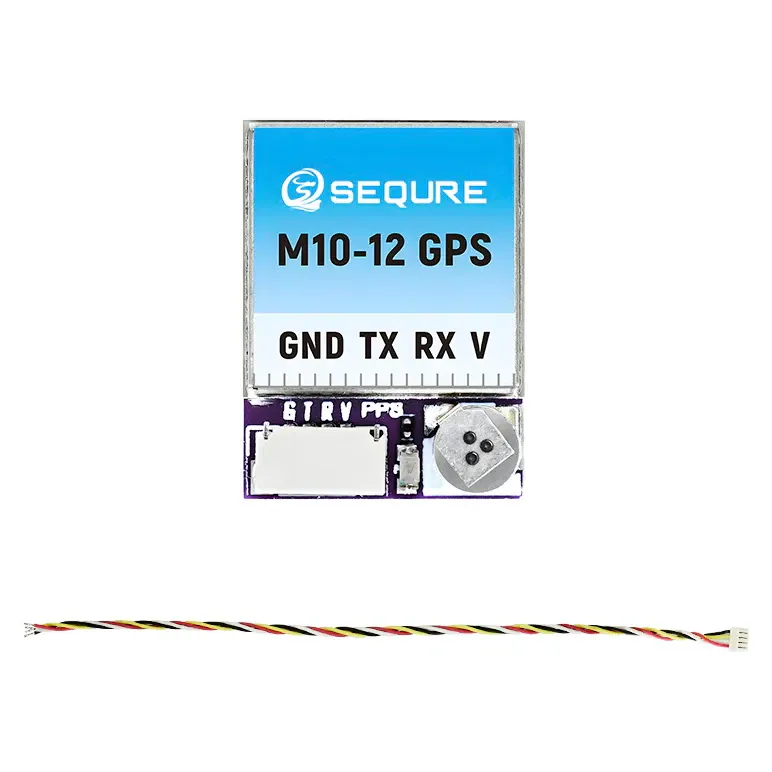

Sequre M10-12 u-blox M10 GPS Module
SKU SQ-M10-12-GPS
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Sequre M10-12 is a compact GPS module built around a 10th-generation u-blox M10 chipset, feeding position data to a compatible flight controller for navigation, position hold and return-to-home flight modes.
Key features
u-blox M10 chipset with multi-constellation reception (GPS, GLONASS, BeiDou, Galileo, SBAS, QZSS).

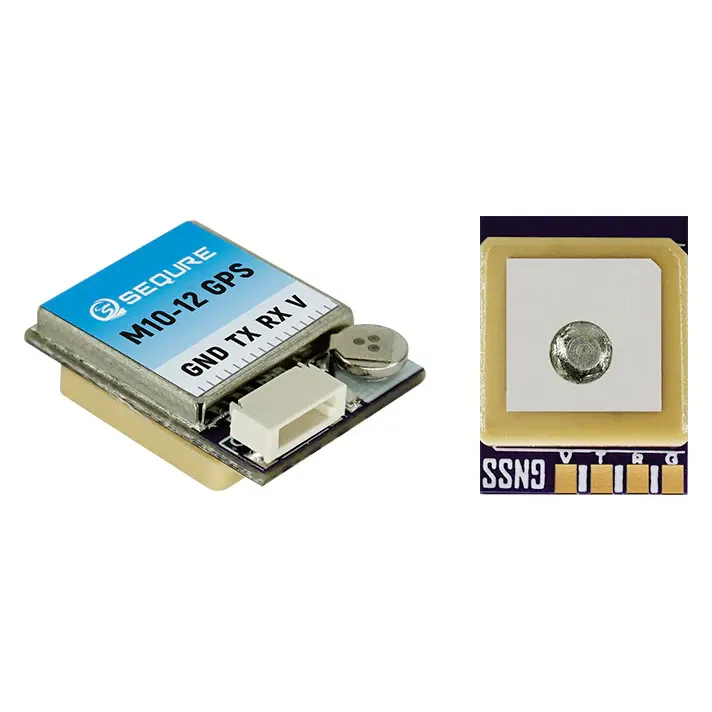

Ceramic antenna and 72 search channels for reliable satellite locks.
Configurable 1–10Hz update rate (10Hz default) over the UBLOX protocol.

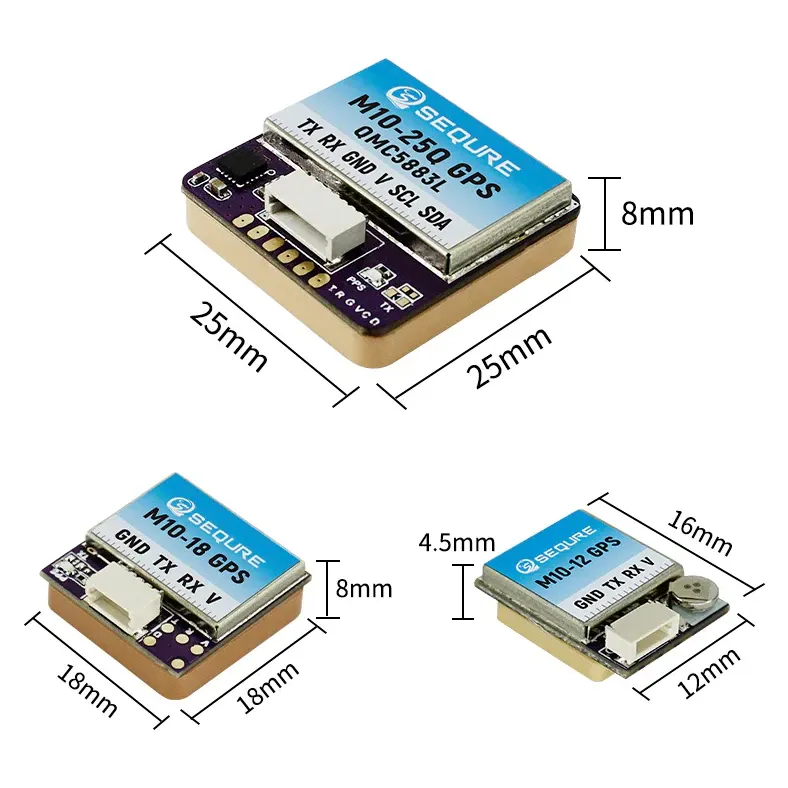

Small 12 x 16 x 4.5mm, 2.3g module for tight avionics stacks.
Rated from -40°C to +85°C operating, so it tolerates the temperature swings of typical outdoor flying.
Wired via a 4-pin SH0.8 connector or PCB solder pads.
Specifications
GNSS Chipset: u-blox M10
Size: 12 x 16 x 4.5mm

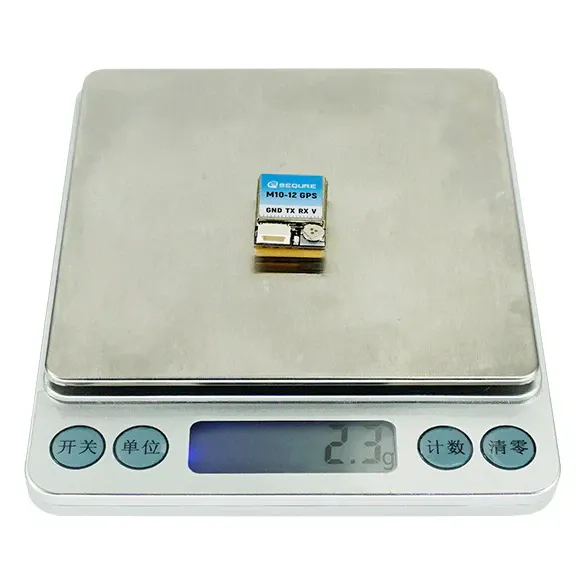

Weight: 2.3g
Connector: SH0.8-4P / PCB pad
Power supply: 5V
Mount the antenna clear of carbon and high-current wiring, then configure it in your flight controller before flight.
| Compass Included | No |
|---|---|
| Made in India | No |
| Brand | SEQURE |
| GNSS Chipset | u-blox M10 |
