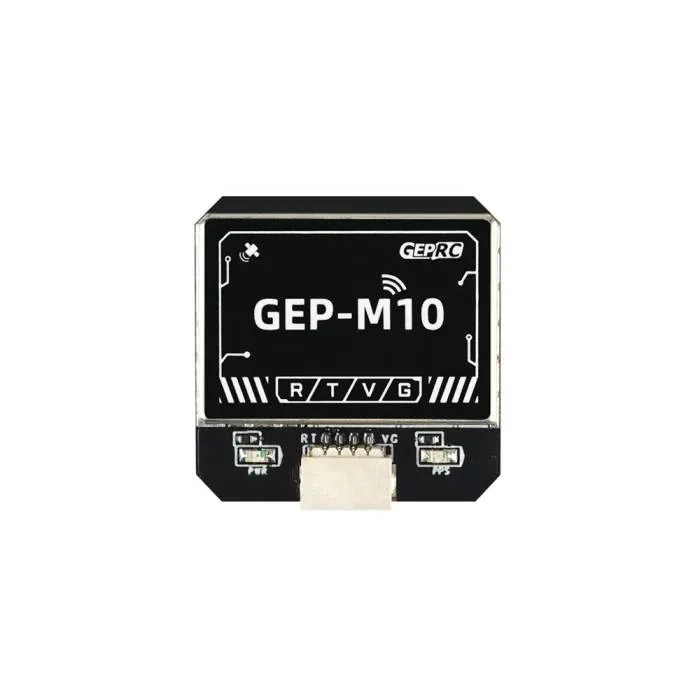

GEPRC M10 GPS Module

The GEPRC M10 GPS module is built around the 10th-generation u-blox M10 chipset, delivering significantly faster satellite acquisition and stronger signal retention for FPV long-range and autonomous builds. Capable of tracking up to four satellite constellations concurrently (GPS, GLONASS, Galileo, and BDS), this receiver ensures a dense, reliable lock and lower HDOP even in challenging environments like deep valleys or dense urban areas.

Key features

• Powered by the u-blox M10050 chipset for rapid cold starts and high positioning accuracy.

• Concurrent multi-constellation tracking ensures maximum satellite visibility.

• Onboard high-gain ceramic patch antenna minimises signal dropout during aggressive flight angles.

• Available in a standard M10 version or the M10I variant, which includes an integrated compass (magnetometer) for full 3D directional awareness.

Specifications

• Chipset: u-blox M10050

• Supported constellations: GPS, GLONASS, Galileo, BDS

• Input voltage: 3.3-5 V

• Default baud rate: 115200 bps

• Output protocol: UBLOX

• Receive channels: 72

• Update rate: 10 Hz

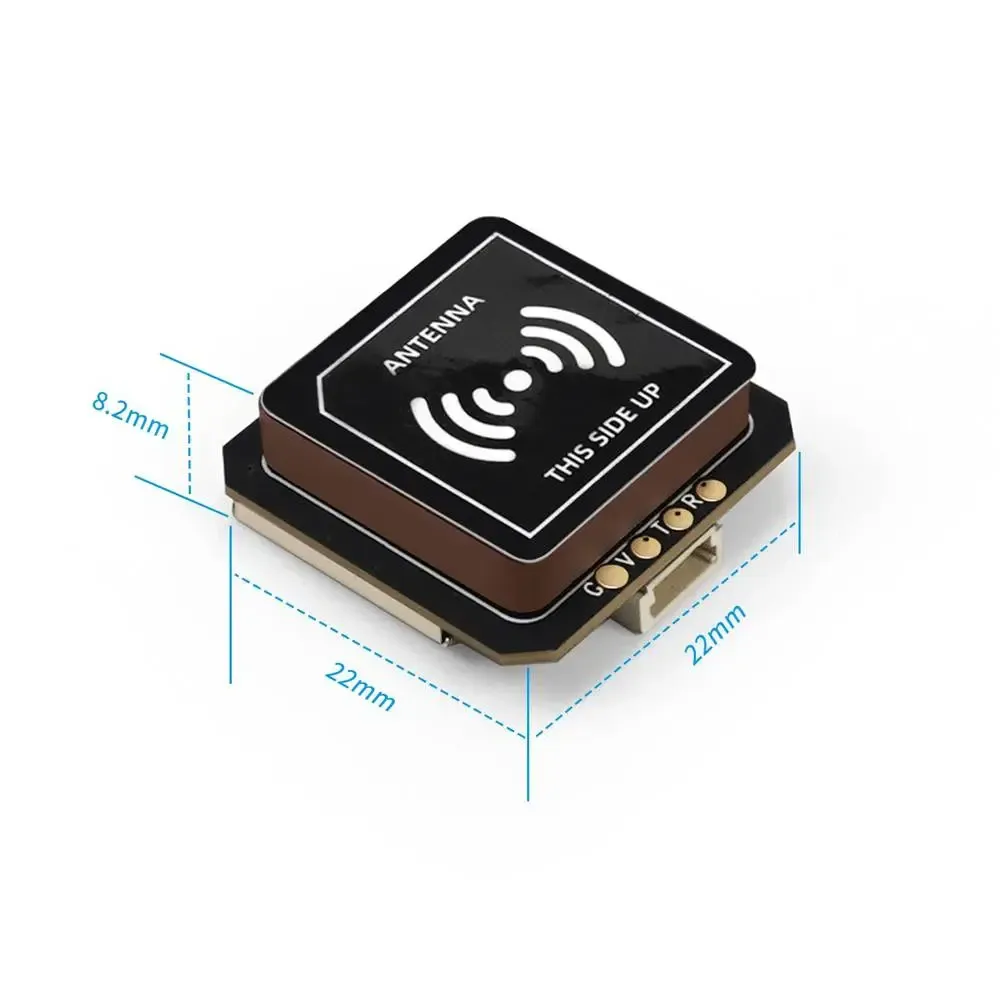

• Dimensions (M10): 22 x 22 x 8.2 mm

• Weight (M10): 7.8 g

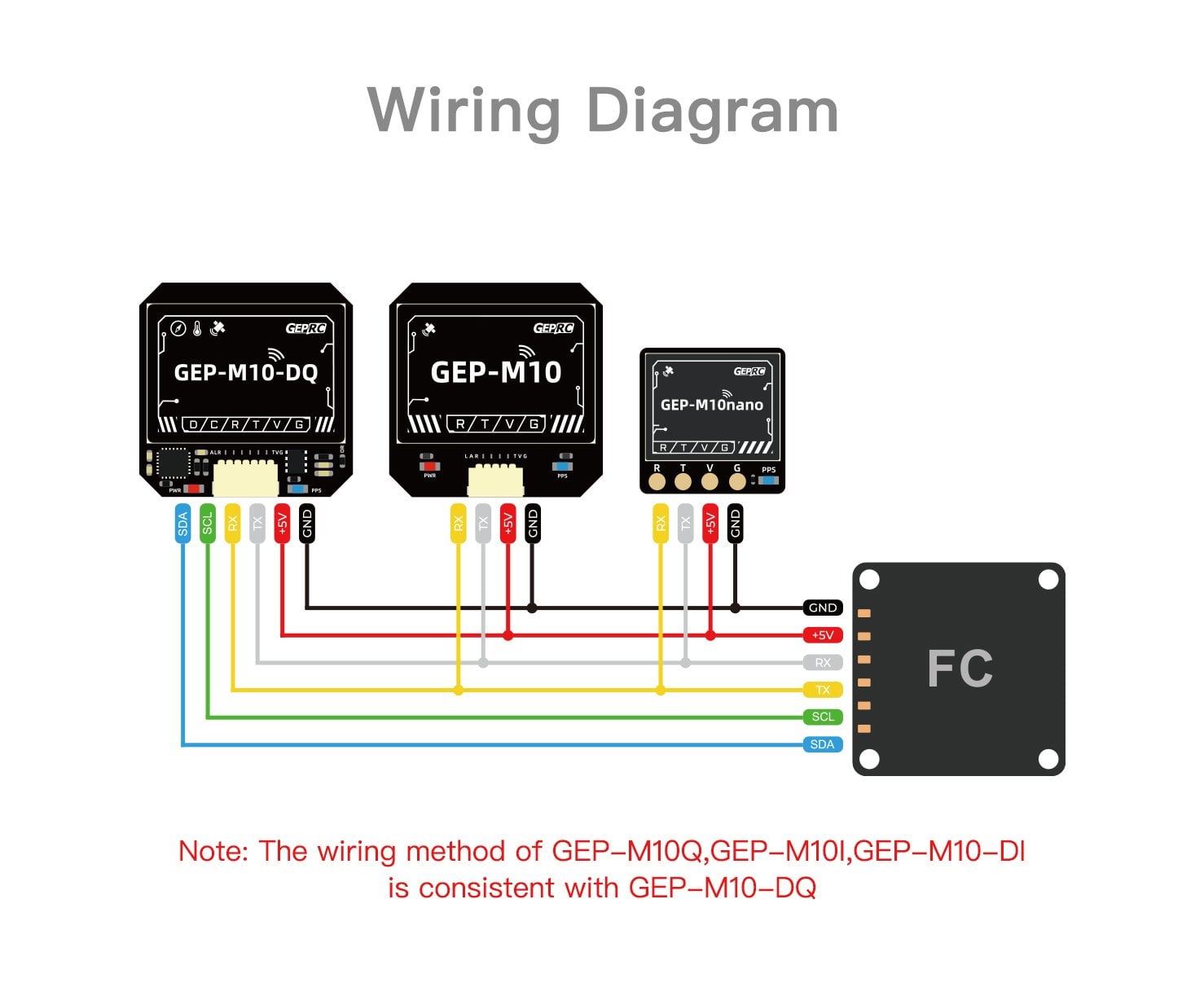

• Compass/Magnetometer: Included on M10I variant only (requires I2C connection)

Choose the standard M10 for Betaflight drones relying on basic GPS rescue, or select the M10I variant if your build runs INAV or ArduPilot and requires an active compass for position hold, precise return-to-home, and autonomous waypoints.
