TBS Tracer Nano RX 2.4GHz Receiver

₹3,219Incl. GST

SKU TBS-TRACER-NANO-RX

RC Protocol: TBS TracerMade in India: NoBrand: TBSFrequency: 2.4GHz

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

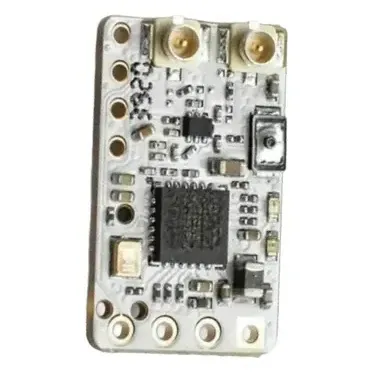

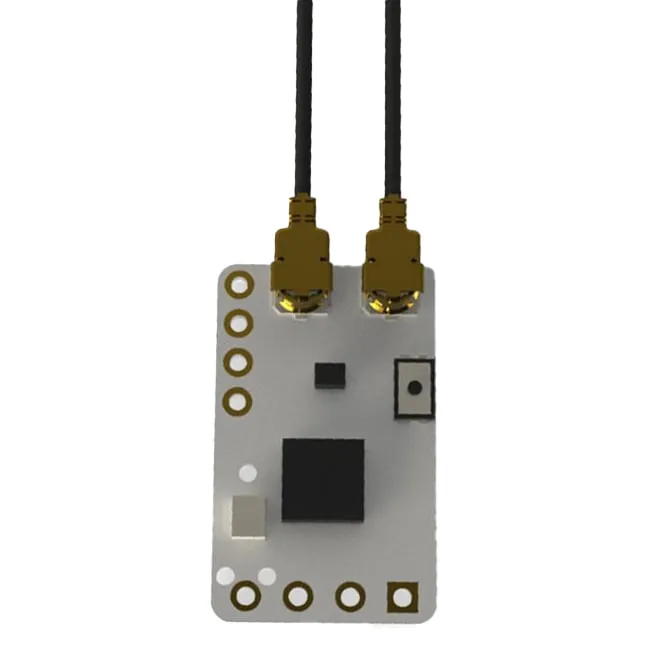

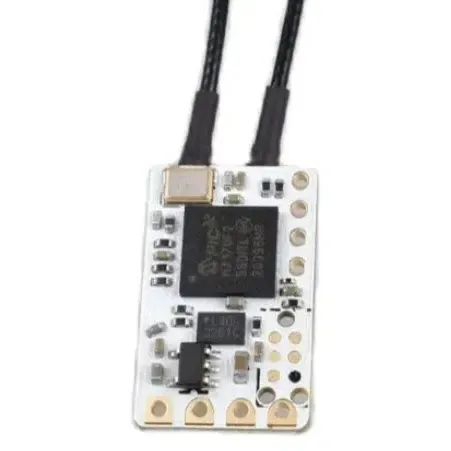

The TBS Tracer Nano RX is a 2.4GHz receiver for Team BlackSheep's Tracer control link, measuring 11 x 18 mm and weighing about 0.5 g, so it fits tight whoop, toothpick and 5-inch racing or freestyle builds. It speaks CRSF to the flight controller, the same serial protocol Crossfire receivers use, so Betaflight and INAV set it up as a CRSF receiver.

Key features

  • Low-latency 2.4GHz Tracer link aimed at racing and freestyle, where stick response matters most
  • Two CRSF ports plus SBUS, PPM and PWM outputs for flight controllers and fixed-wing setups
  • SmartAudio 2.0/2.1 VTX control straight from the receiver

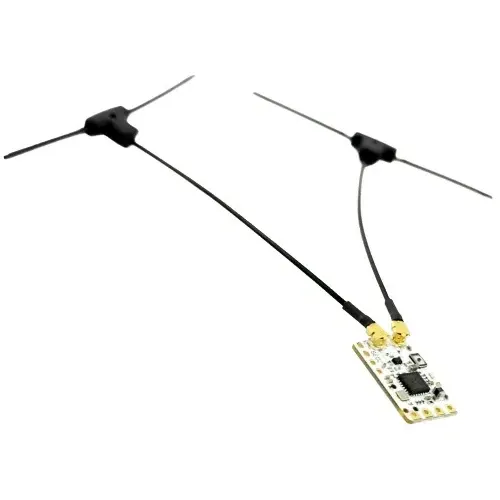

  • Two Immortal-T antennas and a silicone lead included

Specifications

  • Link: TBS Tracer, 2.4GHz
  • Outputs: 2x CRSF, SBUS, PPM, 6x PWM, SmartAudio 2.0/2.1
  • Size: 11 x 18 mm
  • Weight: 0.5 g (receiver only)
  • Antenna connector: U.FL

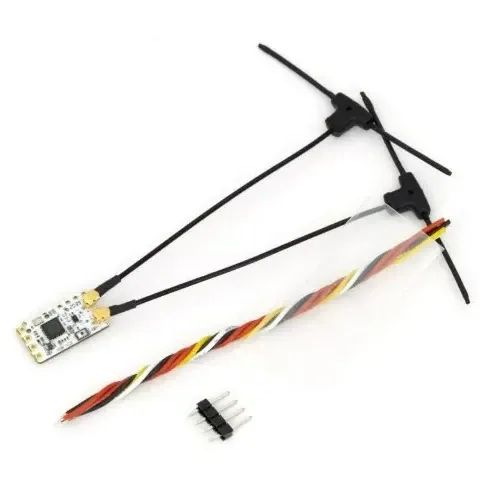

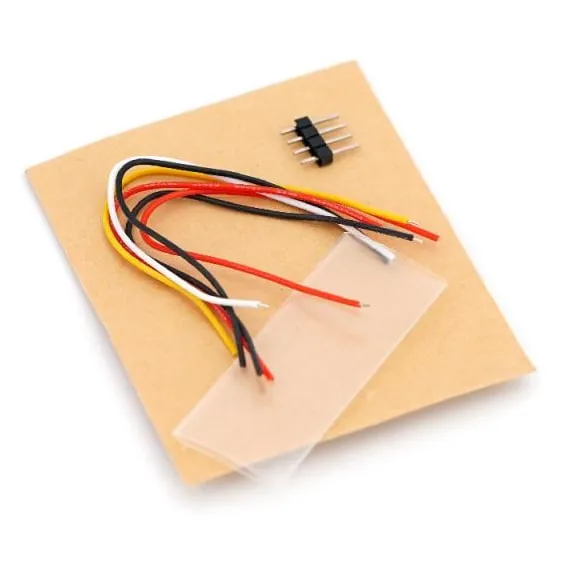

  • In the box: Tracer Nano RX, 2 x Immortal-T antennas, silicone cable

It binds only to a TBS Tracer transmitter or module; an 868/915MHz Crossfire module will not bind to it. Wire it to a free UART, choose CRSF as the serial receiver protocol, and keep the antenna clear of carbon plates for the best link.
