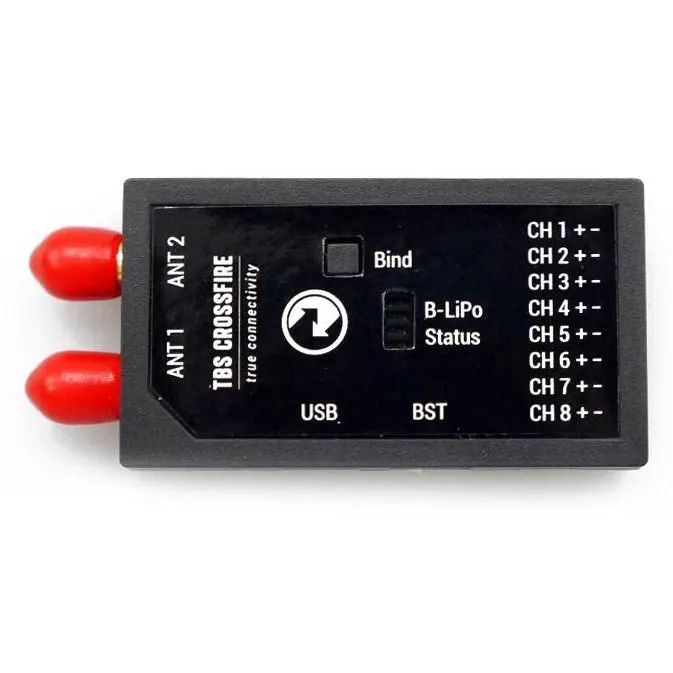

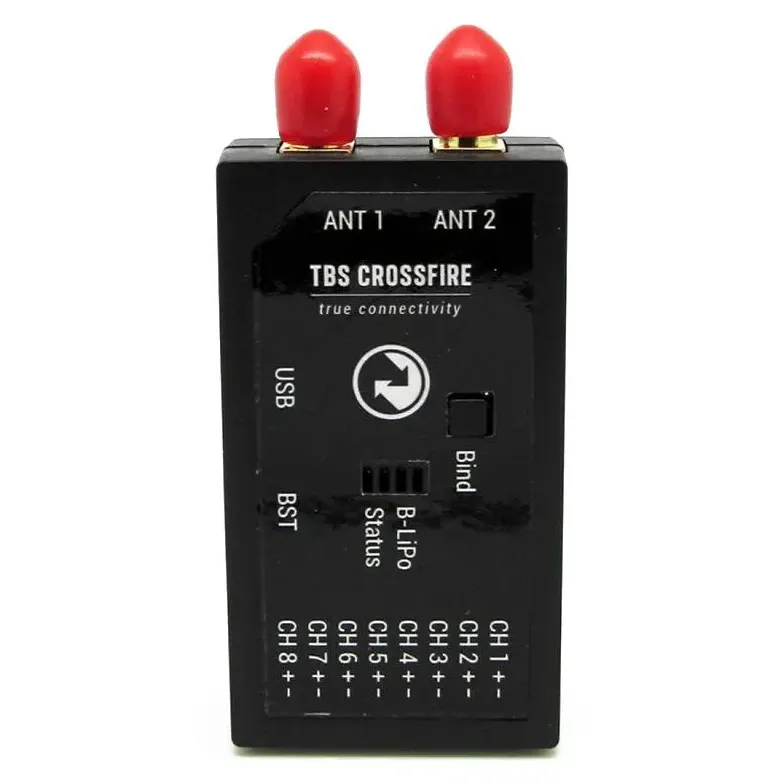

TBS Crossfire 8CH Diversity Receiver

The TBS Crossfire 8CH Diversity Receiver is a full-sized UHF link receiver engineered for long-range fixed-wing, X-Class, and heavy-lift multirotor builds. Featuring true dual-receiver diversity and eight onboard PWM outputs, it provides an ultra-reliable control link over extreme distances while connecting directly to standard servos or flight controllers.

Key features

• True dual-receiver diversity for redundant signal reception and maximum range
• Eight onboard PWM header pins for direct servo control without requiring a flight controller
• Support for low-latency CRSF, SBUS, and PPM output protocols
• Integrated FLARM and remote beacon capability (requires optional backup battery)
• BST (BlackSheep Telemetry) port for seamless integration with TBS GPS and OSD systems

Specifications

• Protocol: TBS Crossfire
• Frequency: 868MHz / 915MHz
• Input voltage: 4.5V - 8.4V
• Antenna connectors: 2x u.FL
• Outputs: 8x PWM, CRSF, SBUS, PPM, BST

This receiver is purpose-built for large-scale platforms, gliders, and fixed-wing aircraft that demand uncompromising link stability and direct PWM servo management alongside traditional serial connections.
