TBS Crossfire Nano RX SE
₹3,899Incl. GST
SKU TBS-XF-NANO-RX-SE
RC Protocol: CrossfireMade in India: NoBrand: TBSFrequency: 868/915MHz
Dispatched within 2 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

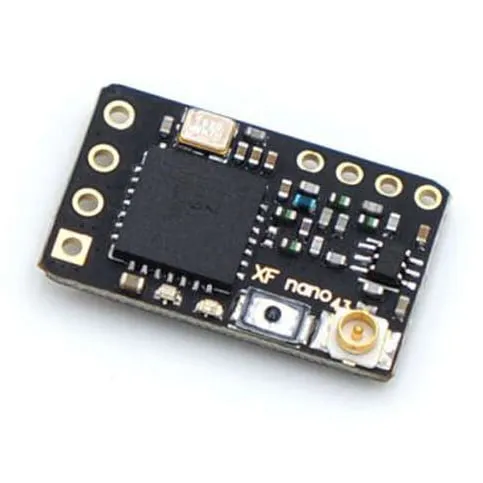

The TBS Crossfire Nano RX SE is the Special Edition of TBS's smallest full-range CRSF receiver, built for micro and mini quads where space is tight. It replaces the standard wire dipole with the TBS Immortal-T V2 antenna for sturdier, more consistent mounting.
Key features
- Full-range CRSF receiver on the dual 868/915MHz band, rated for up to 40km range with a Crossfire transmitter module.
- Outputs PPM, SBUS, CRSF or PWM across 12 channels, with telemetry back to your radio.
- Special Edition bundle swaps the wire whip for the TBS Immortal-T V2 antenna plus a spare shrink tube.

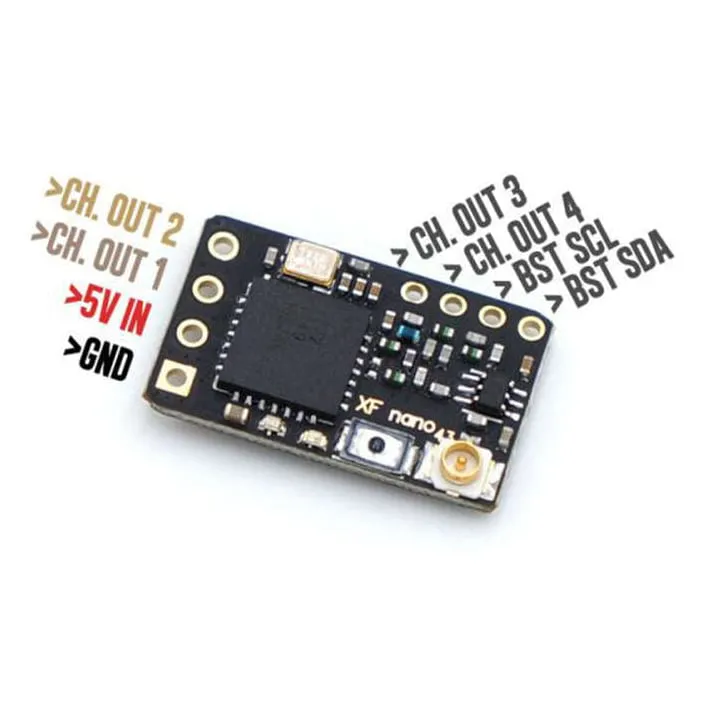

- Solder pads with supplied 30AWG wires for a direct, low-profile connection to the flight controller.
- Over-the-air firmware updates via the Crossfire link — requires Crossfire firmware V6.10 or newer.
Specifications
- Weight: 0.5 g (receiver only)

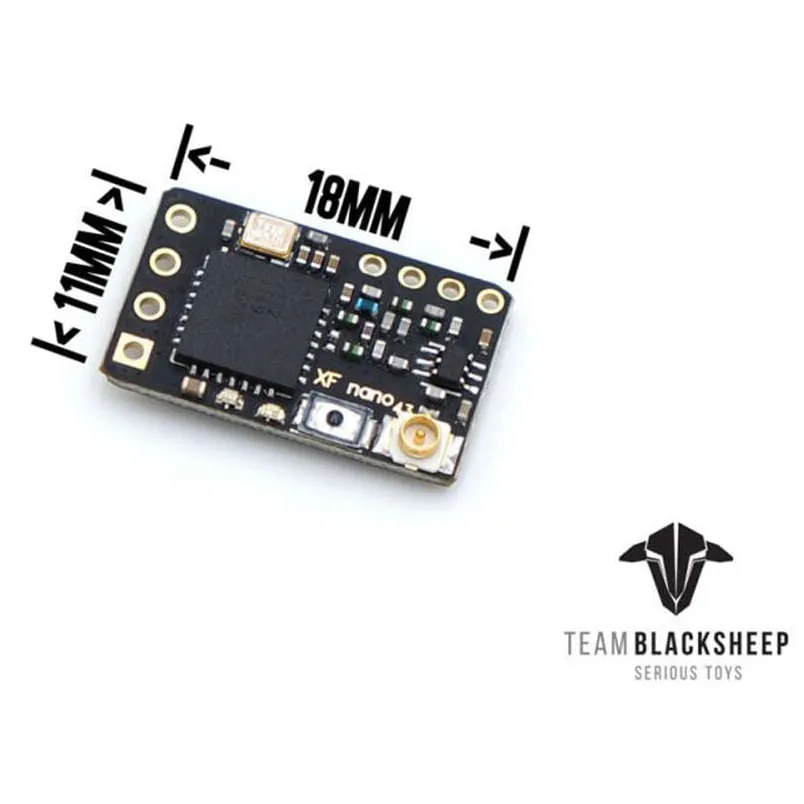

- Dimensions: 11 x 18 x 11 mm
- Input voltage: 3.3V to 8.4V
- Output formats: PPM, SBUS, CRSF, PWM
- Channels: 12

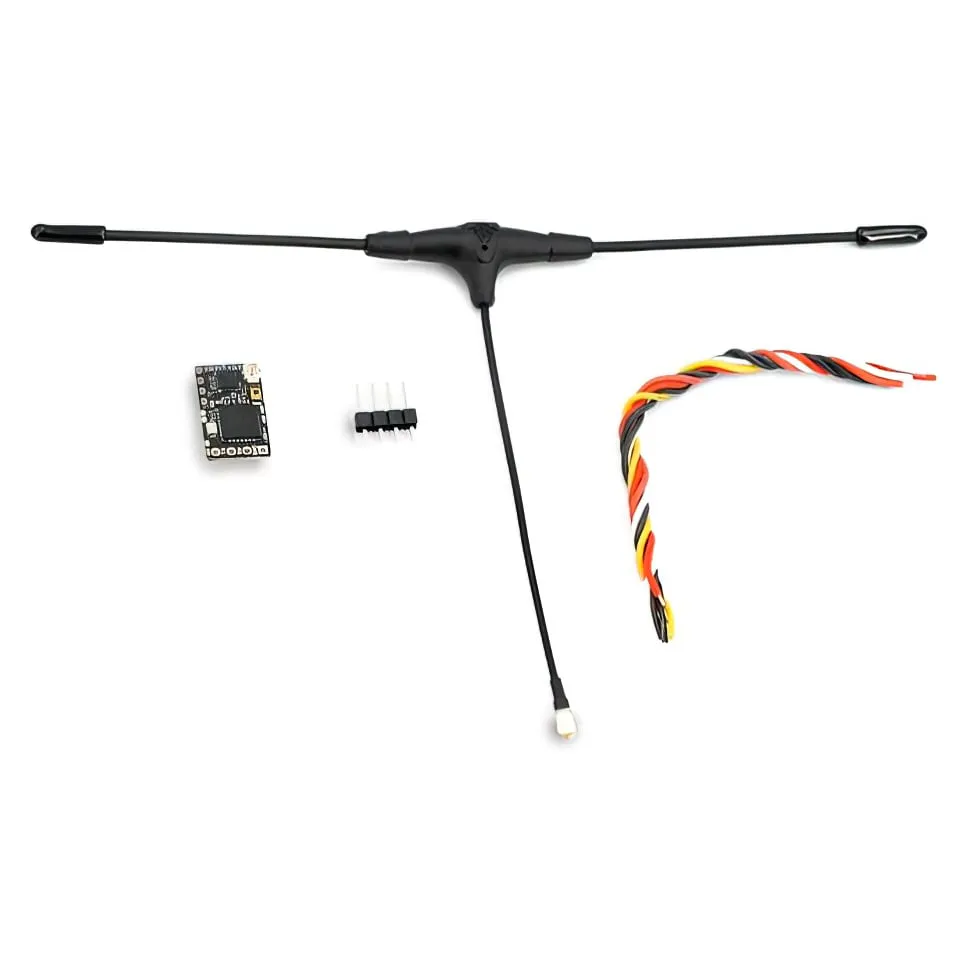

Box contents: nano receiver, Immortal-T V2 antenna, spare shrink tube, six 30AWG connection wires and a 1x4 pin header. Requires a TBS Crossfire transmitter module on the radio.
| RC Protocol | Crossfire |
|---|---|
| Made in India | No |
| Brand | TBS |
| Frequency | 868/915MHz |
| Weight | 0.5 g |
| Antenna Connector | U.FL |
| Diversity | No |
| Output Protocol | CRSF, PWM, SBUS, PPM |
