TBS Tracer Nano TX Starter Set

The TBS Tracer Nano TX Starter Set is an all-in-one 2.4GHz Crossfire-based radio control bundle engineered for FPV racing pilots and freestyle builders demanding ultra-low latency. Operating on the 2.4GHz ISM band with Crossfire engine technology, the Tracer system delivers a blisteringly fast 250Hz refresh rate (3ms end-to-end latency) and reliable link range without the bulky antennas of 900MHz UHF systems. The Nano TX module plugs directly into Lite-module bays found on radios like the TBS Tango 2, RadioMaster Pocket, Zorro, and Boxer.

Key features

• 250Hz refresh rate: Delivers 3ms end-to-end latency for instantaneous control response in tight racing circuits and proximity freestyle.
• Crossfire protocol engine: Built on robust TBS Crossfire technology with two-way telemetry and dynamic power scaling up to 100mW (or 1W where permitted).
• Over-the-Air (OTA) updates: Upgrade receiver firmware wirelessly directly through your transmitter without plugging into a PC.
• Complete starter bundle: Includes the Nano TX module, three ultra-light Tracer Nano RX receivers, and six replacement immortal T antennas to outfit multiple quads right out of the box.

Specifications

• System frequency: 2.4GHz ISM band
• Refresh rate: 250Hz / 150Hz / 50Hz
• Latency: 3ms
• RF output power: 25mW / 100mW / 250mW / 500mW / 1000mW (region dependent)
• Module bay compatibility: Lite bay (TBS Tango 2, RadioMaster Zorro / Pocket / Boxer, Jumper T-Lite / T-Pro)
• Receiver dimensions (Nano RX): 11mm x 18mm
• Receiver weight: 0.5g (receiver only)
• Supported protocols: CRSF, SBUS, PPM, DSMX, SmartAudio

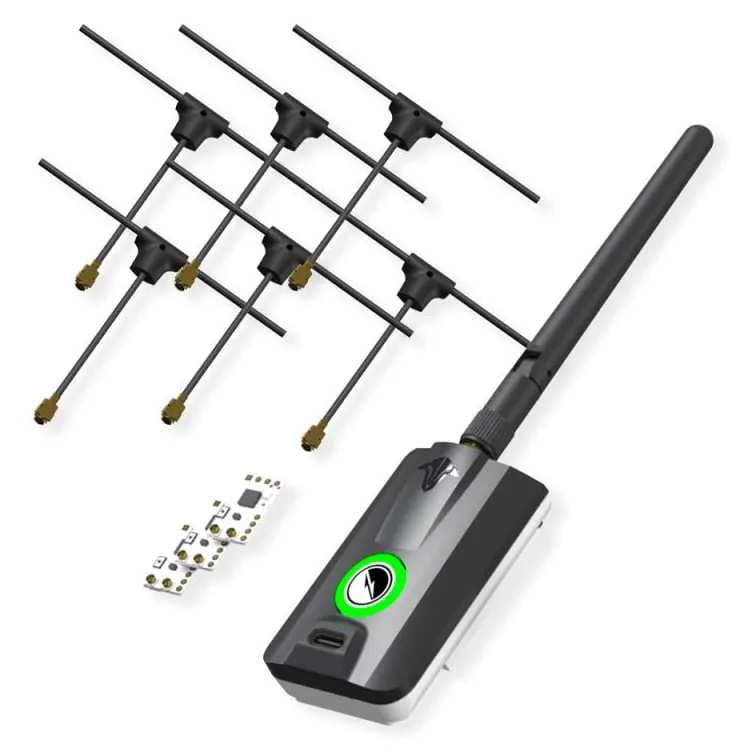

• Package contents: 1x TBS Tracer Nano TX module, 3x TBS Tracer Nano RX receivers, 6x TBS Tracer Immortal T antennas

To install, wire the included Nano RX receivers to any open UART on your flight controller via CRSF protocol and select the 250Hz mode in your radio's TBS Agent Lite Lua script for peak racing performance.
