TBS Crossfire Nano RX

The TBS Crossfire Nano RX is a proven standard for long-range, ultra-low-latency 868/915MHz control links. Weighing just 0.5g and measuring 11x18mm, this receiver bypasses the bulk of traditional components to fit perfectly inside the tightest whoops, micro drones, and toothpick builds. Despite its size, it delivers the exact same range, penetration, and reliability as the larger Crossfire Micro RX. It is an essential component for freestyle, long-range, and cinematic pilots pushing past standard 2.4GHz video limits or flying in challenging, high-interference RF environments.

Key features

• Full-range performance squeezed into an ultra-compact footprint.
• Supports full two-way telemetry and the high-speed CRSF protocol for Betaflight, INAV, and ArduPilot.
• Broad 3.3V to 8.4V input voltage range accepts direct power from a standard 5V flight controller BEC or straight from a 1S/2S LiPo.
• Surface-mount u.FL (IPEX1) antenna connector allows for straightforward antenna routing and upgrades.

Specifications

• Weight: 0.5g (receiver only)

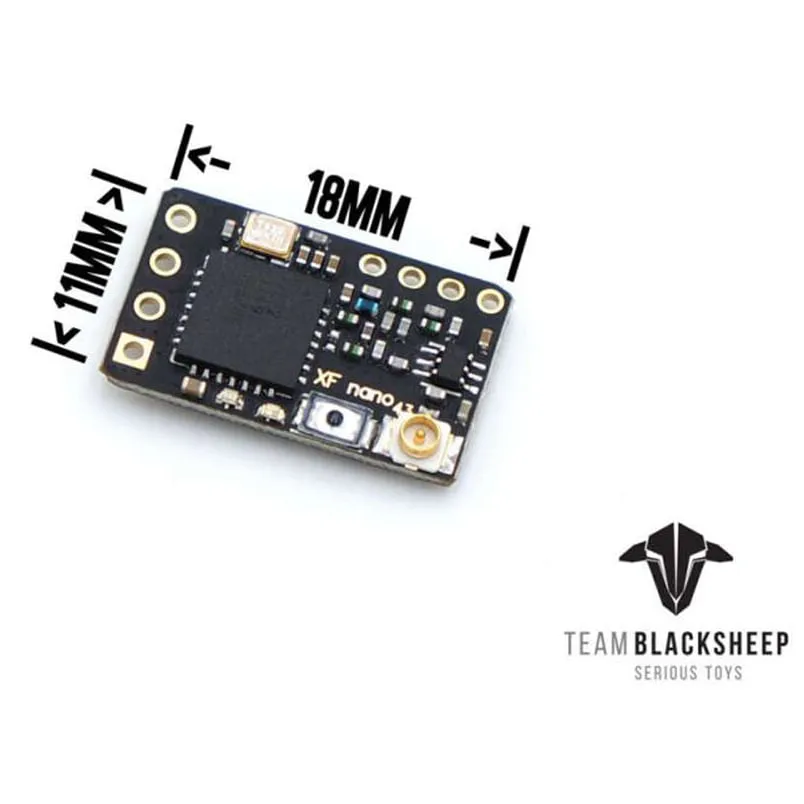

• Dimensions: 11 x 18 mm
• Input voltage: 3.3V - 8.4V
• Operating frequency: 868MHz (EU) / 915MHz (US/Asia/AU)
• Antenna connector: u.FL / IPEX1
• Supported protocols: CRSF

Compatible with all TBS Crossfire transmitter modules, including the Micro TX, Nano TX, Lite, and Full-size versions. Ensure your transmitter module is updated to Crossfire firmware version 2.25 or higher before attempting to bind.
