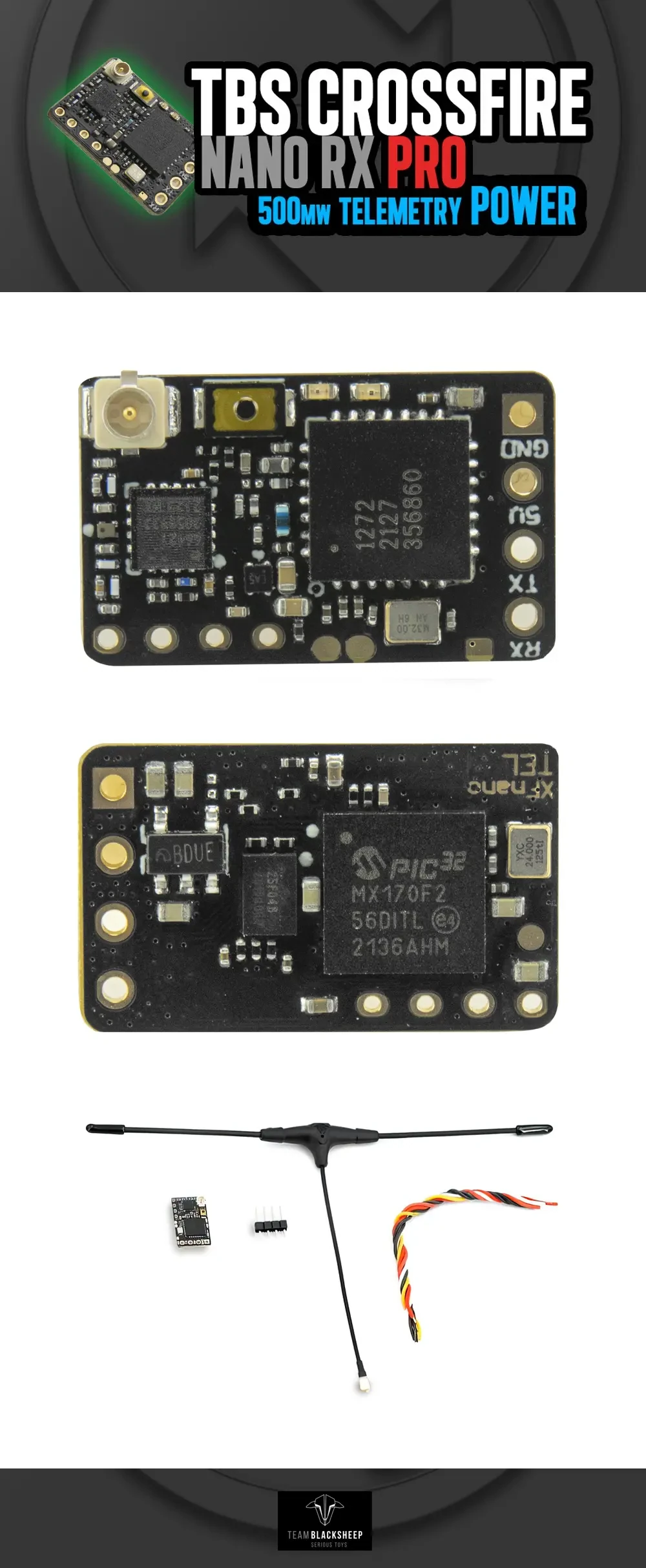

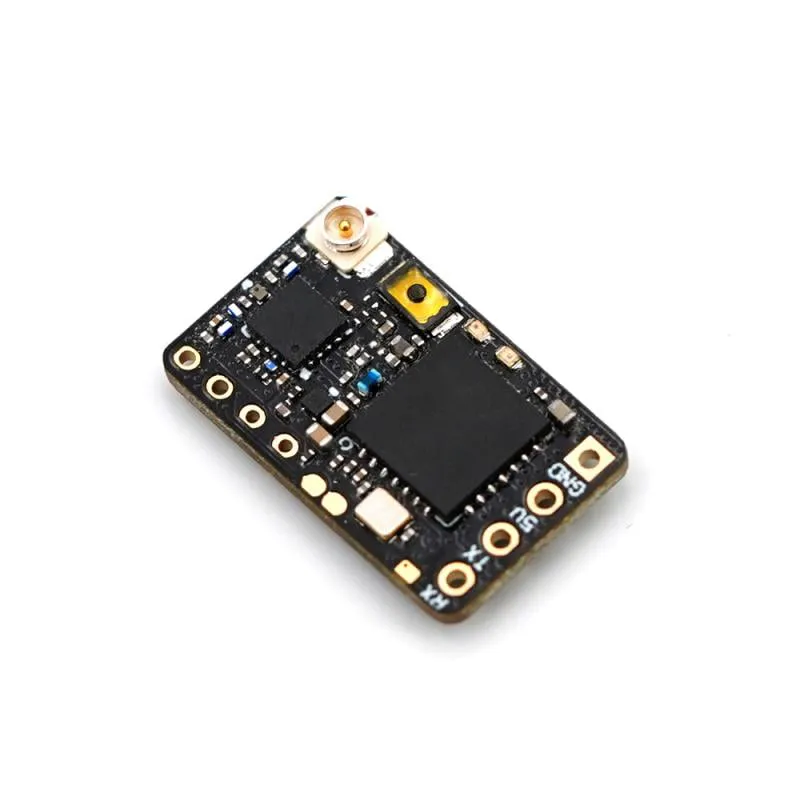

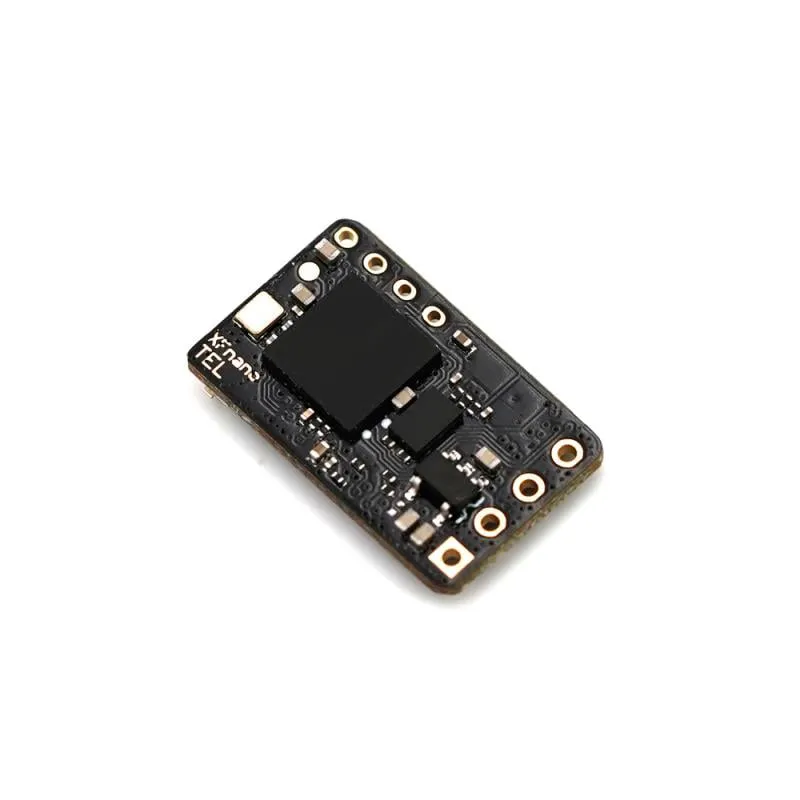

TBS Crossfire Nano RX Pro

The TBS Crossfire Nano RX Pro is an upgraded 868/915MHz UHF receiver featuring an impressive 500mW of telemetry output power. Designed for long-range FPV pilots, fixed-wing explorers, and macro-quad builders requiring bulletproof two-way communication at extreme distances, it packs high-power telemetry into the exact same 11x18mm footprint as the standard Nano RX. The boosted output ensures your GPS coordinates and critical flight data reliably return to your radio even when flying miles away.

Key features

• Class-leading 500mW telemetry output—a twenty-fold increase over the standard Nano RX for robust data recovery at range.

• Maintains the standard 11x18mm dimensions and 0.5g weight for effortless drop-in compatibility with your existing builds.

• Operates on the proven, ultra-low latency CRSF protocol over the 868MHz (EU) or 915MHz (US/AU) UHF bands.

• Accepts a wide 3.3V to 8.4V input voltage, allowing direct power from 5V pads or high-voltage BECs.

Specifications

• Weight: 0.5g (receiver only)

• Dimensions: 11 x 18 mm

• Telemetry output power: Up to 500mW

• Input voltage: 3.3V to 8.4V

• Antenna connector: U.FL / IPEX1

• Required firmware: TBS Crossfire V4.11 or later

Note: To safely utilise the full 500mW telemetry output, ensure your flight controller's regulator can comfortably handle the increased current draw during high-power transmission bursts.
