Product details

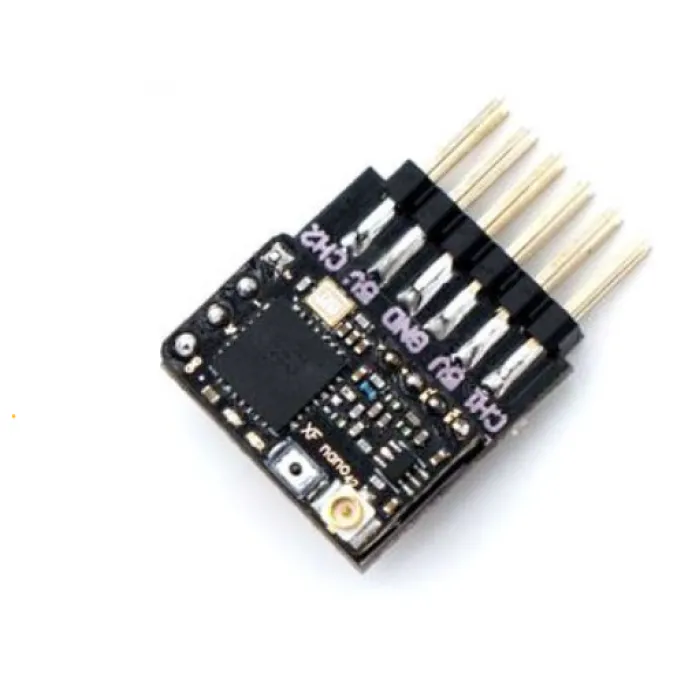

The TBS 6-Channel PWM Adapter is a dedicated breakout board designed to convert a serial-based TBS Crossfire Nano RX or Tracer Nano RX into a traditional 6-channel PWM receiver. It is built for fixed-wing aircraft, flying wings, and traditional RC builds where you need to drive servos and standard ESCs directly without relying on a flight controller.
Key features
- Directly surface-mounts the Crossfire or Tracer Nano RX via matching castellations
- Converts CRSF serial protocol into six independent PWM channels

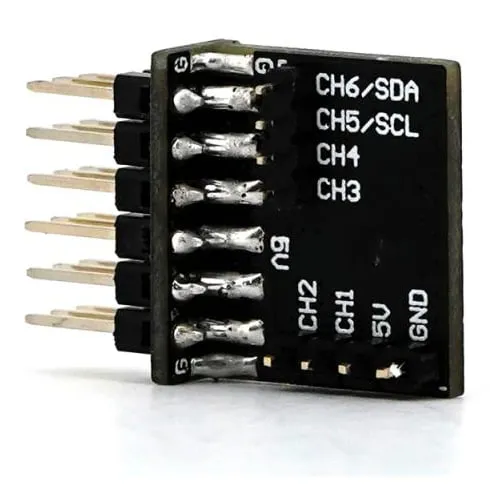

- Features standard 2.54mm pitch through-holes for straight or right-angle servo pin headers
- Keeps wiring clean and compact for tight glider bays and wing profiles
Specifications
- Supported receivers: TBS Crossfire Nano RX, TBS Tracer Nano RX
- Outputs: 6x PWM channels (CH1 to CH6)
- Pin pitch: 2.54mm (standard servo spacing)
- Size: 27 x 20 x 7 mm (with pins)
- Weight: 3.24 g
- Package includes: 1x adapter board (receiver not included)

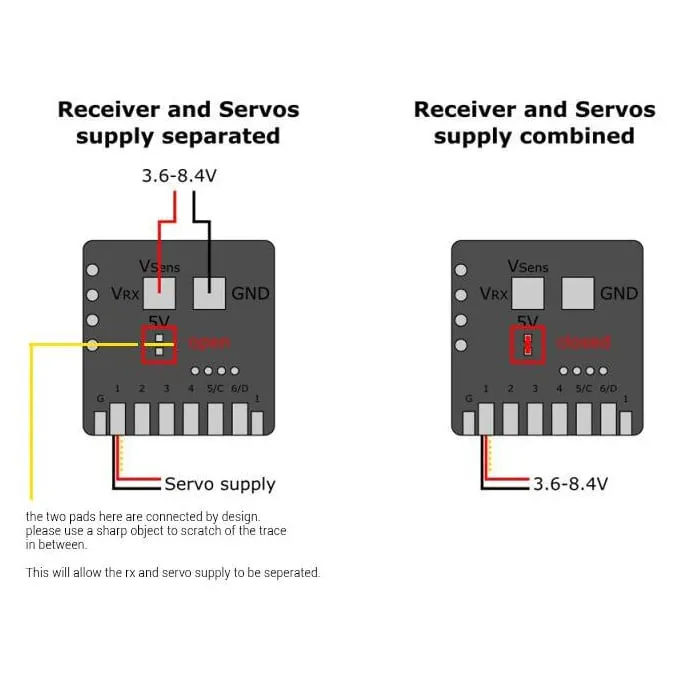

Installation requires basic soldering to mount the Nano receiver flat against the adapter board's surface pads. You will also need to solder your own straight or 90-degree header pins to connect your servos and the 5V BEC power supply.
| Made in India | No |
|---|---|
| Brand | TBS |
| Product Type | Receiver Adapter |
