T-Motor MN3508 KV380 Heavy-Lift Motor
SKU TMOTOR-MN3508-380KV
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The T-Motor MN3508 KV380 is a Navigator-series brushless motor for heavy-lift multirotor, VTOL and fixed-wing UAV applications, sharing its stator across the KV380/KV580/KV700 line.
Key features
12N14P stator configuration with EZO bearings for smooth, stable running at low speed.
Rated for 3-6S LiPo input with a max continuous current of 14A and max power of 310W.
Delivers up to about 1.88kg of thrust on a T-Motor 15x5 propeller at full throttle.
600mm 18AWG motor leads for wiring straight into an ESC.
Pairs with a T-Motor P15x5 propeller and a 20A 3-4S ESC per T-Motor's matching guide.

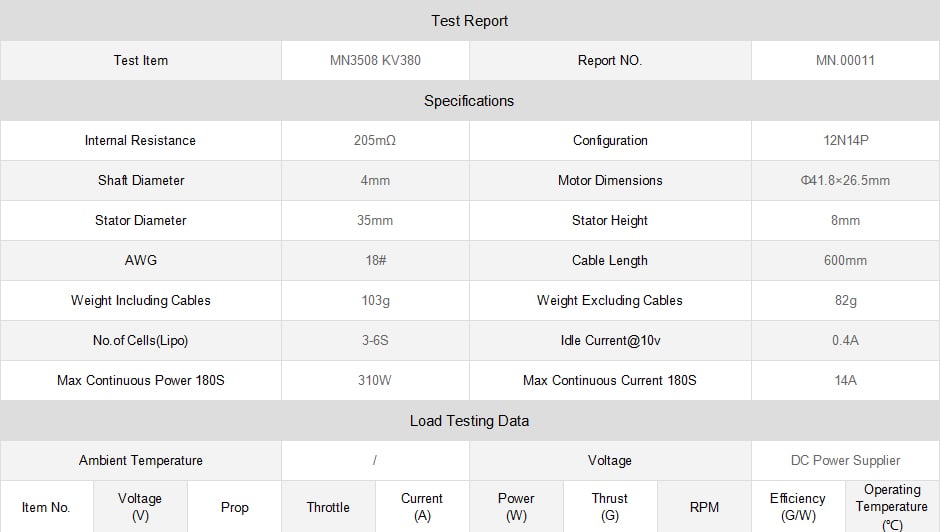

Specifications

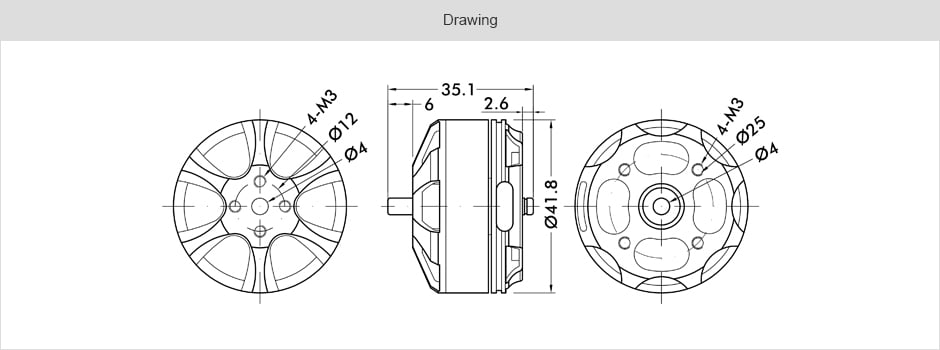

Stator size: 3508 (35mm diameter x 8mm height)
KV: 380KV
Weight: 82g excluding cable, 103g including cable
Shaft diameter: 4mm
Internal resistance: 205mΩ
Cable: 600mm, 18AWG

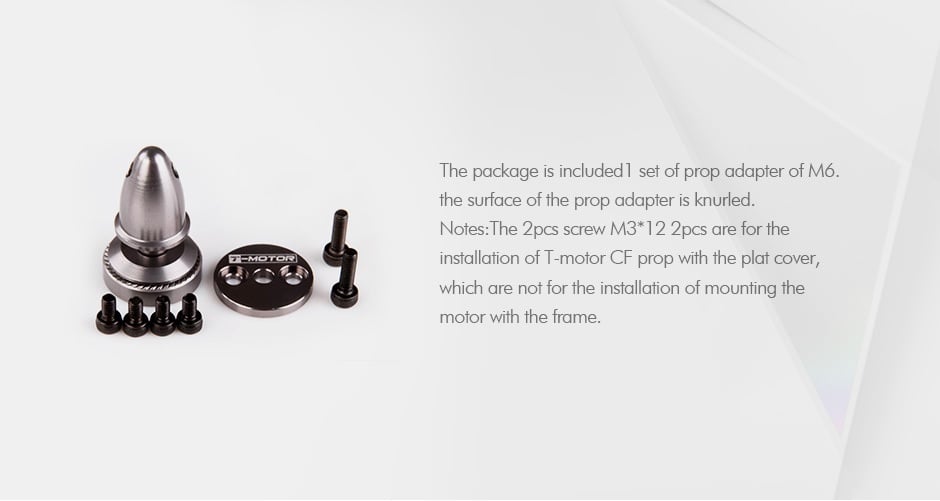

Includes one motor and a hardware pack; match propeller and ESC current rating to your airframe's payload before wiring it in.
