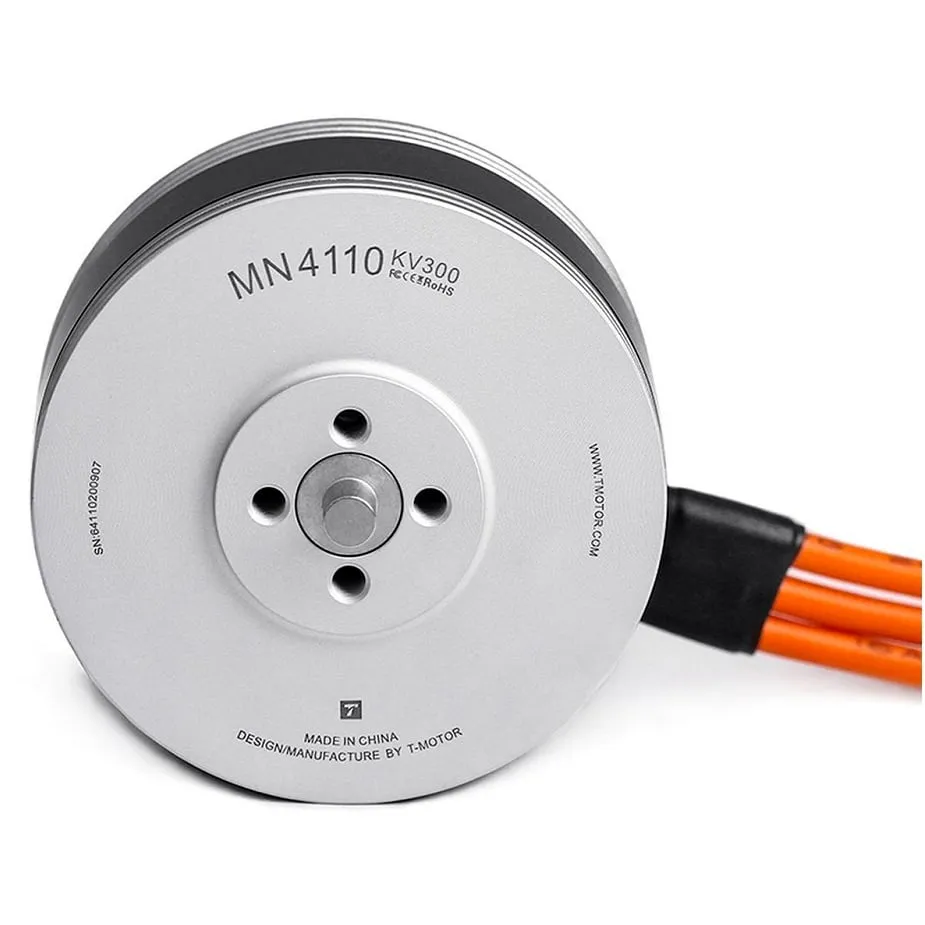

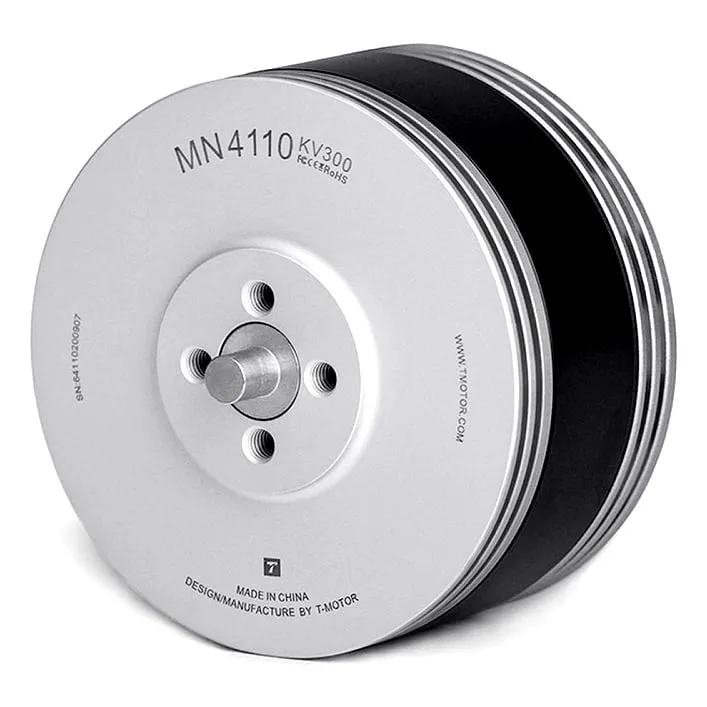

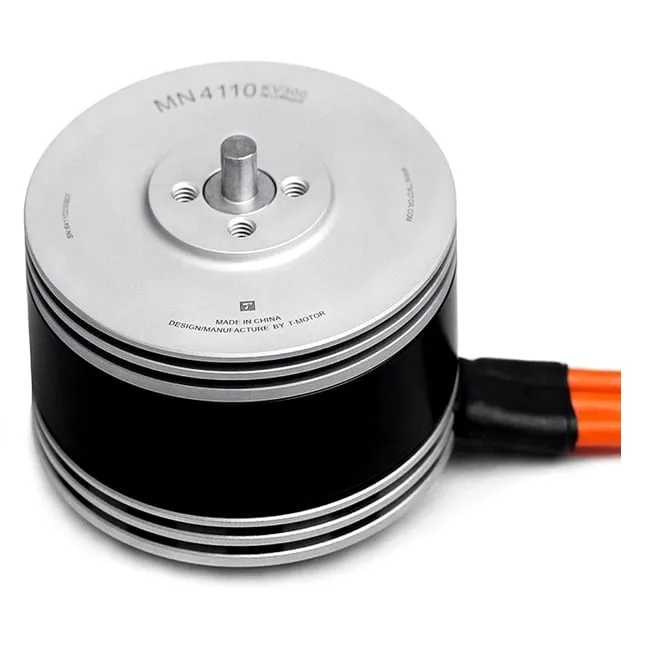

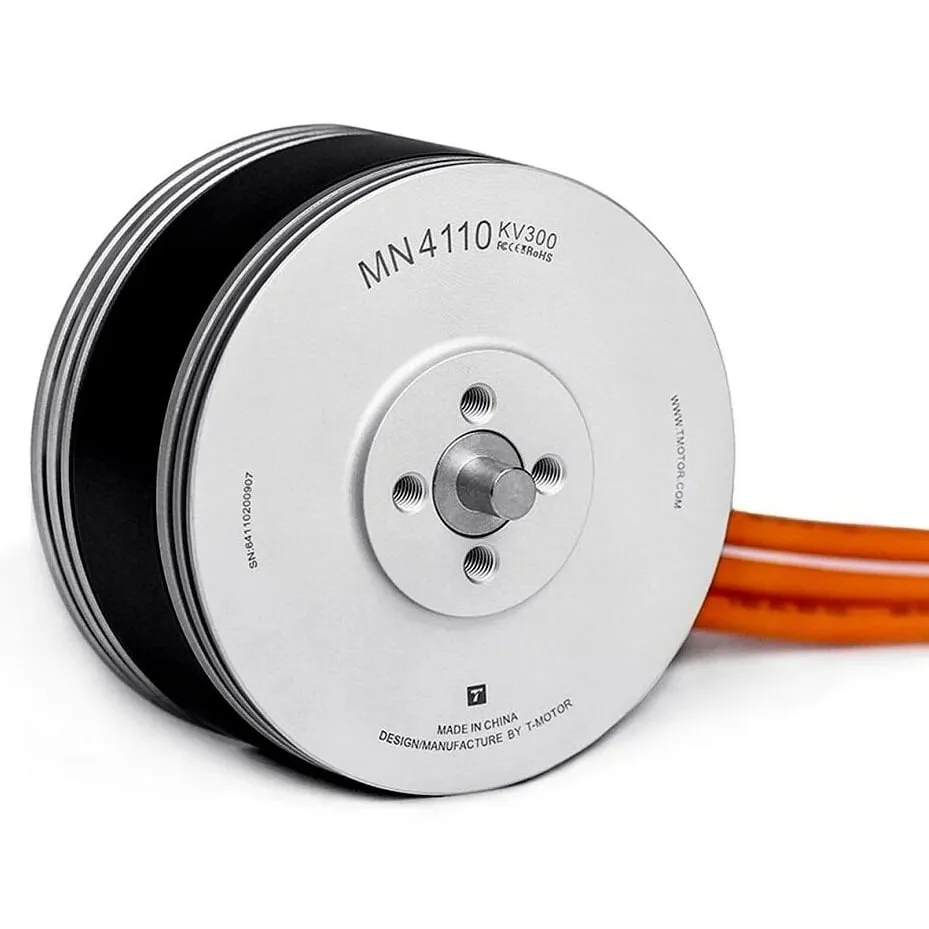

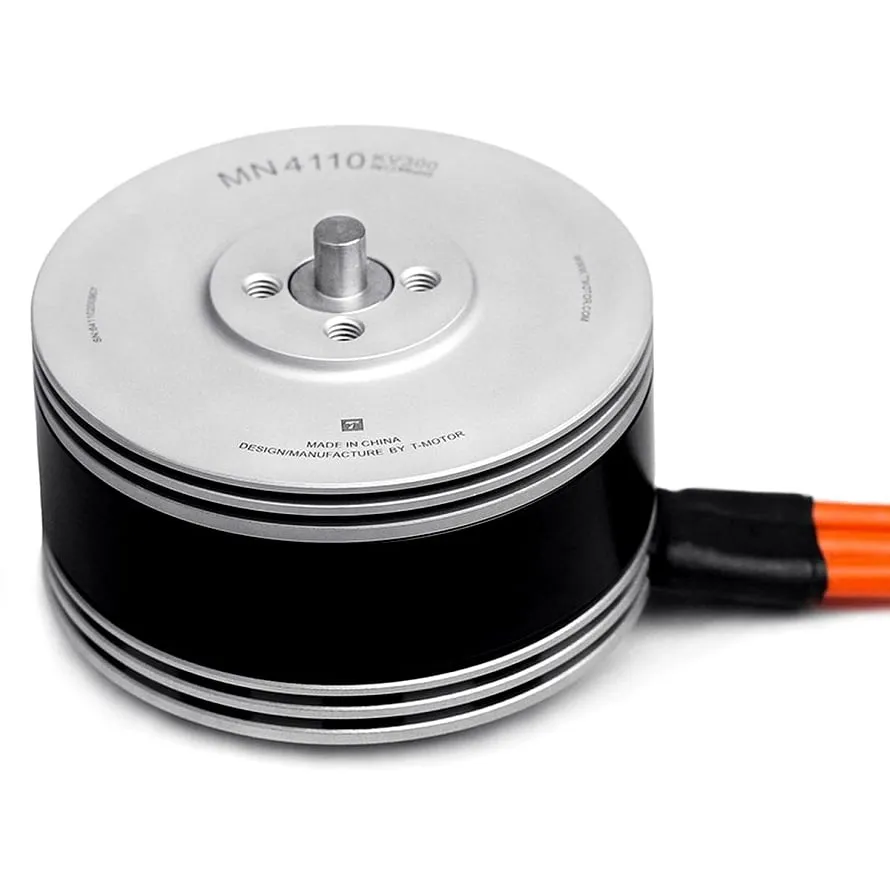

T-Motor Navigator MN4110 6S Brushless Motor

The T-Motor Navigator MN4110 is a 6S outrunner for multirotors, VTOL and fixed-wing aircraft swinging 15-18 inch propellers. Choose from 300KV, 340KV and 400KV windings, all sharing a 12N14P stator in a Φ47.4 × 36.7 mm, 152 g package.

Key features

• Updated MN411x design: T-Motor quotes 18% more heat flux, 5% higher efficiency between 1 and 2.5 kg of thrust and 5% more thrust at full throttle.

• Three windings: 300KV and 340KV for 17-18 inch props, 400KV for 15-16 inch props.

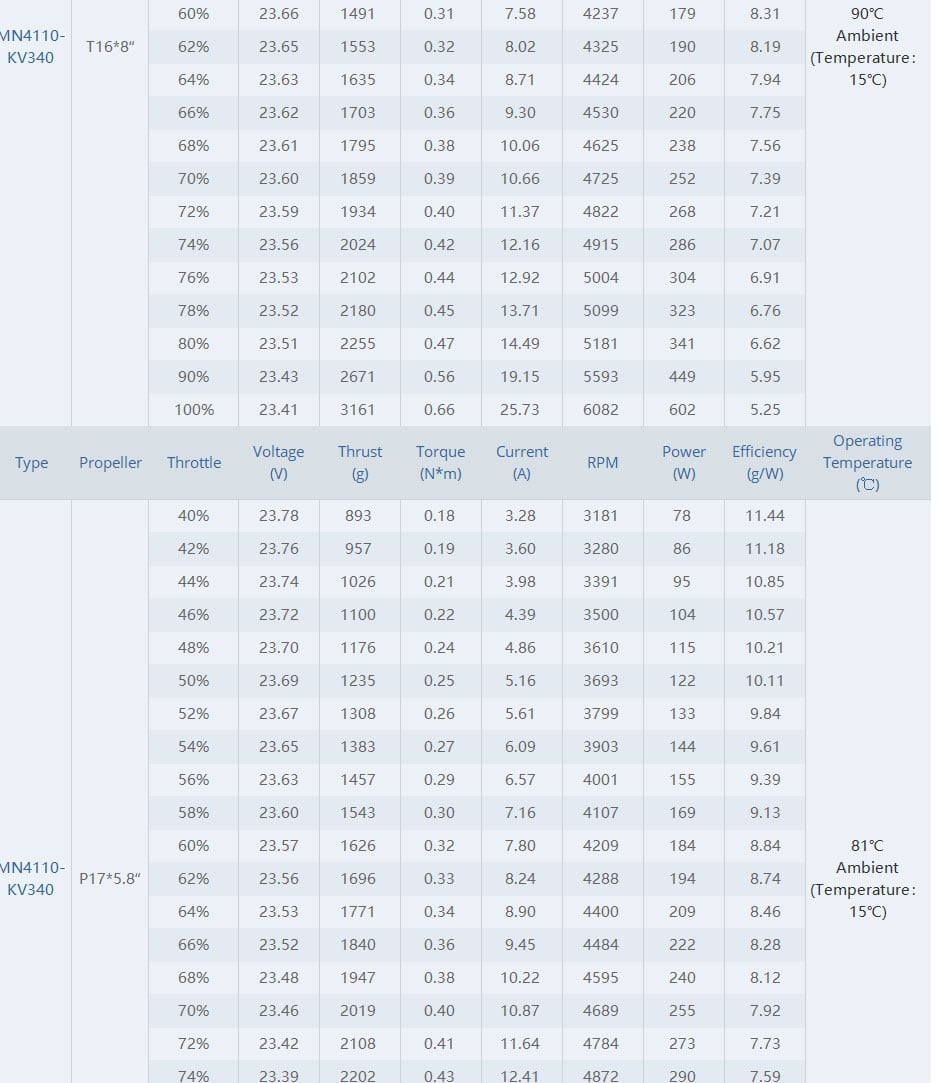

• Fixed-wing ready: the 300KV and 340KV windings are also matched to a T16 × 8 propeller.

• Quality internals: N45SH magnets and 686ZZ/696ZZ bearings, developed from the ground up for multirotor duty.

• Single motor supplied with its accessory pack.

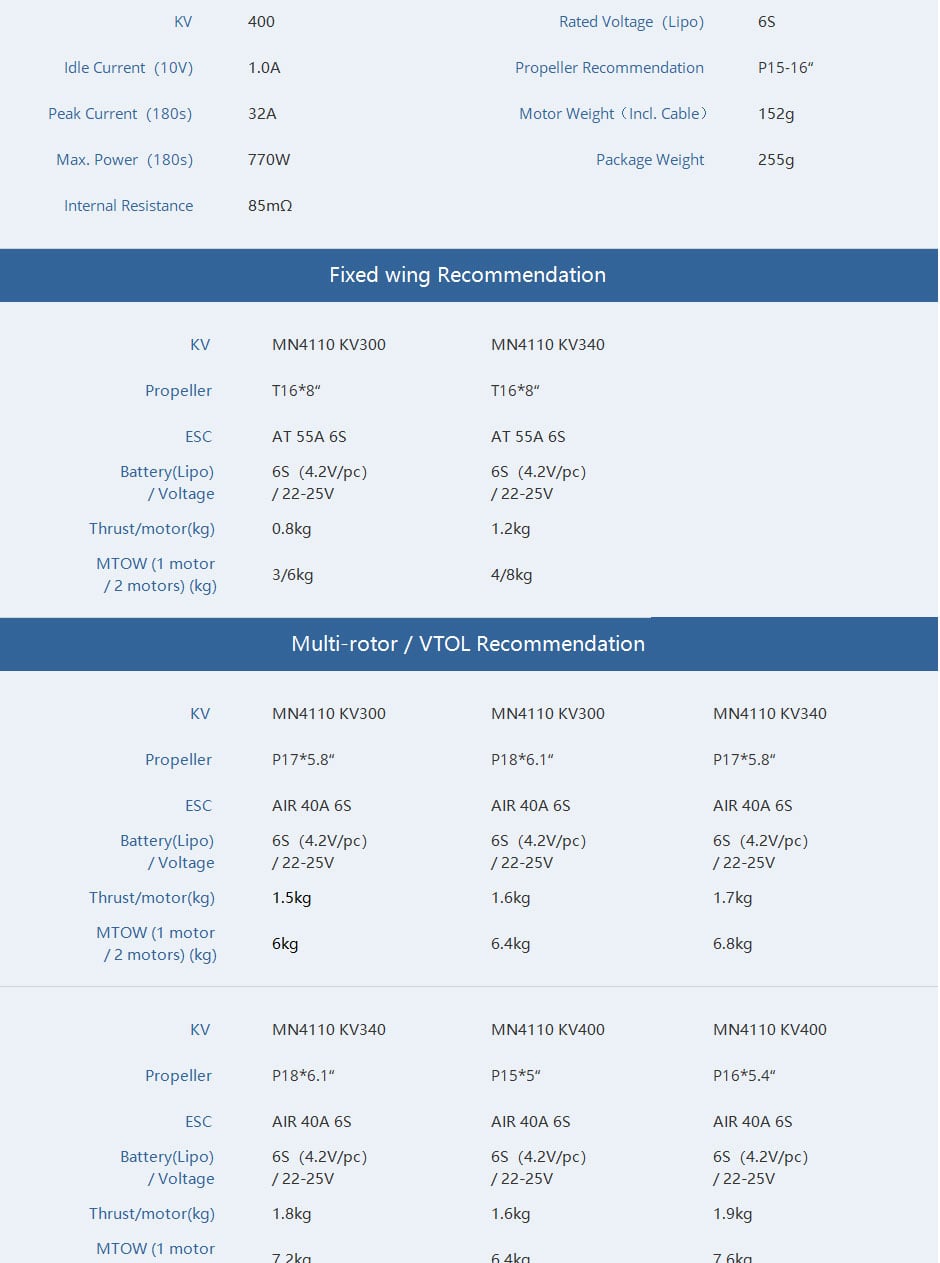

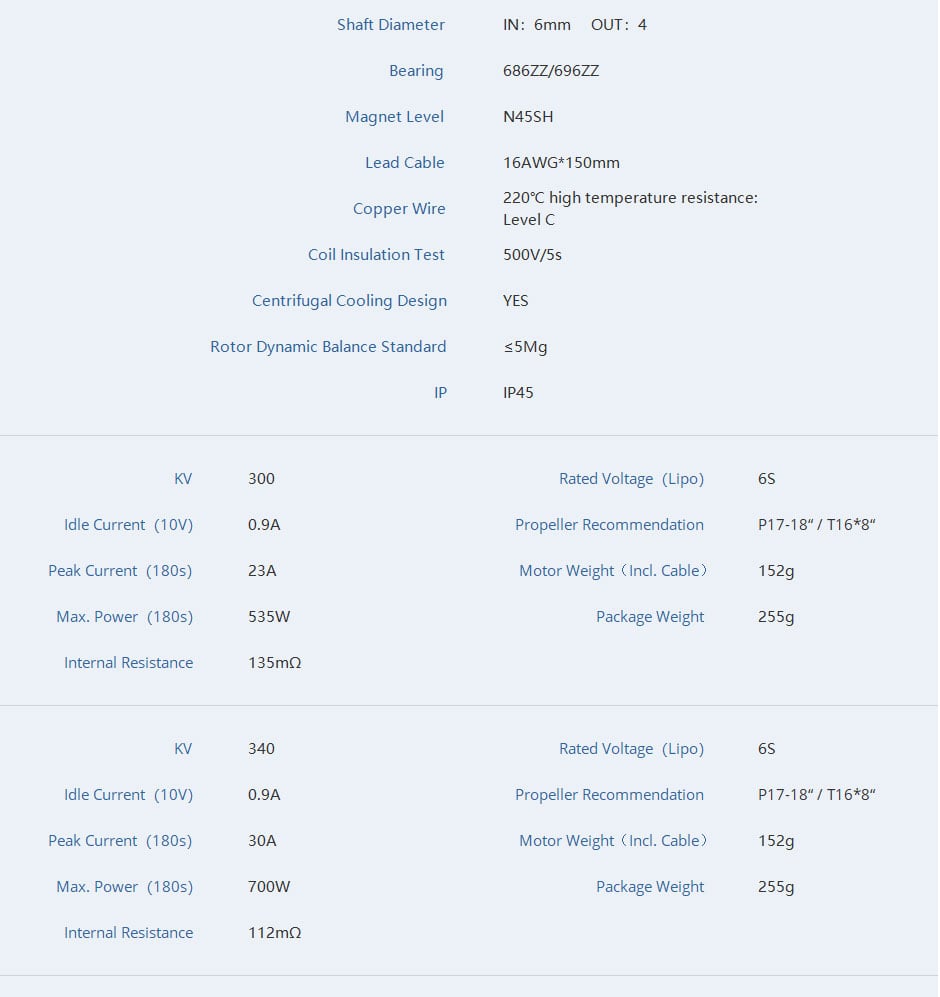

Specifications

• Rated voltage: 6S LiPo

• KV options: 300, 340, 400

• Configuration: 12N14P

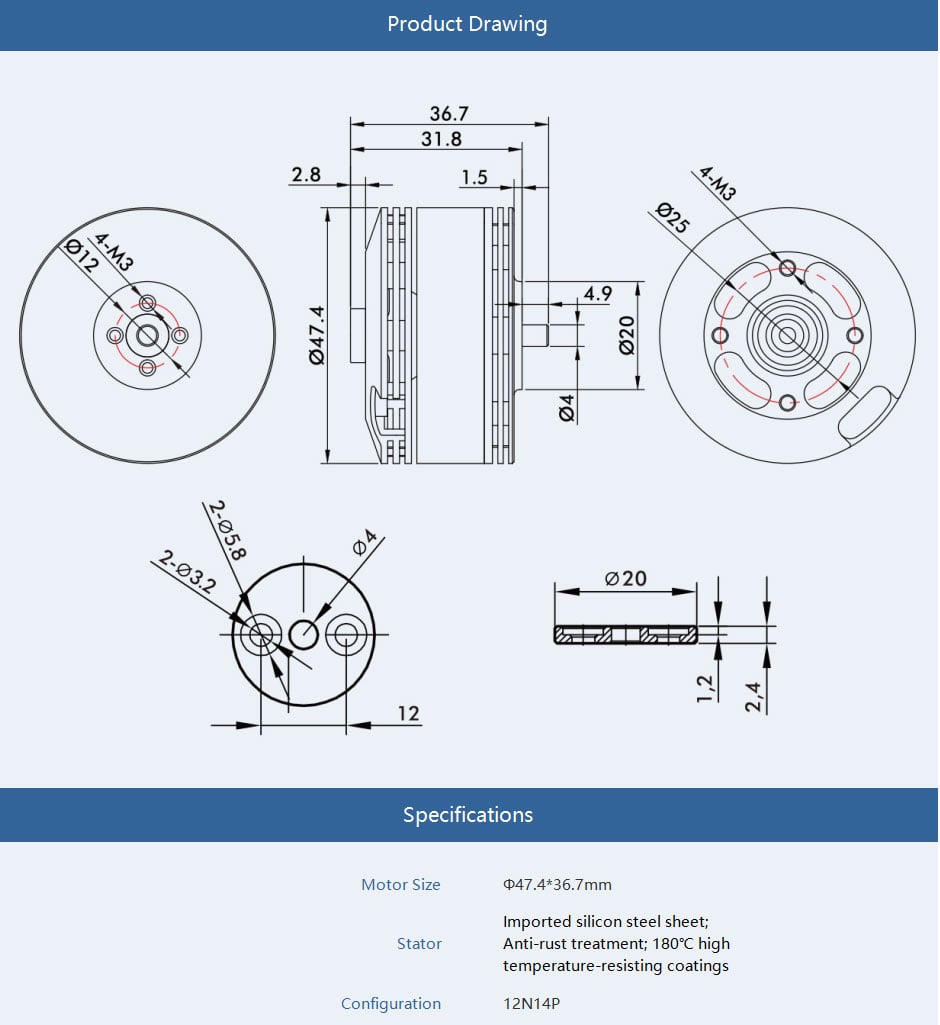

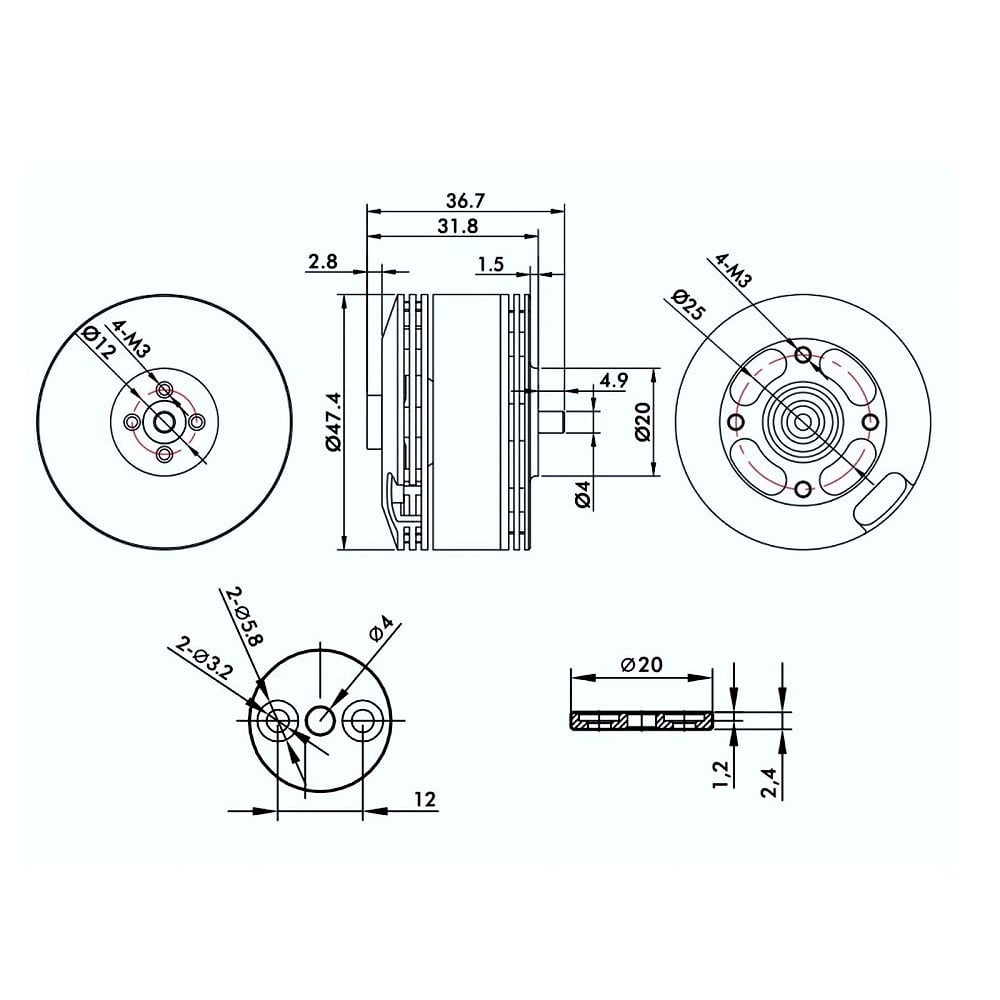

• Motor size: Φ47.4 × 36.7 mm

• Weight: 152 g incl. cable

• Shaft: 6 mm in / 4 mm out

• Lead: 16AWG × 150 mm

• 300KV: 23 A / 535 W peak (180 s), 135 mΩ, 17-18 inch props

• 340KV: 30 A / 700 W peak (180 s), 112 mΩ, 17-18 inch props

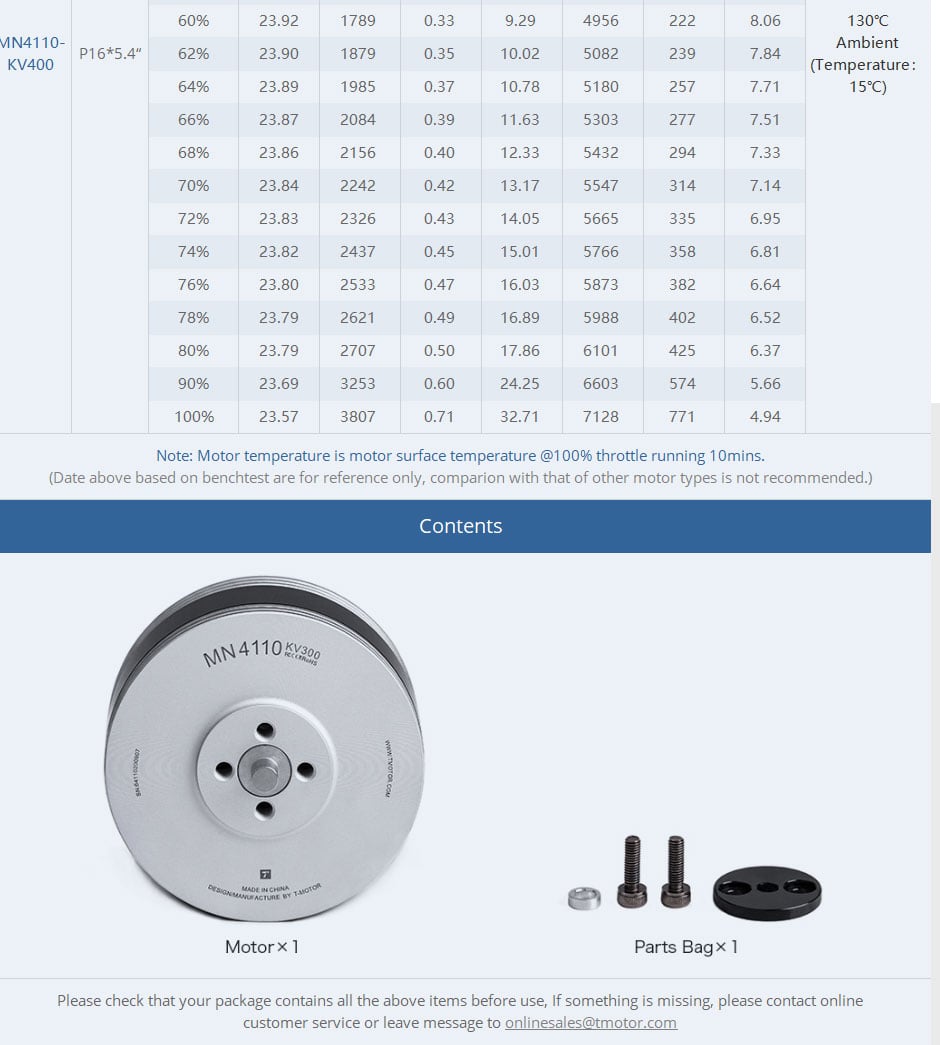

• 400KV: 32 A peak (180 s), 15-16 inch props

Pick the 300KV for the largest props and the lowest current draw, or the 400KV for a more responsive setup on 15-16 inch props.
