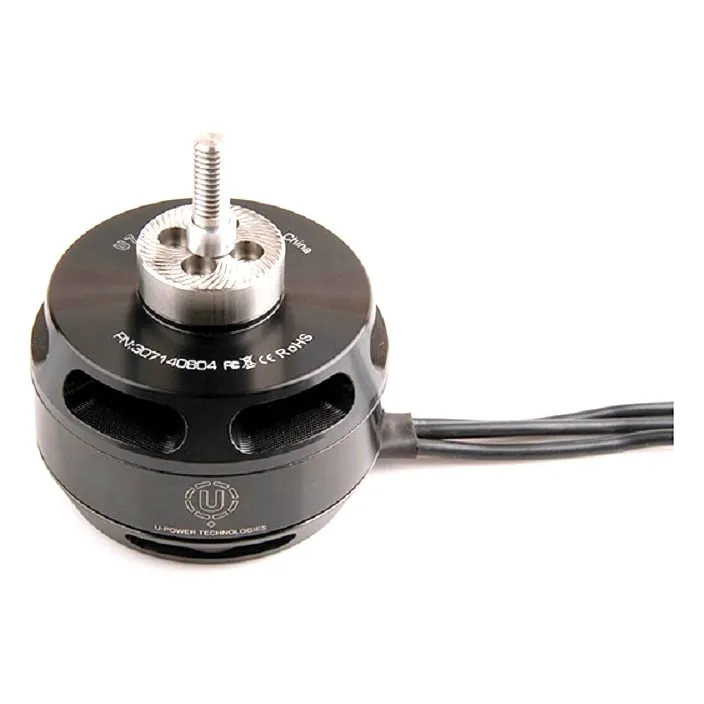

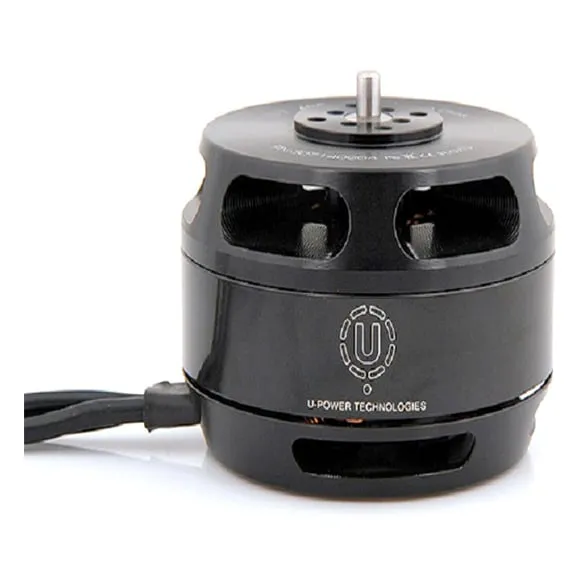

T-Motor U7 V2.0 490KV Drone Motor
₹15,299Incl. GST
SKU TMOTOR-U7-V2-490KV
KV: 490 KVShaft: 4mmInput Voltage: 3–8SWeight: 258 g
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The T-Motor U7 V2.0 490KV is a U Power-series motor from T-Motor's industrial UAV range, built for high-thrust multirotors used in aerial photography, filming, delivery and agricultural work.
Key features
- Handmade high-temperature enameled windings with fire-resistant, industrial-grade waterproof and anti-aging properties for a longer service life.
- Precision coil winding keeps slot fill tight, cutting copper loss and improving efficiency.
- Imported high-quality bearings for smoother, quieter, longer-running operation.
- 490KV winding matched to heavy-lift propellers and higher cell-count packs for larger payload builds.
Specifications
- KV: 490KV
- Series: U7 V2.0, U Power type
- Configuration: 12N14P
- Battery: 3-8S LiPo
- Shaft: 4 mm
- Motor dimensions: 60.7 mm diameter x 39.5 mm length
- Weight: 258 g
- Max continuous current (180 s): 44 A
- Max continuous power (180 s): 1300 W
- Idle current: 1.1 A at 10 V
- Internal resistance: 21 mOhm
Confirm the recommended propeller size, cell count and ESC current rating for the 490KV winding against T-Motor's published data before wiring it into your airframe.
| KV | 490 KV |
|---|---|
| Shaft | 4mm |
| Input Voltage | 3–8S |
| Weight | 258 g |
| Brand | T-Motor |
| Made in India | No |
| Integrated ESC | No |
