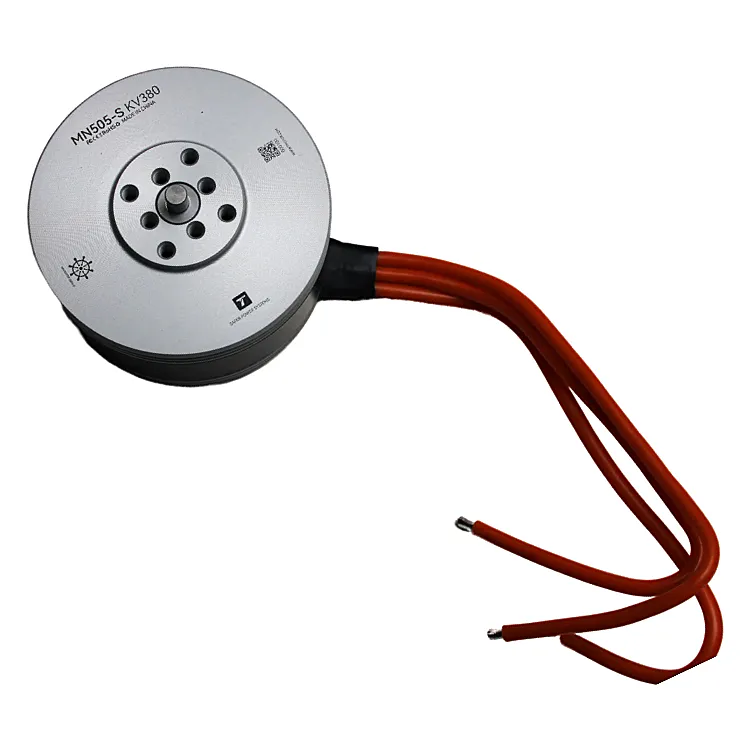

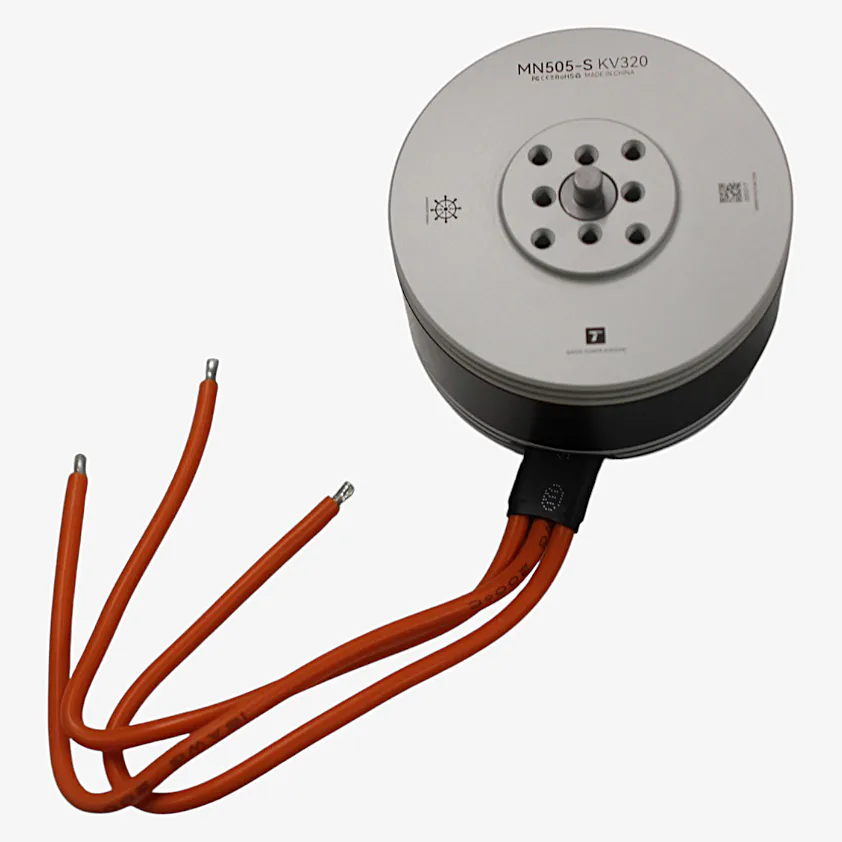

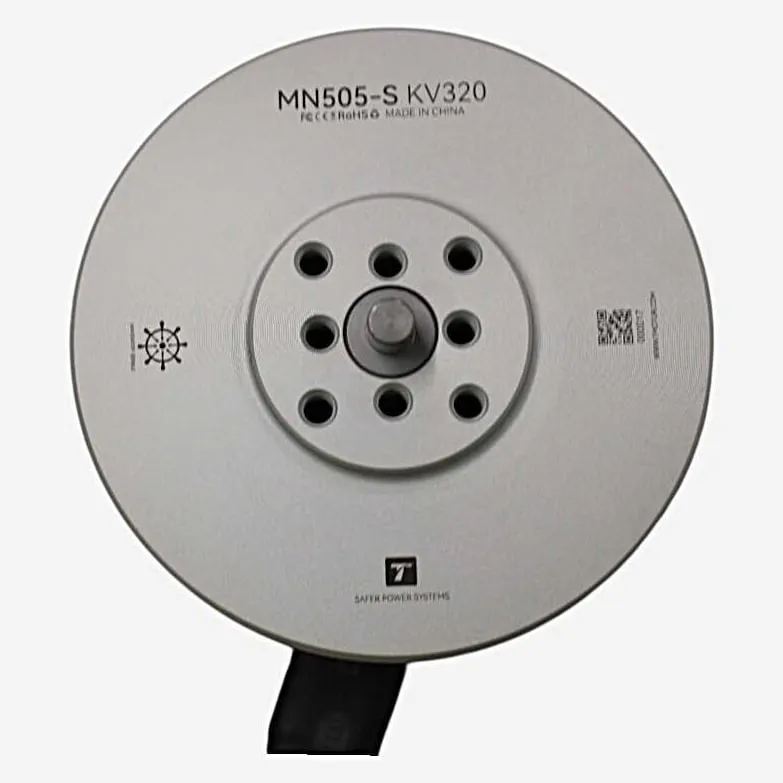

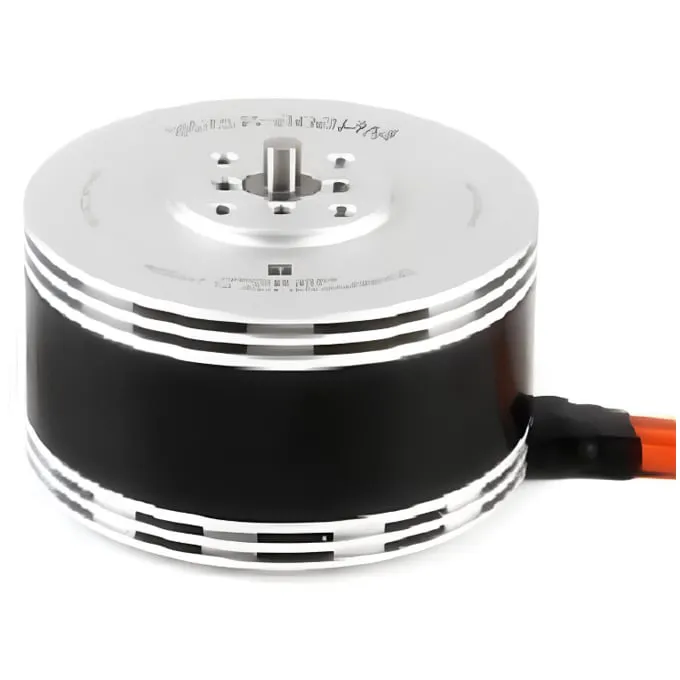

T-Motor Navigator MN505-S Waterproof Motor 320KV/380KV

The T-Motor Navigator MN505-S is a waterproof brushless motor for professional multirotors used in aerial photography, surveillance and mapping. It comes in 320KV and 380KV, both rated for 6S LiPo, and takes T-Motor fixed or folding carbon-fibre props: 20–22 inch on the 320KV, 17–18 inch on the 380KV.

Key features

• IP45 enclosed build: resists dust and water ingress, with an anti-rust stator treatment and corrosion protection.

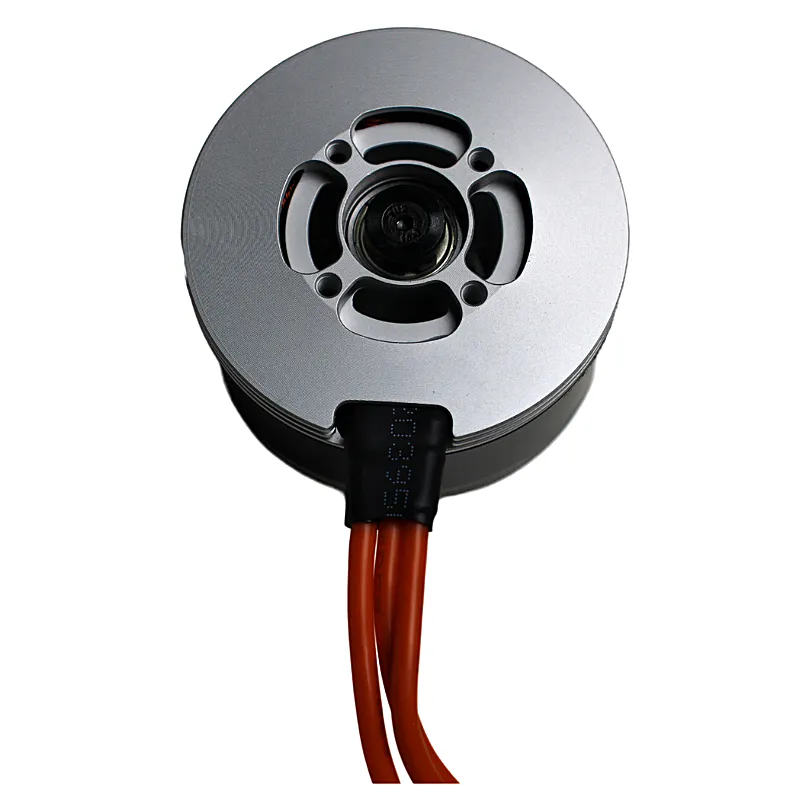

• Centrifugal cooling fan: draws air through the motor to shed heat under sustained load.

• High-temperature windings: 220°C-rated copper wire guards against burn-out from a trapped propeller or overload.

• Reinforced shaft: the internal T-shaped shaft is secured with a clip and screw so the rotor cannot work loose.

• 24N28P configuration running on 696ZZ bearings.

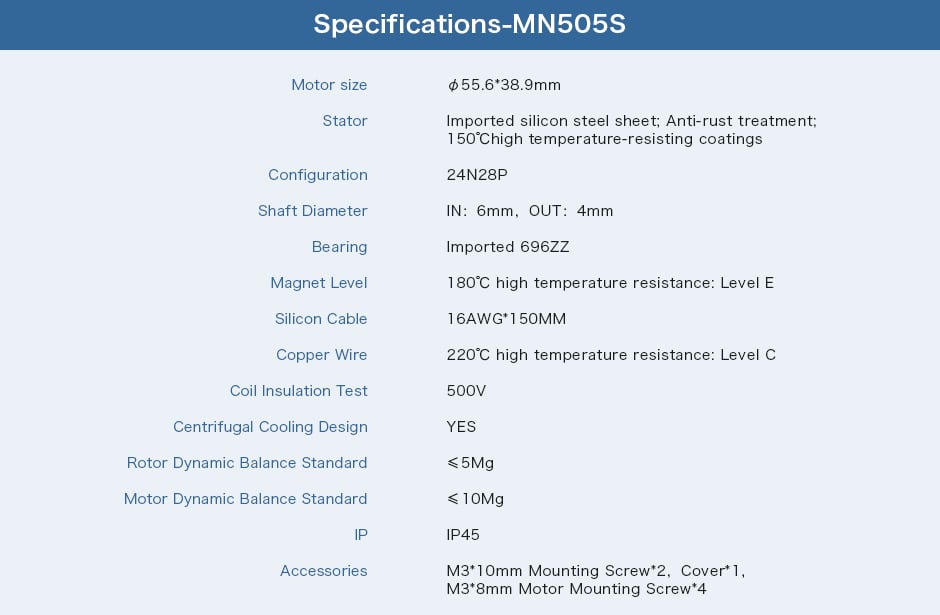

Specifications

• Configuration: 24N28P

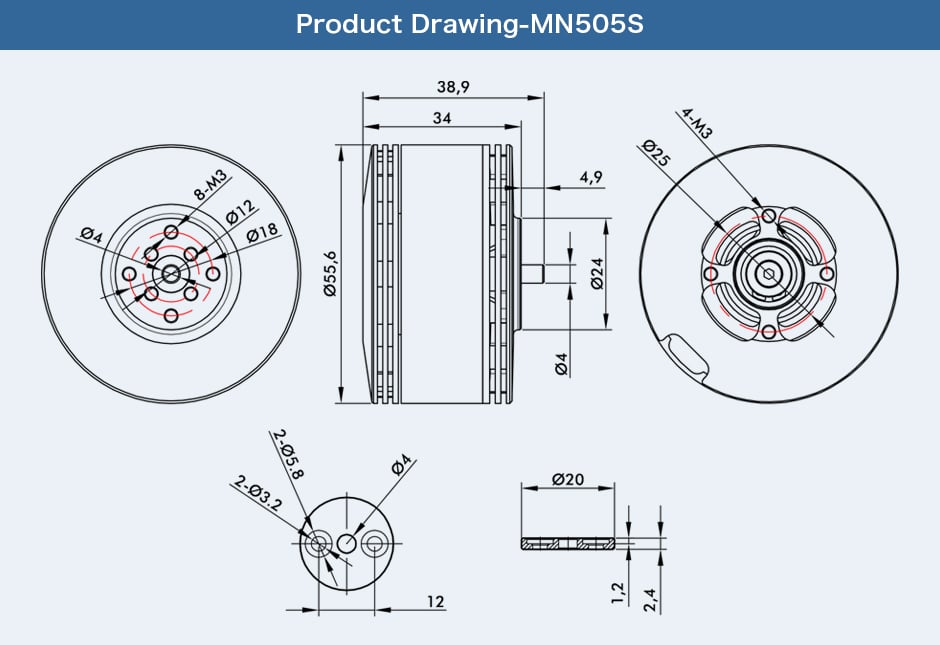

• Motor size: Ø55.6 × 38.9 mm

• Shaft: 6 mm inner, 4 mm outer

• Weight: 225 g with leads

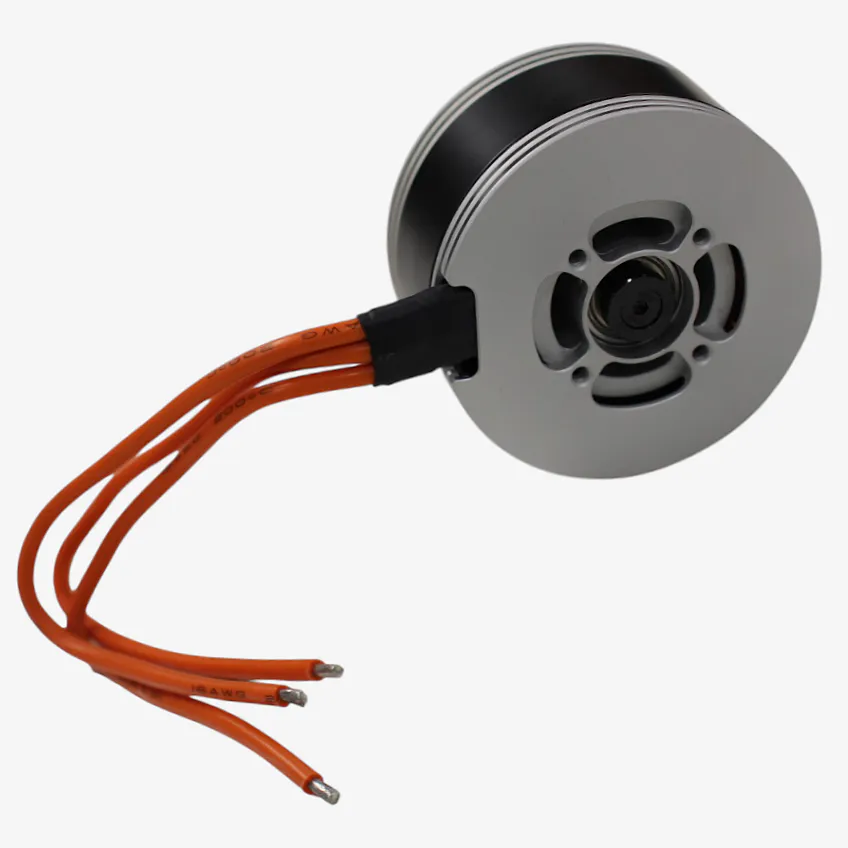

• Leads: 16AWG, 150 mm

• Bearings: 696ZZ

• Protection: IP45

• Rated voltage: 6S LiPo (22.2 V nominal)

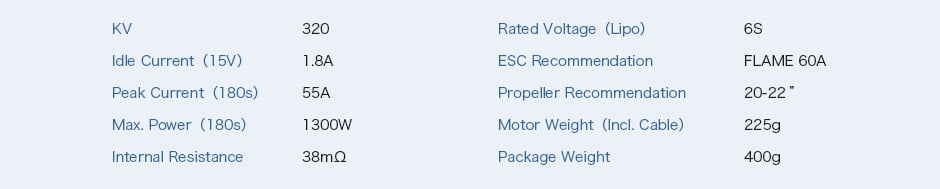

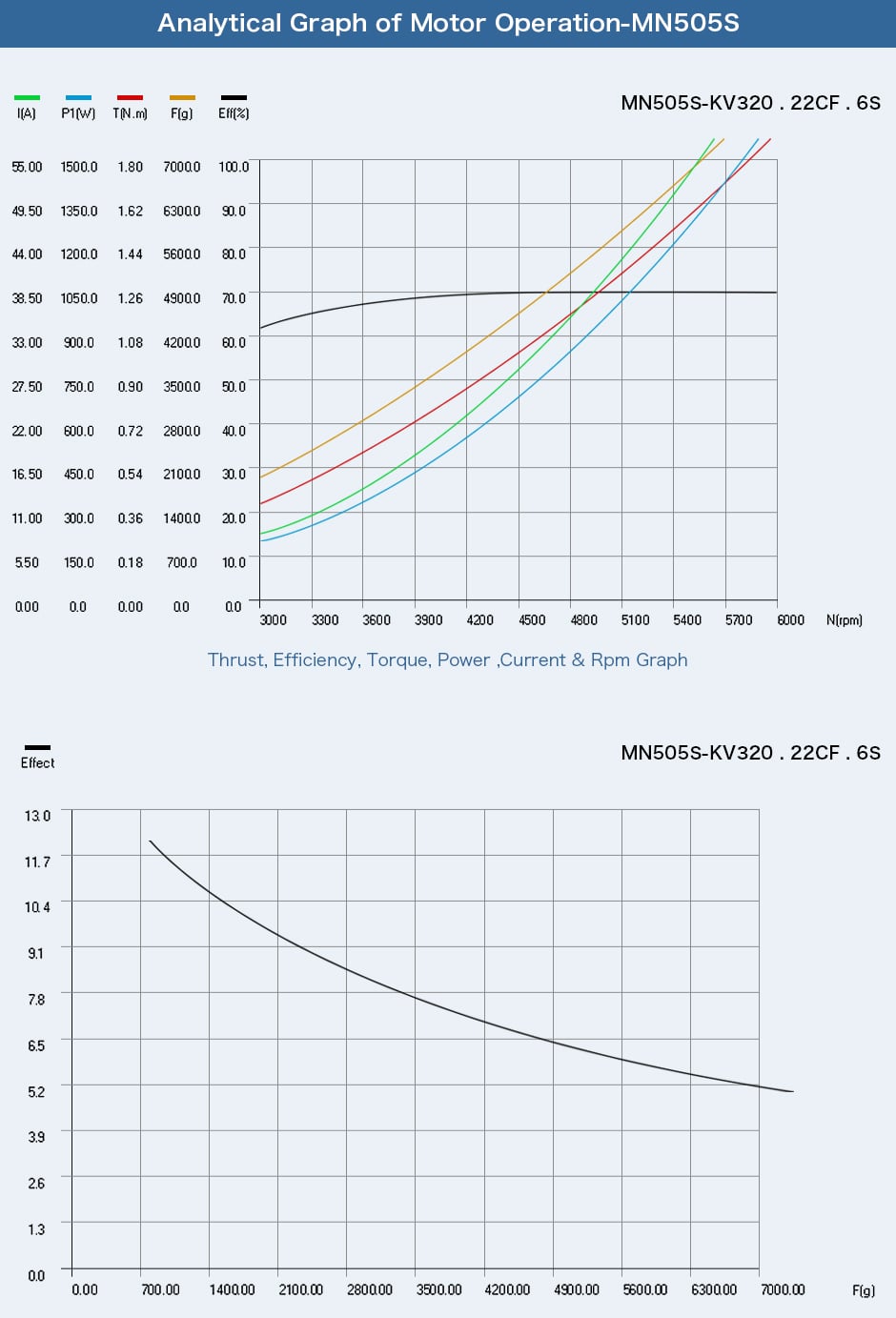

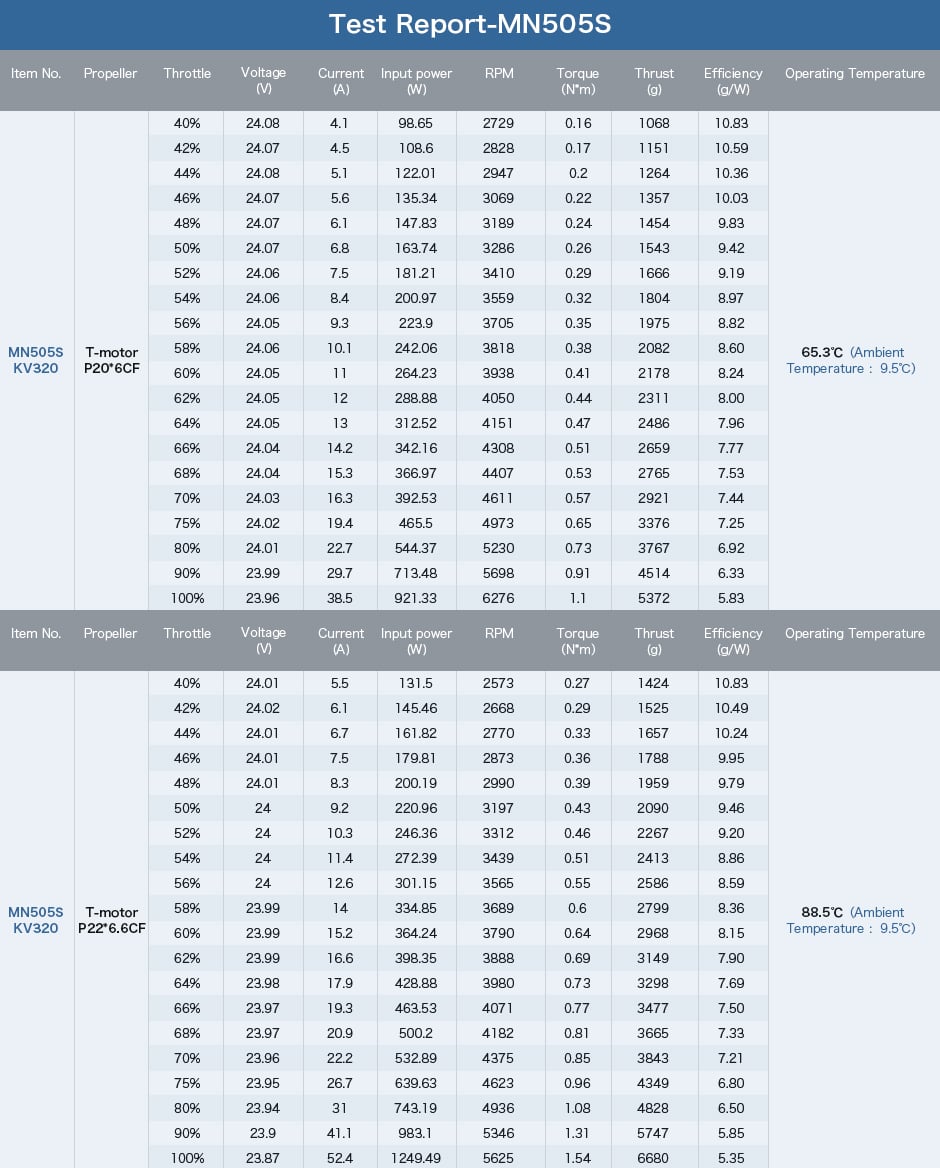

• 320KV: 1.8 A idle at 18 V, 38 mΩ, 55 A / 1,300 W peak (180 s), 20–22 in props

• 380KV: 2.0 A idle at 15 V, 28 mΩ, 50 A / 1,200 W peak (180 s), 17–18 in props

• Recommended ESC: T-Motor FLAME 60A 12S

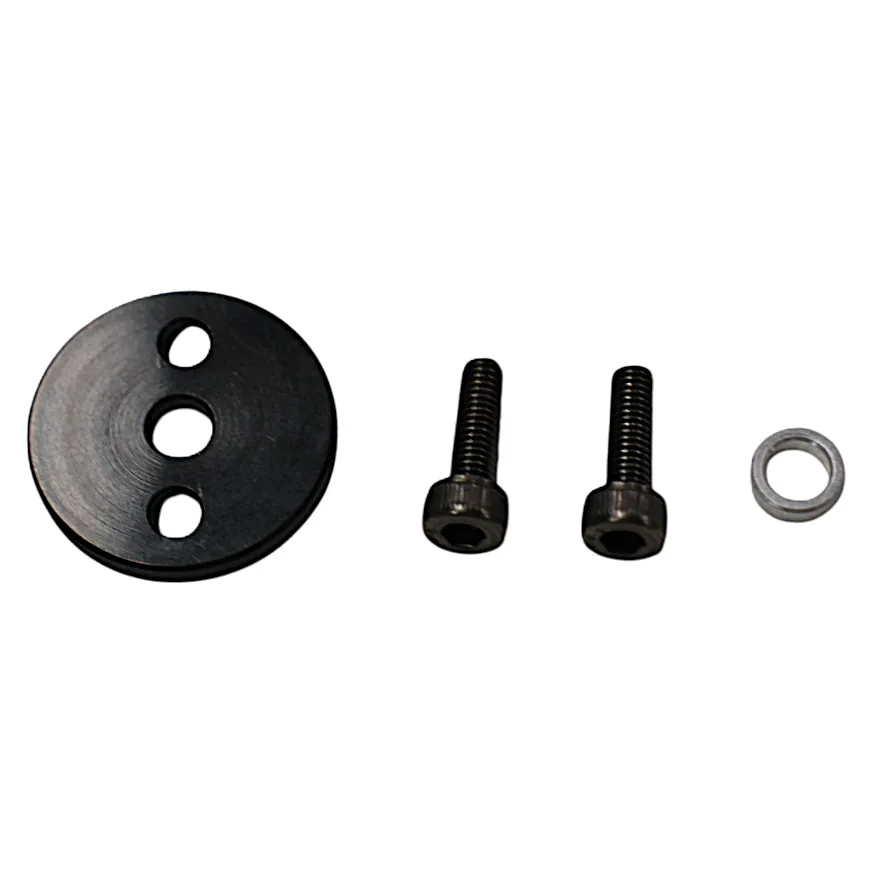

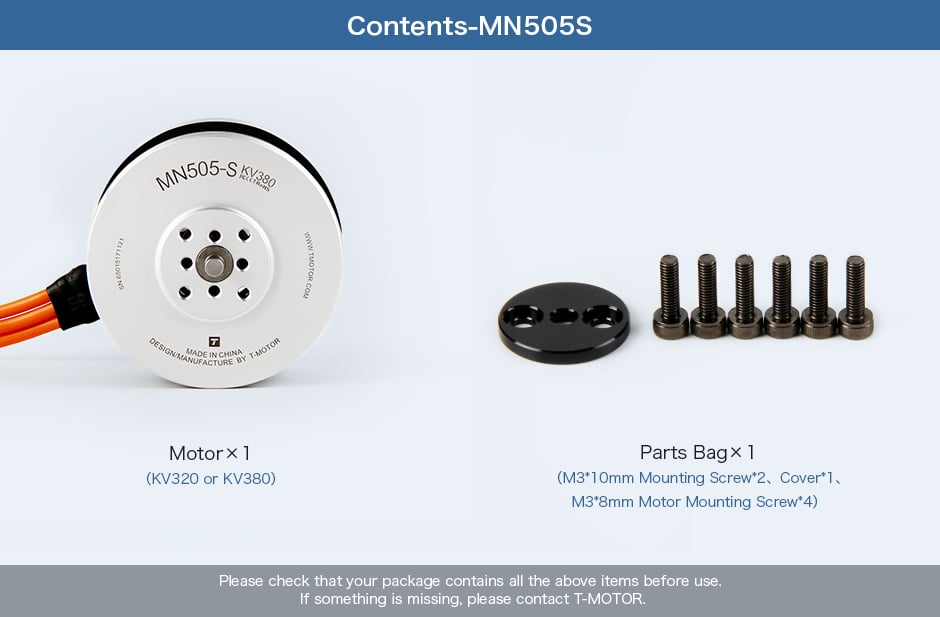

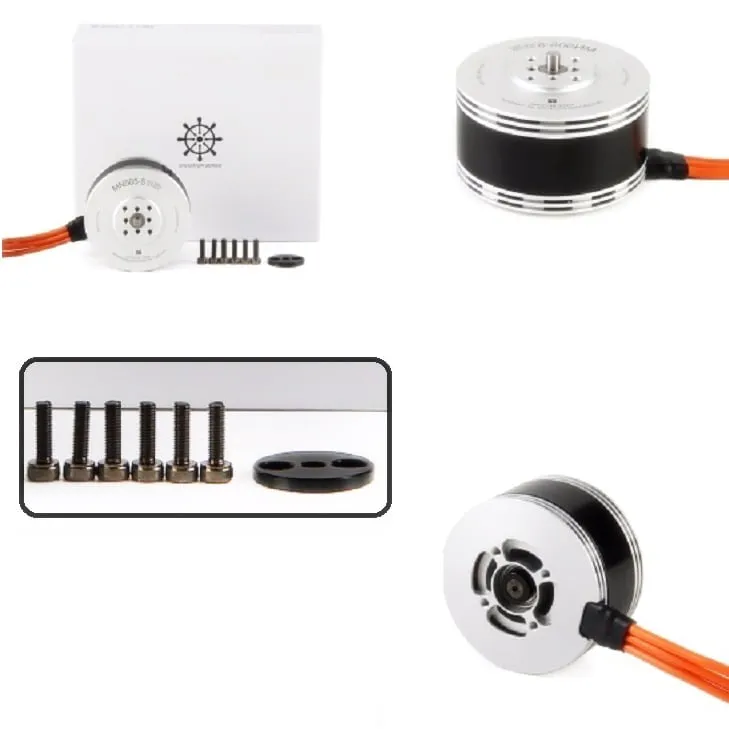

Each unit is a single motor with an accessory set of M3 mounting screws and a cover. T-Motor specifies no more than 5 mm of screw thread inside the motor base when mounting, so check screw length against your arm or motor plate thickness.
