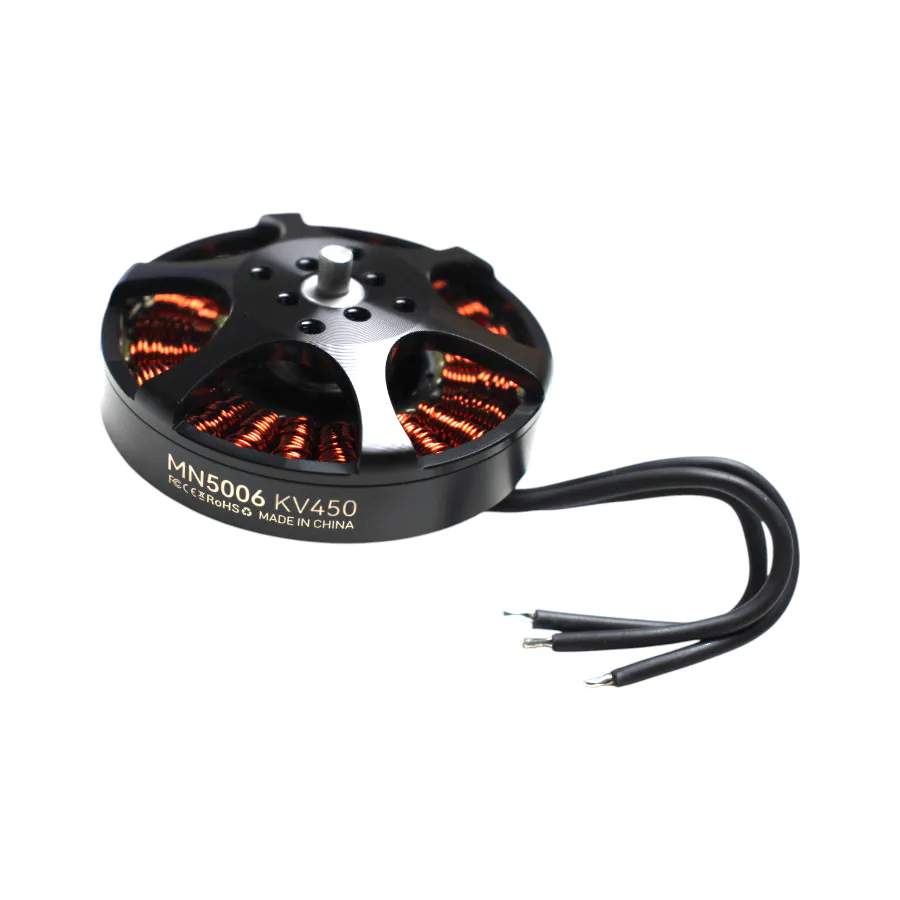

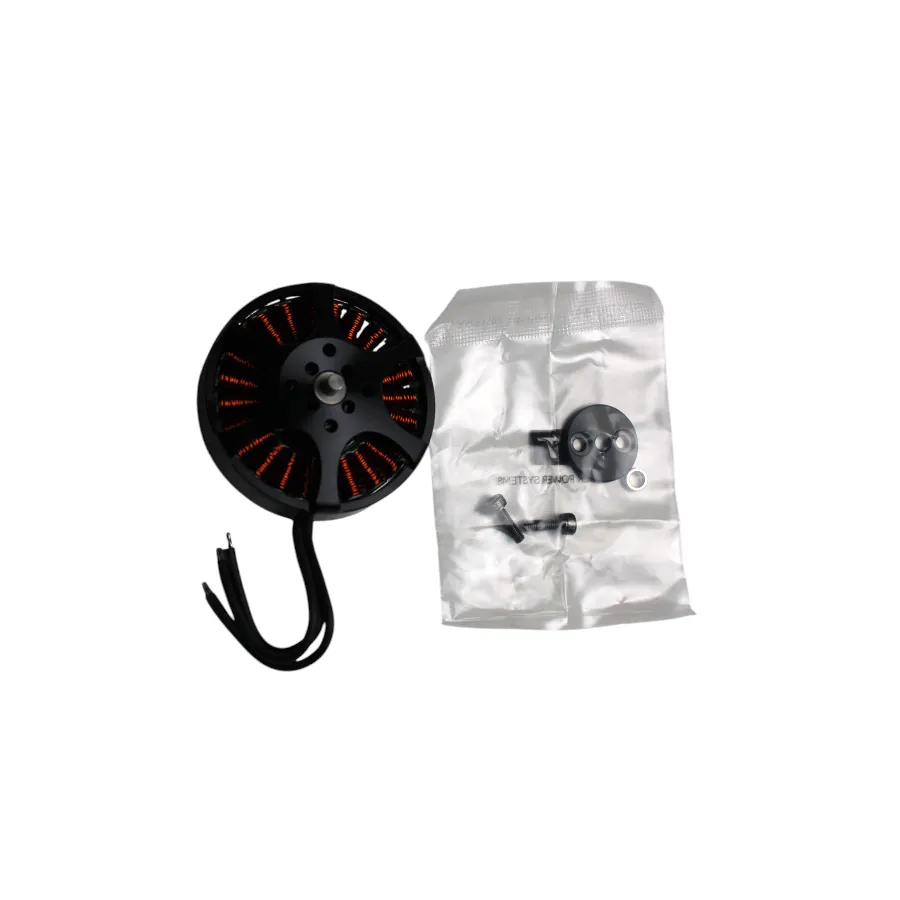

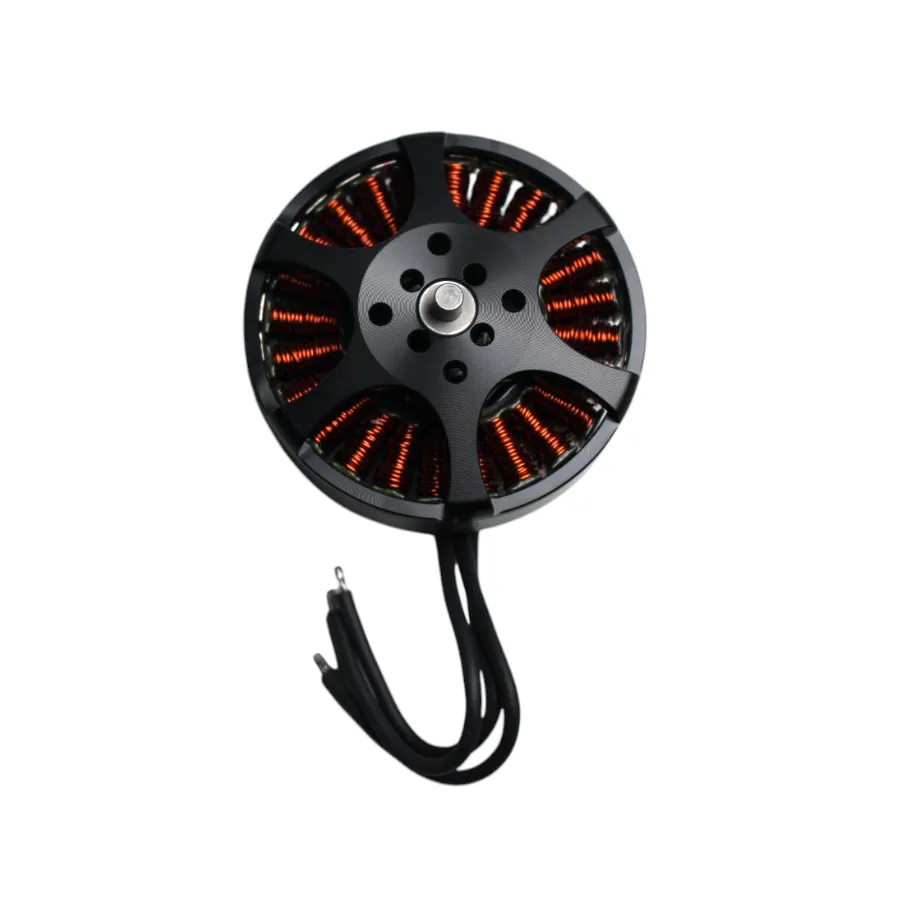

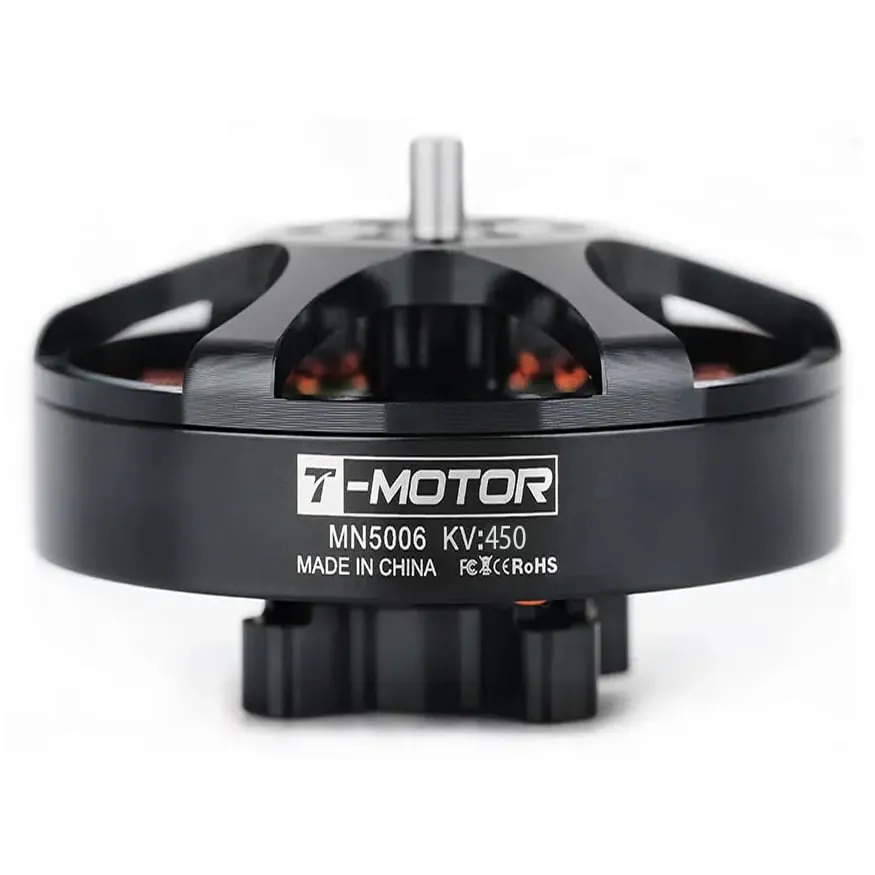

T-Motor Antigravity MN5006 Motor (300KV / 450KV)

The T-Motor Antigravity MN5006 is a light, long-endurance motor for camera, mapping and monitoring multirotors on 4-6S. Choose 450KV for 14-18-inch props or 300KV for 17-18-inch props; T-Motor pitches the series at quadcopters of around 4 kg aiming for flight times near 60 minutes.

Key features

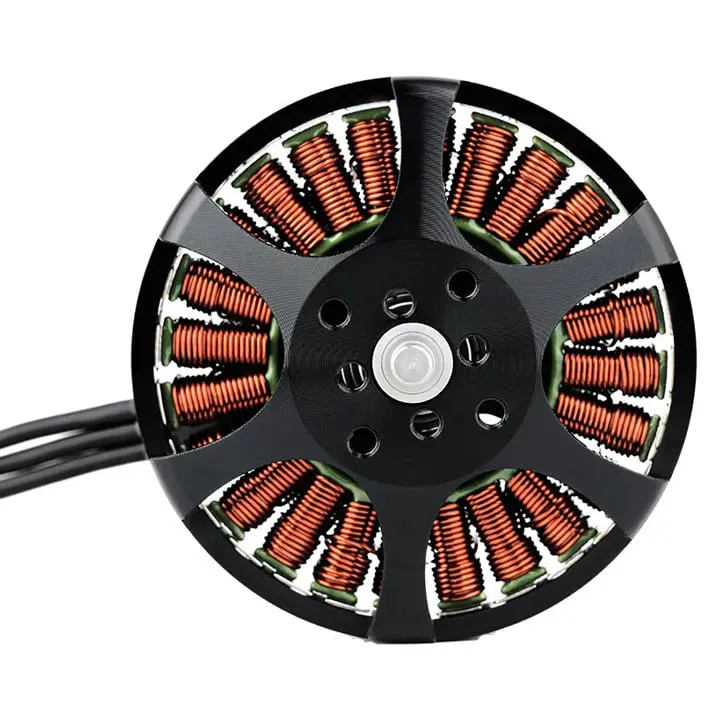

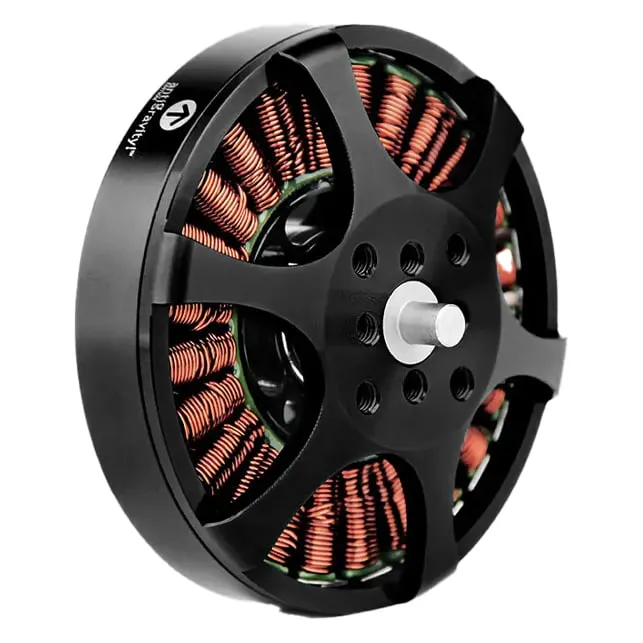

• Centrifugal self-cooling rotor keeps air moving through the windings on long flights
• Class H (180 °C) copper winding and 150 °C-rated magnets for heat tolerance
• Imported 696ZZ bearings, with the rotor balanced to 15 mg or better and the complete motor to 10 mg, for smooth running and low cogging

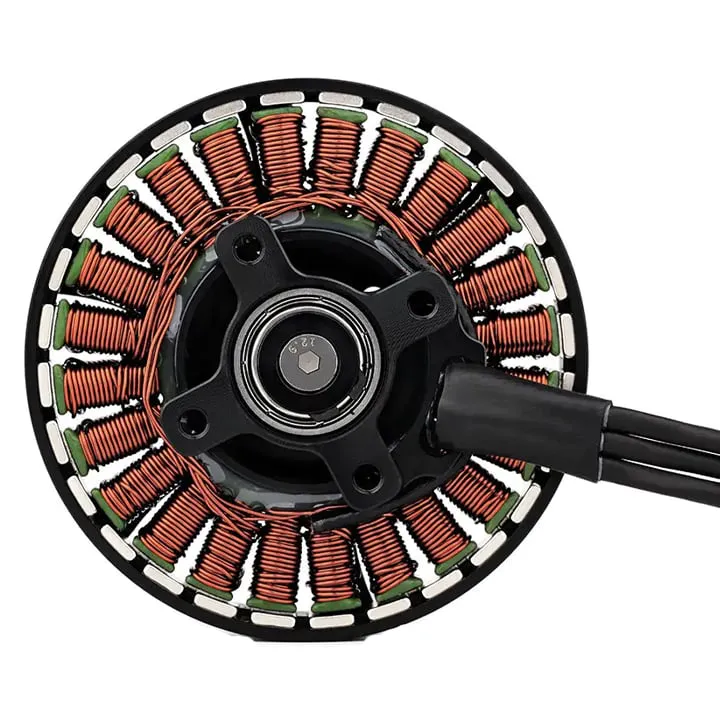

• 24N28P layout, 55.6 x 30 mm, on a 6 mm shaft at 106-108 g
• The 450KV winding produces up to 3.2 kg of thrust on a 15x5 prop at full throttle

Specifications

• KV options: 300KV or 450KV
• Rated voltage: 4-6S LiPo
• Configuration: 24N28P
• Dimensions: 55.6 x 30 mm (diameter x height)
• Shaft: 6 mm
• Weight: 106 g (450KV); 108 g (300KV), including leads
• Internal resistance: 60 mΩ (450KV); 125 mΩ (300KV)
• Idle current at 22 V: 0.9 A (450KV); 0.6 A (300KV)
• Peak current (180 s): 26 A (450KV); 20 A (300KV)
• Max power (180 s): 650 W (450KV); 500 W (300KV)
• Max thrust: 3.2 kg (450KV, 15x5 prop, full throttle)
• Recommended props: 14-18 in (450KV); 17-18 in (300KV)
• Recommended ESC: T-Motor AIR 40A
• Bearings: Imported 696ZZ
• Lead length: 80 mm

Both windings peak at or below 26 A for 180 s, so a 40 A-class ESC such as the T-Motor AIR 40A covers either option with headroom. Pick 300KV for the largest 17-18-inch props and the longest endurance, 450KV for 14-16-inch props or more thrust per motor.
