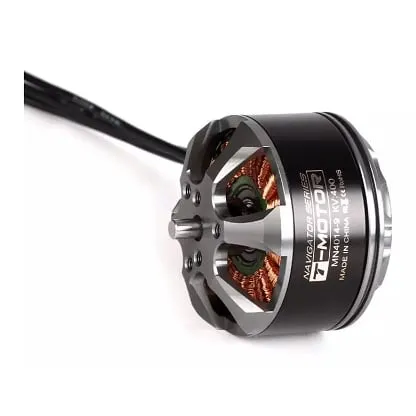

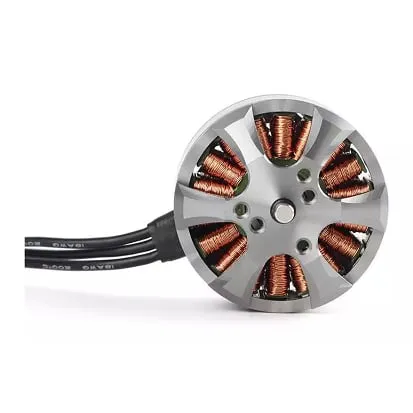

T-Motor Navigator MN4014 Brushless Motor 330KV/400KV

The T-Motor Navigator MN4014 is a brushless outrunner built for multirotor UAVs and aerial-photography platforms, offered in 330KV and 400KV. Its 40 × 14 mm stator runs on 4–8S LiPo, suiting quad, hexa and octo frames that carry camera payloads; T-Motor's suggested 6S setup for the 400KV pairs it with a 17 × 5.8 inch prop and a 40A ESC.

Key features

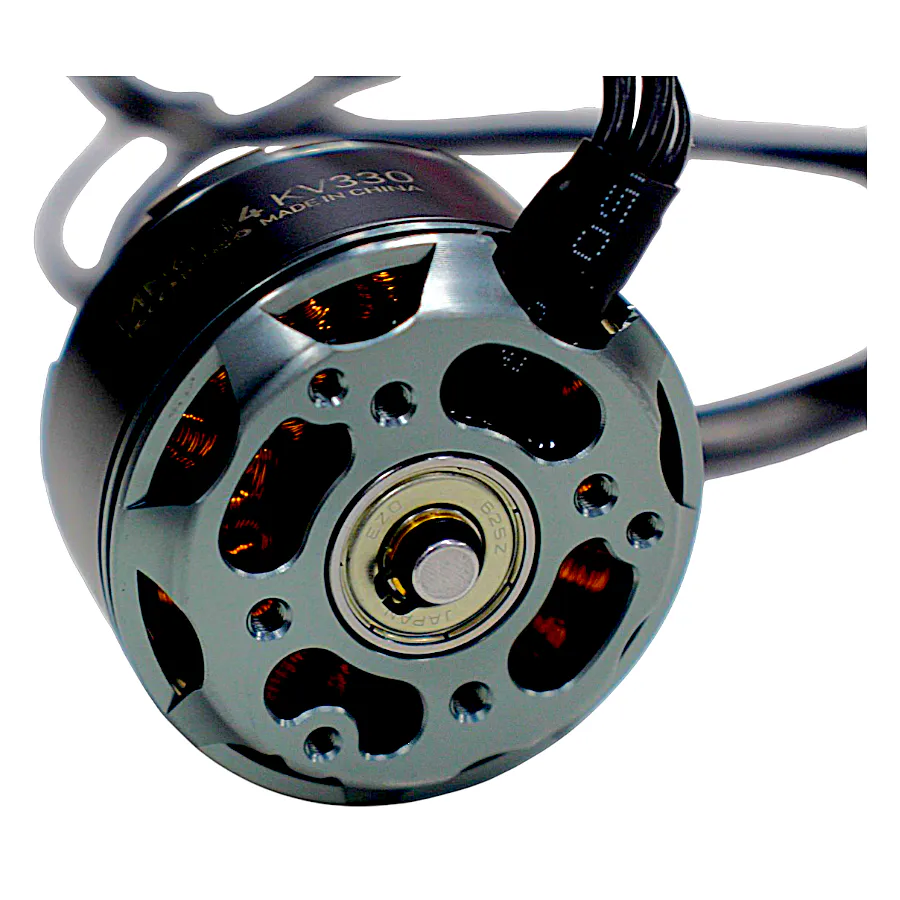

• Oversized bearings: ball bearings twice the size normally fitted to a motor of this class, for smooth low-speed running and a stable rotor under load.
• Upgraded stator: reduces eddy-current loss for better efficiency and power.
• 18N24P configuration on a 4 mm shaft.

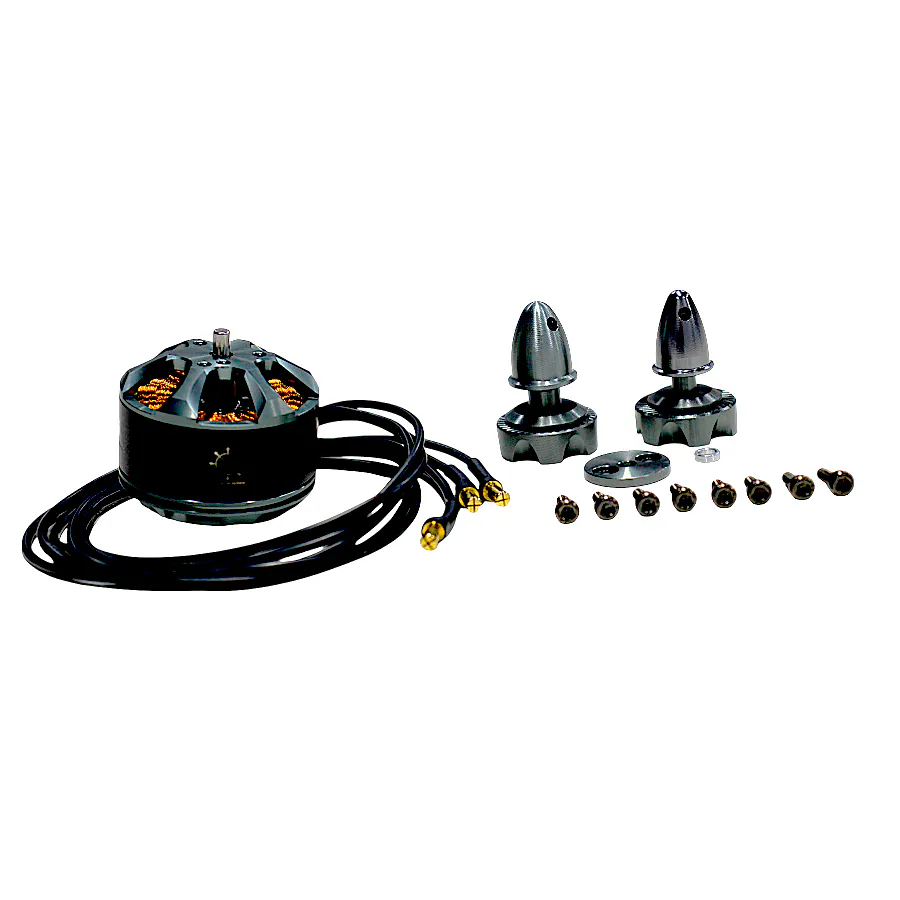

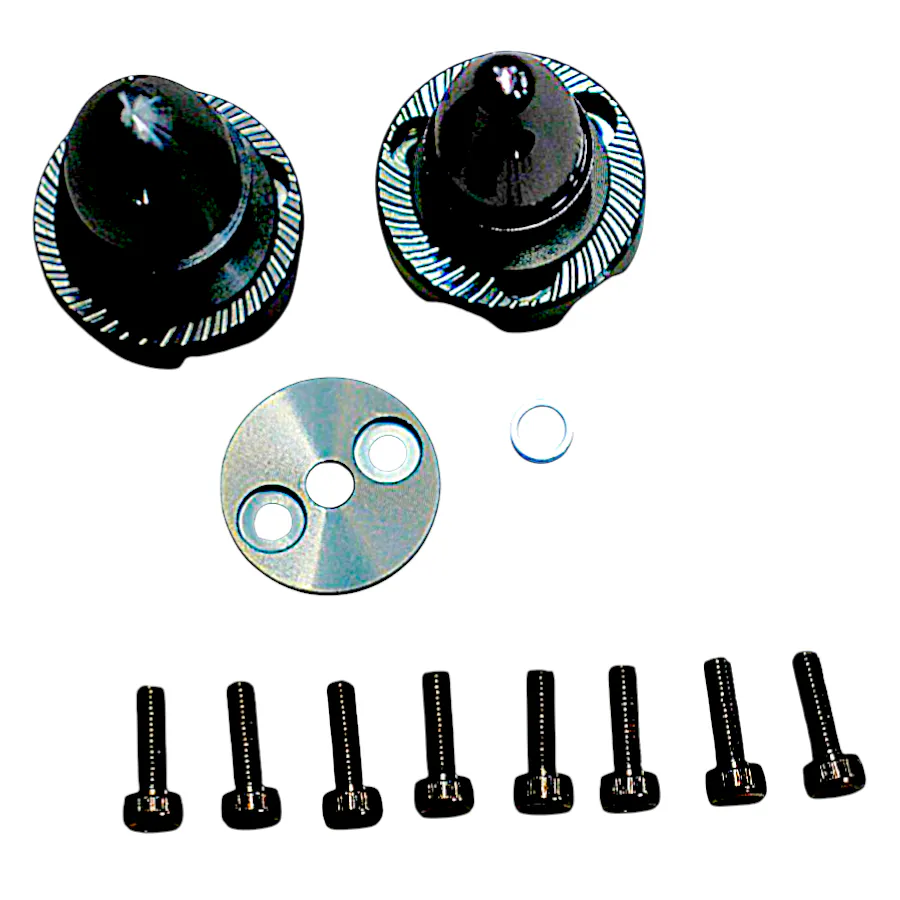

• Flexible mounting holes on the bell to take most common props and prop adapters.

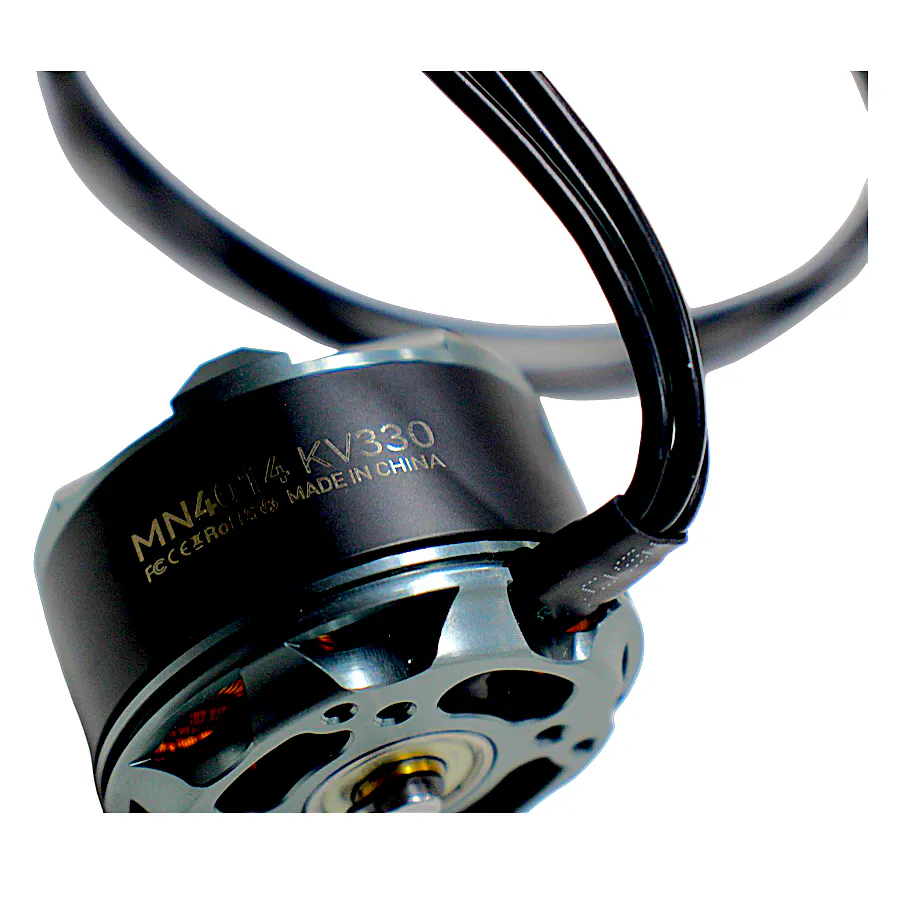

• Two KV options: the 330KV swings larger props or runs higher cell counts at lower RPM; the 400KV spins faster on the same pack.

Specifications

• Stator: 40 mm diameter × 14 mm height
• Configuration: 18N24P
• Shaft: 4 mm
• Motor size: Ø44.7 × 34.5 mm
• Weight: 150 g without leads, 171 g with leads
• LiPo: 4–8S

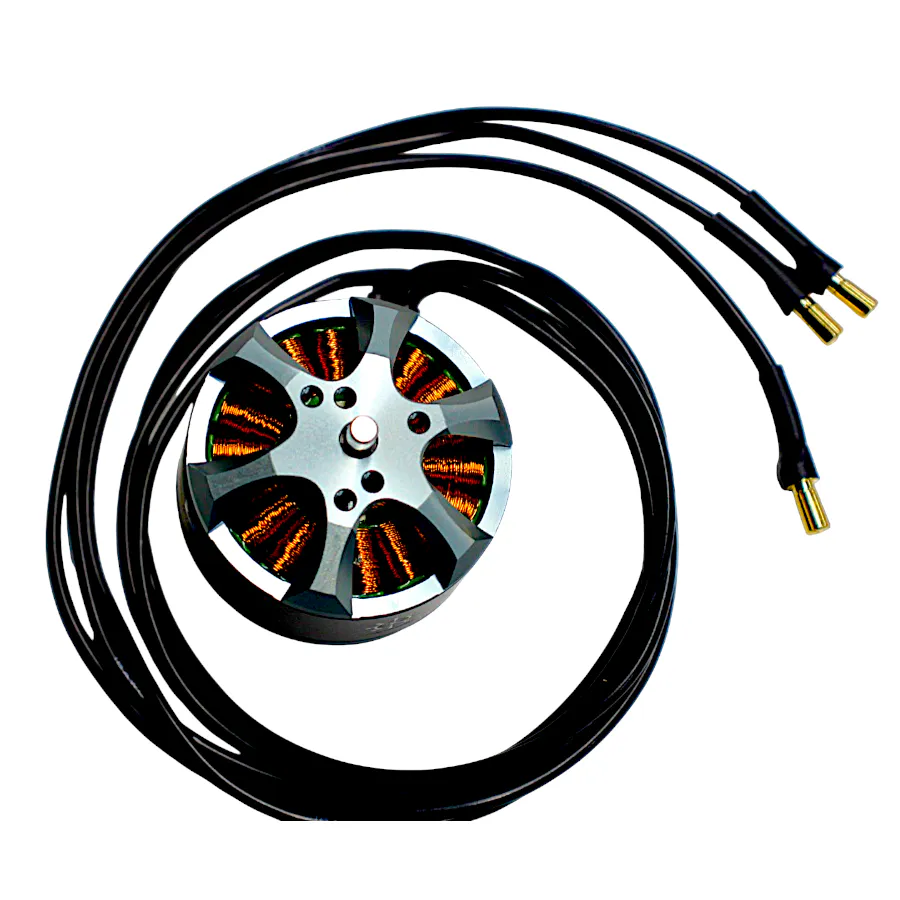

• Leads: 18AWG, 600 mm
• Internal resistance (400KV): 67 mΩ
• Peak current / power (400KV): 30 A / 900 W for 180 s
• Suggested 6S setup (400KV): 17 × 5.8 in prop, 40A ESC

Each unit is a single motor, so order four for a quad or six for a hexa. Settle your prop size and battery voltage first, then pick the KV that keeps current inside the motor's rating.
