iFlight BLITZ H7 Pro Flight Controller

The iFlight BLITZ H7 Pro is a high-voltage flight controller built around the STM32H743 MCU (upgraded from the original F722), supporting input up to 12S and ArduPilot firmware alongside Betaflight. A dual-sided shield protects the board from interference and debris while still allowing quick SD card access.

Key features

• STM32H743 MCU with a high-voltage DC-DC buck converter rated to 100V for reliable power delivery at high cell counts
• ICM42688P gyro and integrated barometer for precise attitude tracking and altitude hold
• Dedicated connector for digital HD systems including DJI O3, Walksnail Avatar and Caddx Vista
• SD card blackbox logging for larger-capacity flight data recording than fixed onboard flash

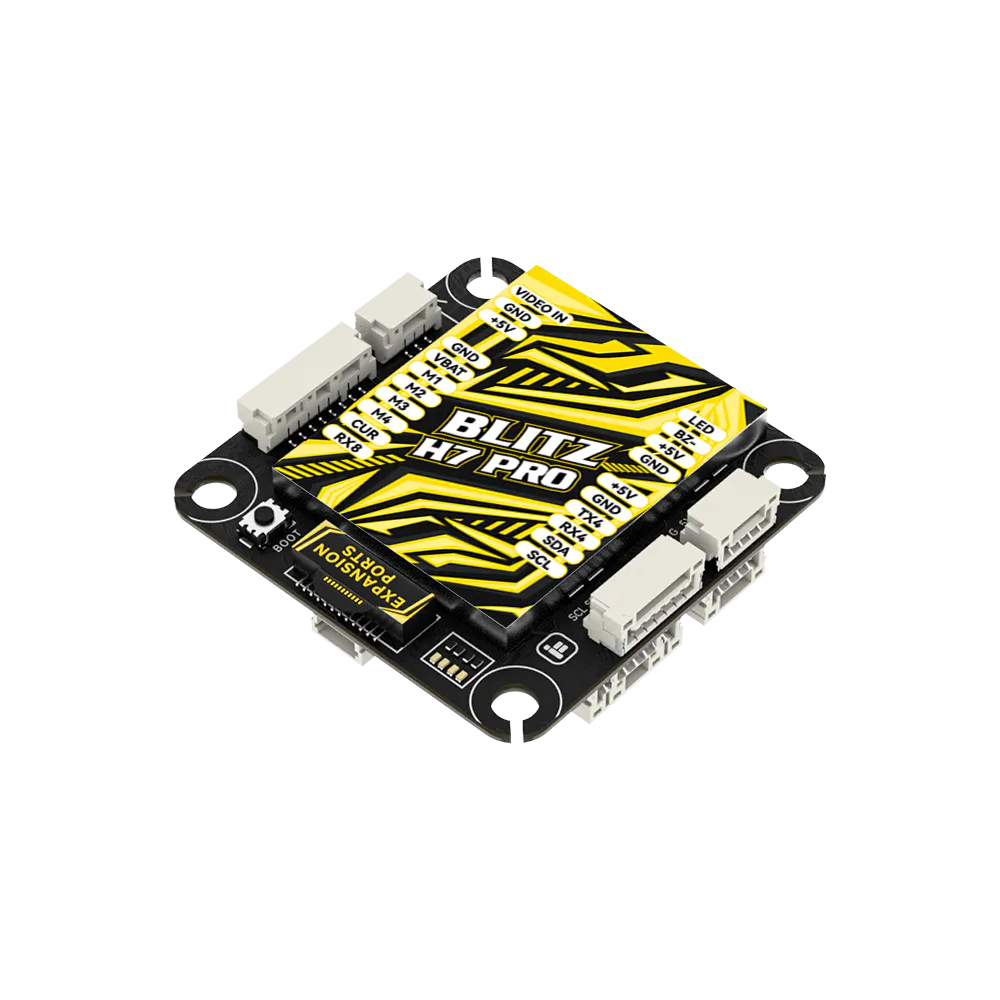

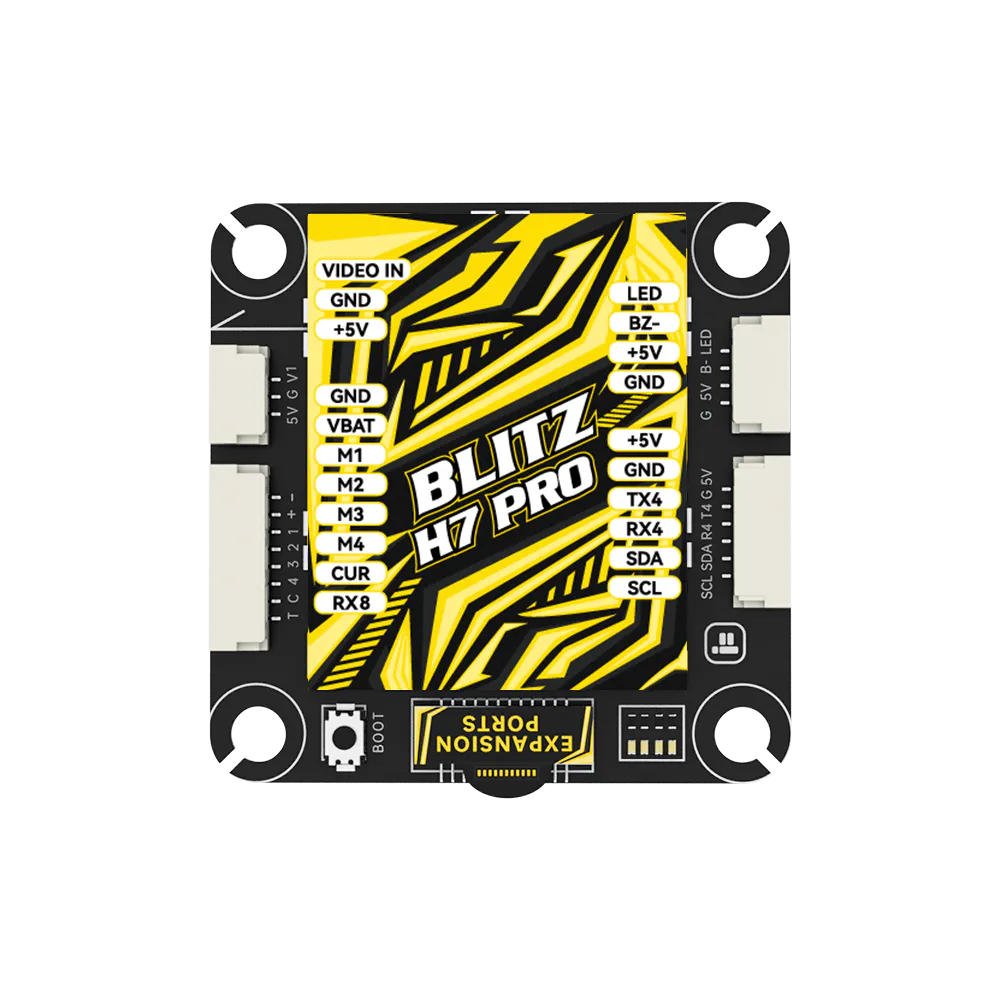

• Dual-sided shielding protects the board while keeping the SD card accessible for quick swaps

Specifications

• MCU: STM32H743
• Gyro: ICM42688P
• Barometer: DPS310
• OSD: AT7456E
• Input voltage: 14.8-50.4V (4S-12S LiPo)
• UARTs: 7
• Outputs: 8 DShot/PWM
• BEC outputs: 5V 3A, 12V 2.5A
• Blackbox: SD card
• Mounting size: 35x35mm
• Dimensions: 42 x 42 x 11.3 mm
• Weight: 20 g
• Supported firmware: Betaflight, ArduPilot

Its high-voltage tolerance and SD-card blackbox make it a strong core for demanding waypoint, rescue-mode and multi-sensor builds running 4S to 12S power.
