Hobbywing XRotor F7 Flight Controller (STM32F722, ICM20602)
₹6,599Incl. GST
SKU HOBBYWING-XROTOR-F7-FC
Integrated Receiver: NoMounting Size: 30.5x30.5, 20x20Integrated VTX: NoFC Processor: F722
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

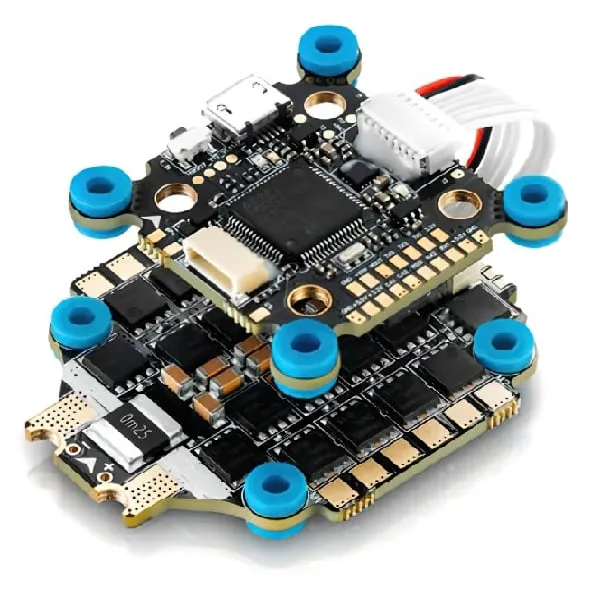

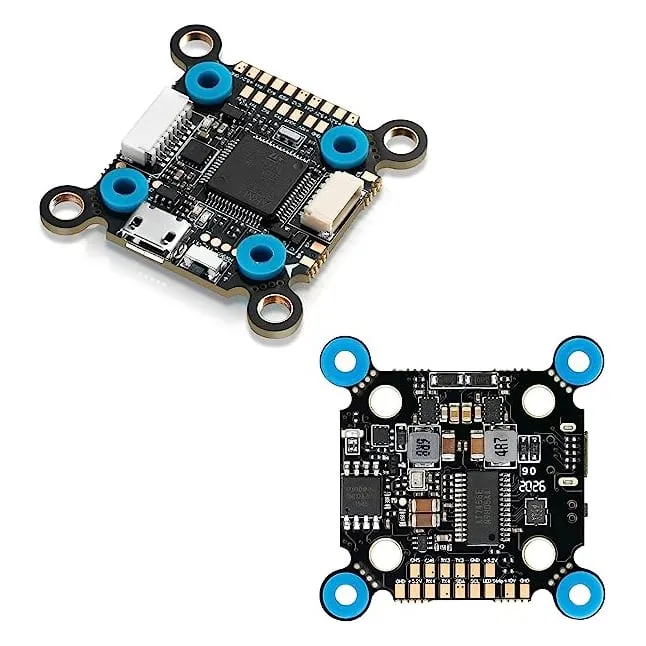

The Hobbywing XRotor F7 is a flight controller for FPV multirotors built around an STM32F722 processor and an ICM20602 six-axis gyro. It suits freestyle and racing quads running Betaflight, where bidirectional DShot and an onboard OSD are on the must-have list.
Key features
- STM32F722 F7-class processor with headroom for RPM filtering and the full Betaflight feature set
- ICM20602 six-axis gyro and accelerometer
- Bidirectional DShot support for RPM filtering with a compatible ESC
- Integrated OSD chip, adjustable from the configurator or from your radio
Pair it with a BLHeli_32, Bluejay or AM32 ESC running bidirectional DShot to get RPM filtering, and check the mounting pattern and ESC harness against your stack before ordering.
| Integrated Receiver | No |
|---|---|
| Mounting Size | 30.5x30.5, 20x20 |
| Integrated VTX | No |
| FC Processor | F722 |
| Gyro | ICM20602 |
| Input Voltage | 3–6S |
| Made in India | No |
| Brand | Hobbywing |
| Supported Firmware | INAV, Betaflight |
| Barometer | No |
| Compass Included | No |
