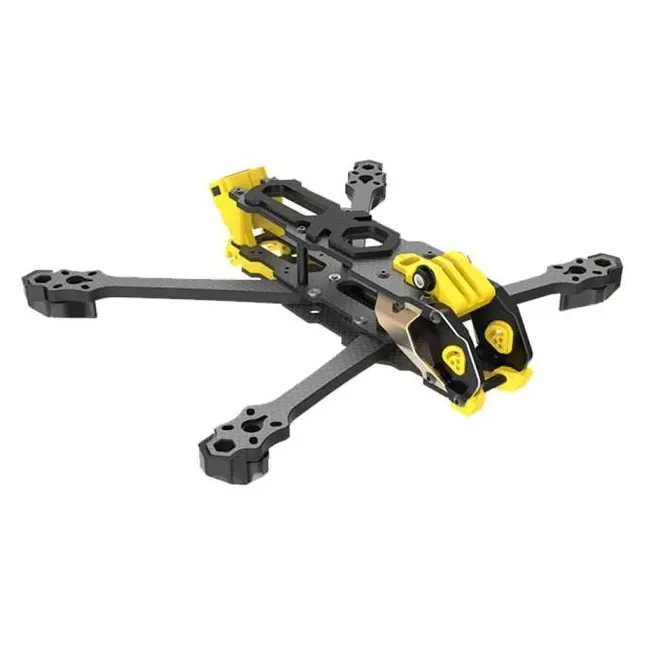

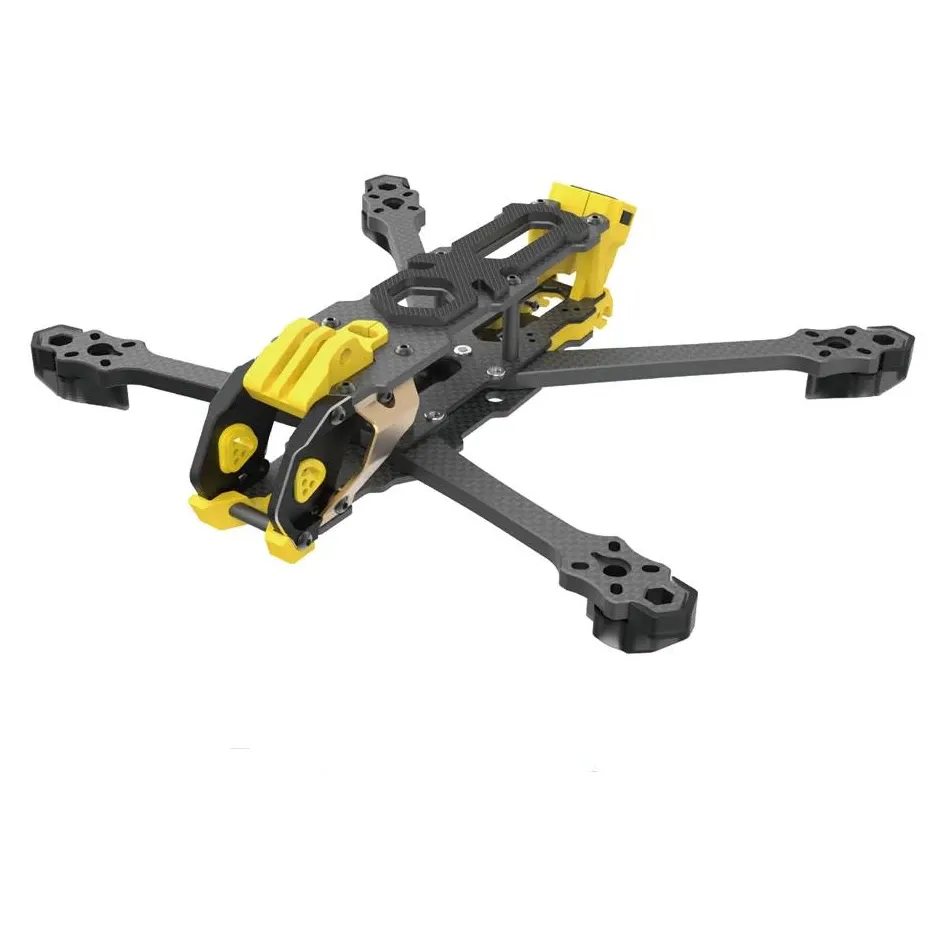

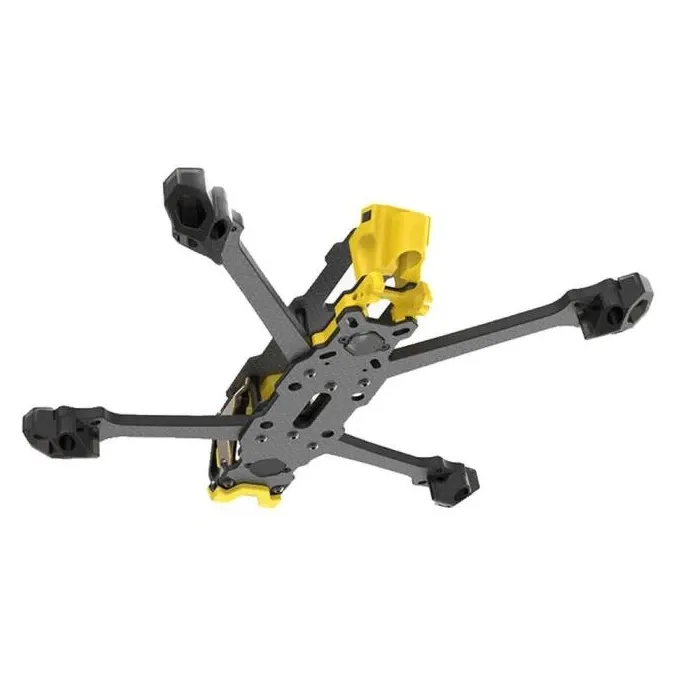

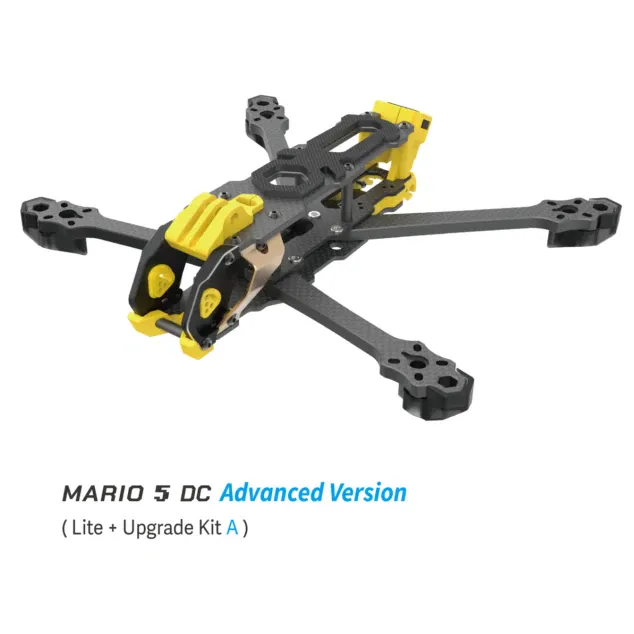

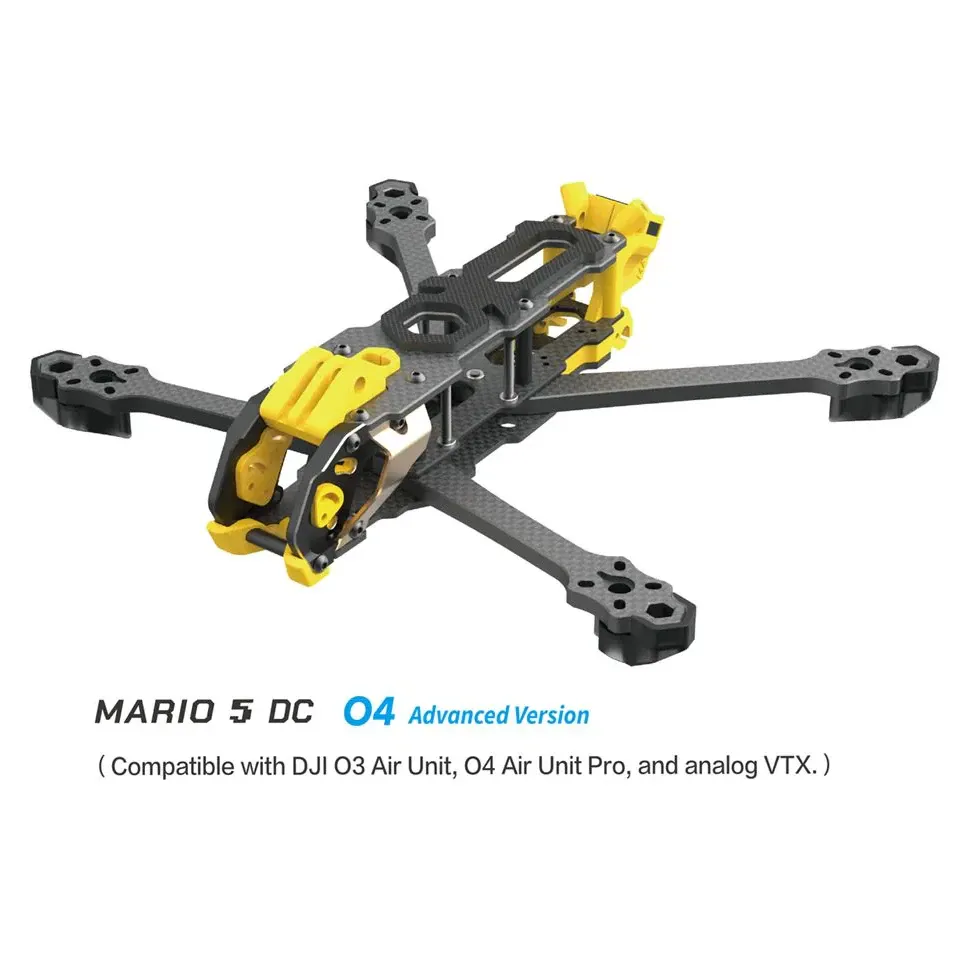

SpeedyBee Mario 5 DC O4 Advanced Version 5 Inch FPV Freestyle Frame

The SpeedyBee Mario 5 DC O4 Advanced Version is a 5-inch freestyle frame tailored for cinematic and aggressive freestyle builds using the latest digital HD video systems. Its DeadCat (DC) arm geometry ensures propellers remain entirely out of the HD camera's field of view, providing clean flight footage without the need for post-crop. This Advanced edition includes injection-moulded side panels to shield the central electronics stack from dirt and moisture, alongside bespoke mounts engineered specifically for the O4 air unit and camera system.

Key features

• DeadCat (DC) layout keeps propellers completely out of the FPV and HD video feeds.

• Thick 6mm carbon fibre arms provide extreme rigidity and crash resilience during heavy impacts.

• Advanced edition includes protective injection-moulded side plates and a dedicated O4 camera mounting solution.

• Features dedicated front and rear XT60 mounting slots alongside a built-in filter capacitor housing.

• Accommodates large dual-stack layouts with extensive flight controller and VTX mounting options.

Specifications

• Frame Geometry: DeadCat (DC)

• Wheelbase: 227mm

• Arm Thickness: 6mm

• Top / Bottom Plate Thickness: 2.5mm

• Middle Plate Thickness: 2.0mm

• FC Mounting: 30.5x30.5mm, 20x20mm

• VTX Mounting: 30.5x30.5mm, 25.5x25.5mm, 20x20mm

• Max Propeller Size: 5.1 inches

The frame's spacious midsection easily houses bulky HD transmitters while the protective side panels channel cooling airflow over the electronics. It suits pilots seeking a heavy-duty cinematic freestyle rig that secures and shields high-end components.
