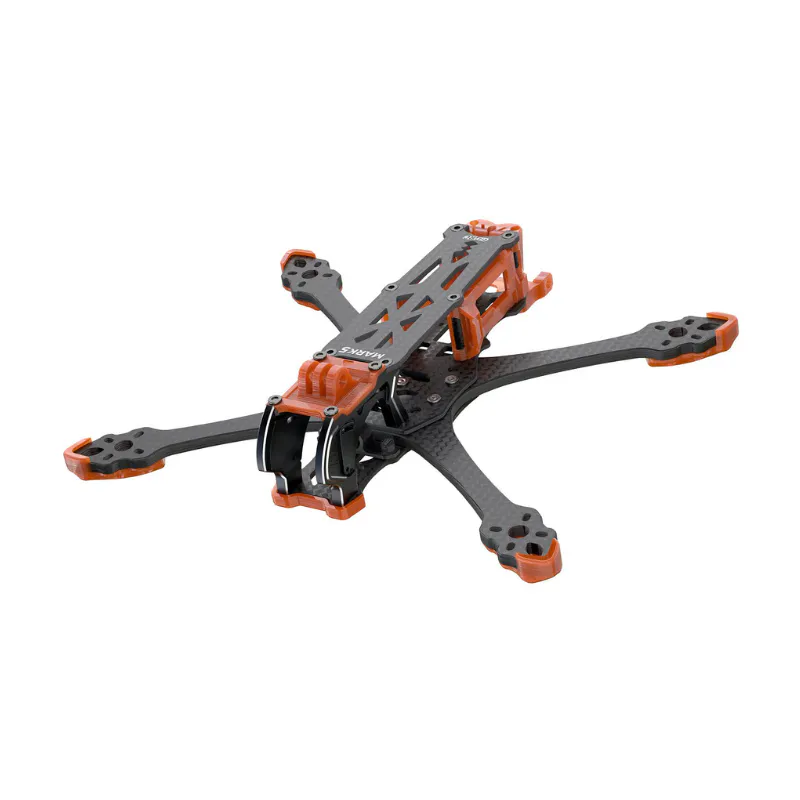

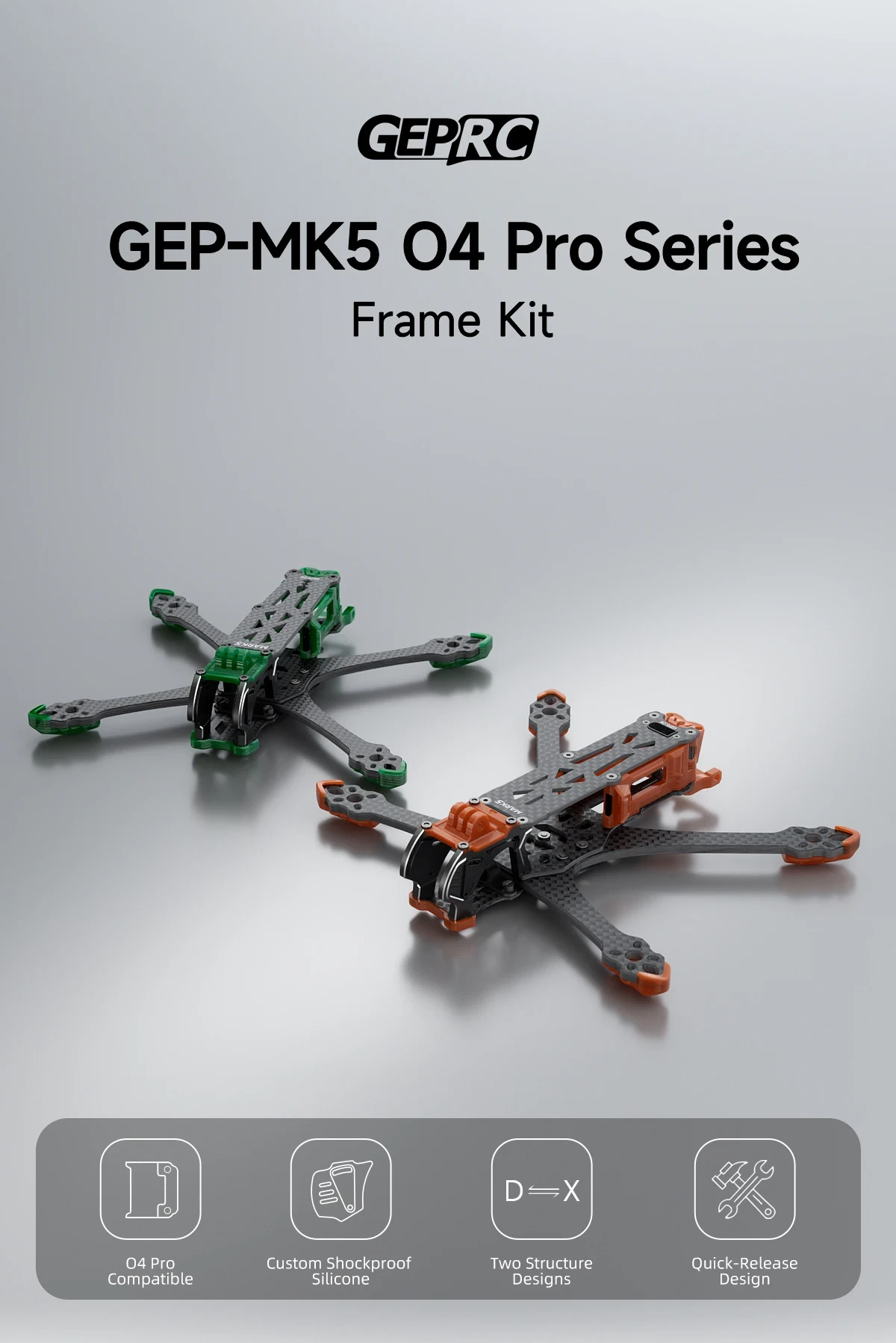

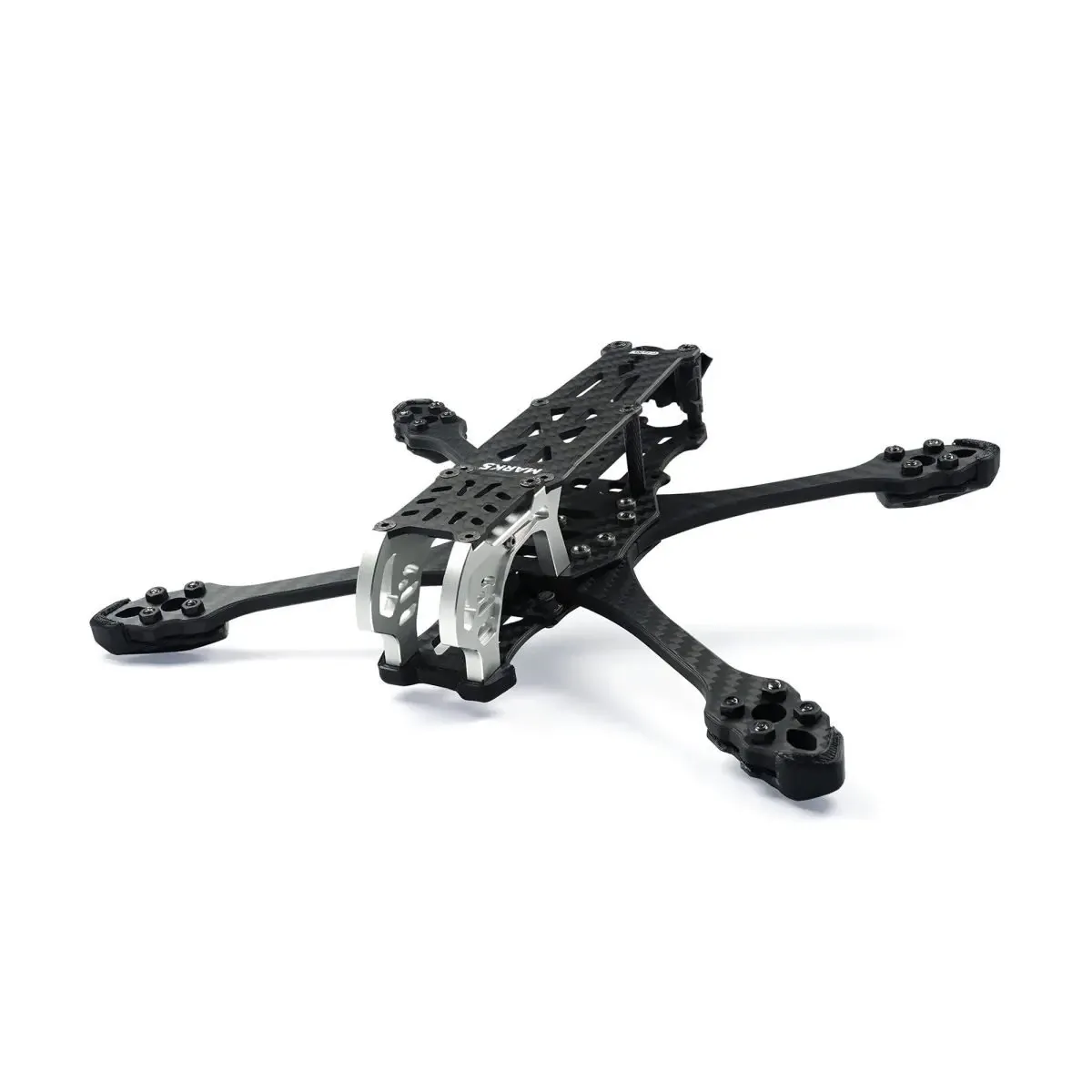

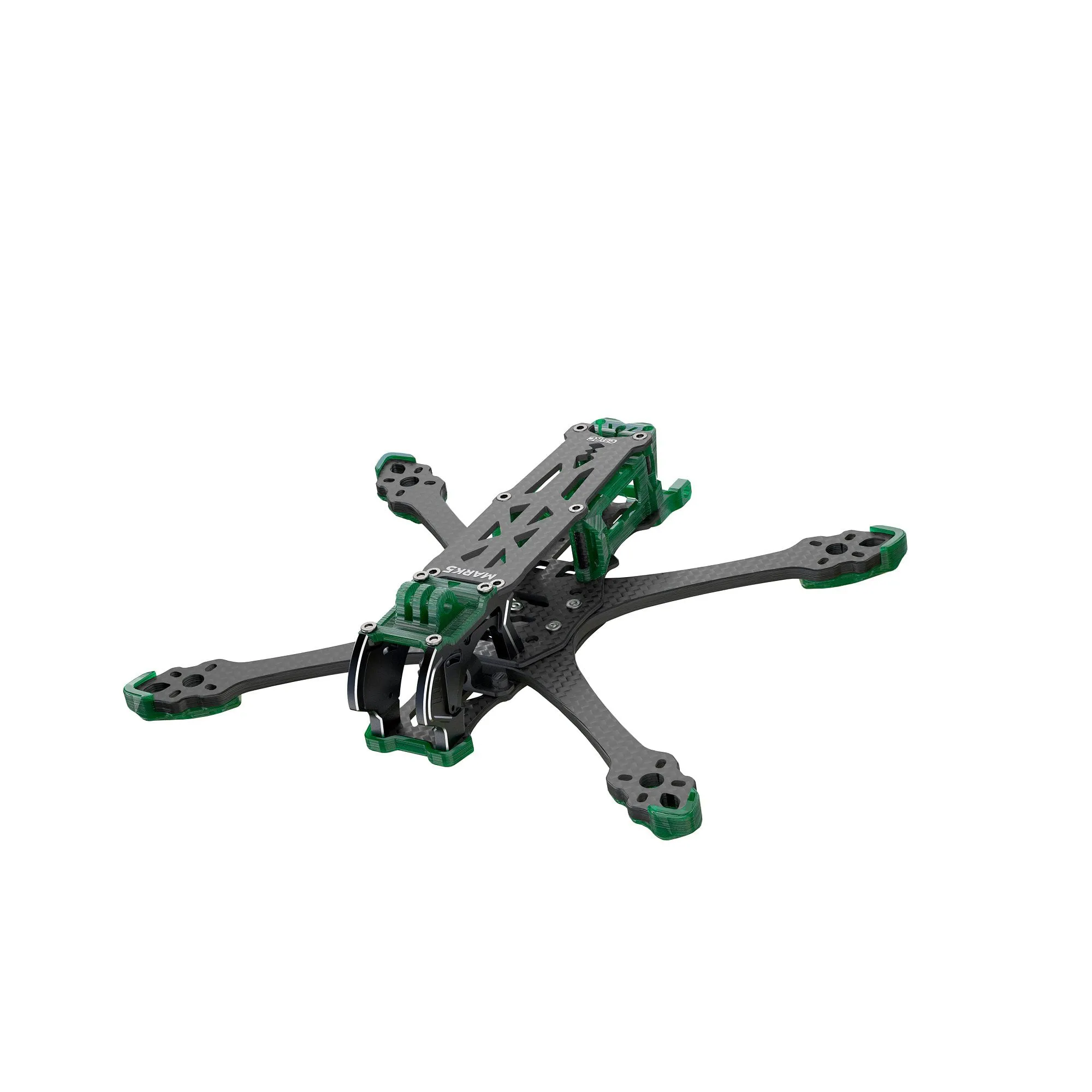

GEPRC GEP-MK5 O4 Pro Wide X / DC Frame

The GEPRC GEP-MK5 O4 Pro Wide X is a premium 5-inch freestyle frame engineered specifically for the latest DJI O4 digital video transmission systems. Built around a Wide X geometry, it delivers balanced pitch and roll characteristics while keeping propellers out of your HD video feed, making it an excellent platform for aggressive freestyle pilots and cinematic builders.

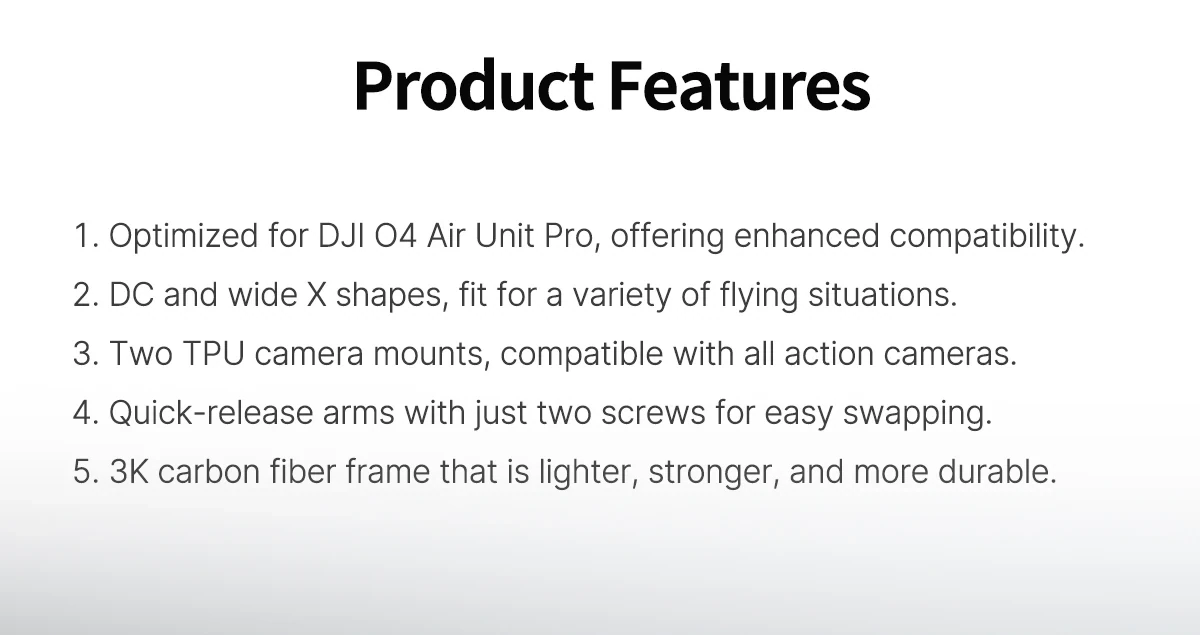

Key features

• Wide X geometry ensures propellers remain entirely out of the FPV camera's field of view

• Upgraded CNC 7075 aviation-grade aluminium camera side plates provide immense structural rigidity and help eliminate video jello

• Thick 5mm carbon fibre arms withstand heavy bando crashes and reduce overall frame resonance

• Dedicated internal layout engineered for DJI O4 Pro mounts, ensuring secure fitment and adequate cooling airflow

• Ships with a comprehensive set of TPU mounts for antennas, VTX, and action cameras, available in green or orange accents

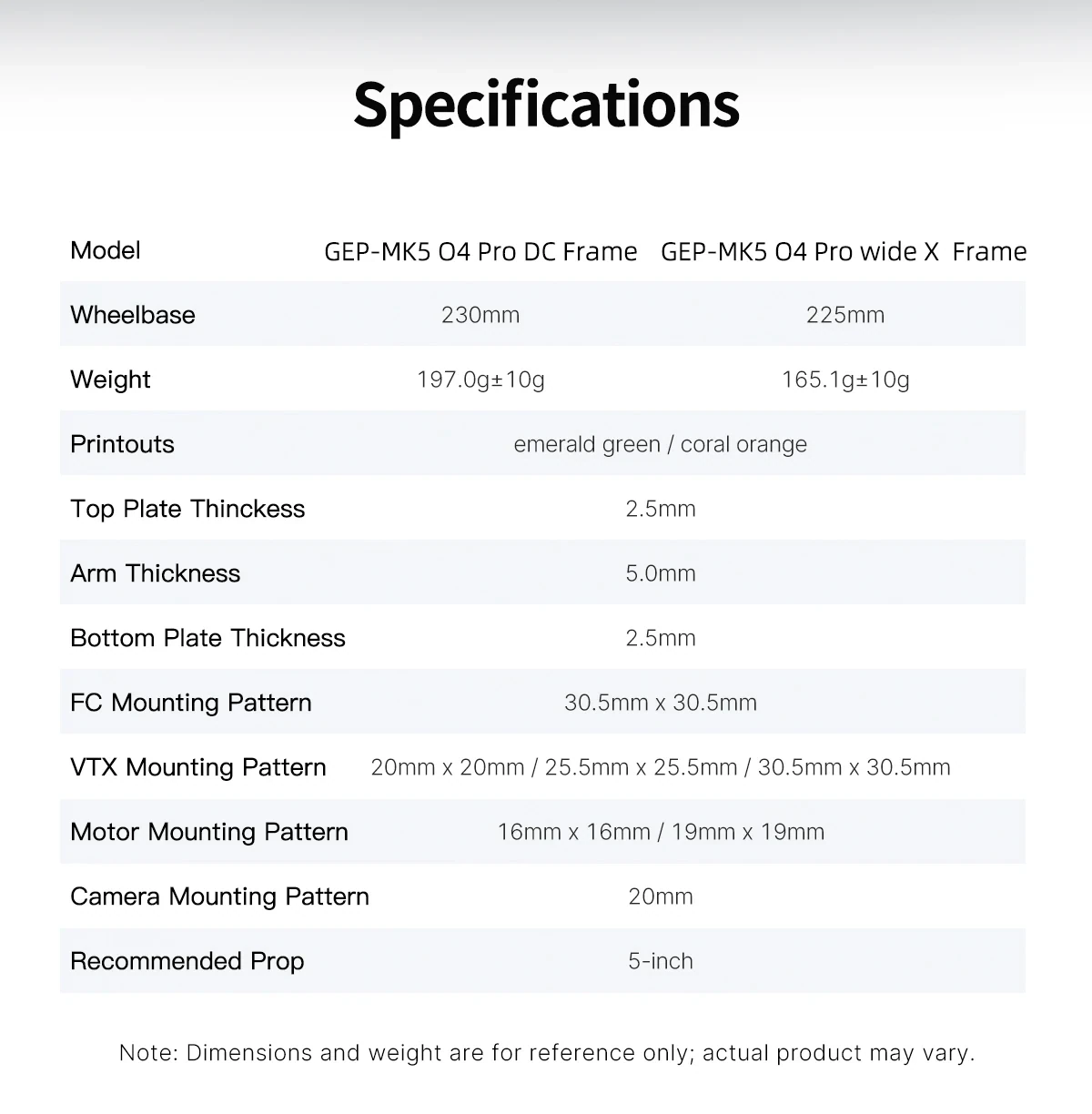

Specifications

• Geometry: Wide X

• Wheelbase: 225mm

• Arm Thickness: 5.0mm

• Top/Bottom Plate Thickness: 2.5mm

• FC Mounting: 30.5x30.5mm

• VTX Mounting: 30.5x30.5mm, 25.5x25.5mm, 20x20mm

• Camera Spacing: 20mm

• Supported Propeller: 5-inch

This frame accommodates a standard 30.5x30.5mm flight controller stack and is best paired with 2207 to 2306 brushless motors for optimal freestyle performance.
