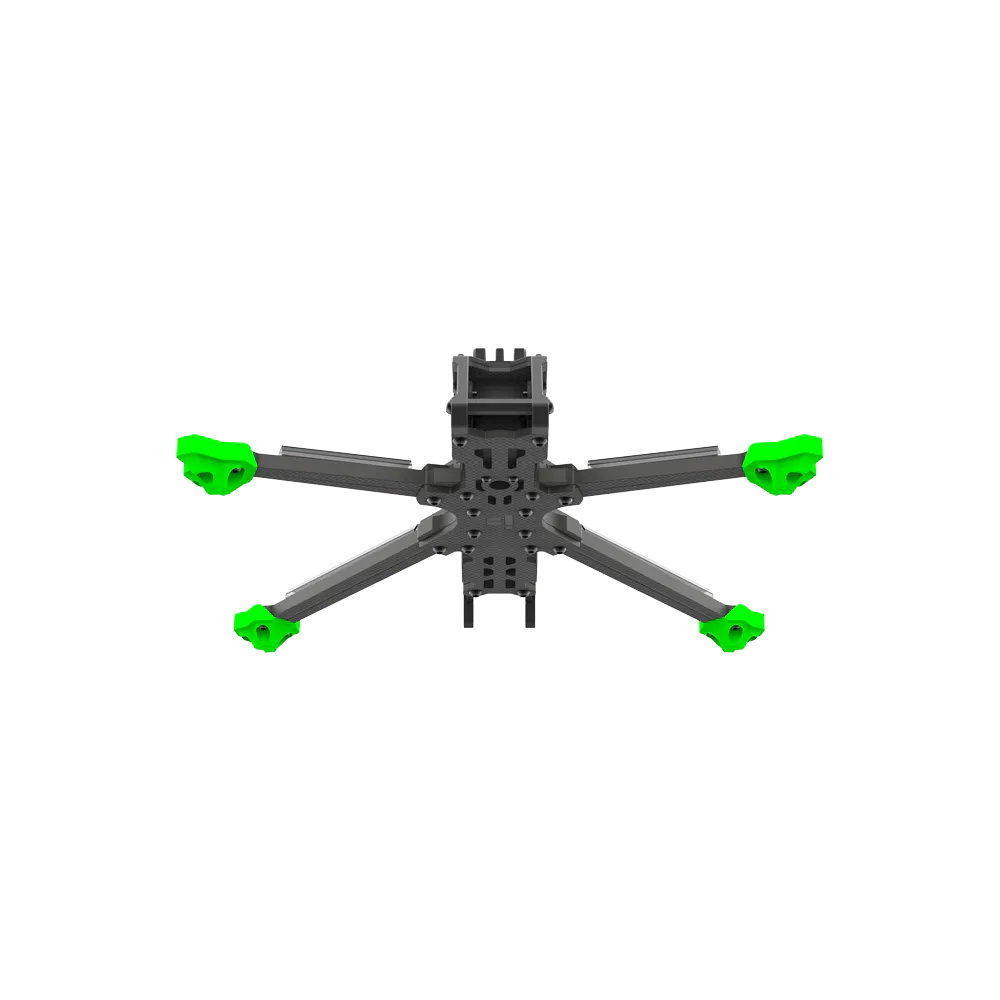

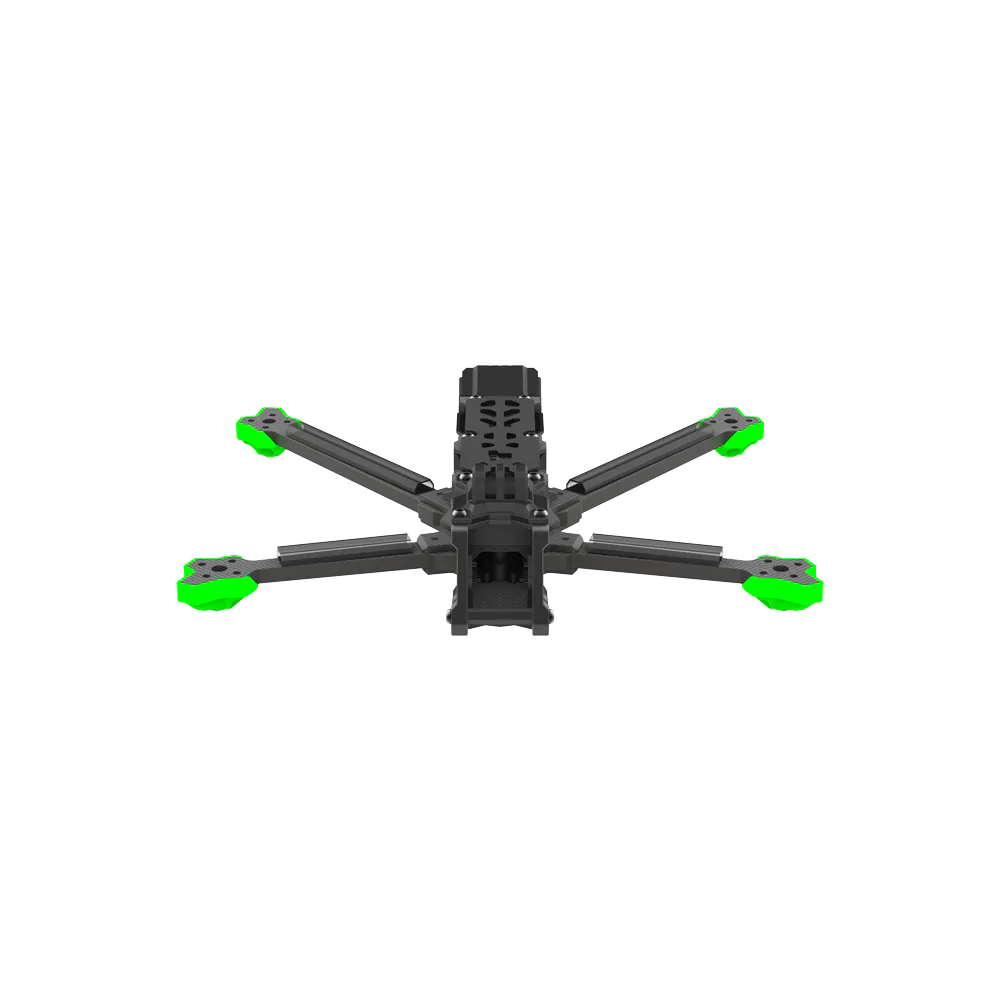

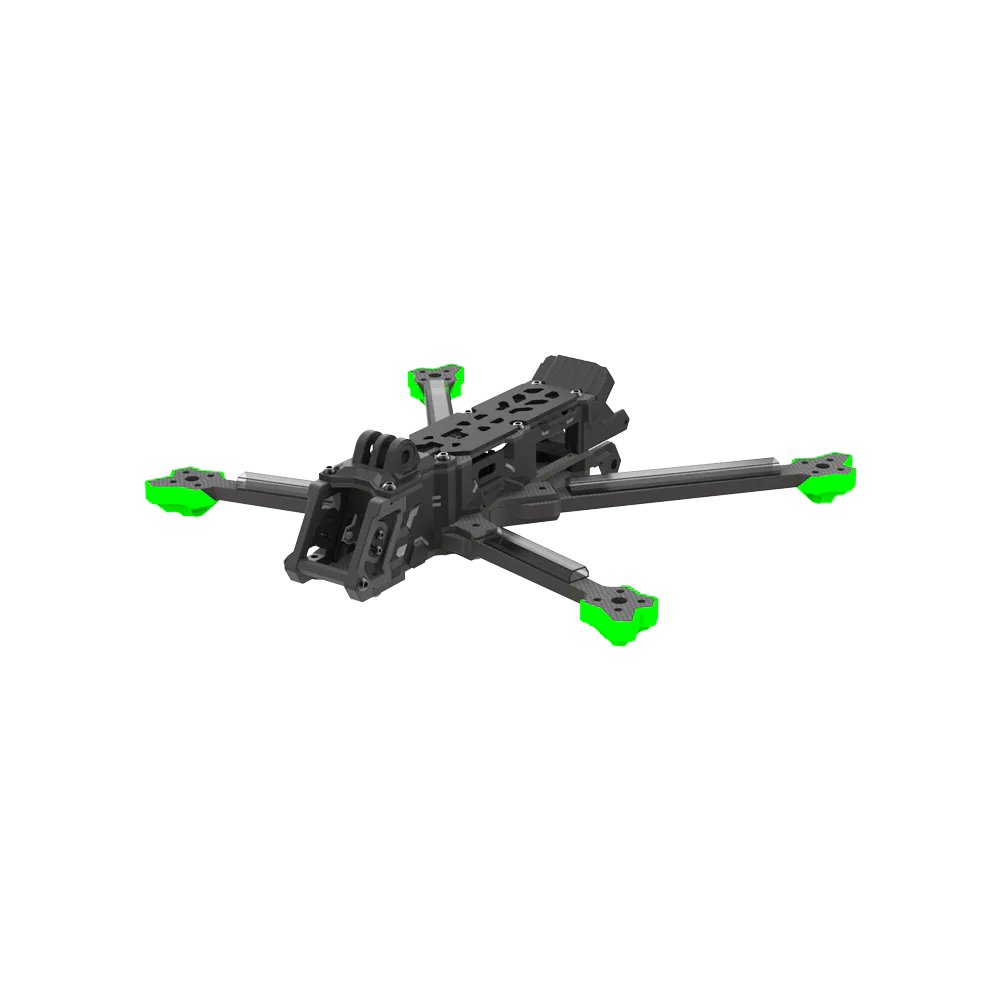

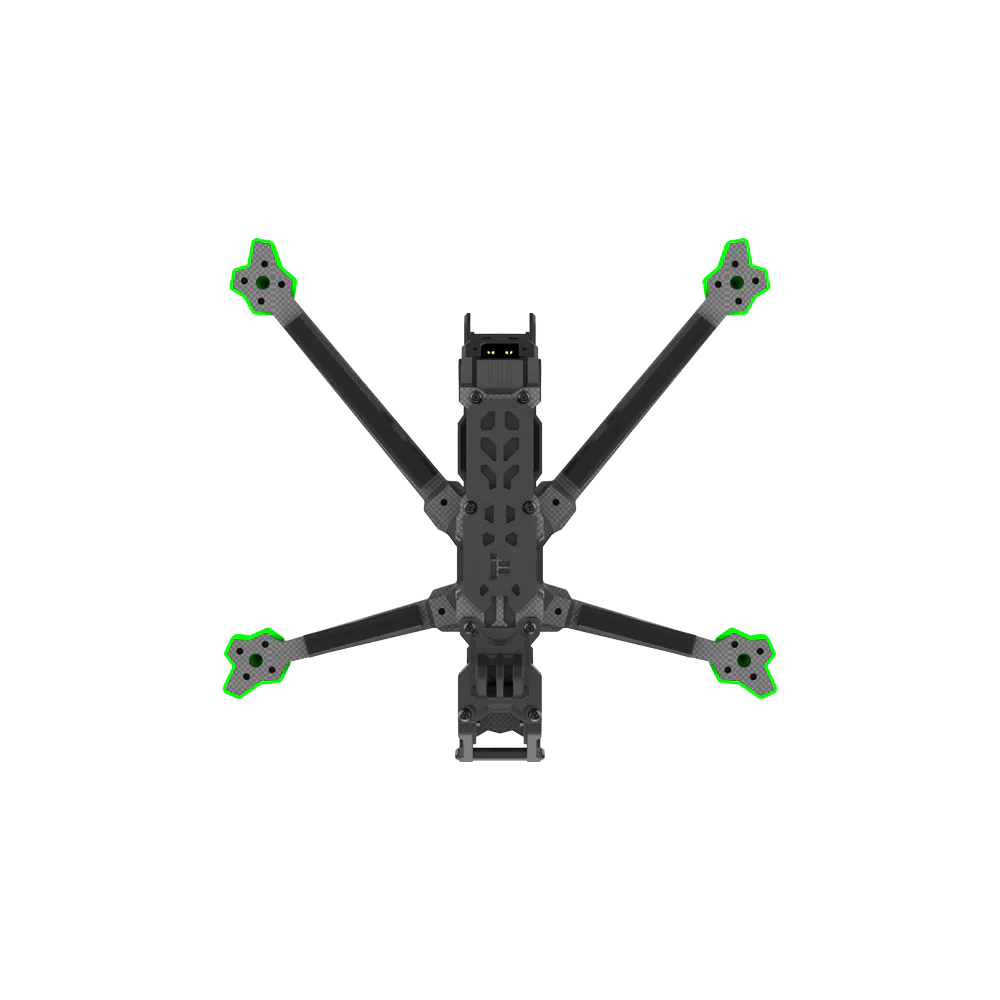

iFlight Nazgul Evoque F6 V2 Frame Kit

The iFlight Nazgul Evoque F6 V2 is a 6-inch DeadCat frame kit built for freestyle and long-range cruising with the DJI O3 Air Unit. Pushed-back front arms keep propellers out of the camera's field of view, while fully enclosed side panels shield the flight stack from dirt, grass and moisture on rough landings.

Key features

• DeadCat arm geometry delivers a completely prop-free view for clean HD recording.
• Enclosed side panels protect the flight controller and ESC stack from debris and damp grass.
• 6mm-thick carbon fibre arms with a 2mm top plate and 3mm bottom plate balance crash resistance against overall weight.
• Includes a dedicated O3 Air Unit heatsink, IPEX-to-RP-SMA antenna pigtails and a dual-antenna TPU mount.
• Integrated XT60 battery plug mount keeps the power lead routed away from the propellers.

Specifications

• Geometry: DeadCat (DC)
• Wheelbase: 262mm
• Frame dimensions: 209 x 162 x 36mm
• Arm thickness: 6mm
• Top plate thickness: 2mm
• Bottom plate thickness: 3mm
• Upper and camera plate thickness: 3mm
• Motor mounting: 16x16mm
• VTX mounting: 25.5x25.5mm
• Weight: 150g (frame only, no TPU parts)

Supports the 6-inch propeller class and is set up for a direct DJI O3 Air Unit install, making it a solid long-range or freestyle cruiser platform.
