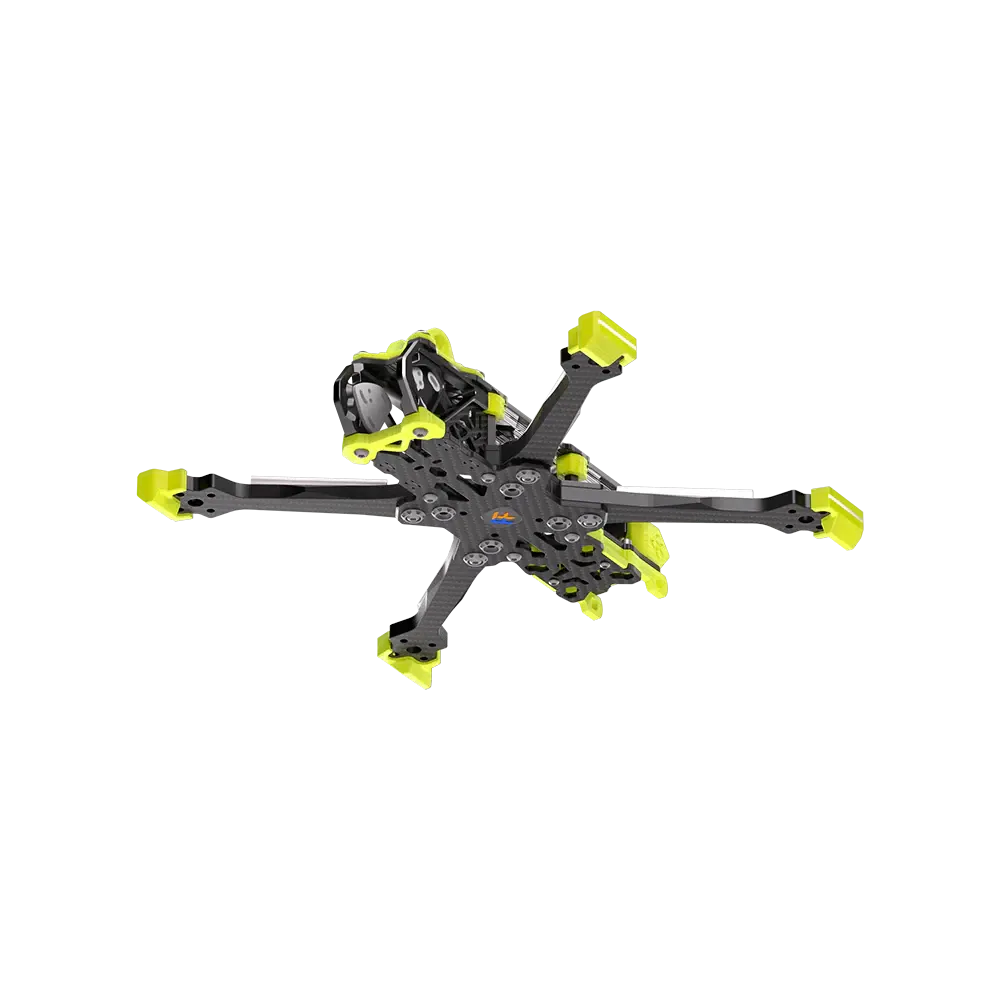

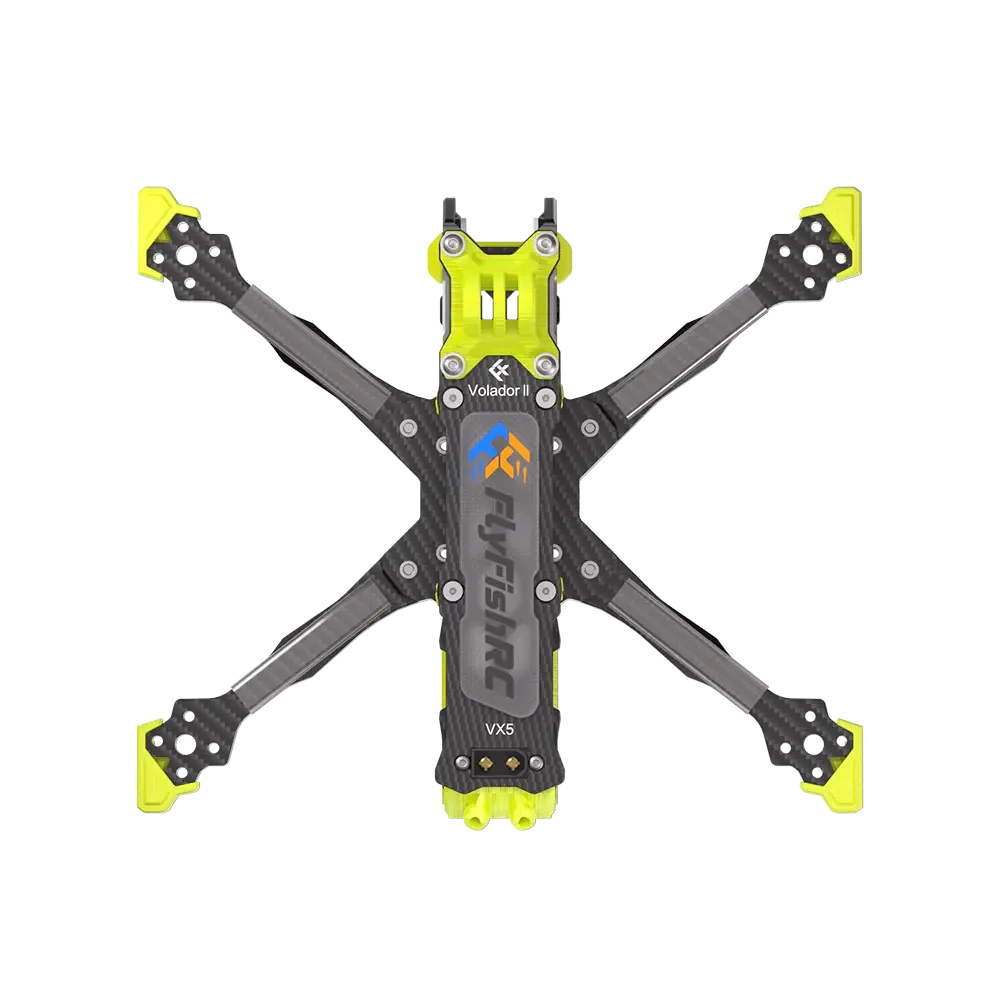

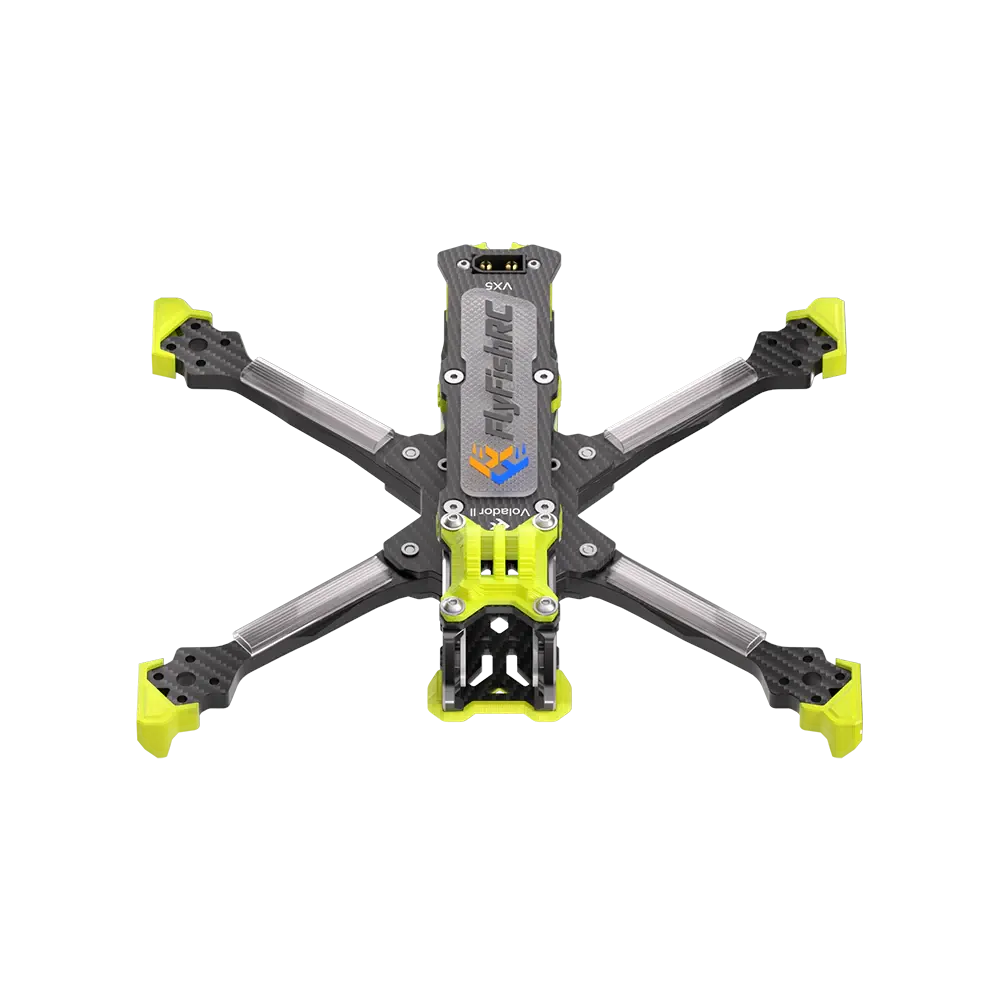

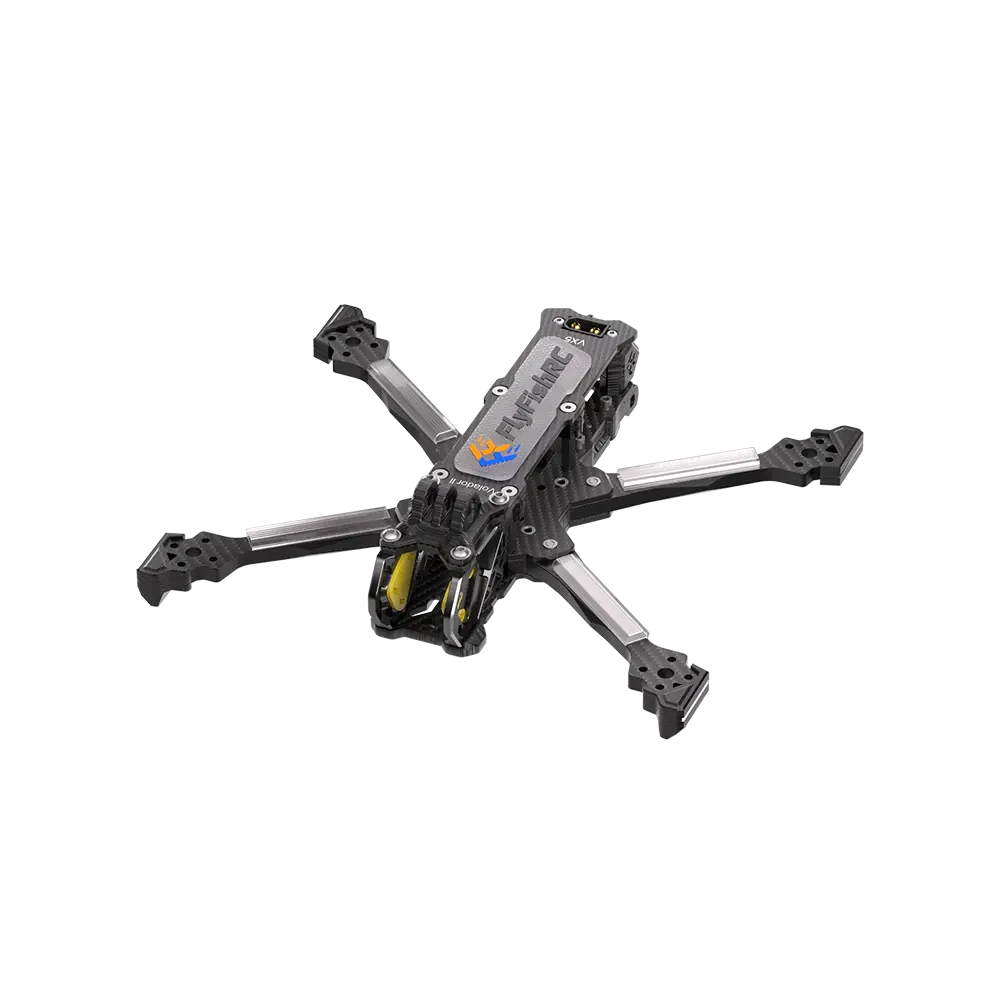

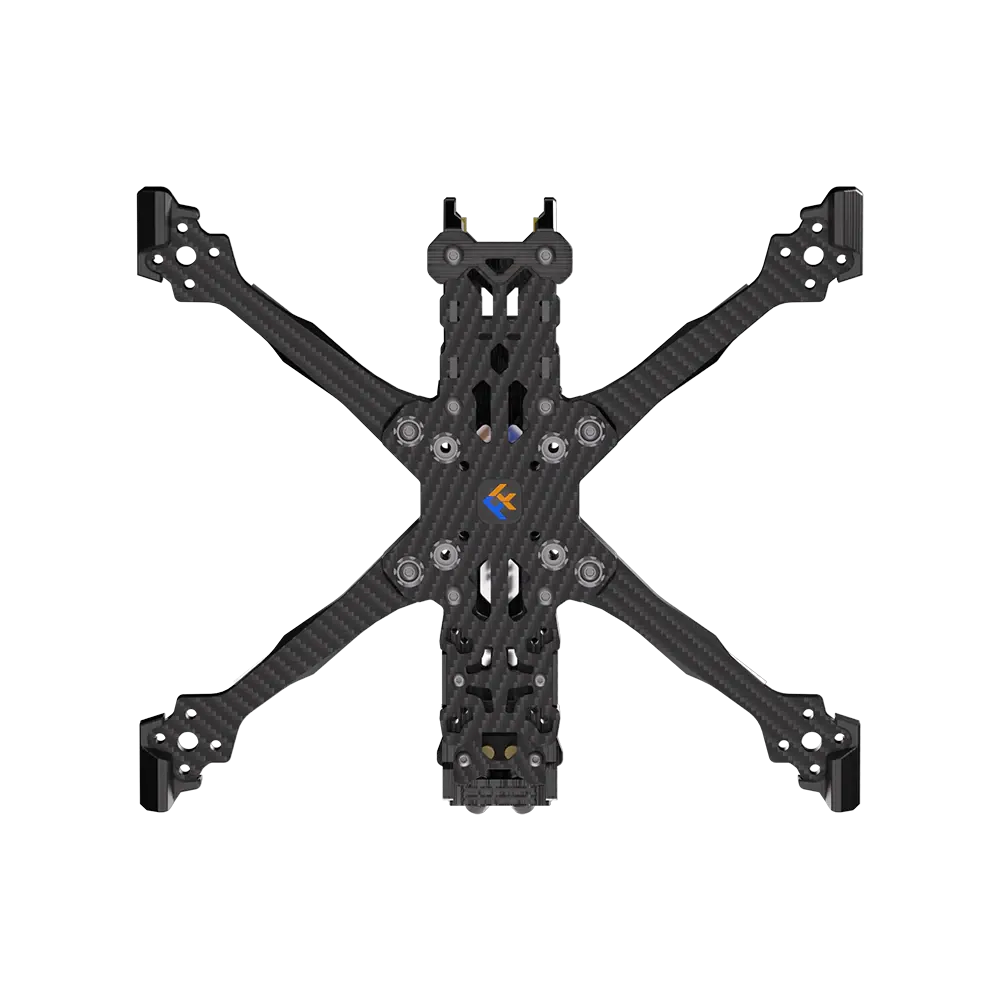

FlyFishRC Volador II VX5 O4 FPV Freestyle T700 Frame Kit

The FlyFishRC Volador II VX5 O4 is a 5-inch True-X freestyle frame specifically updated to house the DJI O4 digital FPV system. Cut entirely from premium T700 carbon fibre, it delivers a highly rigid, vibration-resistant platform tuned for aggressive freestyle flying and smooth HD video capture.

Key features

• True-X geometry with robust 6mm arms for symmetrical flight dynamics and high crash tolerance.
• CNC aluminium alloy camera side plates custom-moulded to protect and securely mount the DJI O4 camera.
• Thick 2.5mm top, bottom, and middle plates prevent frame resonance and protect internal electronics.
• Integrated XT60 tail block keeps power leads safely routed away from spinning propellers.
• Includes a complete set of TPU mounts, silicone shock absorbers, and Loctite-pre-treated hardware.

Specifications

• Geometry: True-X
• Wheelbase: 225mm
• Carbon material: T700
• Arm thickness: 6mm
• Plate thickness: 2.5mm (Top, Bottom, Middle)
• Stack mounting: 20x20, 30.5x30.5
• VTX mounting: 20x20, 25.5x25.5
• Camera size: 20mm (O4 compatible)
• Weight: 177g (including TPU parts)

This black variant features dual centre stack patterns and versatile rear VTX mounting options, ensuring drop-in compatibility with the vast majority of modern flight controllers, ESCs, and high-definition video transmitters.
