SpeedyBee Mario 5 Frame Kit

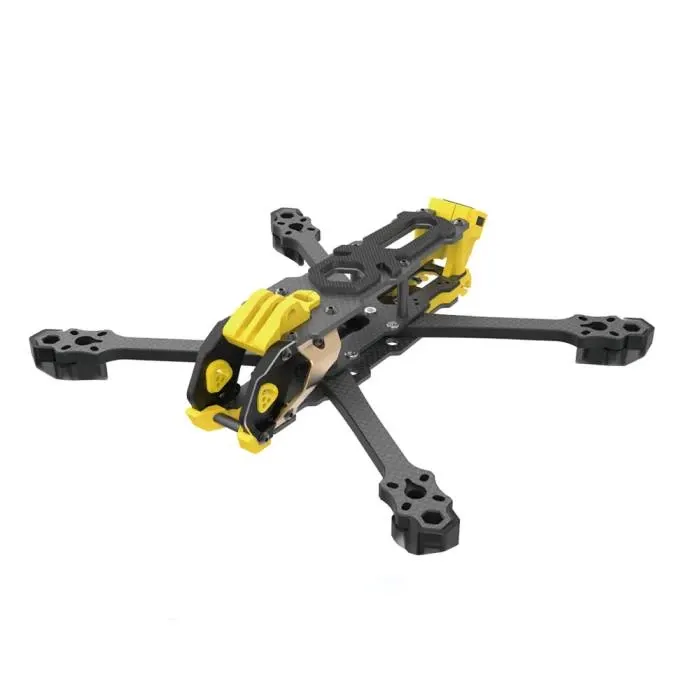

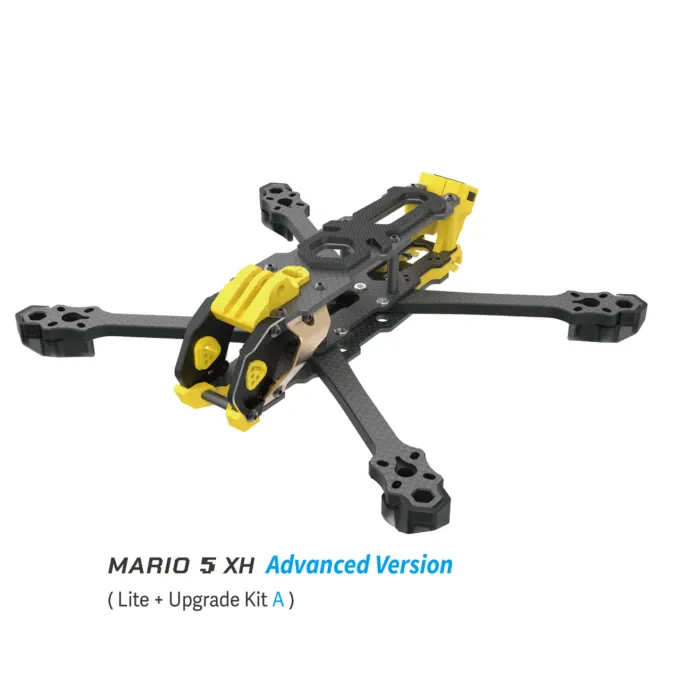

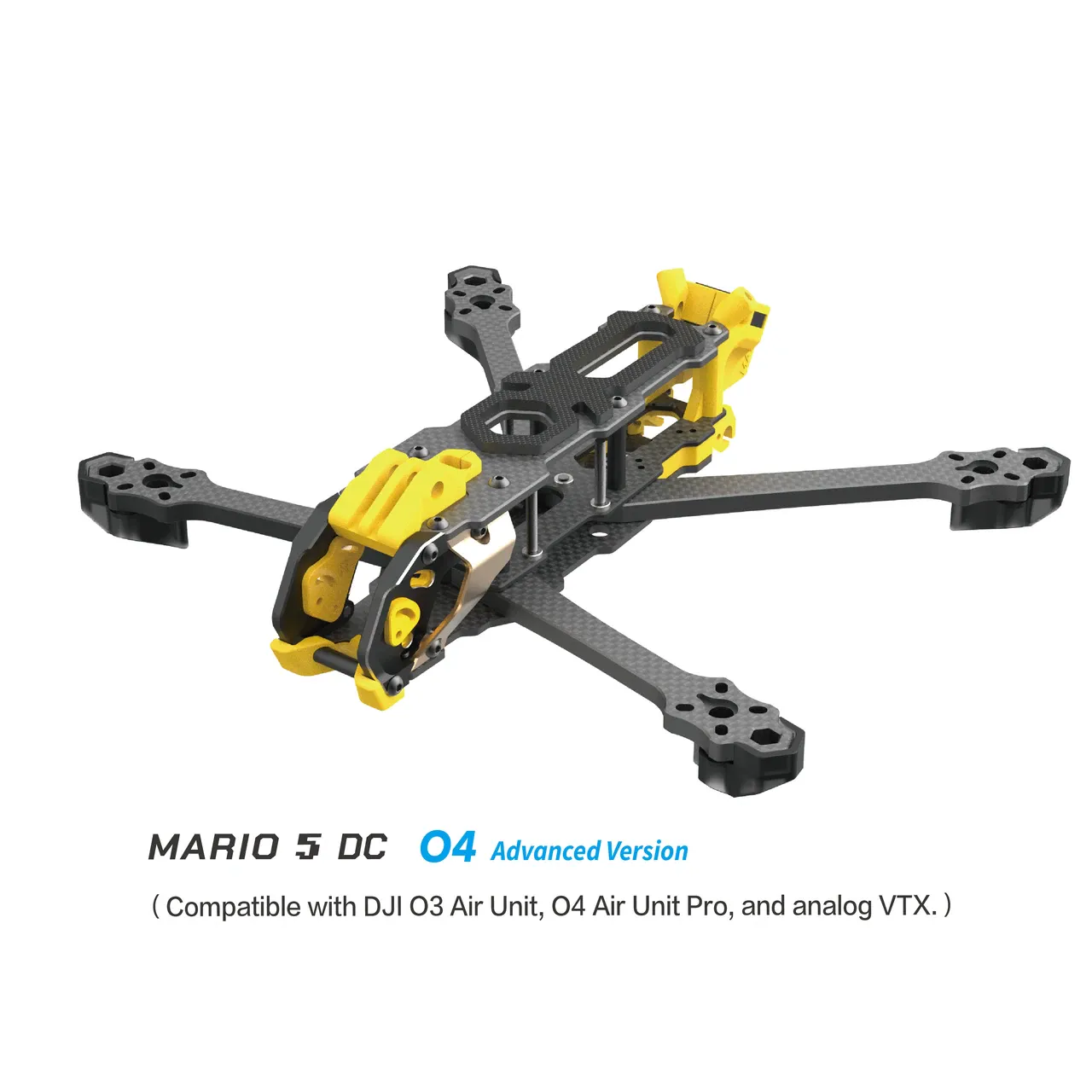

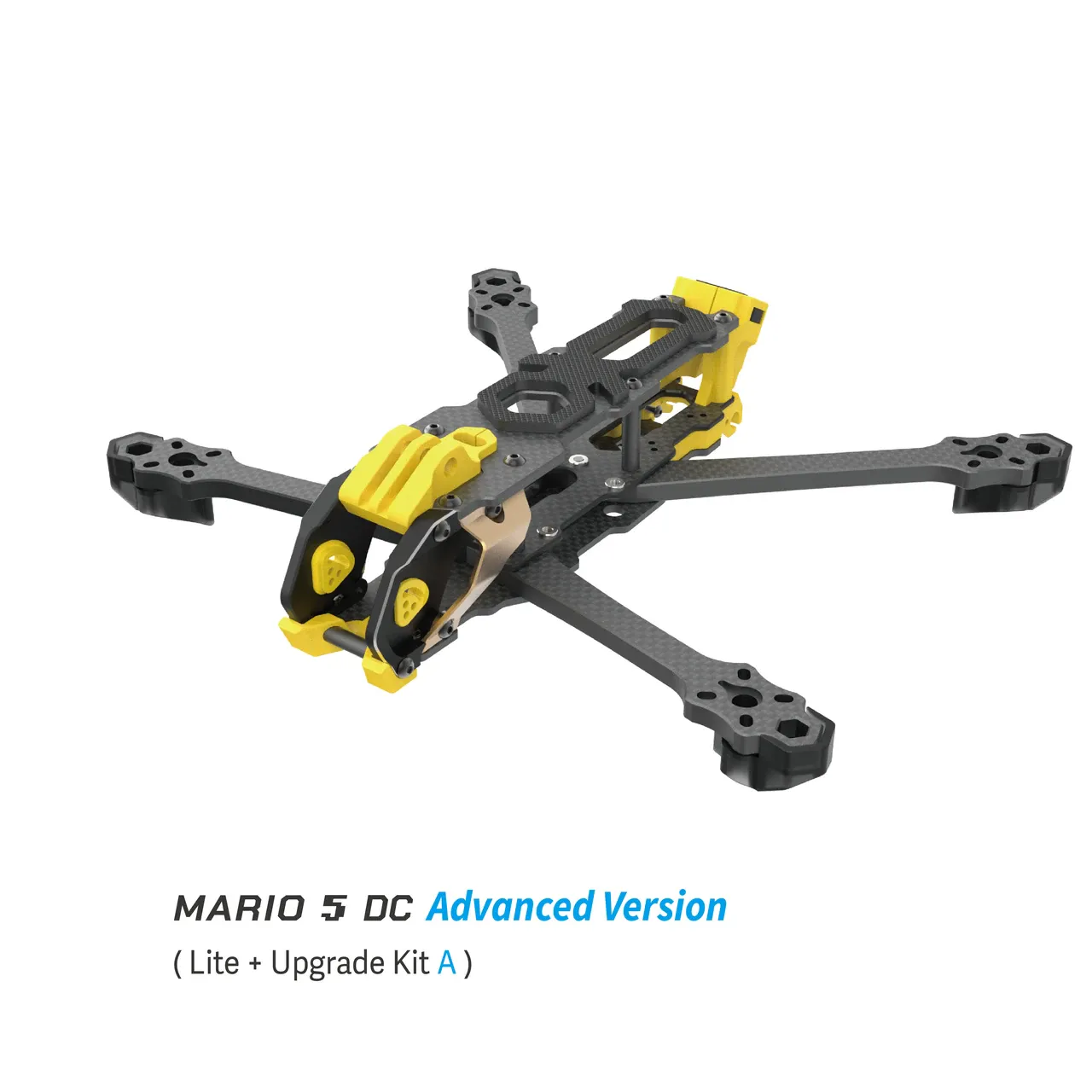

The SpeedyBee Mario 5 Advanced is a 5-inch frame built to endure hard freestyle impacts while cleanly housing high-definition video systems. Anchored by 6mm carbon fibre arms and a 2.5mm bottom plate, it provides a highly rigid platform for clean gyro traces and precise flight characteristics. Every Advanced kit includes a complete suite of TPU printed parts to shield your electronics and simplify wiring right out of the box. The available variants let you tailor the frame to your exact build requirements: the XH (Wide-X) configuration provides balanced, predictable rotation for aggressive freestyle; the DC (Deadcat) geometry sweeps the front arms back to keep propellers entirely out of your HD camera feed; and the dedicated DCO4 variant includes tailored TPU designed specifically to mount the newest DJI O4 air unit.

Key features

• Robust 6mm aviation-grade T300 carbon fibre arms to withstand severe crashes
• CNC-machined aerospace aluminium front plates to tightly secure and protect the FPV camera

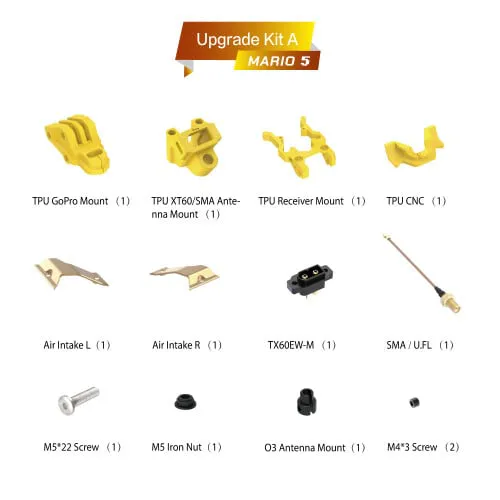

• Comprehensive TPU kit including arm guards, dual-antenna mounts, and an integrated rear XT60 and capacitor block
• Accommodates modern digital and analog builds with dual VTX mounting patterns in the rear compartment

Specifications

• Configuration: XH (Wide-X) or DC (Deadcat)
• Wheelbase: 226mm (XH) / 227mm (DC)
• Carbon thickness: 6mm arms, 2.5mm top and bottom plates, 2.0mm middle plate
• FC mounting: 30.5x30.5mm (M3)
• VTX mounting: 25.5x25.5mm, 20x20mm (M2)
• Motor mounting: 16x16mm, 19x19mm (M3)
• Supported camera sizes: 19mm, 20mm
• Max propeller size: 5.1 inch
• Internal mounting height: 23-31mm
• Receiver bay: 25 x 13 x 6mm
• Capacitor slot: 10 x 20mm
• GPS mount: 18 x 18 x 7mm
• Bare frame weight: 126g (XH) / 129g (DC)
• Weight with TPU printed parts: 167g (XH) / 170g (DC)
