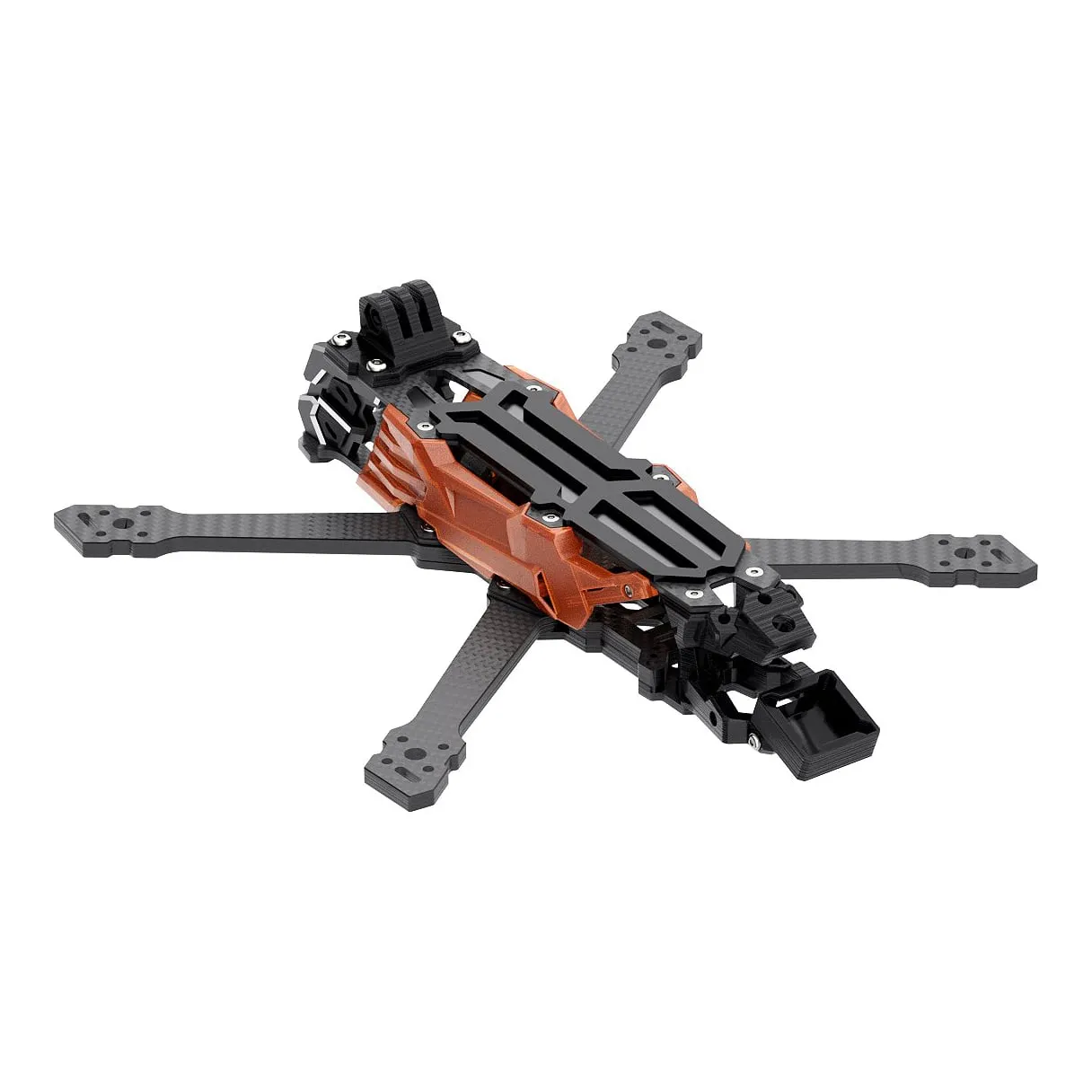

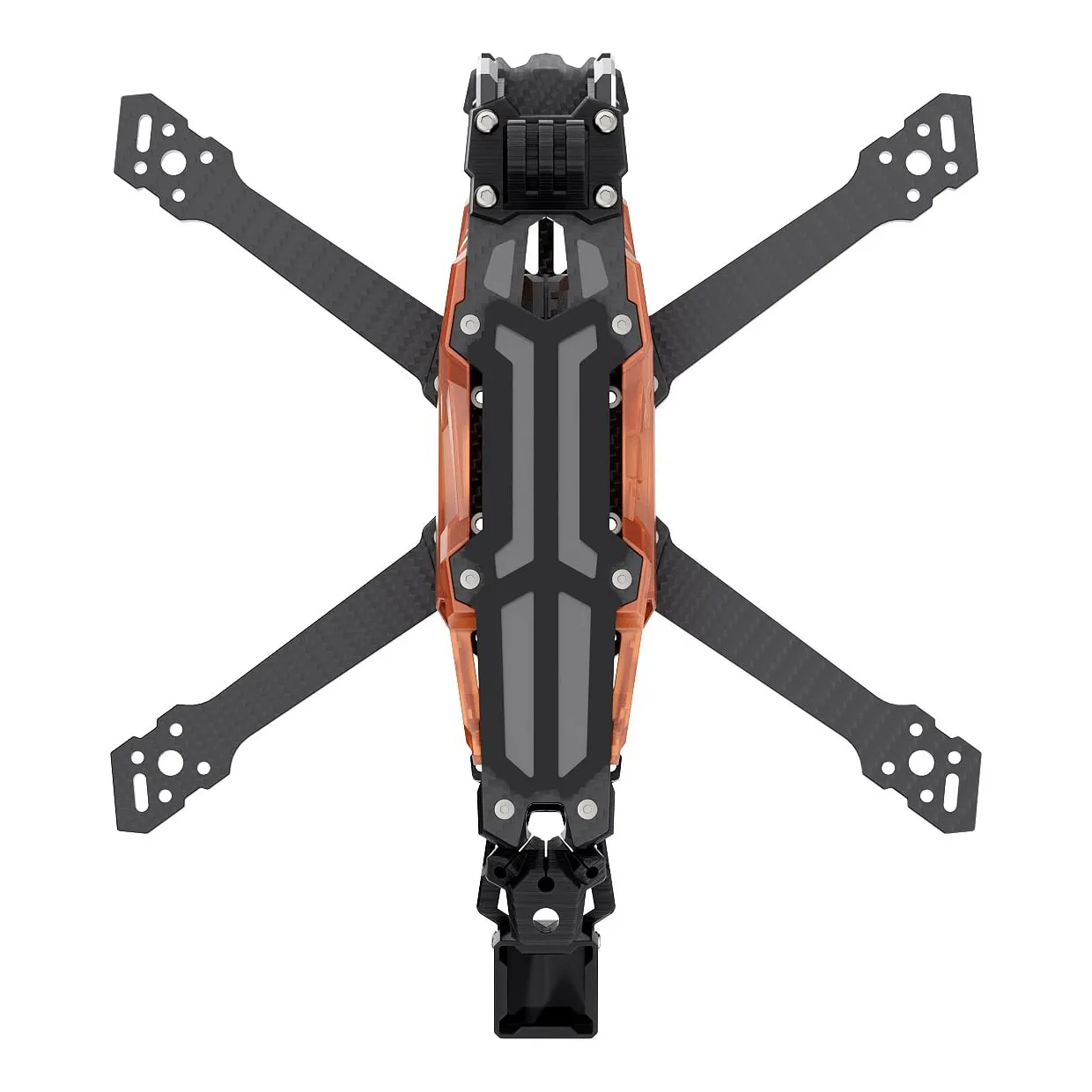

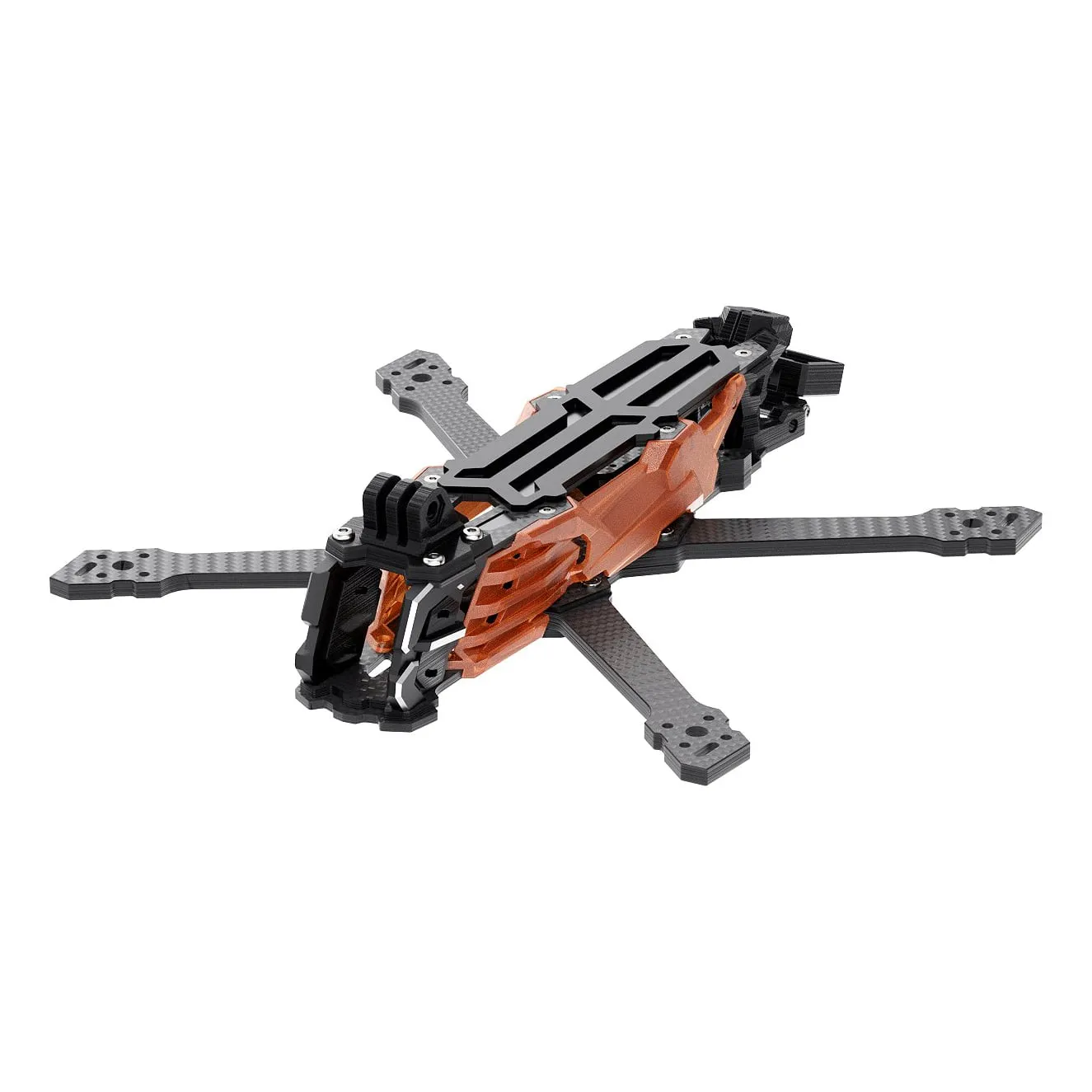

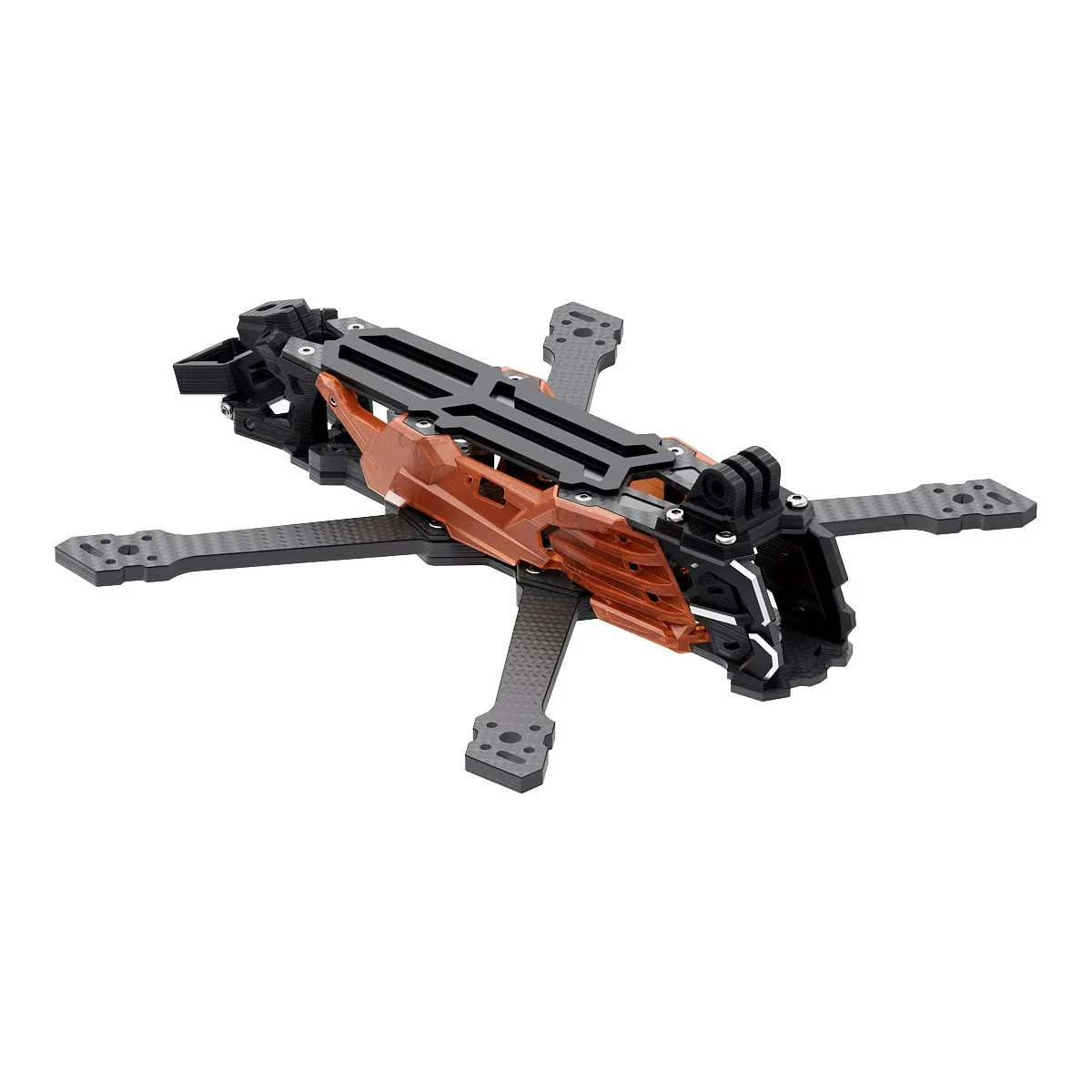

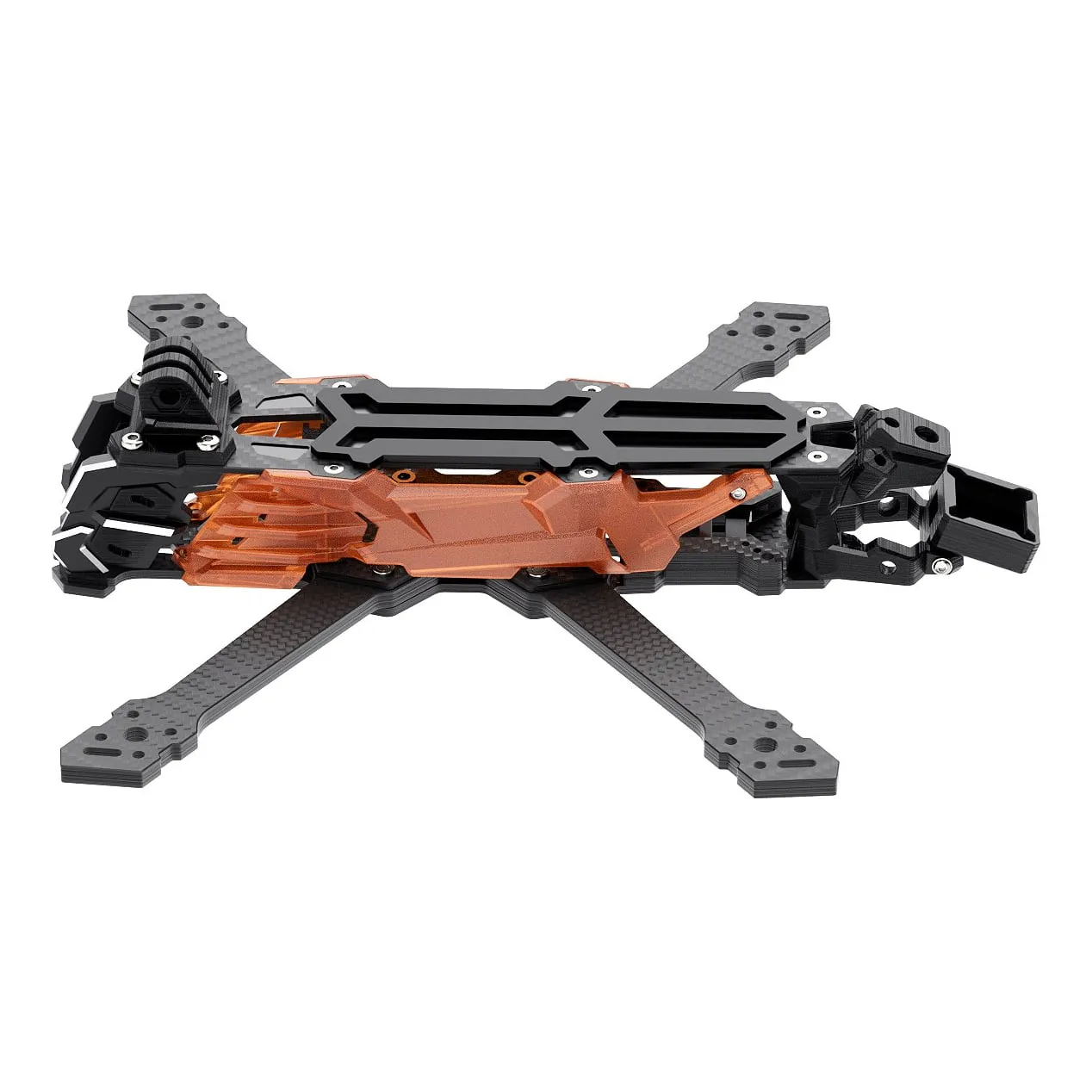

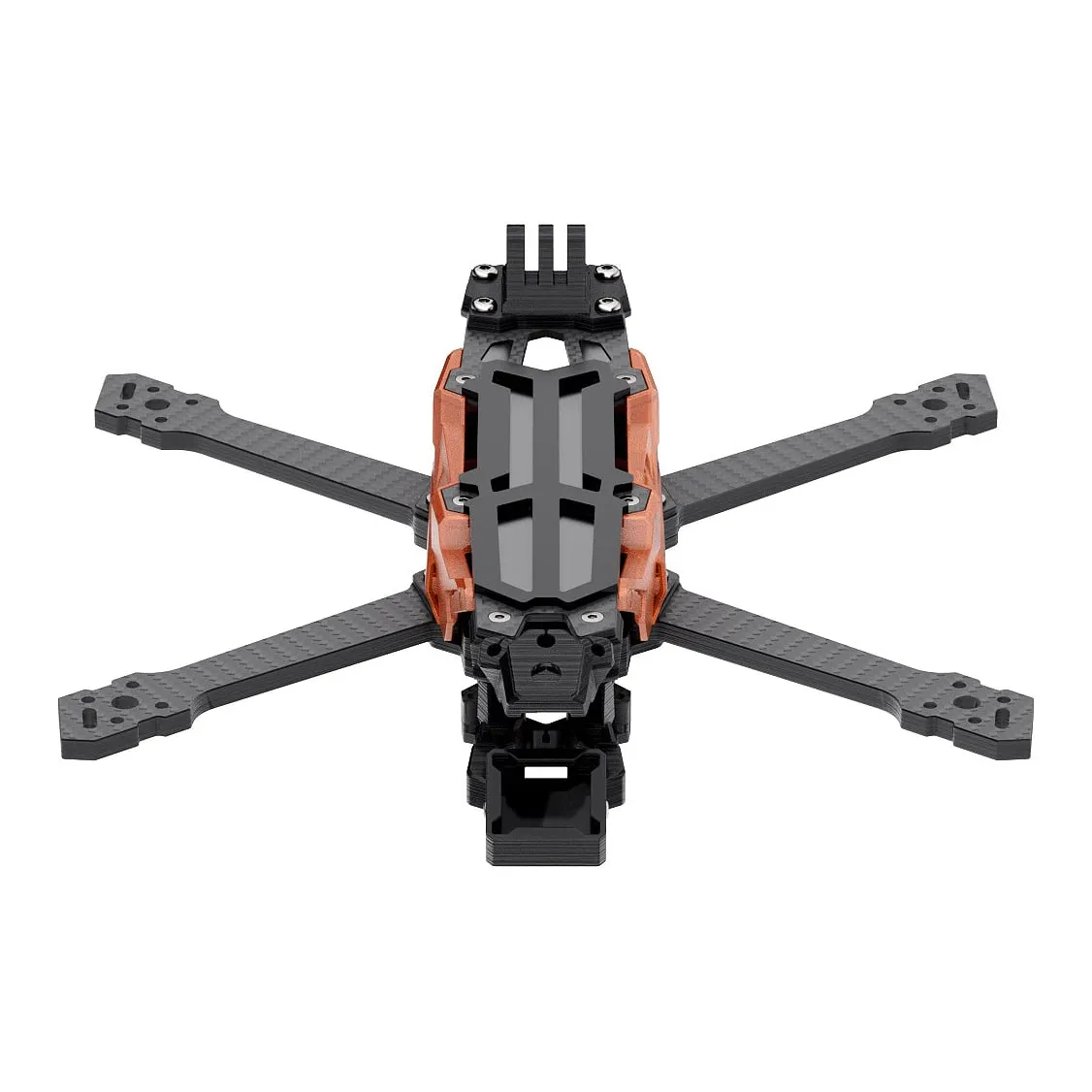

GEPRC GEP-Vapor-X6 O4 Pro Frame
₹8,199Incl. GST
SKU GEPRC-VAPOR-X6-O4PRO
Prop Size: 6"Wheelbase: 254.5 mmCamera Size: 19mm, 20mmMade in India: No
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The GEPRC GEP-Vapor-X6 O4 Pro is a 6-inch freestyle frame built around the DJI O4 Air Unit Pro, with a 254.5mm wheelbase and an XH-style layout for stable, precise handling. Redesigned aluminium camera parts and vibration-damping silicone give the O4 Pro a snug, well-protected mount.
Key features
- Camera mount and vibration-damping silicone matched specifically to the DJI O4 Air Unit Pro.
- 5mm-thick carbon fibre arms with camera-guard side panels and a front lip for impact protection.
- Quick-release arm design speeds up crash repairs without a full rebuild.
- Rear antenna mount takes both the stock O4 Pro antenna and SMA pigtail adapters.
- FC and VTX mounting supports both 20×20mm and 30.5×30.5mm stacks for flexible electronics layout.
Specifications
- Wheelbase: 254.5mm
- Arm thickness: 5.0mm
- Top/middle plate: 2.0mm; bottom plate 2.5mm
- FC mounting: 20x20mm / 30.5x30.5mm
- VTX mounting: 20x20mm / 25x25mm / 30.5x30.5mm
- Motor mounting: 16x16mm
- Camera mounting: 19mm / 20mm
- Weight: 214.1±5g
- Recommended propeller: 6 inch
Includes battery straps, silicone battery pads, a full screw set and the hex driver kit needed to complete the build.
| Prop Size | 6" |
|---|---|
| Wheelbase | 254.5 mm |
| Camera Size | 19mm, 20mm |
| Made in India | No |
| Brand | GEPRC |
| Weight | 214 g |
| Mounting Size | 20x20, 30.5x30.5 |
| Arm Thickness | 5 mm |
| Motor Mount | 16x16mm |
| Material | Carbon Fiber |
