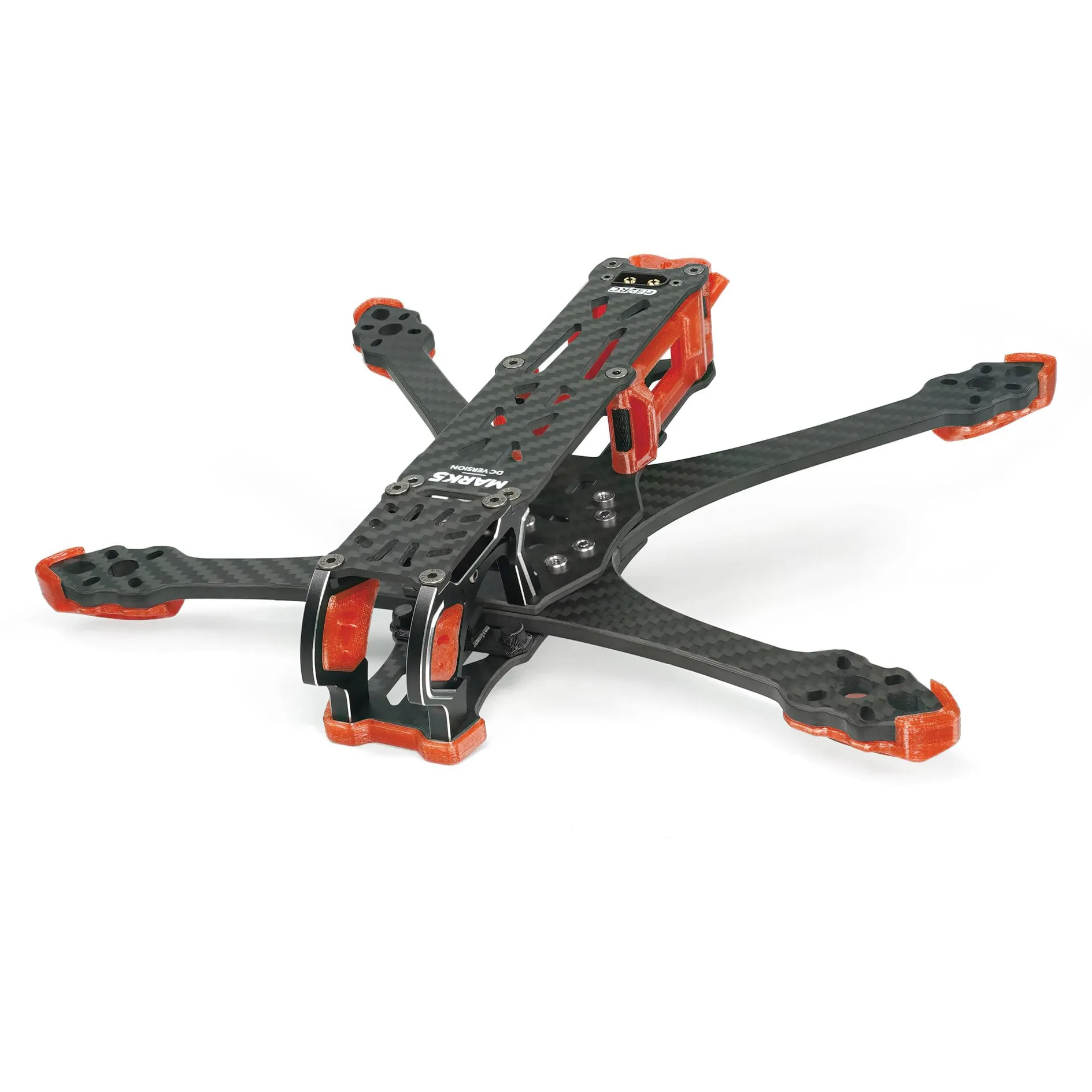

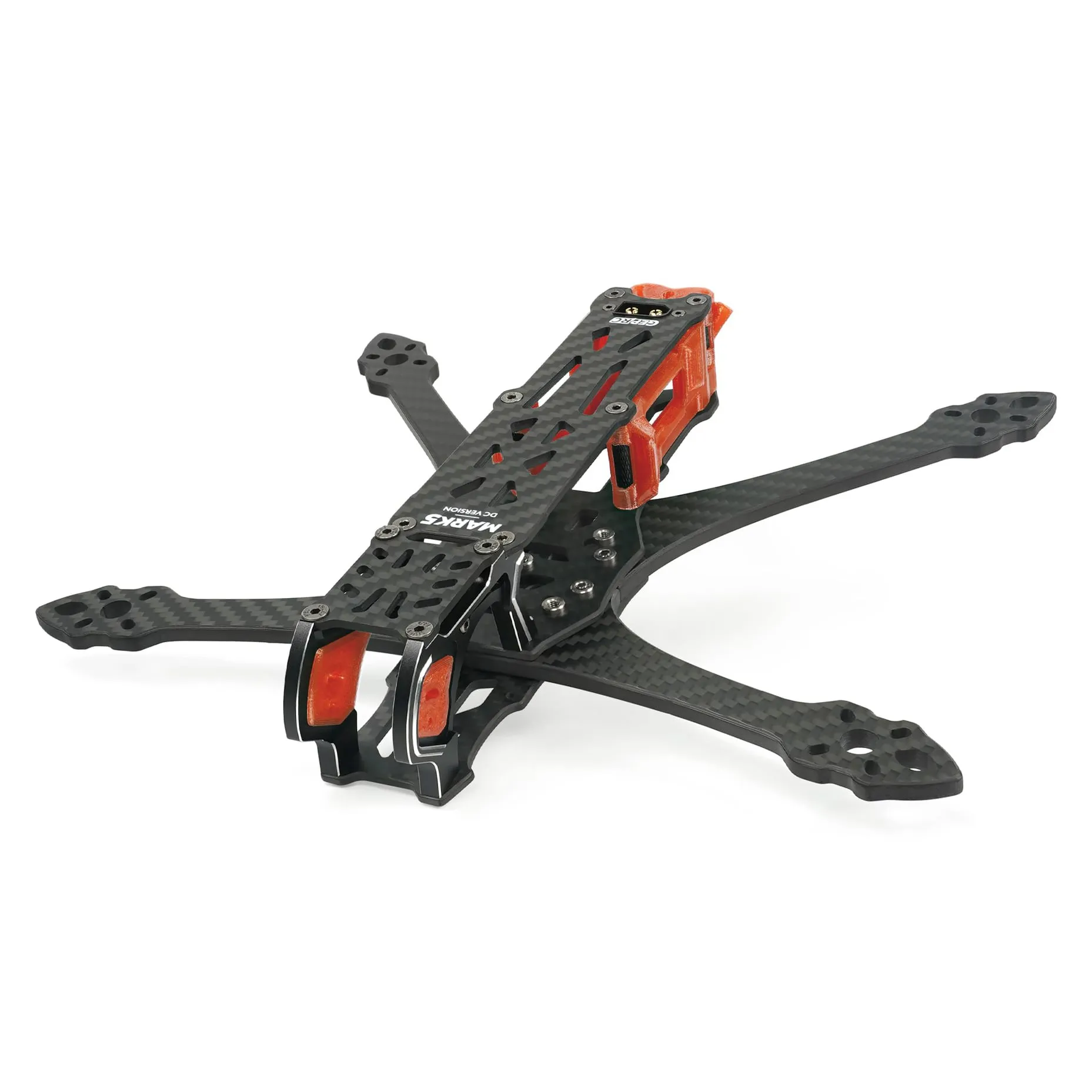

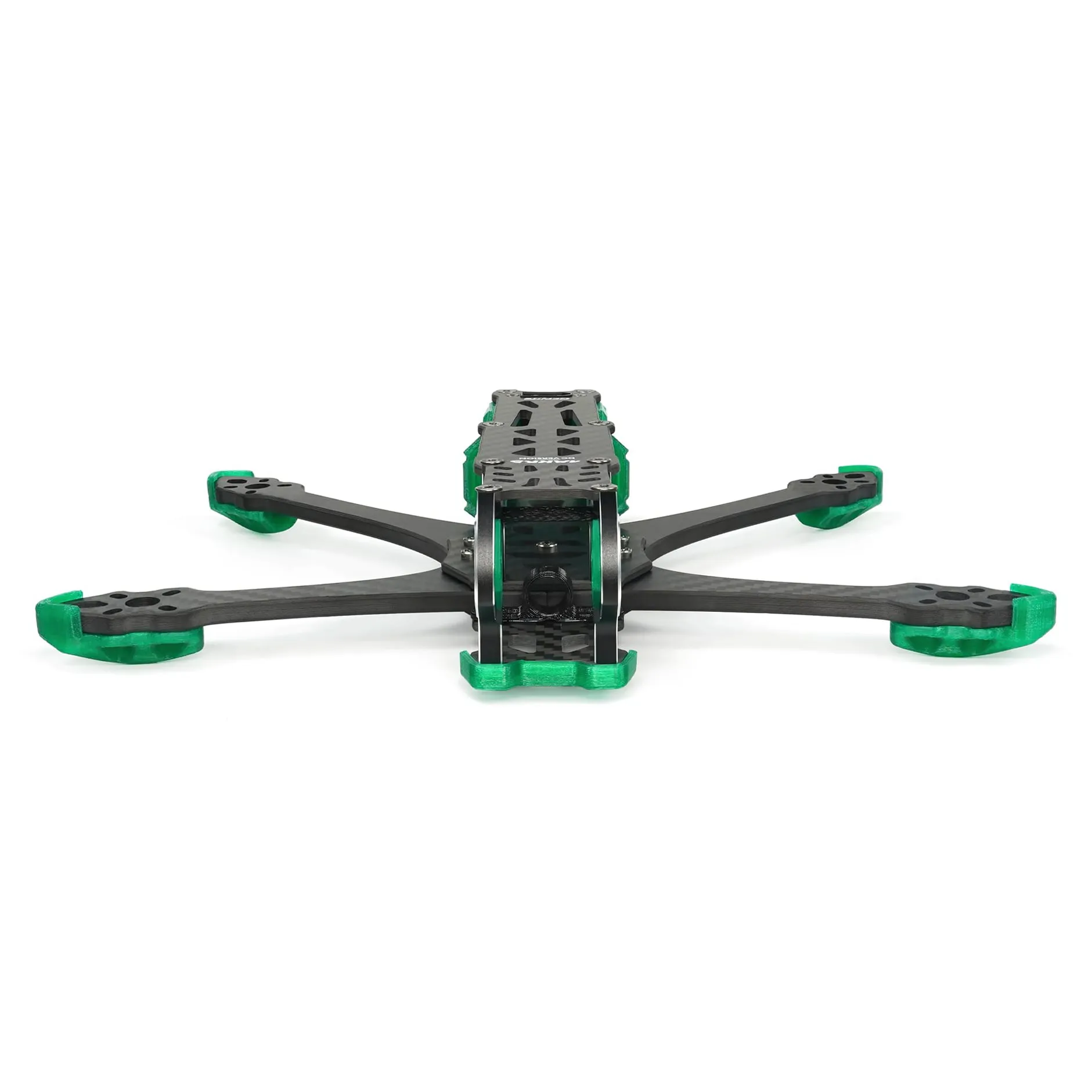

GEPRC GEP-MK5D O3 DeadCat Frame

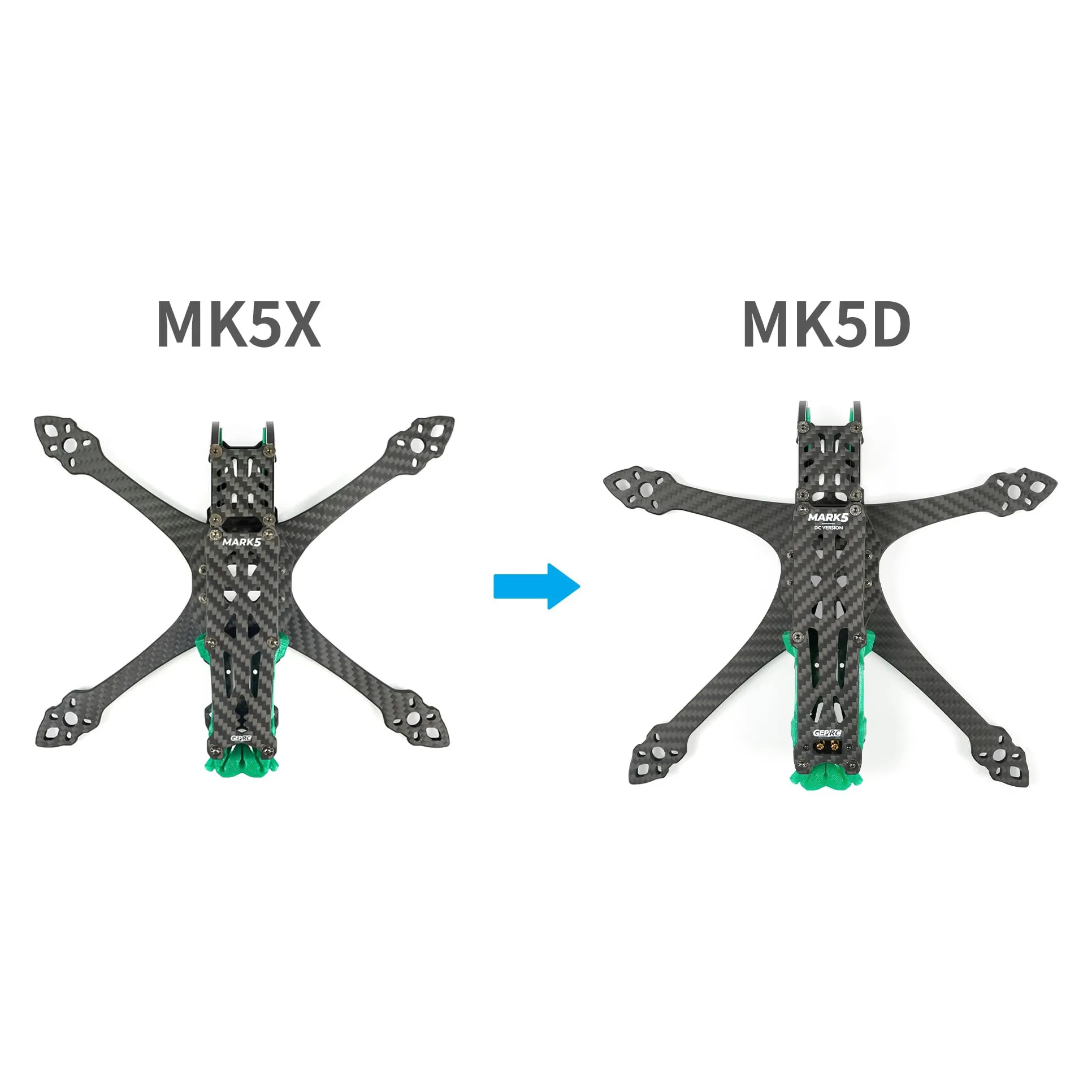

The GEPRC GEP-MK5D O3 is a premium 5-inch DeadCat freestyle frame engineered specifically to house the DJI O3 Air Unit. By utilizing a DeadCat (DC) arm layout, this frame pushes the front 5mm arms backwards to guarantee zero propellers enter your high-definition flight footage. The front end integrates robust 7075-T6 aluminium alloy side plates to shield the 20mm O3 camera module during heavy impacts, while an integrated TPU mounting system isolates the camera from high-frequency vibration.

Key features

• Pushed-back front arms provide a completely prop-free FOV for HD recording
• Upgraded 7075-T6 aluminium camera plates with integrated TPU vibration isolation
• Pro versions add a front protector, motor shock pads, a buzzer holder and two action-camera mounts (GoPro and naked GoPro 8)
• Independent 5mm arms allow for quick single-arm replacements in the field

Specifications

• Geometry: DeadCat (DC)
• Wheelbase: 230mm
• Dimensions: 208 x 193 x 42mm
• Arm Thickness: 5mm
• Top / Bottom Plate Thickness: 2.5mm
• Flight Controller Mounting: 30.5x30.5
• VTX Mounting: 30.5x30.5, 25.5x25.5, 20x20
• Motor Mounting: 16x16mm, 19x19mm
• Camera Mount Width: 20mm

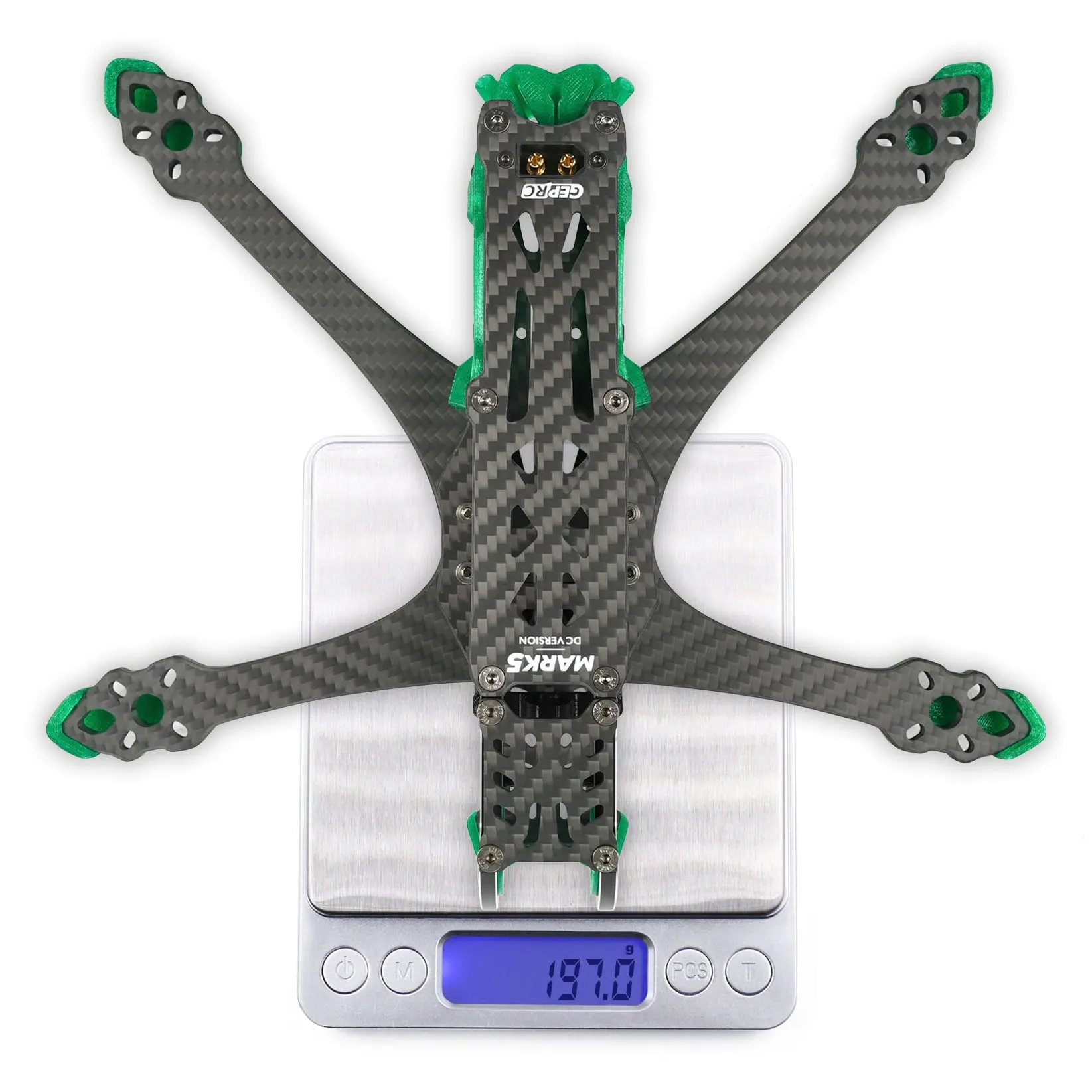

• Weight: 168g (Standard), 197g (Pro)

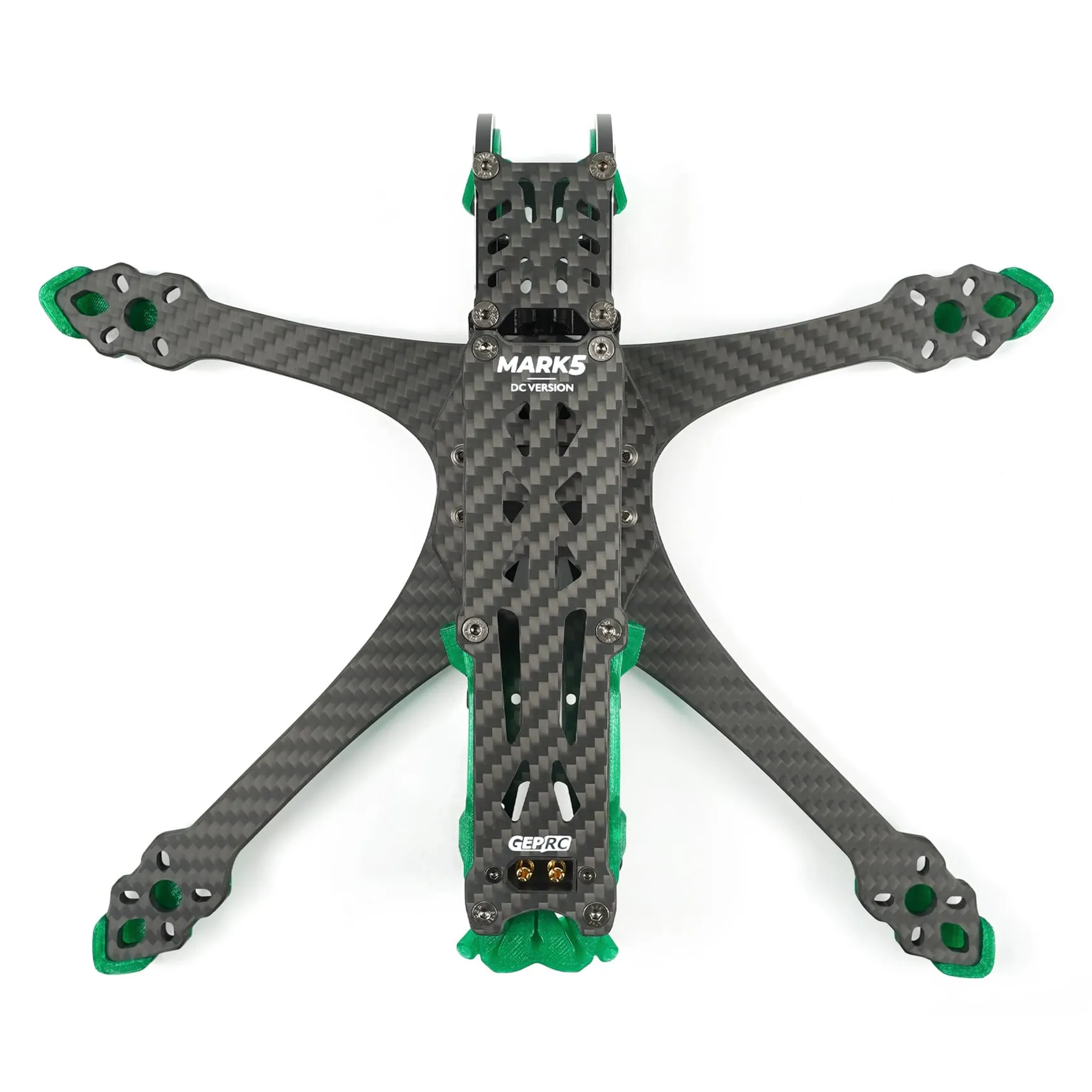

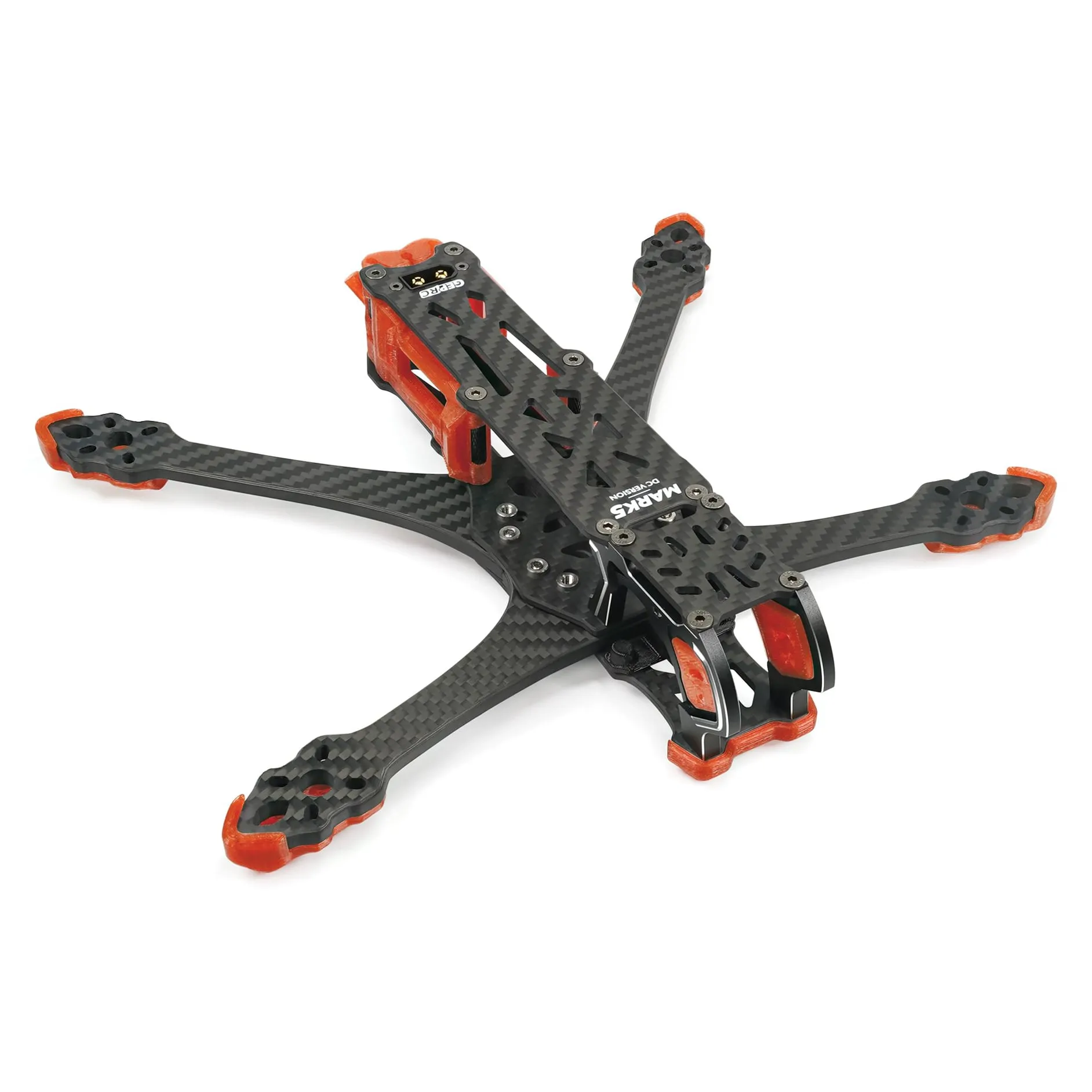

When selecting your model, note that the Standard version reduces overall weight for a more agile freestyle feel, while the Pro version adds a front protector, motor shock pads and action-camera mounts. Both variants are supplied with either green or orange TPU accents to match your build.
