Skydroid T10 2.4GHz 10CH Controller, 10-Channel Receiver & Mini FPV Camera

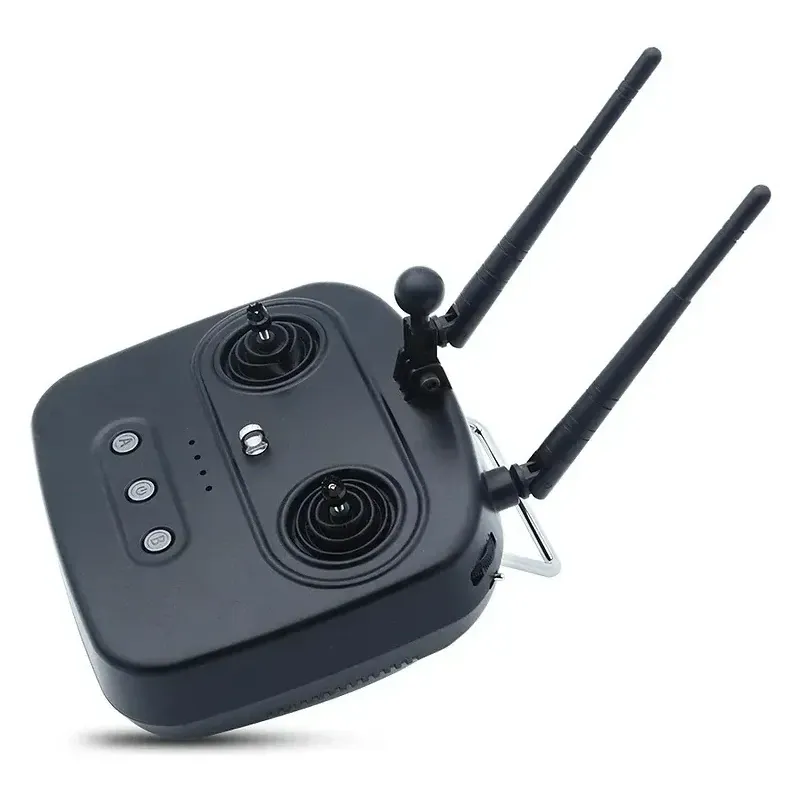

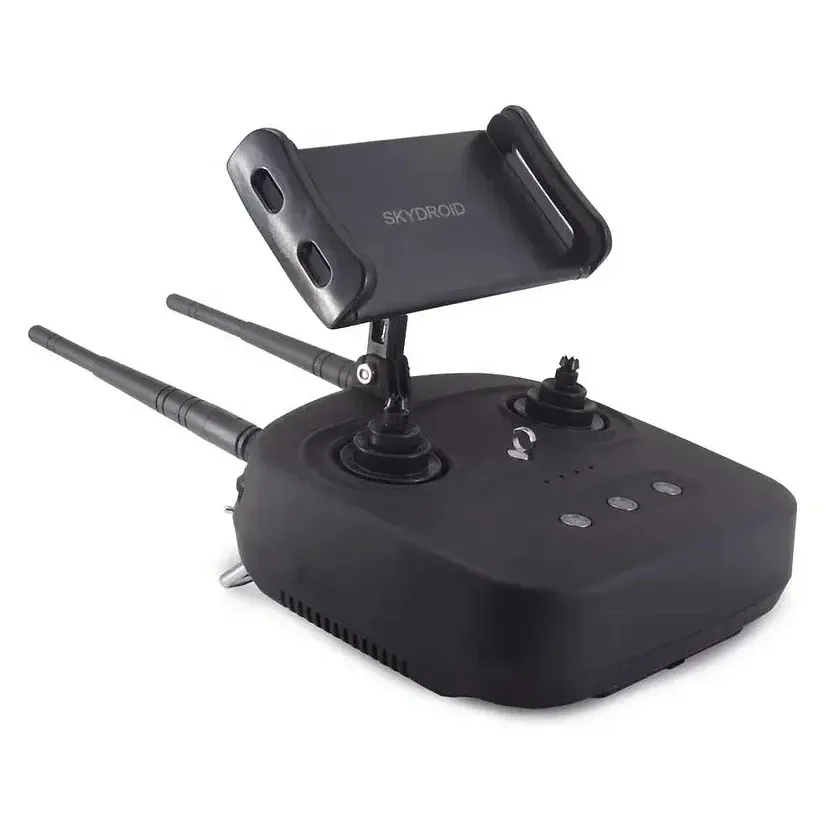

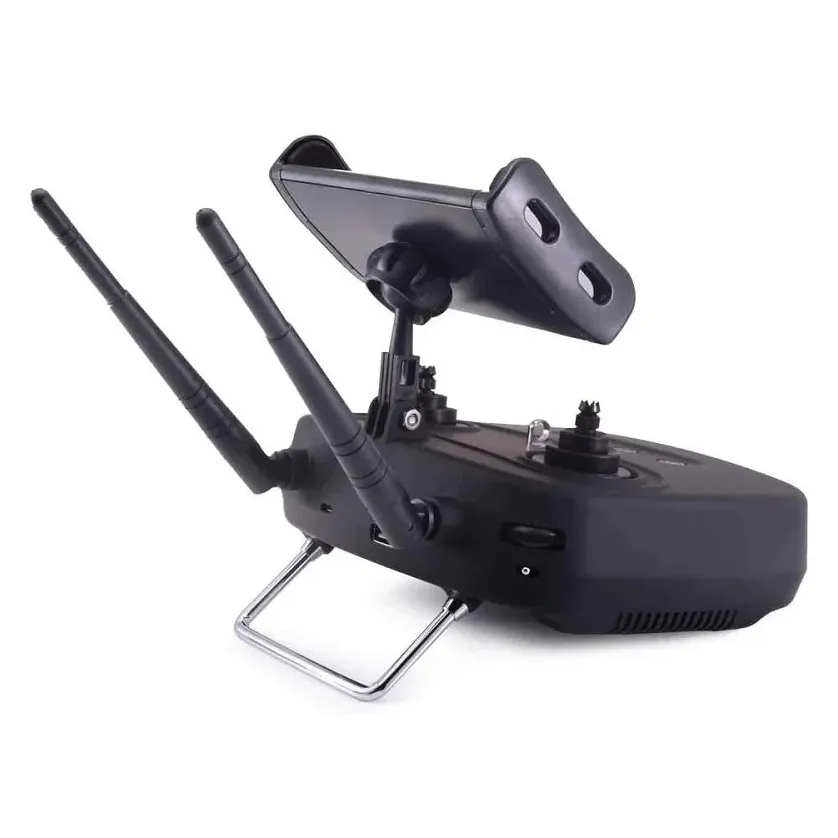

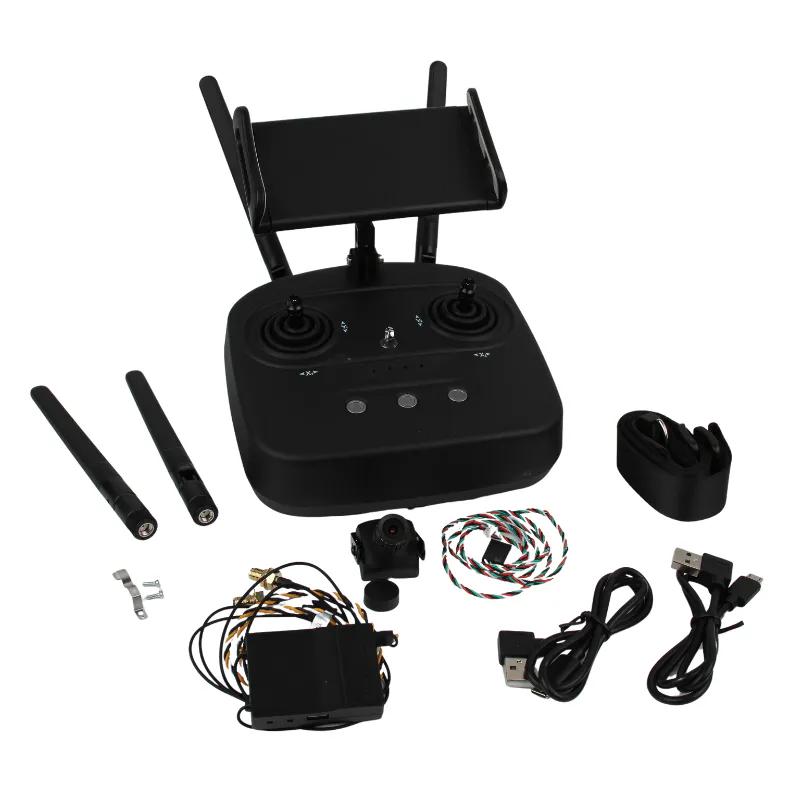

The Skydroid T10 is a 10-channel 2.4GHz handheld controller that carries RC control, a digital video downlink and a telemetry data link in one unit. This kit pairs it with a 10-channel receiver and Skydroid's mini FPV camera, giving agricultural sprayers, survey multirotors, fixed-wing and VTOL aircraft a complete control-and-video link from one box.

Key features

• Dual antennas and dual RF modules with FHSS frequency hopping for a robust control link
• Integrated digital video link rated to 10 km and data link rated to 20 km
• Receiver supports S.BUS, PPM and PWM outputs plus serial connections for flight controllers and external devices
• Channel reversing, binding, failsafe values, S.BUS/PPM output and data baud rate are set in Skydroid's app over Bluetooth or USB

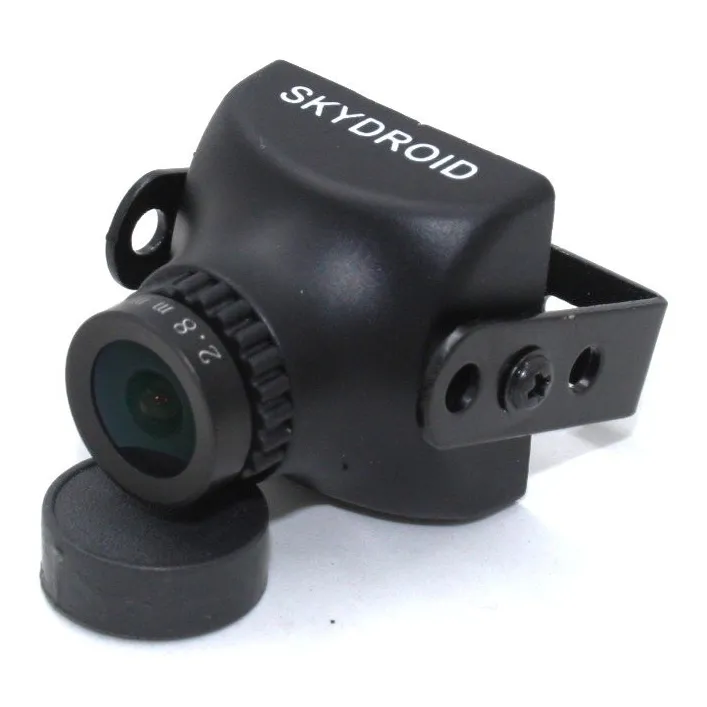

• Mini FPV camera included for a live view from the aircraft

Specifications

• Channels: 10
• Frequency: 2.400–2.483 GHz
• Modulation: FHSS
• Video range: up to 10 km (rated)
• Data link range: up to 20 km (rated)
• Controller weight: 525 g
• Controller dimensions: 160 × 150 × 50 mm
• Charging port: Micro-USB

Range figures are line-of-sight ratings; mount the receiver antennas clear of carbon fibre and battery leads to get close to them. The T10 suits builders who want one integrated link instead of a separate radio, telemetry radio and video transmitter.
