Omni Mini Autopilot Flight Controller

₹16,399Incl. GST

SKU OMNI-MINI-AUTOPILOT

FC Processor: F4Made in India: YesSupported Firmware: PX4Barometer: Yes
Dispatched within 2–3 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

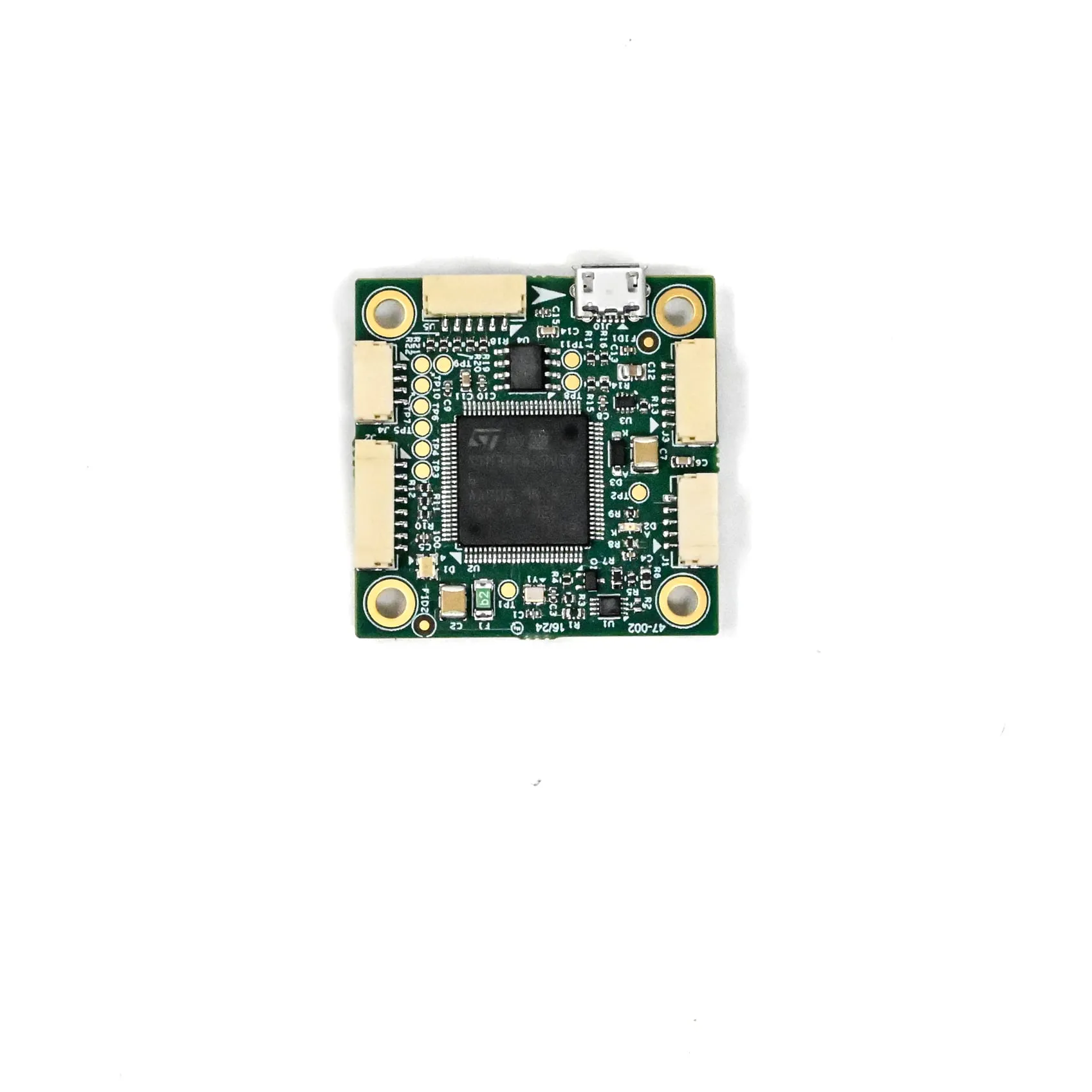

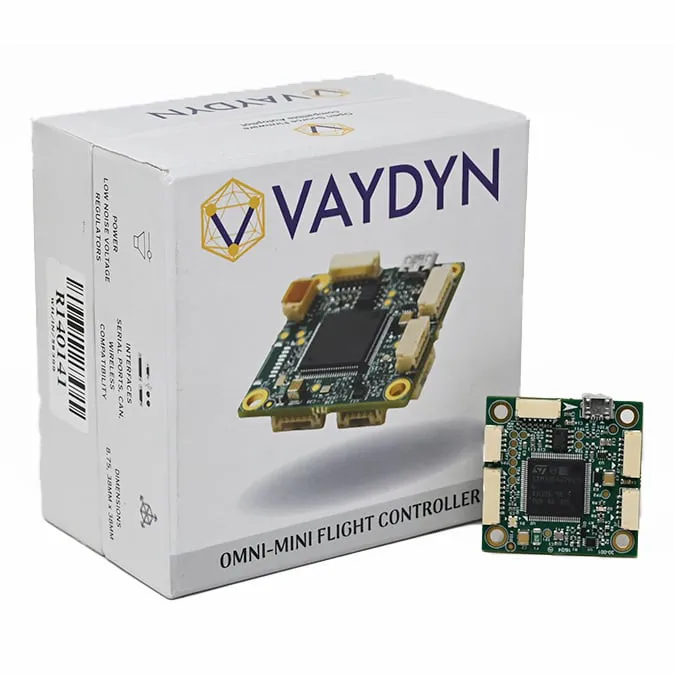

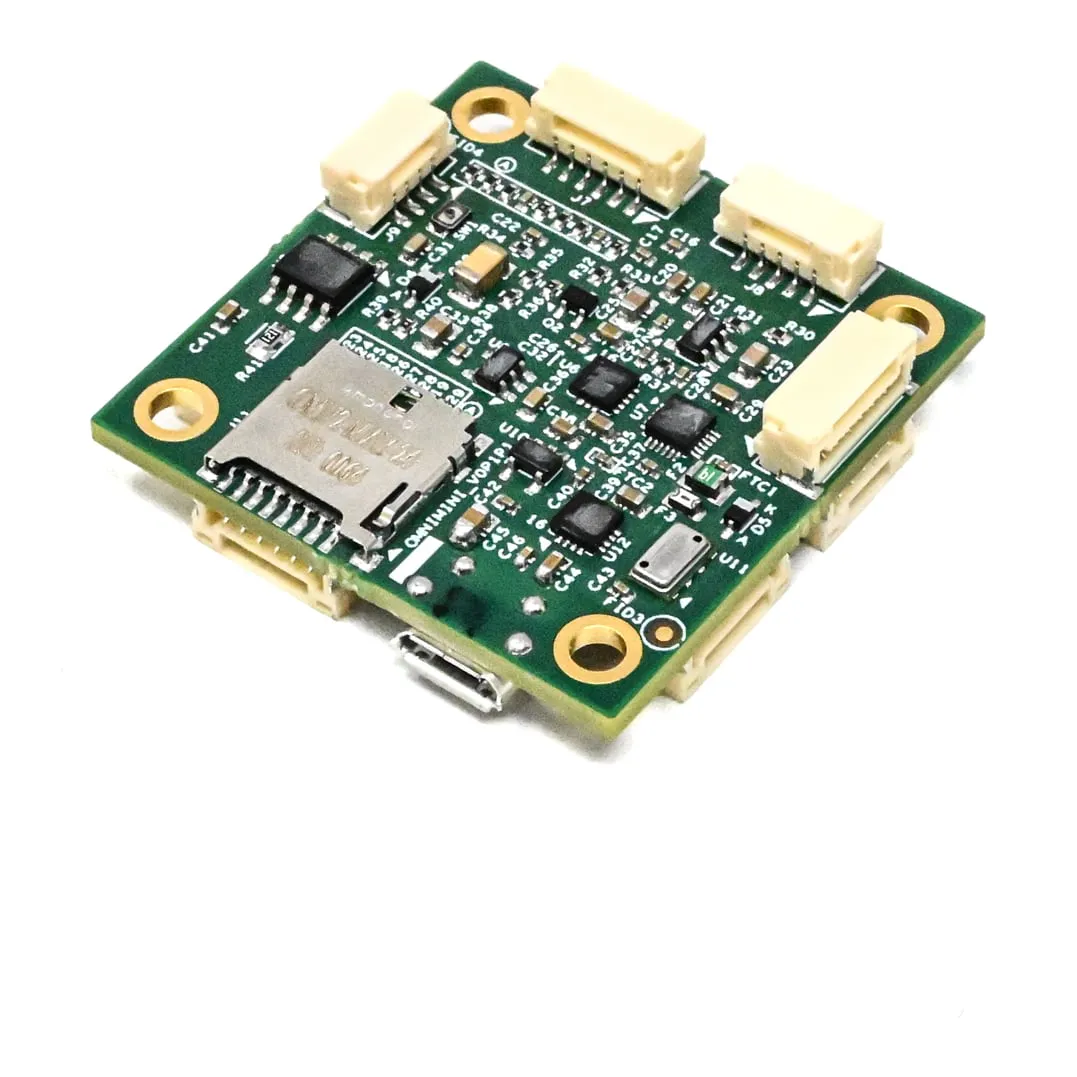

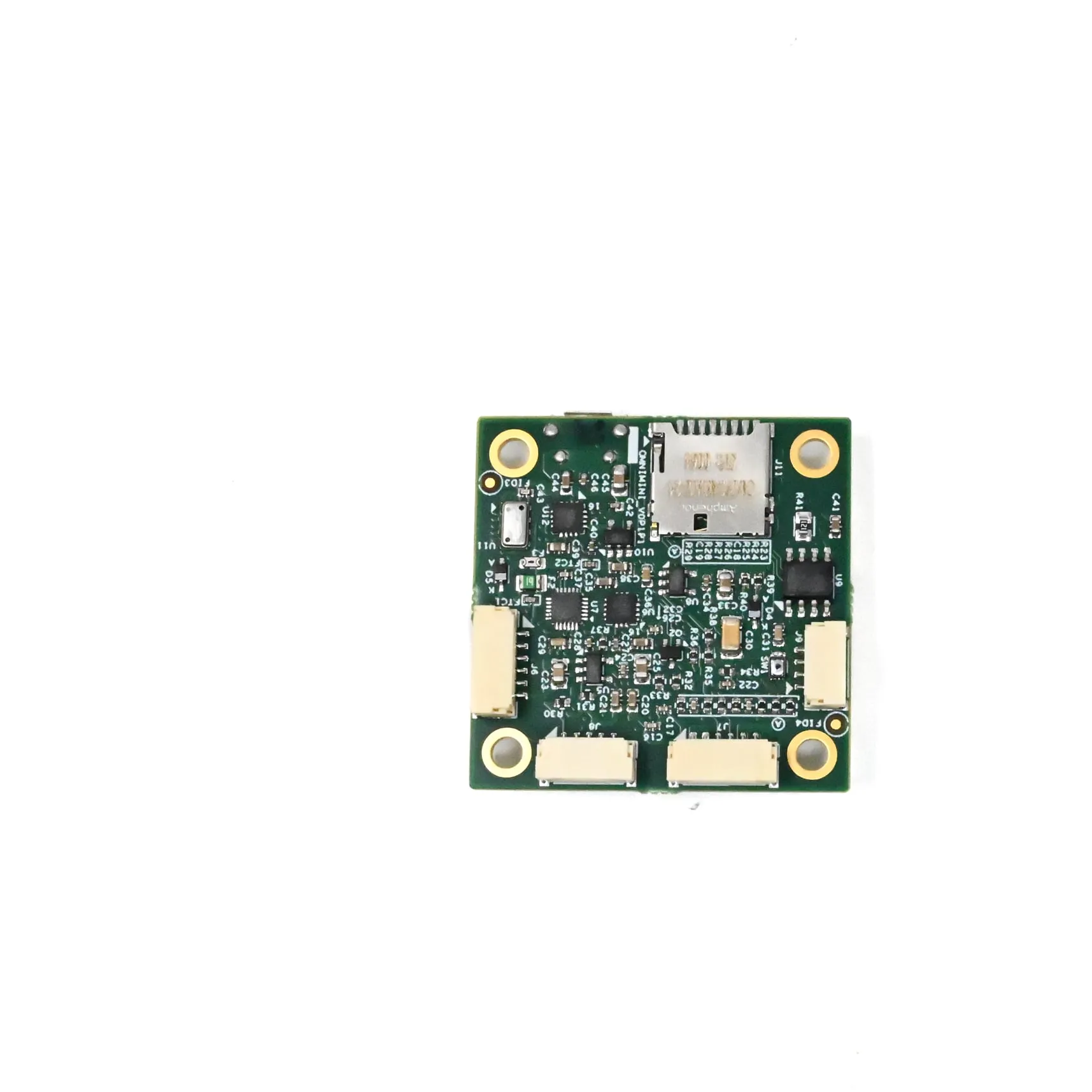

The Omni Mini is a compact autopilot flight controller built around the PX4 flight stack, aimed at commercial, industrial and research drone projects that need precision navigation and dependable waypoint control.

Key features

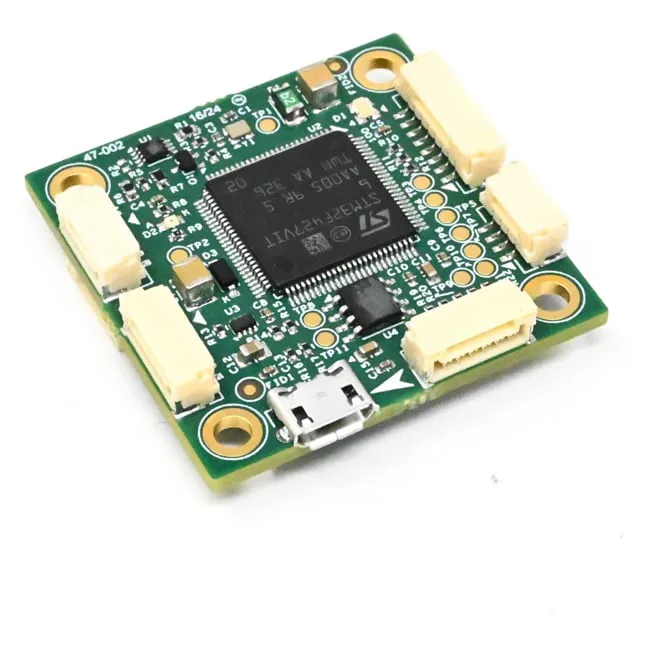

  • 32-bit STM32F427 Cortex-M4 processor at 168MHz with 256KB RAM and 2MB flash.
  • Multi-constellation GNSS support across GPS, GLONASS, BeiDou and Galileo for reliable positioning.
  • Triple accelerometers and gyroscopes, plus a single barometer, a 3-axis magnetometer and temperature sensing, with built-in redundancy and diagnostics.
  • Rated for less than 1 degree of pitch, roll and heading error, with position accuracy around 0.2m CEP.
  • Compact board at 38 x 38 x 1.8mm and 9.7g, rated to operate from -20C to +65C and up to 60% relative humidity.
  • Made in India.

Confirm connector layout and mounting pattern against your airframe before installation.
