MAD CO 4014 IPE Brushless Motor 2-Pack

The MAD CO 4014 IPE is a two-motor pack of brushless motors for heavy-lift and industrial UAV builds, offered in 450KV and 400KV. Each 450KV motor weighs 170 g and delivers up to 3.6 kg of thrust on 6S power; the 400KV version weighs 168 g and delivers up to 3.4 kg.

Key features

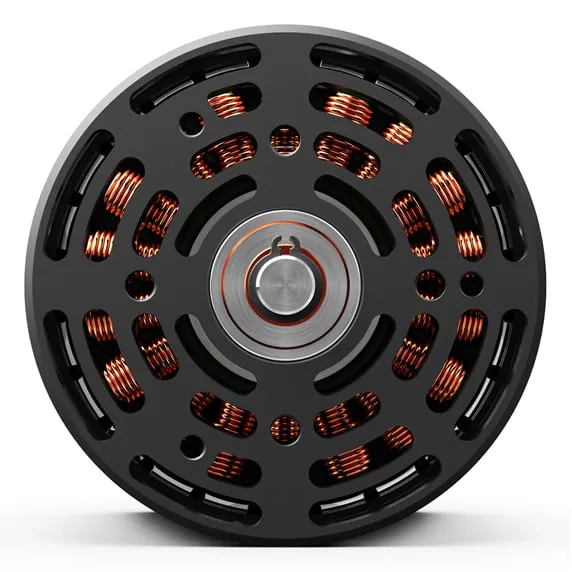

• Taiwan-made stator with anti-corrosive varnished windings and IP35-rated protection against dust and light rain.
• Centrifugal heat dissipation and a precision-balanced rotor (balance tolerance within 10 mg) for smooth, low-vibration running.
• The 450KV version is rated for up to 761 W maximum power on 6S LiPo.
• Suited to quad, hexa and octocopter heavy-lift platforms carrying camera or payload equipment.

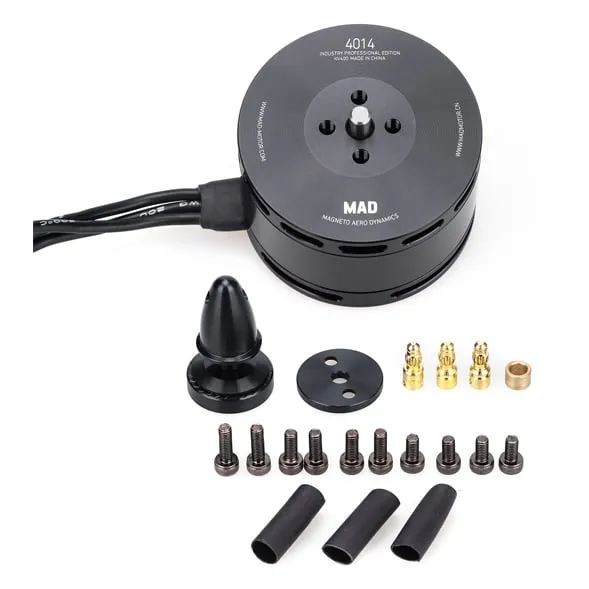

• Supplied as a matched pair with propeller plates, adapter rings, bullet connectors and mounting screws for both motors.

Specifications

• Stator size: 4014
• KV: 450KV or 400KV
• Weight: 170 g (450KV), 168 g (400KV) each
• Input voltage: 6S
• Max thrust: 3.6 kg (450KV), 3.4 kg (400KV)
• Max power (450KV): 761 W
• Pack size: 2

Confirm the airframe's motor mount pattern, propeller size and ESC current rating before fitting these motors.
