MAD 5005 280KV V2 EEE Heavy-Lift Motor

The MAD 5005 EEE V2 is a low-KV brushless motor built for long-range inspection, mapping and survey multirotors that need steady torque rather than racing-style RPM. The 280KV winding suits larger propellers on higher-voltage battery systems.

Key features

• 14 pole-pair design in a 56mm-diameter can.

• 5mm input shaft with dual mounting-hole patterns (12mm and 18mm bolt circles) to fit various propeller adaptors.

• EZO precision bearings at both ends for long service life under sustained load.

• Rain-protected housing suited to outdoor industrial and agricultural flying.

• 150mm silicone motor leads in 18AWG for a straightforward connection to a heavy-lift ESC.

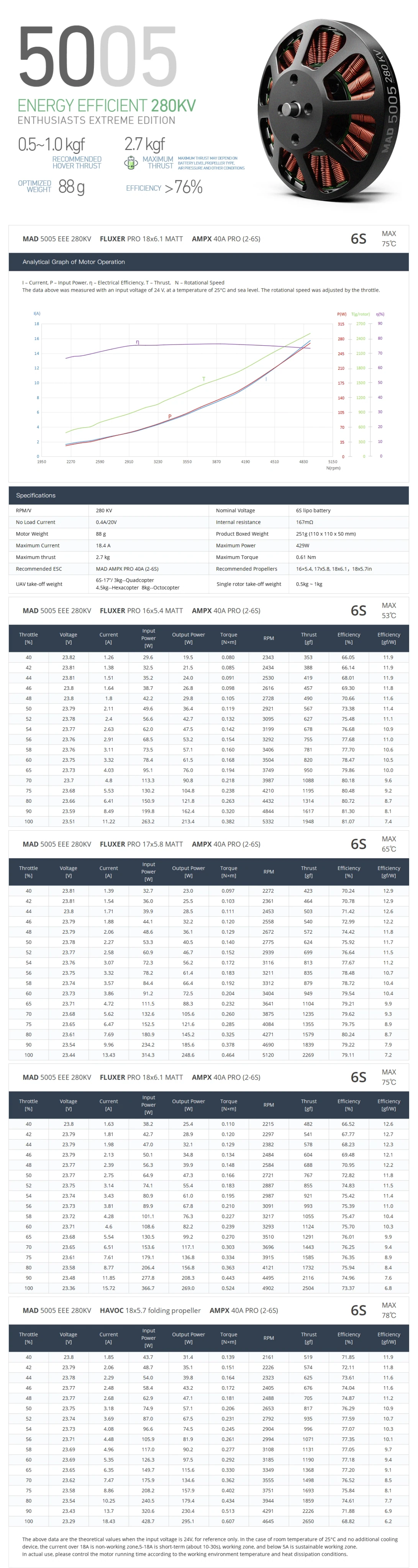

Specifications

• Stator size: 5005

• KV: 280KV

• Motor size: 56 x 27.7mm

• Shaft: 5mm

• Configuration: 14 pole pairs

• Recommended propeller: 14-18 inch

• Motor mounting holes: 4 x M3 on 25 mm and 30 mm circles

• Propeller mounting holes: 2 x M3 on 12 mm and 18 mm circles

• Bearings: EZO 685ZZ and 695ZZ

Match the propeller size, ESC current rating and take-off weight for your airframe, and verify the full propulsion combination before flying a production build.
