MAD CO 3508 IPE Motor Set of 2

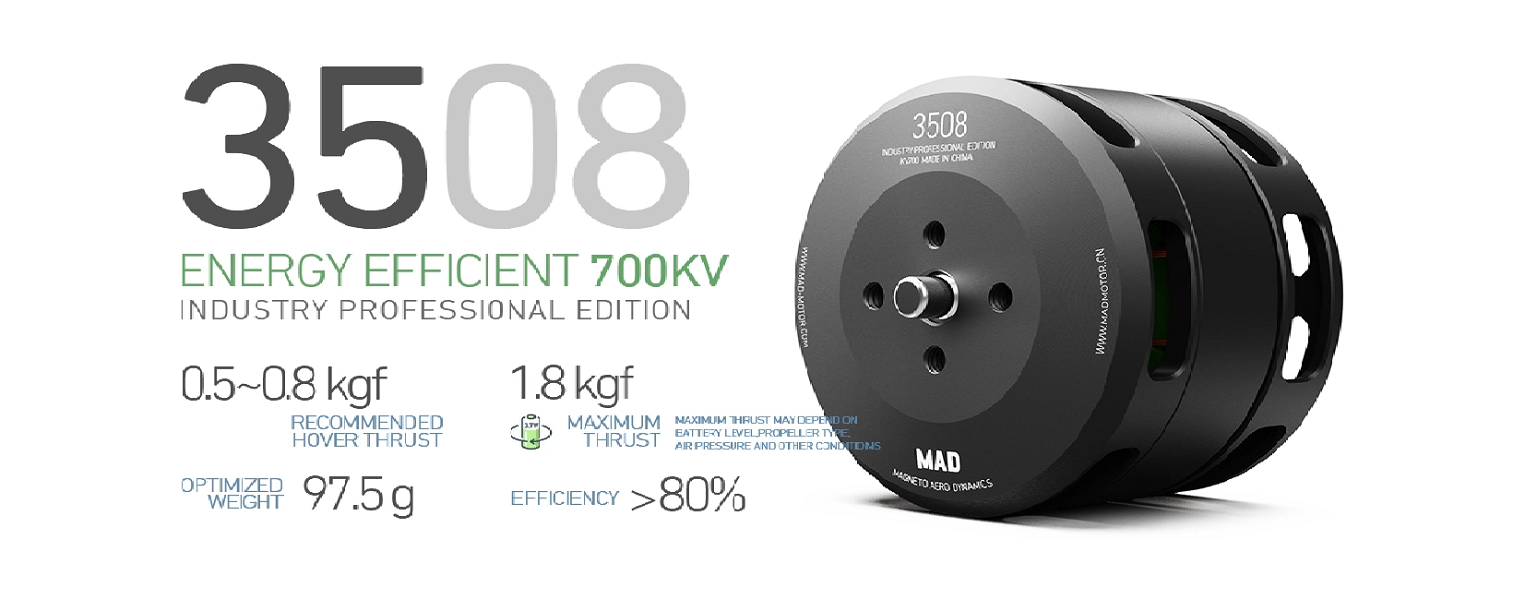

The MAD CO 3508 IPE is a pair of brushless motors built for heavy-lift and industrial UAV propulsion, suited to agriculture, mapping and payload-carrying multirotors. It is offered in 360KV, 580KV and 700KV windings.

Key features

• Each motor weighs 97-99g and produces up to 1.8kg (700KV) or 1.6kg (360KV and 580KV) of thrust with 13-16 inch propellers.

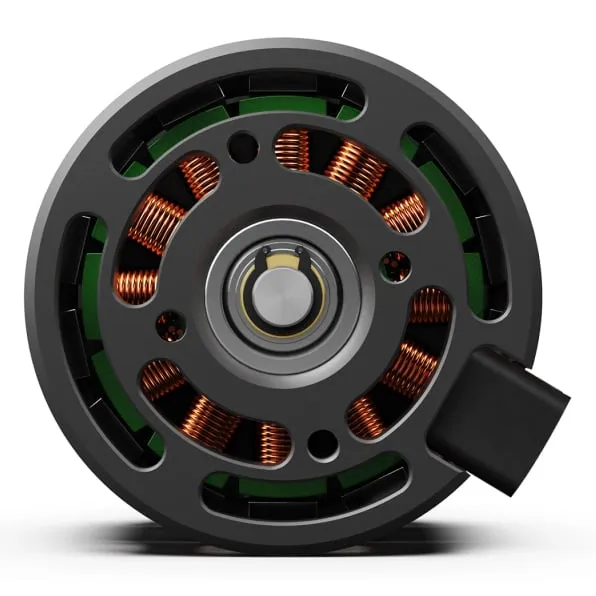

• 150°C-rated magnets and a corrosion-resistant stator for sustained heavy-lift use.

• IP35-rated sealing with centrifugal heat dissipation for cooler running on long flights.

• Rotors are balanced to within 5mg and complete motors to within 10mg for smooth operation.

• Set of two motors, each with a propeller plate, bullet connectors, an adapter ring and mounting screws.

Specifications

• Stator size: 3508

• KV options: 360KV, 580KV, 700KV

• Weight: 99 g (360KV, 700KV), 97 g (580KV) per motor

• Max thrust: 1.8 kg (700KV), 1.6 kg (360KV, 580KV) per motor

• Recommended propeller: 13-16 inch carbon fibre

• Battery (580KV): 4S LiPo

• Max power (360KV): 245 W at 10.3 A

• Protection: IP35

• Pack size: 2 motors

Use matching MAD CO 3508 IPE motors across the aircraft and select the ESC and battery to suit the complete heavy-lift power system.
