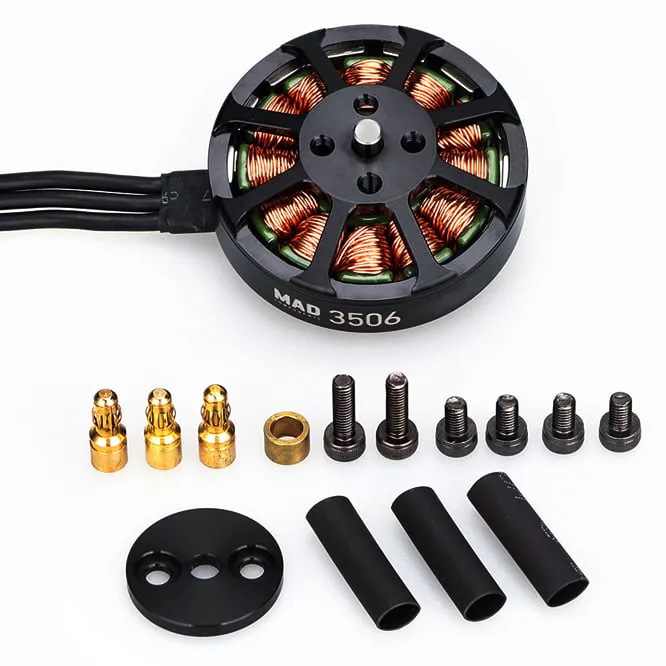

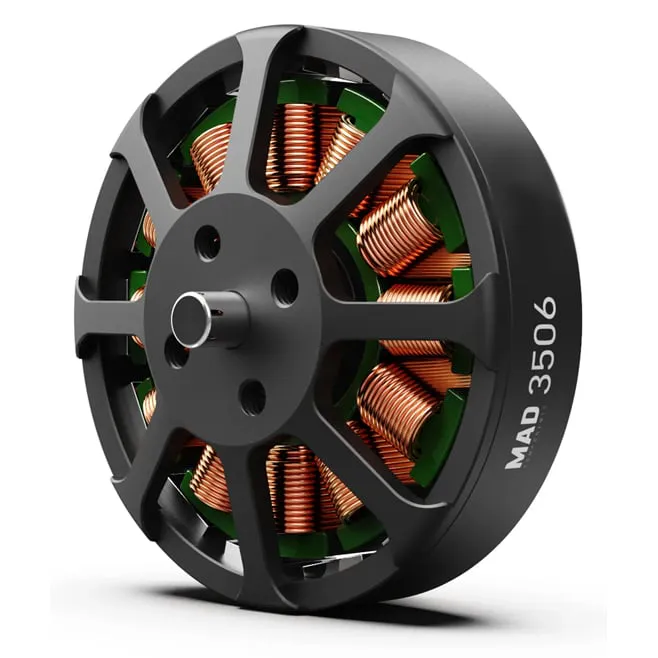

MAD 3506 EEE Brushless Motor Pack of 2

The MAD 3506 EEE is a heavy-lift brushless motor supplied as a matched pair, offered in 400KV, 460KV and 650KV windings suited to 11–14 inch carbon propellers on multirotor and industrial UAV platforms.

Key features

• Rated for single-axis payloads of 320–720g, with maximum thrust per motor of 1.6 kg (400KV), 1.2 kg (460KV) or 1.5 kg (650KV).

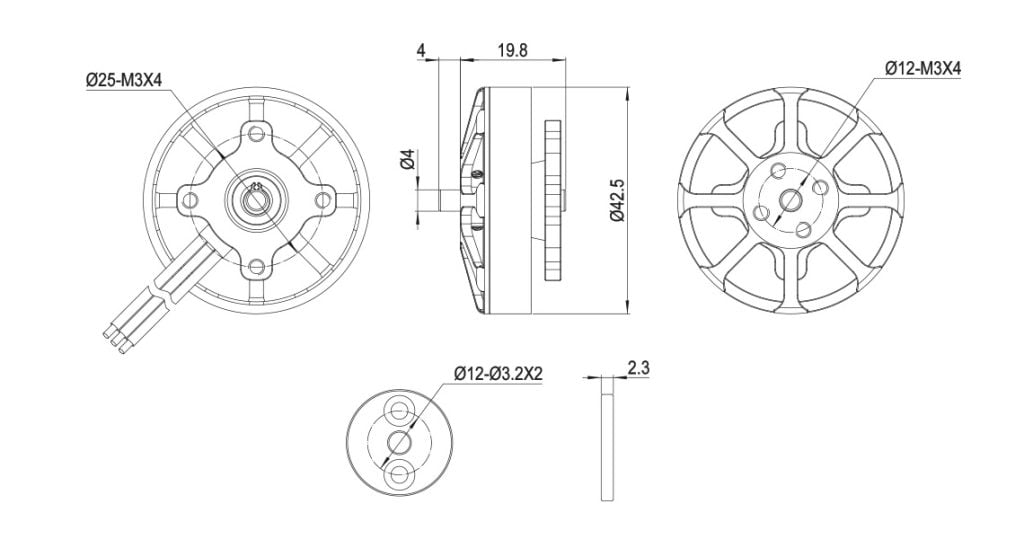

• 7 pole-pair design with a rain-protected 42.5 x 23.8mm housing and a 4mm output shaft.

• 150mm silicone motor leads (18AWG) for direct ESC wiring without extensions.

• Dual 694ZZ bearings and windings rated to 150°C for sustained heavy-lift duty cycles.

• Supplied as a two-motor pack for balanced propulsion installation or paired replacement.

• The rain-protected housing suits outdoor agricultural and industrial multirotors that fly in dusty or damp field conditions.

Specifications

• Stator size: 3506

• KV: 400KV, 460KV or 650KV

• Shaft diameter: 4mm

• Weight: approx. 72g per motor

• Pack size: 2 motors

• Battery (460KV): 4-6S LiPo

• Recommended ESC (460KV): 40 A

Use the matched pair to keep thrust balanced across the airframe; confirm ESC current rating and propeller pitch against your payload target before installation, and route the 150mm silicone leads to keep the ESC connection short and secure on the arm.
