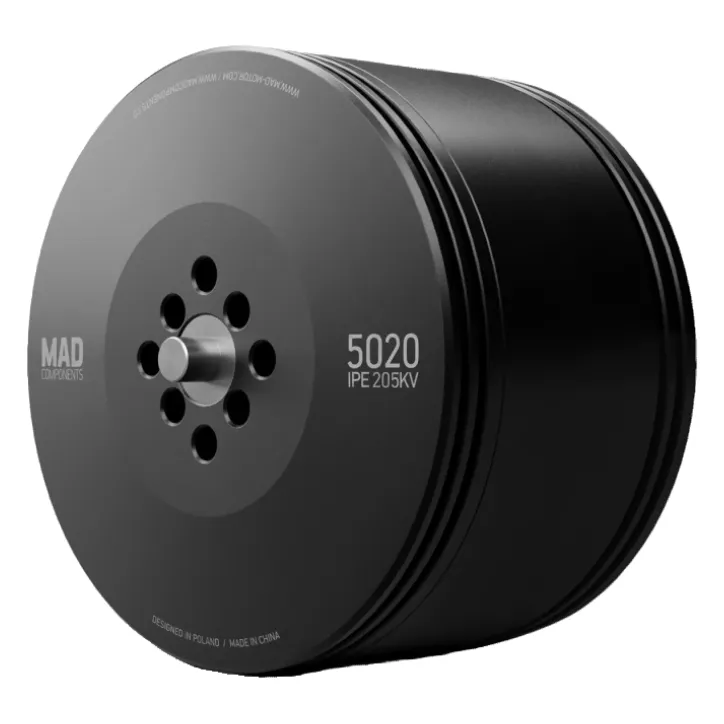

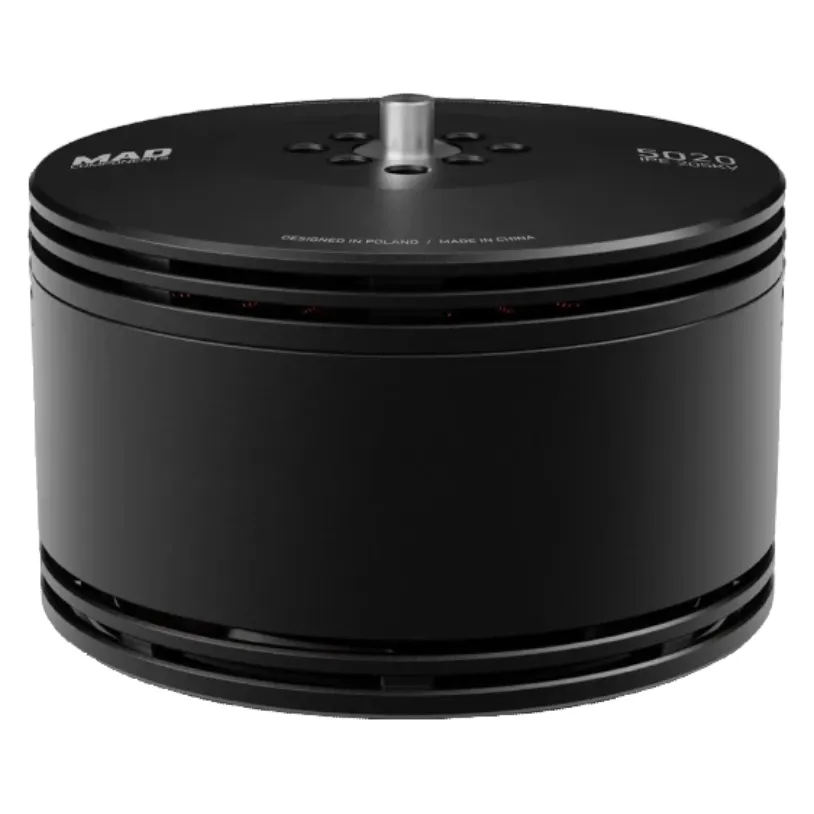

MAD 5020 IPE V3.0 205KV 12S eVTOL Drone Motor

The MAD 5020 IPE V3.0 is a 205KV brushless motor for VTOL, mapping, surveying and heavy-lift multirotor UAVs running on 12S LiPo. It produces up to 8 kg of thrust on 16–18 inch propellers, weighs 290 g and carries an IP45 rating for outdoor work.

Key features

• IP45 protection (solid objects over 1 mm and water jets) with an anticorrosive stator.

• Centrifugal heat dissipation, 180 °C winding varnish and 150 °C-rated magnets for sustained high-load flight.

• Rotor balanced to 5 mg or better and the complete motor to 10 mg or better, for low vibration.

• Two 696ZZ bearings on a 6 mm inner shaft; 14 pole pairs.

• Bolt-on propeller mounting with M3 hole patterns on 12 mm and 15 mm circles.

• Pre-wired 150 mm 16 AWG silicone leads; insulation tested at 500 V.

Specifications

• KV: 205

• Battery: 12S LiPo (44.4 V nominal)

• Max thrust: 8 kg

• Propellers: 16–18 inch

• Motor size: 56 mm diameter × 41.3 mm

• Weight: 290 g

• Shaft: 6 mm (inner)

• Pole pairs: 14

• Bearings: 2 × 696ZZ

• Prop mounting holes: 4 × M3 on 12 mm circle; 4 × M3 on 15 mm circle

• Motor mounting holes: 4 × M3 on 25 mm circle

• Leads: 150 mm, 16 AWG silicone

• Ingress protection: IP45

• Balance: rotor ≤5 mg, motor ≤10 mg

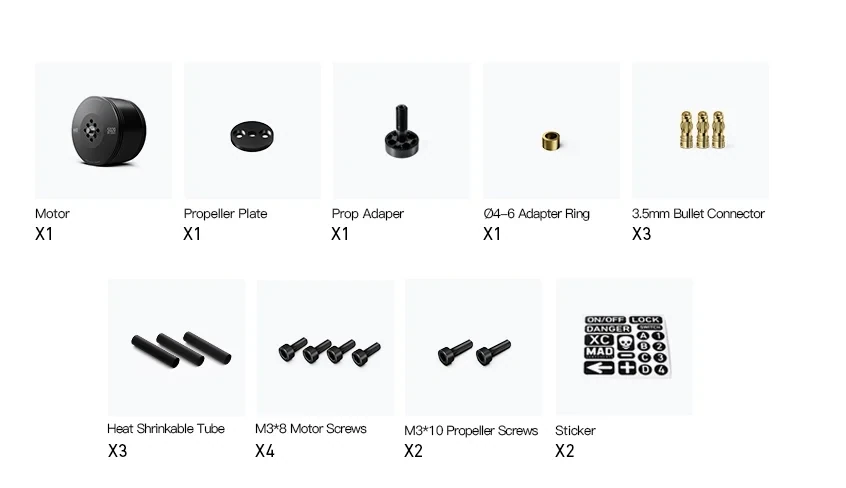

• In the box: 1 motor

Before ordering, check that your arm's motor plate carries the 25 mm M3 pattern and that your propeller hub matches the 12 mm or 15 mm M3 pattern. Use an ESC rated for 12S, which reaches 50.4 V fully charged.
