MAD Motor 6215 IPE Agriculture Motor
₹9,499Incl. GST
SKU MAD-CO-6215-IPE-320KV
KV: 320KV
Stator Size: 6215KV: 320 KV, 170 KVBrand: MAD ComponentsMade in India: No
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

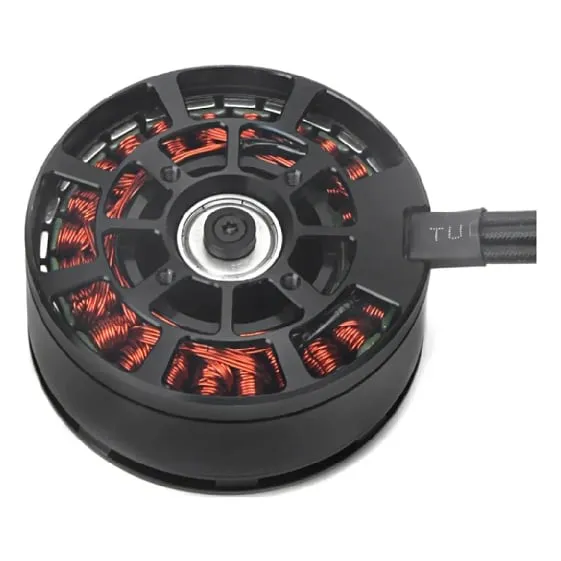

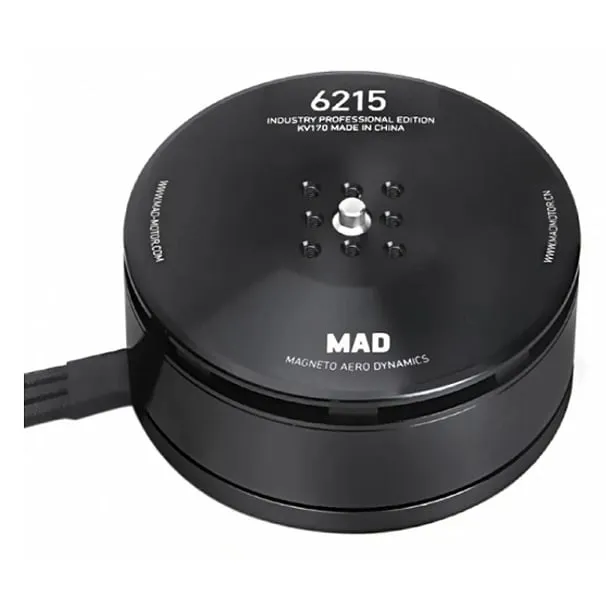

The MAD Motor 6215 IPE is a brushless propulsion motor for agricultural multirotors and heavy-lift UAV platforms. Offered in 170KV and 320KV windings, it is intended for large-propeller systems that prioritise controlled thrust over high rotational speed.
Key features
- Uses a 6215 stator format for large multirotor propulsion systems.
- Brushless construction supports electronically controlled UAV operation.
- Low-KV configuration is suited to torque-focused, large-propeller applications.
- Designed for agriculture and other payload-carrying multirotor builds.
- Oversized bearings for longer service life on endurance flights.
Specifications
- Stator size: 6215
- KV: 170KV or 320KV
- Shaft: hollow
- Ingress protection: IP35 (water and dust resistant)
Confirm the required battery voltage, ESC rating, propeller specification and mounting arrangement before integrating this motor into an airframe.
| Stator Size | 6215 |
|---|---|
| Stator Diameter | 62mm |
| Stator Height | 15mm |
| KV | 320 KV, 170 KV |
| Brand | MAD Components |
| Made in India | No |
| IP Rating | IP35 |
| Integrated ESC | No |
