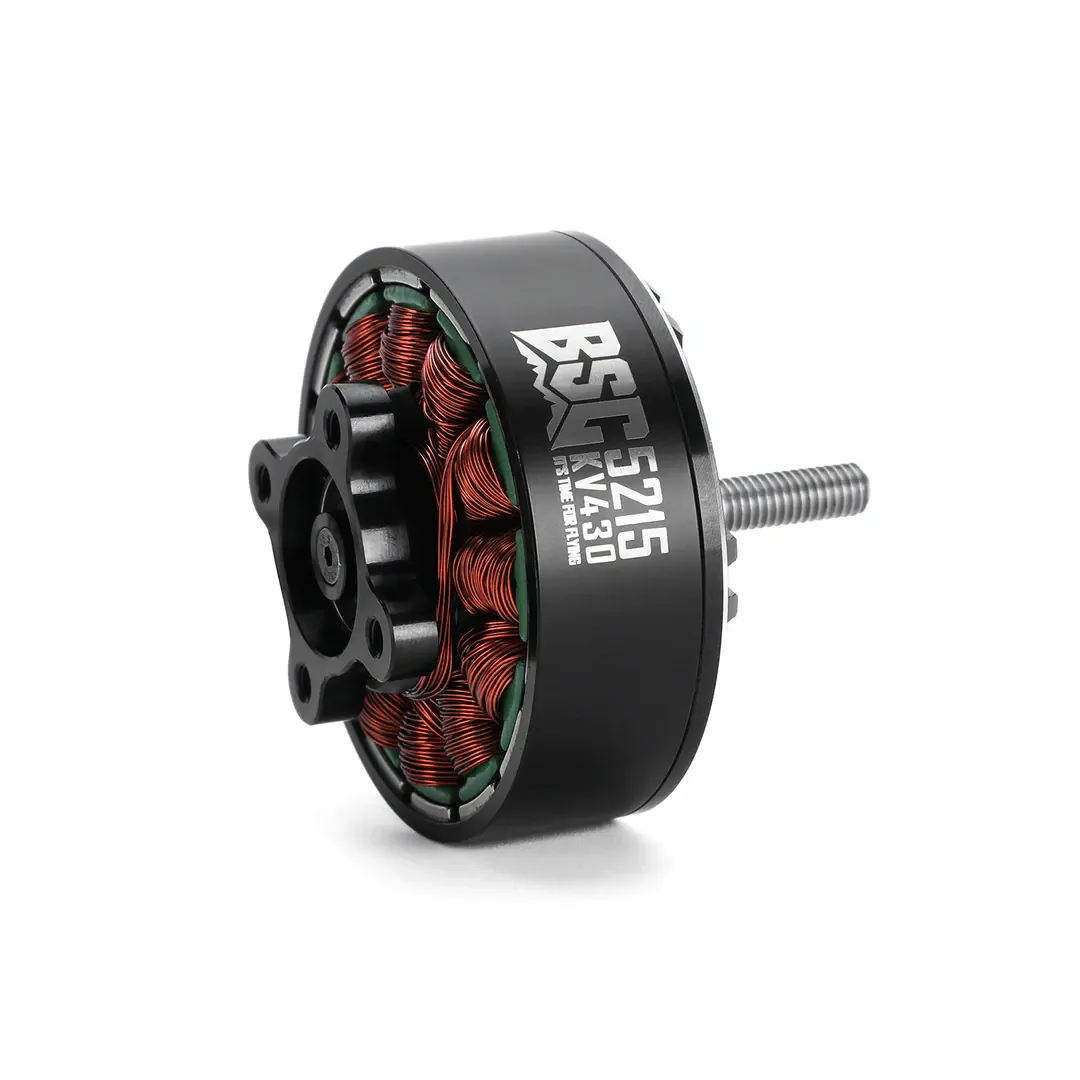

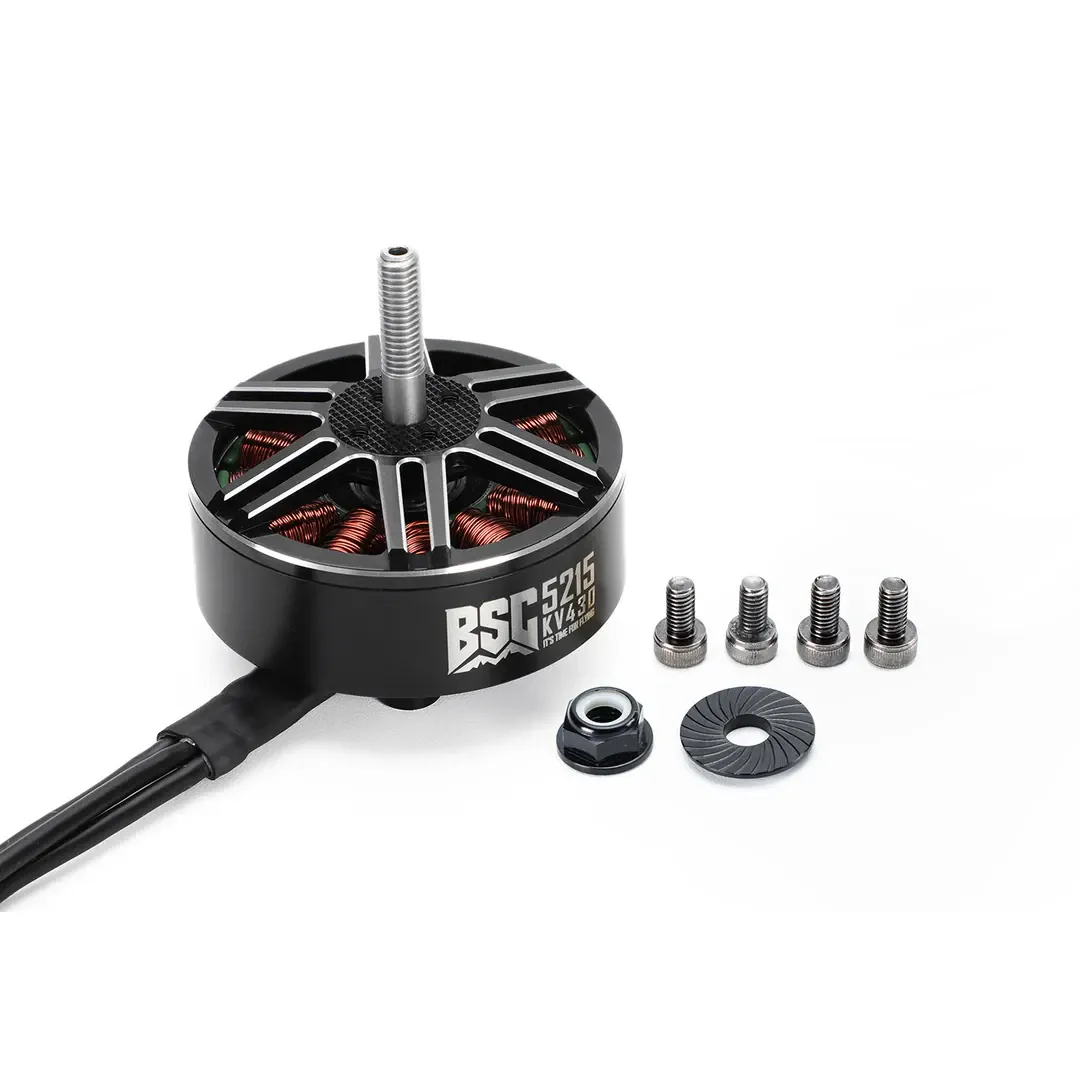

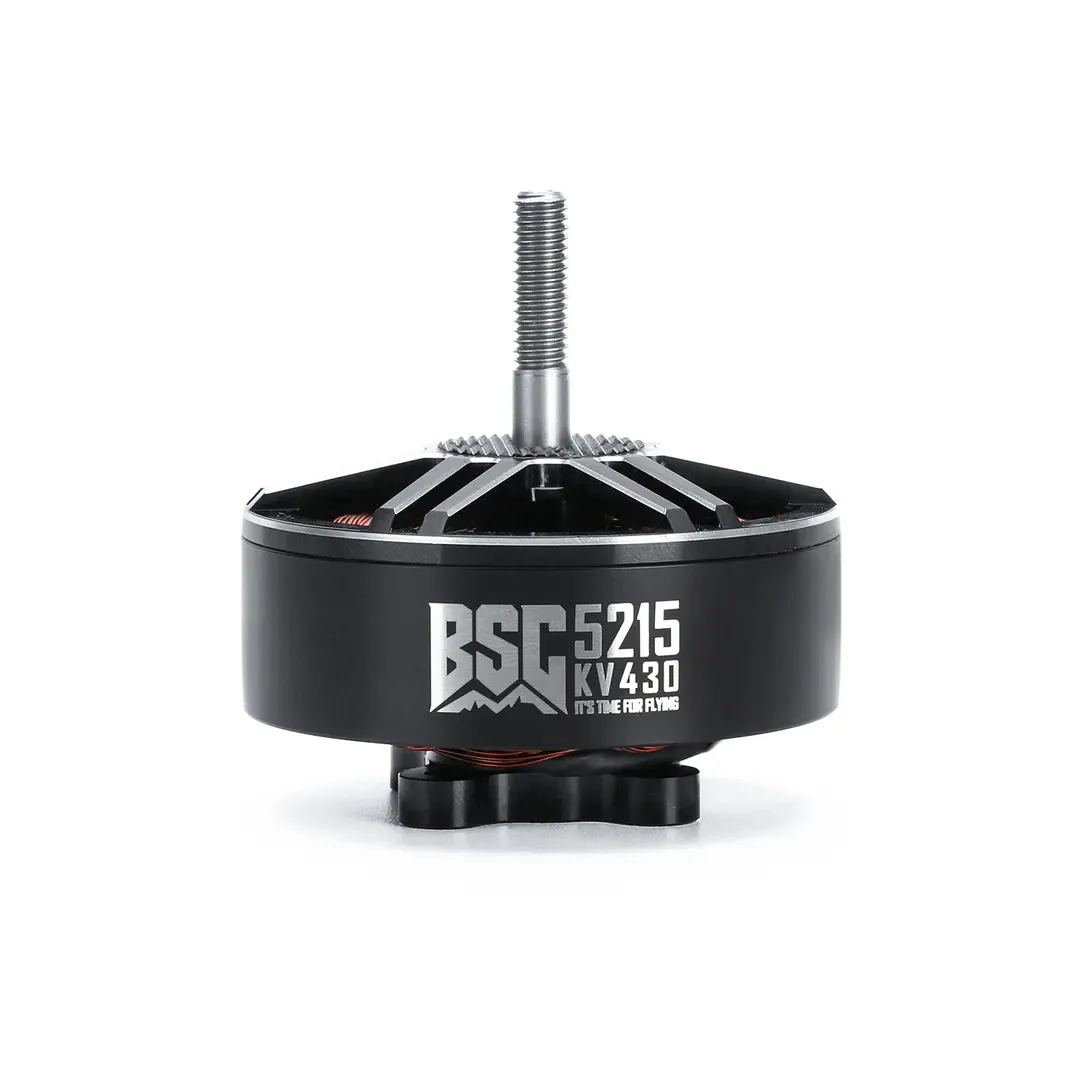

MAD BSC 5215 430KV Motor

The MAD Bsc 5215 430KV motor is a large brushless option for FPV multirotors that need a 6-8S power system and more torque than smaller freestyle motors can provide. Its 5215 stator and 430KV rating point it towards heavy-lift, cinematic and larger custom builds where smooth low-end pull matters more than high RPM.

Key features

• 5215 stator size gives the motor more rotating mass and winding volume than typical 22xx class motors, which helps on larger props and heavier airframes.
• 430KV is a low-KV setup for 6S to 8S packs, making it better suited to efficiency and torque than top-end speed.

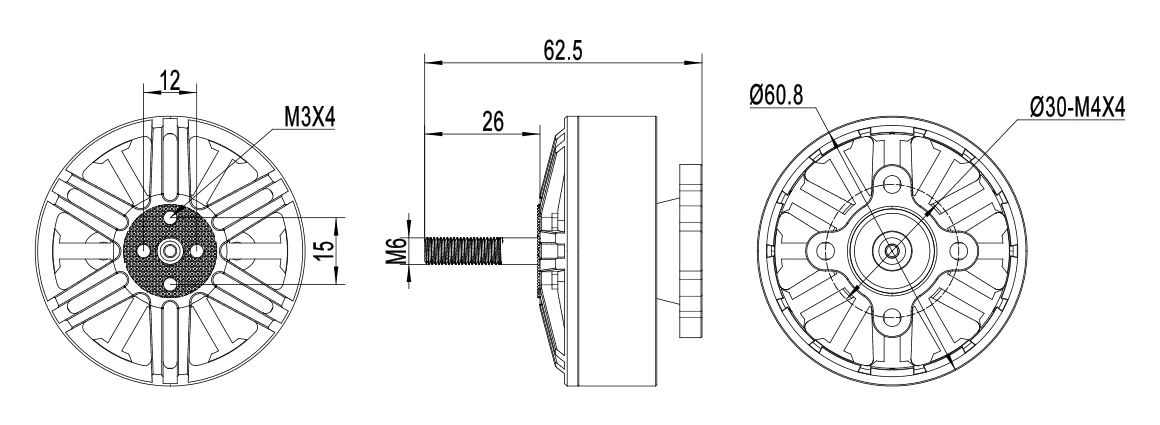

• M6 propeller nut and a 30mm M4 motor mounting pattern suit heavy-lift and industrial UAV frames.
• 600mm 14AWG silicone motor leads give enough length for most large-frame wiring runs.
• Sold as a single MAD motor, so it fits mixed-motor replacements or full custom quad builds.

Specifications

• Brand: MAD
• Input Voltage: 6-8S
• Stator Size: 5215
• KV: 430 KV
• Motor diameter: approx. 60.8 x 62.5mm
• Shaft diameter: 6mm
• Made in India: No

If you are matching this to an existing build, check that your ESC, frame clearance and prop choice are sized for a 5215 motor on 6-8S power before ordering.
