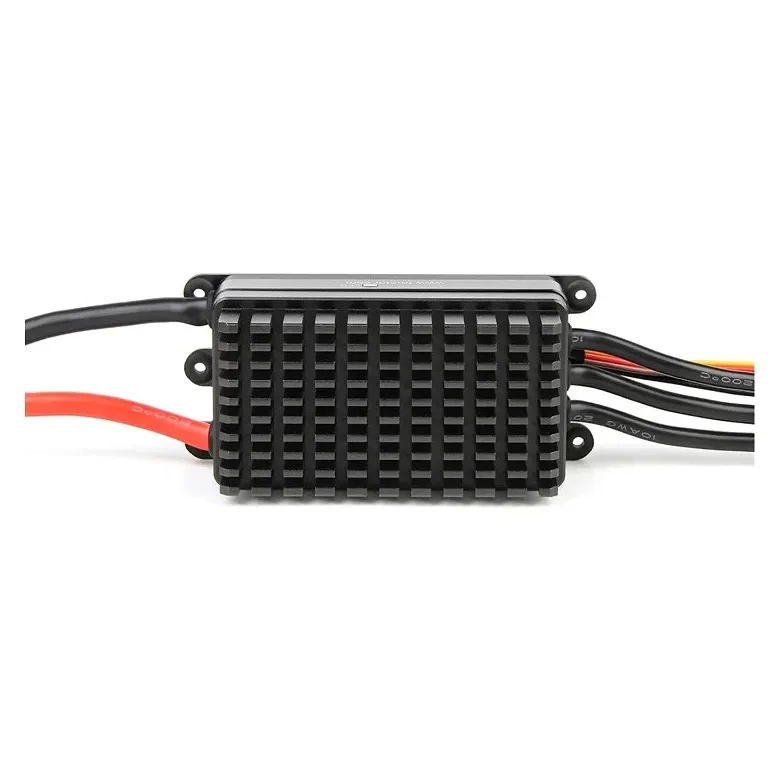

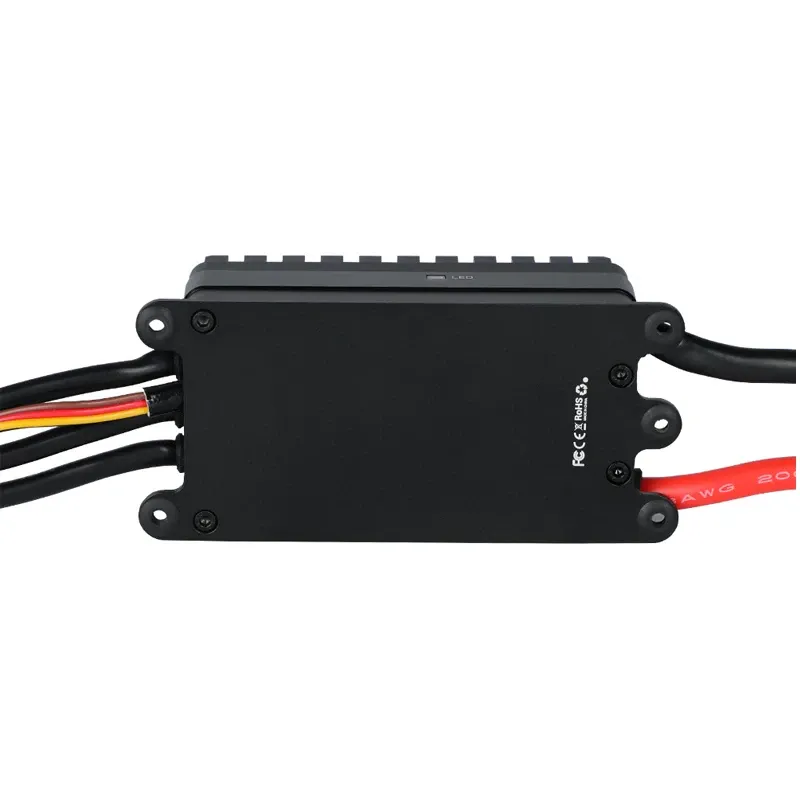

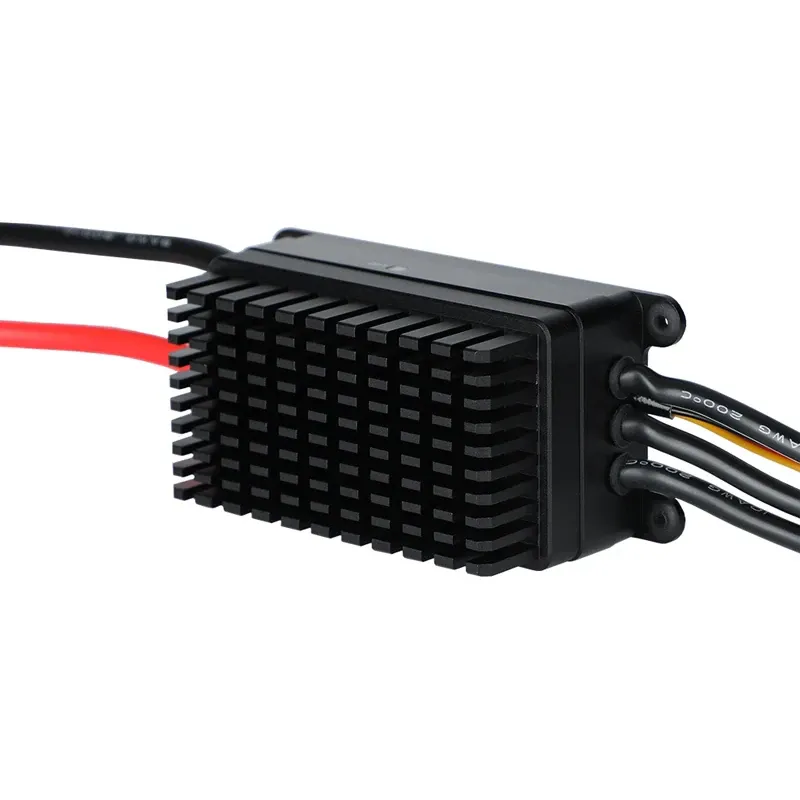

T-Motor Flame 200A 14S Heavy-Lift ESC

The T-Motor Flame 200A is a high-voltage single ESC for heavy-lift and agricultural multirotors running 6–14S LiPo. It is designed for high-power motors such as T-Motor's U12, where reliability depends on sustained current handling and heat management.

Key features

• 200 A continuous and 240 A peak current (10 s)

• Layered internal design inside a CNC aluminium alloy enclosure for efficient heat dissipation

• IP55-rated PCB with nano coating, suited to crop spraying, search and rescue and other dusty or wet work

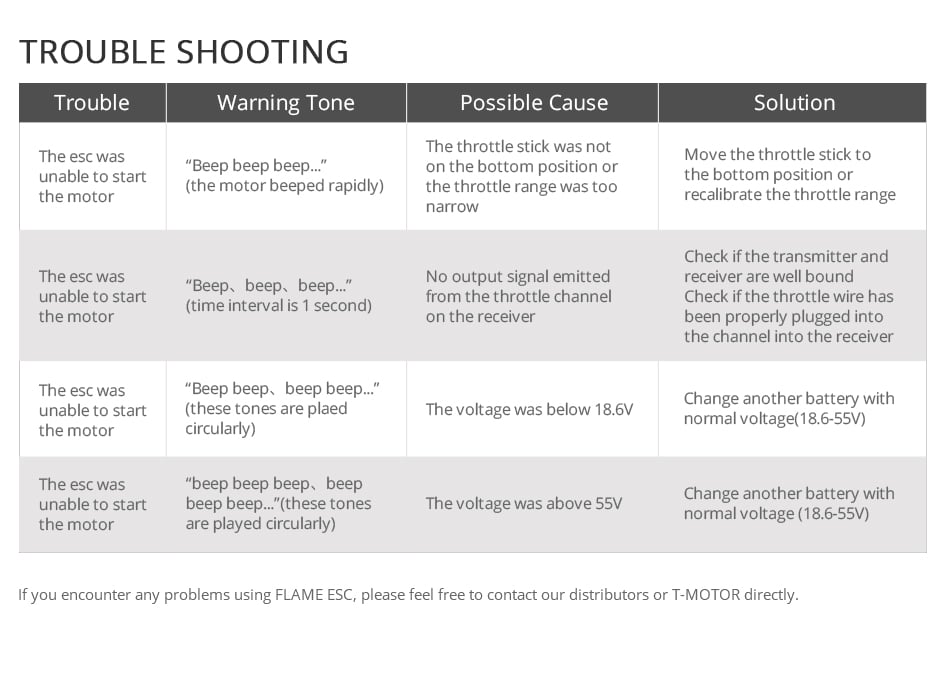

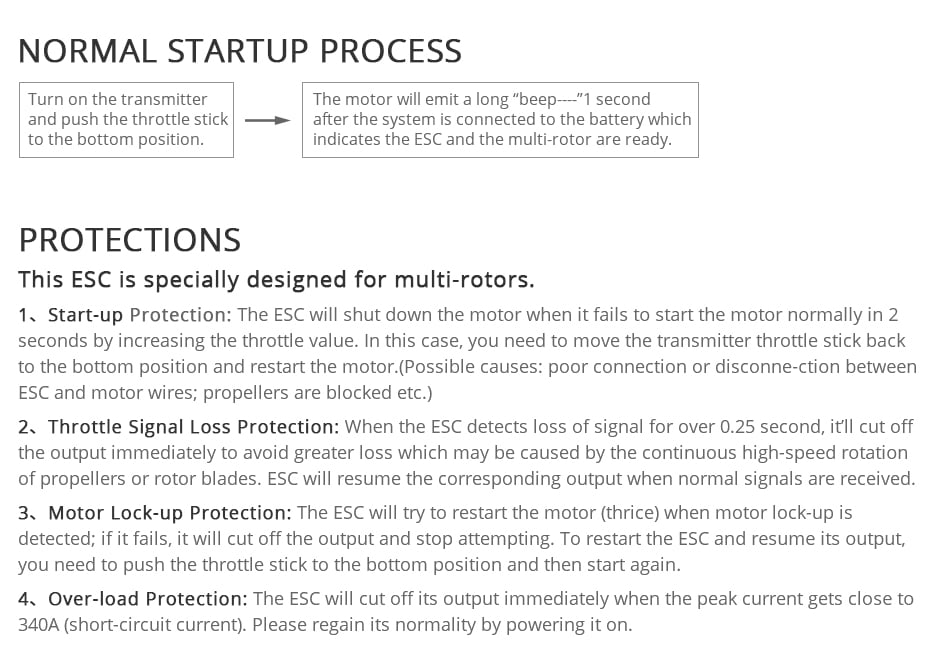

• Start-up, overload, motor lock-up, low-voltage, over-temperature and throttle-signal-loss protection

• Separate voltage regulator for the microprocessor improves resistance to interference

• Real-time data feedback for monitoring the propulsion system; throttle range configurable to suit any transmitter

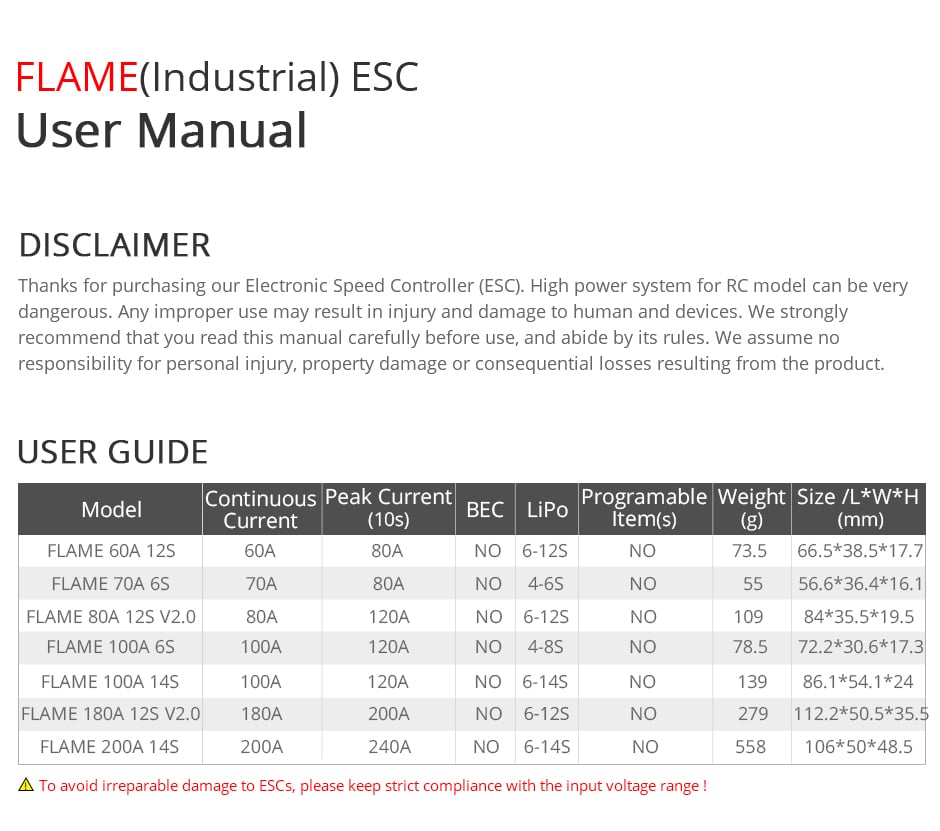

Specifications

• Continuous current: 200 A

• Peak current: 240 A (10 s)

• Input: 6–14S LiPo (22.2–51.8 V nominal)

• BEC: none

• Throttle signal: up to 621 Hz

• Ingress protection: IP55

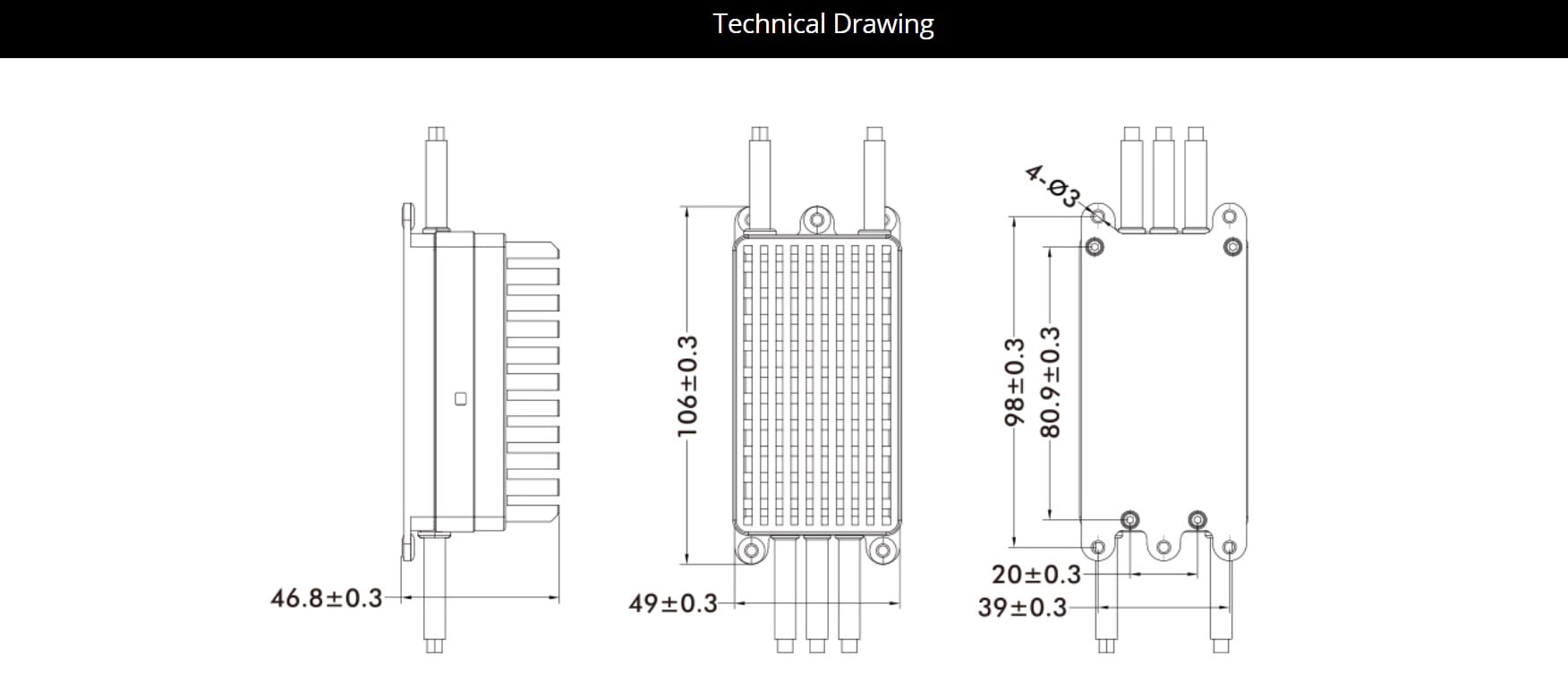

• Dimensions: 106 × 50 × 48.5 mm

• Weight: 558 g

• In the box: ESC and hardware kit

There is no BEC, so power the flight controller and payload from a separate power module or BEC. Before ordering one ESC per arm, check that your motor's full-throttle current with the chosen propeller stays below 200 A continuous.
