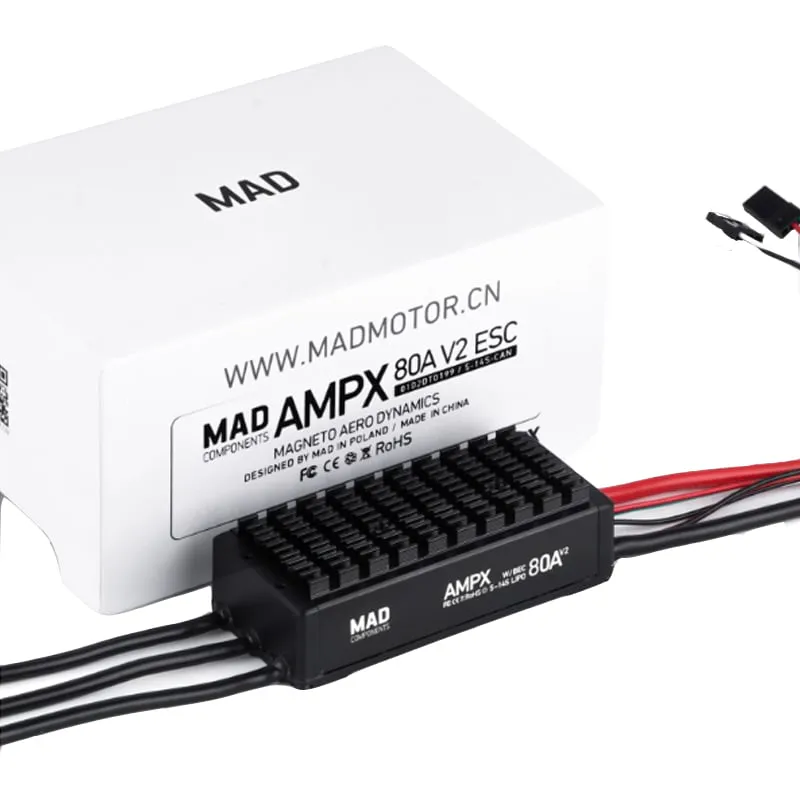

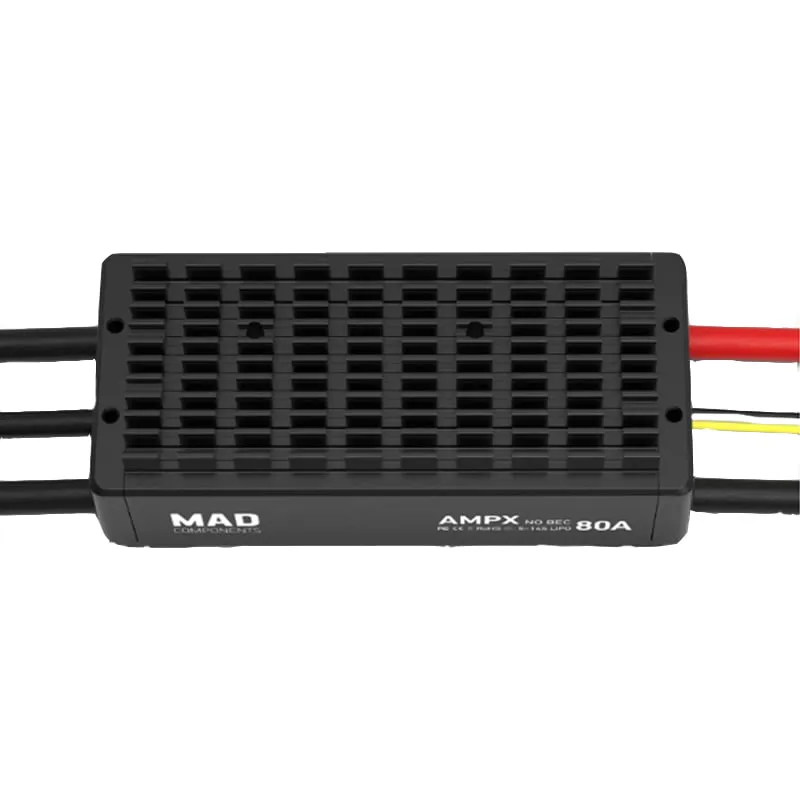

MAD AMPX 80A 5-14S Drone ESC V2.0 Black
SKU MAD-AMPX-80A-V2-BLK
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The MAD Components AMPX 80A V2.0 is a single brushless ESC for 5–14S LiPo quadcopters, hexacopters and octocopters used for mapping, filming and industrial missions. It runs from PWM throttle or CAN commands and feeds voltage, current and temperature back to the flight controller over DroneCAN or Cyphal CAN.
Key features
- 80A continuous and 100A burst current on a 16–64V supply.
- Built-in 5V / 200mA BEC output.
- Dual throttle control via PWM and CAN.
- Real-time telemetry over DroneCAN or Cyphal CAN.
- Firmware upgradeable over USB.
- Overload protection with unlimited automatic restart.
Specifications
- Battery: 5–14S LiPo (16–64V)
- Continuous current: 80A
- Burst current: 100A
- BEC: 5V / 200mA
- Control inputs: PWM and CAN
- CAN protocols: DroneCAN, Cyphal CAN
- Firmware update: USB
Order one ESC per motor, and check that your motor's maximum current on the chosen prop stays below the 80A continuous rating. CAN control and telemetry need a flight controller with a CAN port running ArduPilot or PX4.
| Made in India | No |
|---|---|
| Brand | MAD Components |
| ESC Current | 80 A |
| Input Voltage | 5–14S |
| ESC Firmware | Proprietary |
| BEC | Yes |
