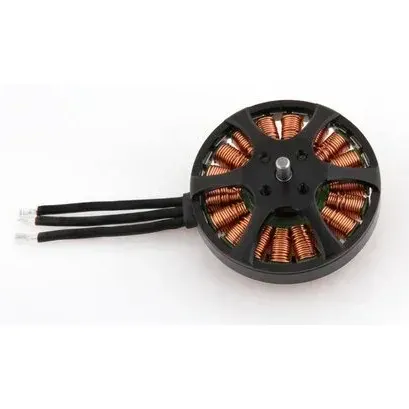

T-Motor Antigravity MN4006 EVO 380KV Motor (2pcs/Set)

A set of two T-Motor Antigravity MN4006 EVO motors in the 380KV winding, rated for 6S and matched to 15–16 inch props. They suit aerial-photography and long-endurance multirotors where propulsion weight matters: each motor is 73 g with its lead.

Key features

• EVO revision: about 0.3 g/W better efficiency at the same thrust, 8% more maximum thrust and an 11% lower peak surface temperature under load than the earlier MN4006
• Roughly 2.3–2.5 kg thrust per motor at full throttle on 15–16 inch props
• Ultra-thin high-strength aluminium rotor with a built-in ventilation and cooling path for the windings
• 240 °C-rated copper windings, 150 °C magnets and imported 694ZZ bearings

Specifications

• KV: 380
• Rated voltage: 6S LiPo (22.2 V nominal)
• Configuration: 18N24P
• Dimensions: 44.1 × 29.3 mm (diameter × height)
• Shaft: 4 mm (inner and output)
• Weight: 73 g each, including cable
• Internal resistance: 159 mΩ
• Idle current: 0.7 A at 10 V
• Peak current: 18 A (180 s)
• Max power: 300 W (180 s)
• Recommended props: P15, P16
• Recommended ESC: T-Motor AIR 40A 2–6S

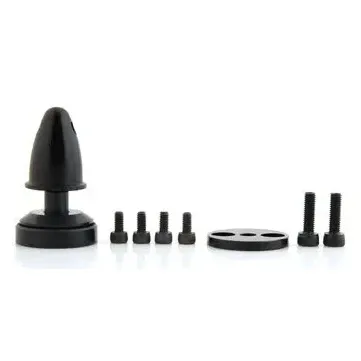

• In the box: 2 motors, 2 hardware packs

Order two sets for a quad or three for a hexa. A 40 A ESC leaves generous headroom over the 18 A peak, and 15–16 inch carbon props keep the motor in its intended load range.
