Industrial UAV Motors

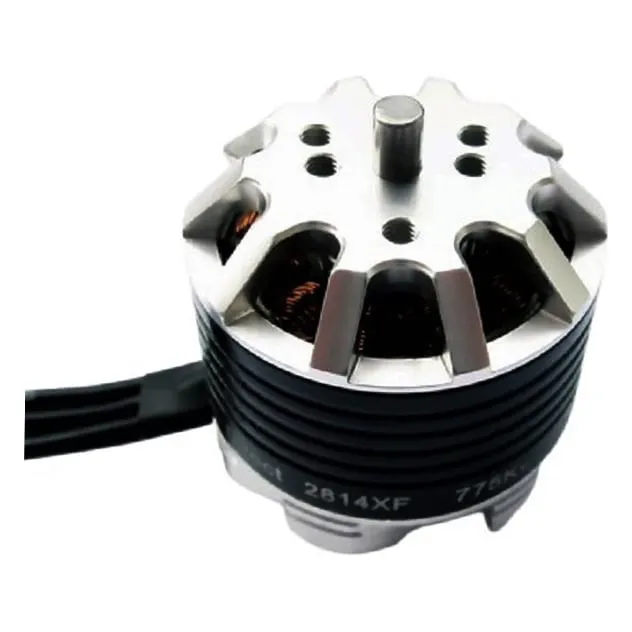

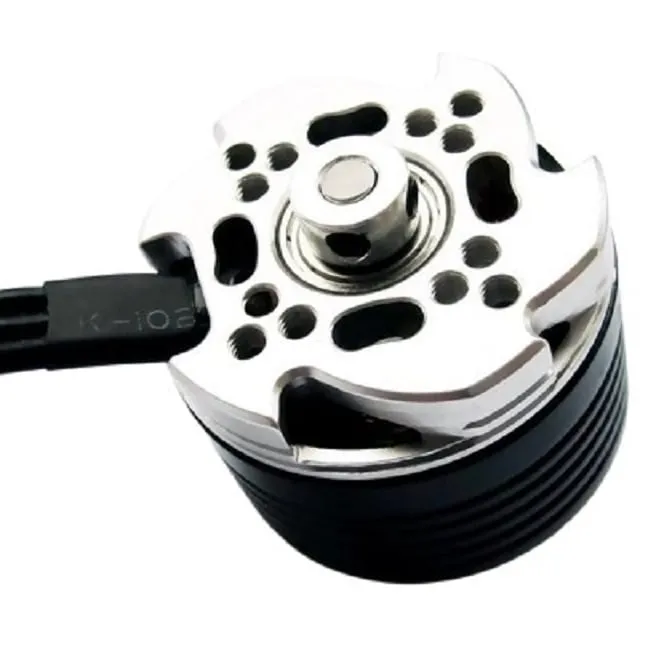

KDE 2814XF 775KV Brushless Motor
₹11,799Incl. GST
SKU KDE-2814XF-775KV
Stator Size: 2814KV: 775 KVShaft: 6mmBrand: KDE
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The KDE2814XF-775 is a 2814-stator brushless motor from KDE Direct's UAS Multi-Rotor series, built for electric multi-rotor and sUAS platforms needing industrial-grade reliability.
Key features

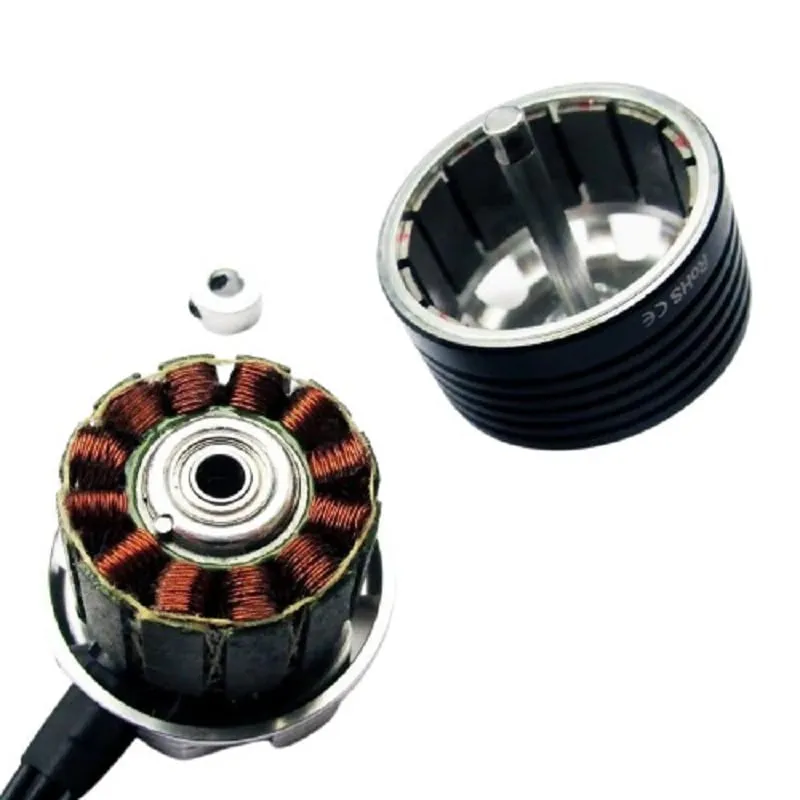

- High-grade, solid-core copper windings rated for continuous operation up to 240°C (340°C maximum).
- Japanese-built 0.2mm silicon-steel stator laminations with Kevlar tie-wraps for efficient, long-lasting operation.
- Triple ABEC-7 bearing support for maintenance-free running over hundreds of flight hours.
- 200°C-rated 17AWG silicone leads (635mm) pre-soldered to 3.5mm 24K bullet connectors for ESC hookup.

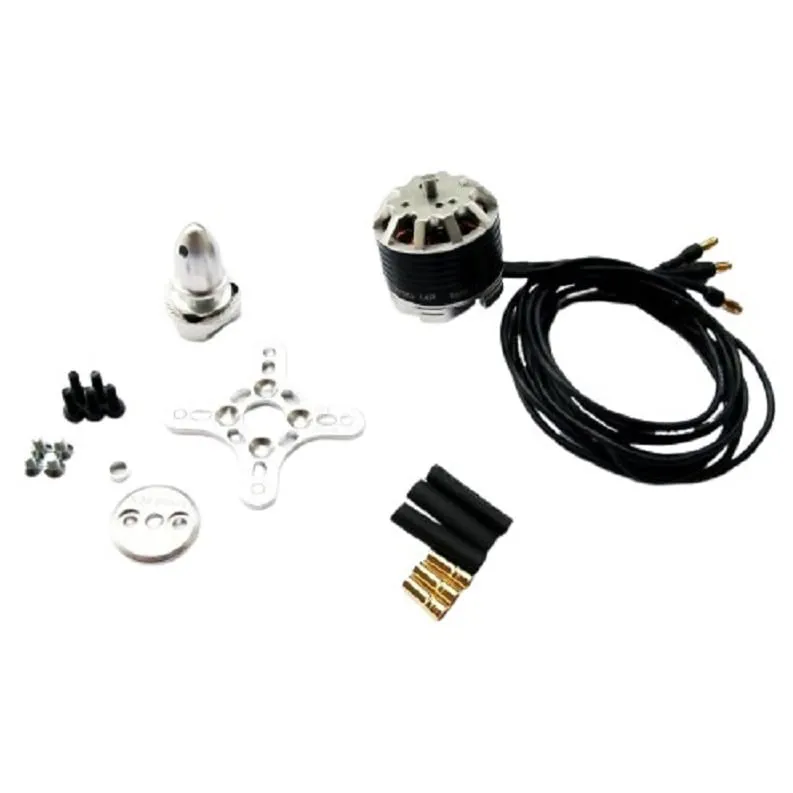

- Ships with an M6 propeller adapter assembly, motor adapter plate, propeller bracket and mounting screws.
Specifications
- Stator size: 2814
- KV: 775KV
- Wire leads: 200°C, 17AWG, 635mm
- Connector: 3.5mm 24K bullet connector (KDEXF-BC35)
- Bearings: triple ABEC-7
KDE recommends its UAS 35A+ (or 20A+ LV) multi-rotor ESC and a 12.5x4.3-inch propeller with this motor — match your ESC and prop selection accordingly.
| Stator Size | 2814 |
|---|---|
| Stator Diameter | 28mm |
| Stator Height | 14mm |
| KV | 775 KV |
| Shaft | 6mm |
| Brand | KDE |
| Made in India | No |
