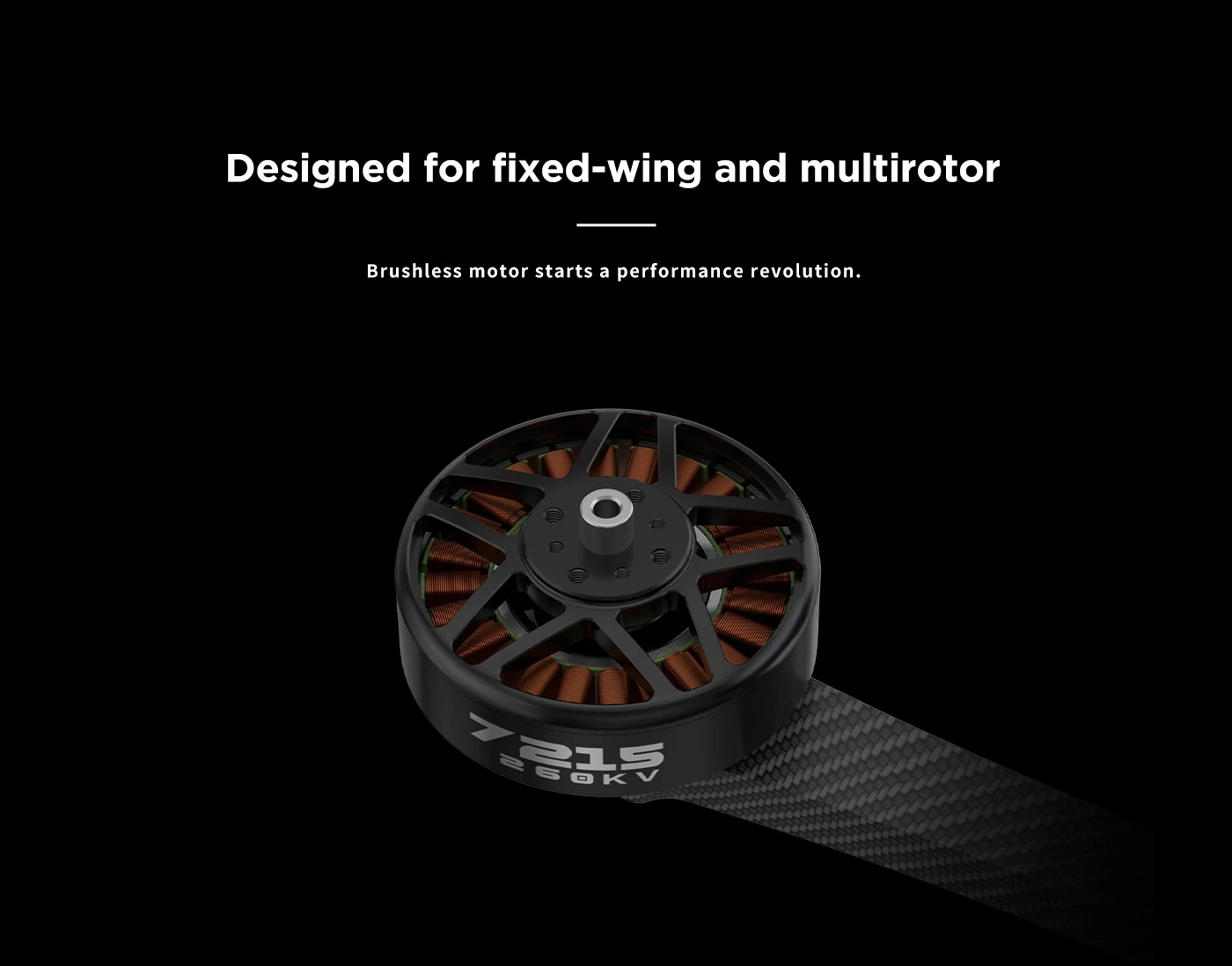

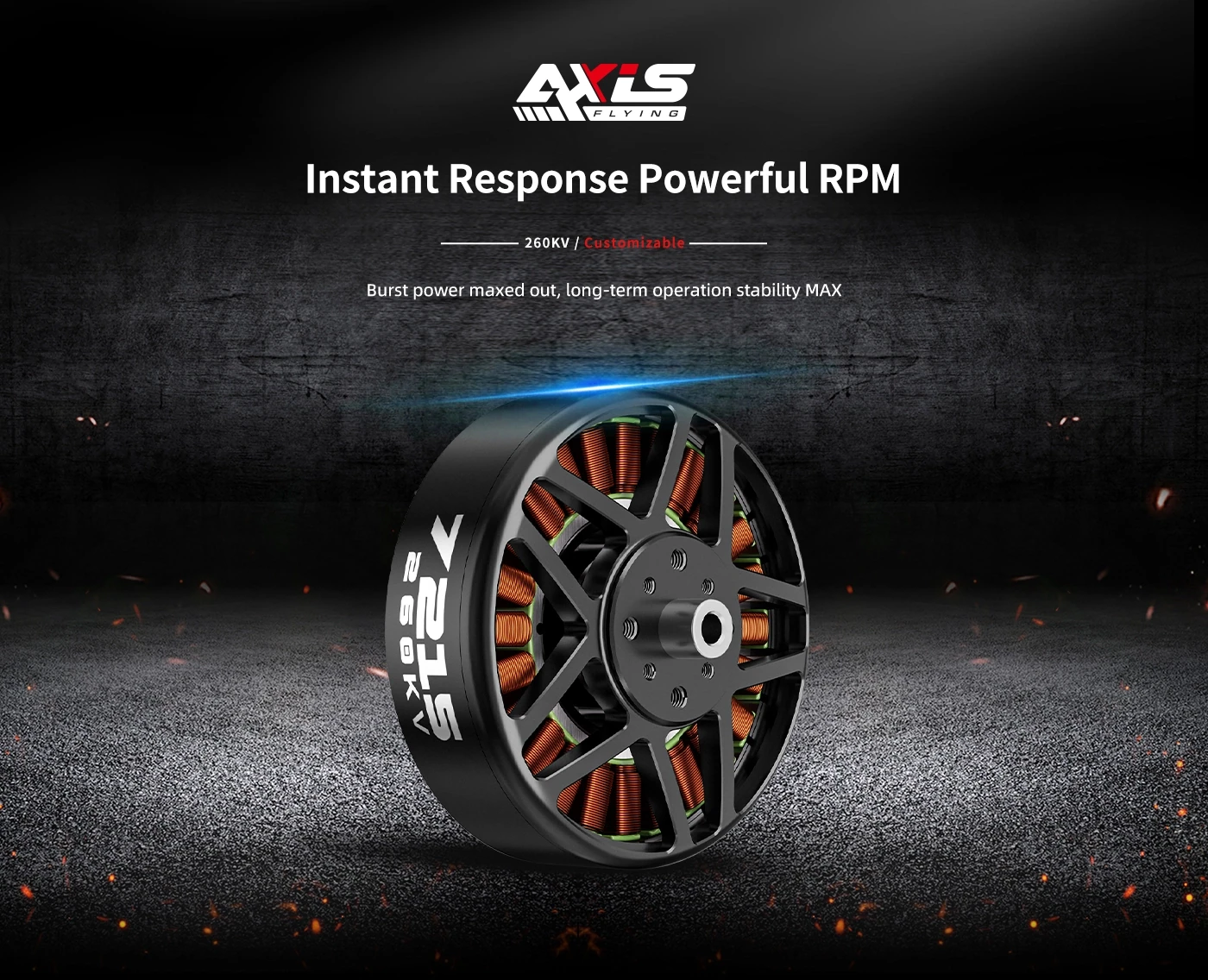

Axisflying AZ7215 260KV 8-12S Brushless Motor

The Axisflying AZ7215 is a 260KV brushless motor from the AZ heavy-load series, built for 8-12S multirotors swinging 15-17 inch propellers. Axisflying aims it at long-range, heavy-lift and cinematic drones, and its low KV suits industrial quads and hexacopters that carry cameras, sensors or payload boxes.

Key features

• Large 7215 stator (72 mm diameter, 15 mm height) for torque at low RPM on big props

• Wide 8-12S rating: the same motor runs on 8S, 10S or 12S packs

• 260KV gives about 7,700 rpm unloaded on 8S nominal and about 11,500 rpm on 12S nominal

• Matched to 15-17 inch propellers for efficient hover on heavy airframes

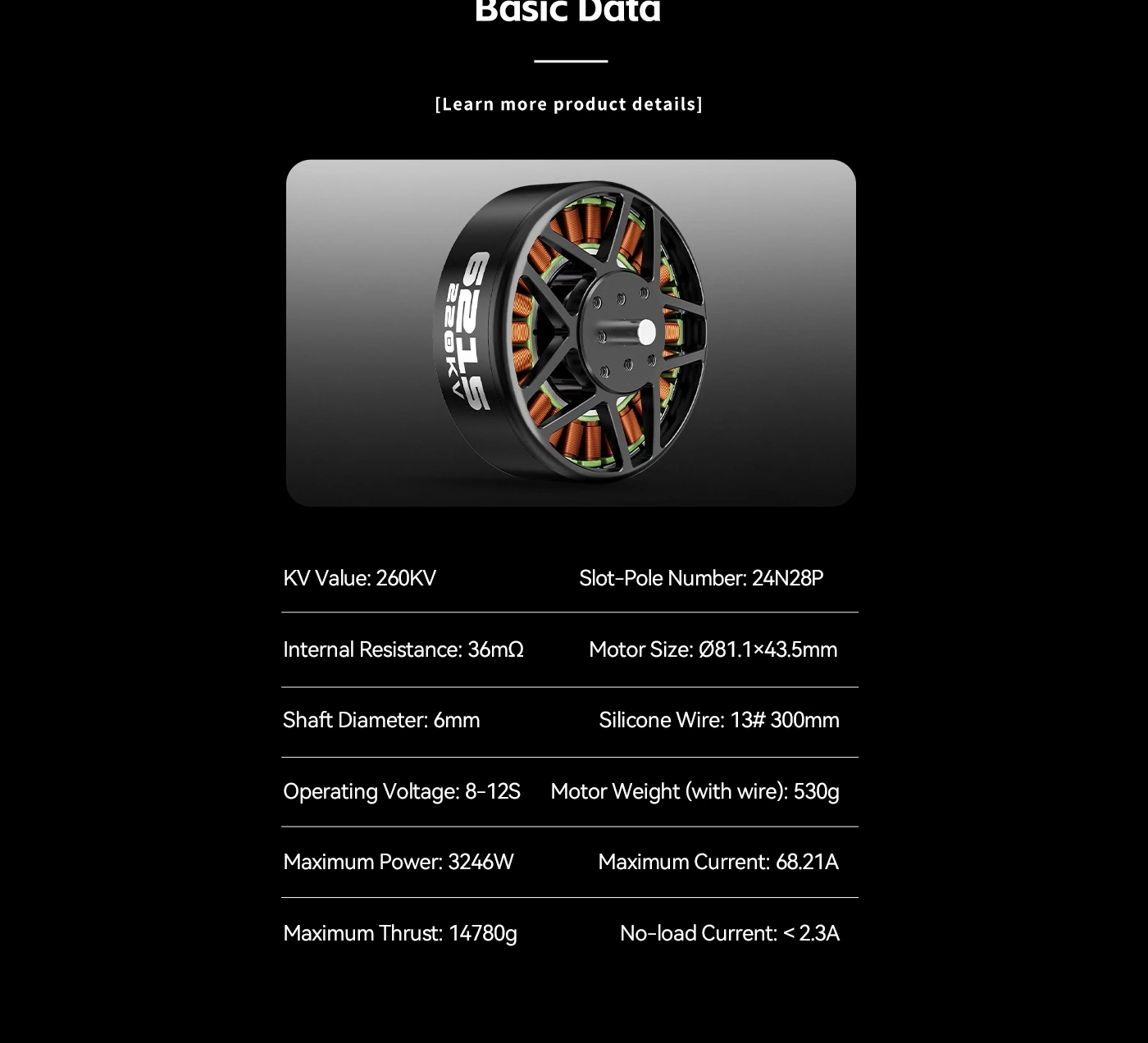

Specifications

• Model: AZ7215

• KV: 260KV

• Rated voltage: 8-12S LiPo (29.6-44.4 V nominal)

• Stator: 72 × 15 mm

• Recommended props: 15-17 inch

Use ESCs rated for 12S (50.4 V fully charged) if you plan to run the top of the range, and check the motor base hole pattern against your arm mounts before ordering. On 12S, a lower-pitch prop keeps current and heat in check; on 8S, step up pitch for the same thrust.
