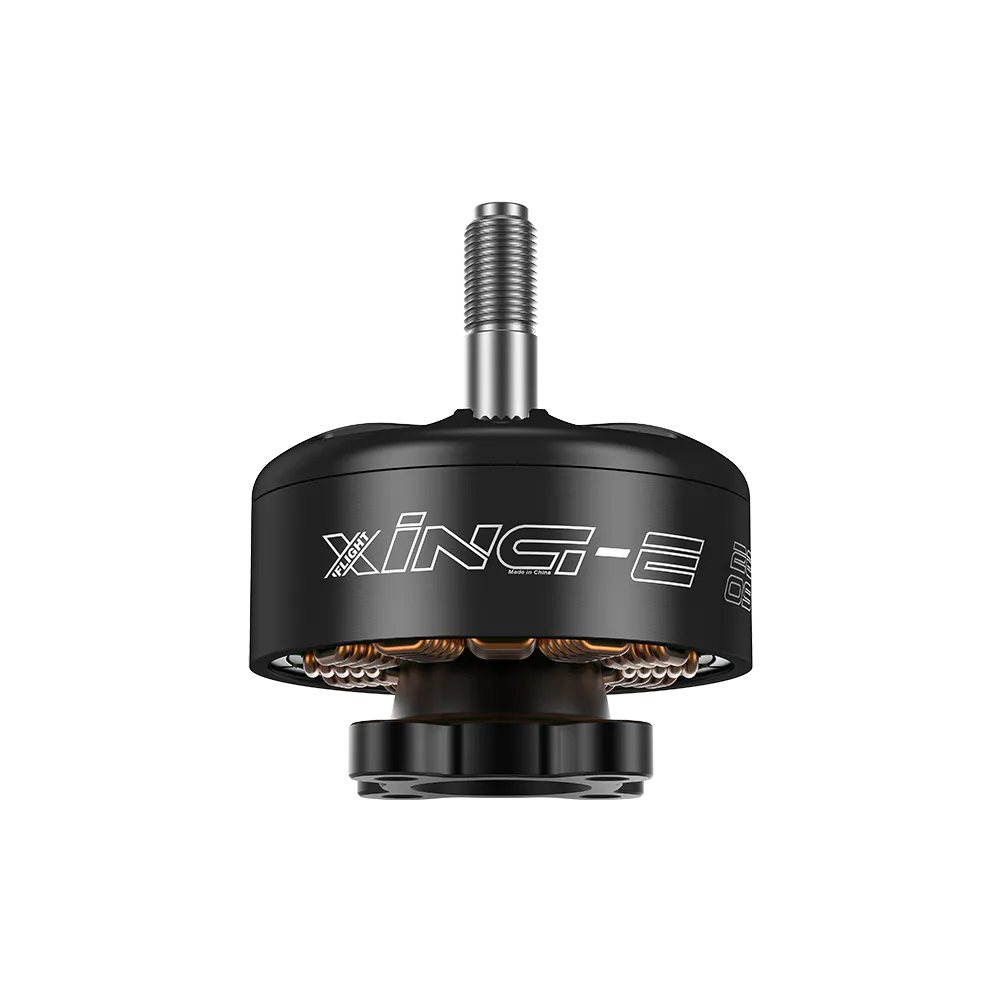

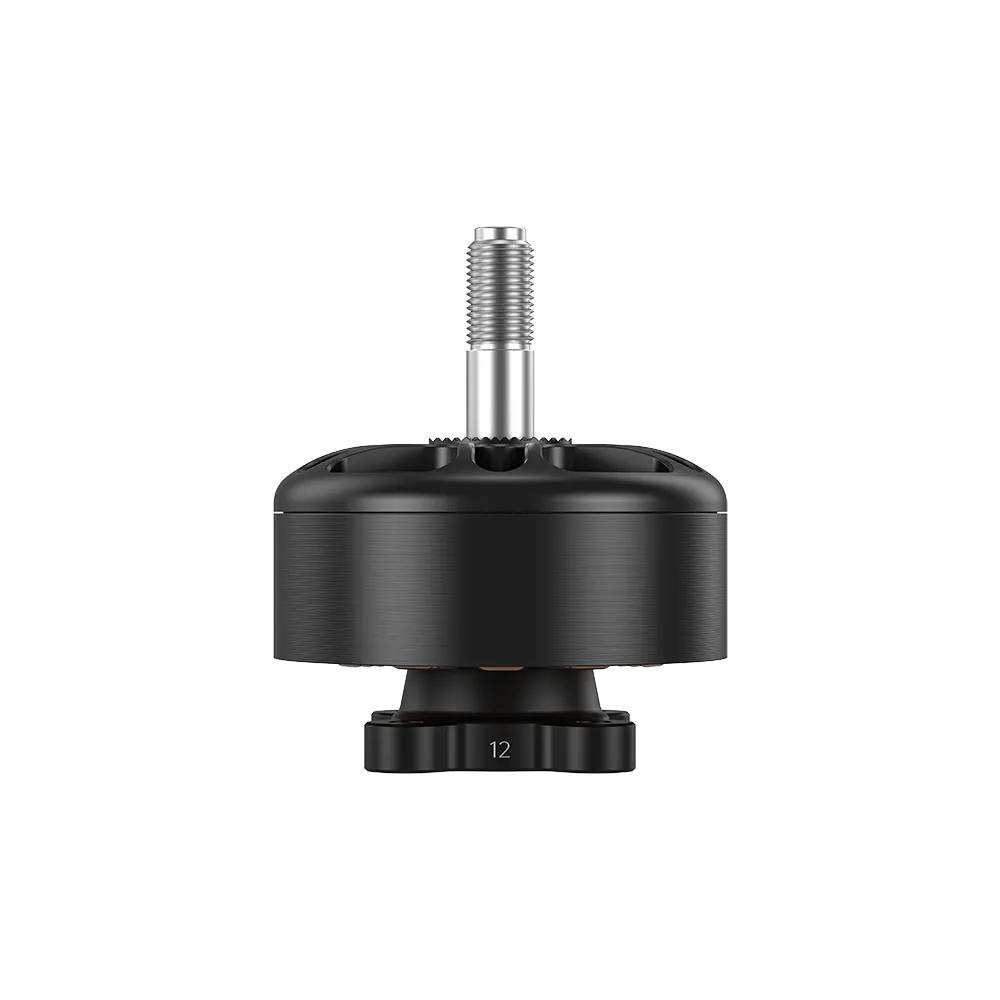

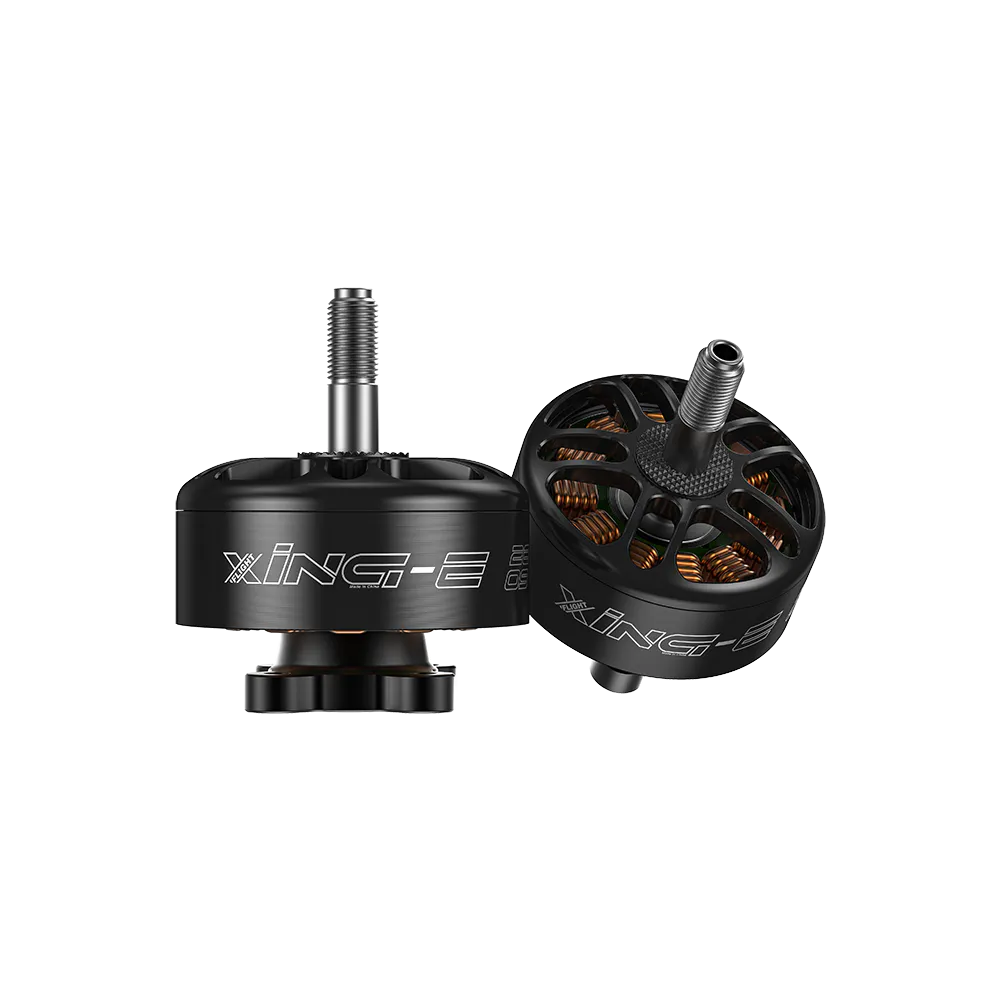

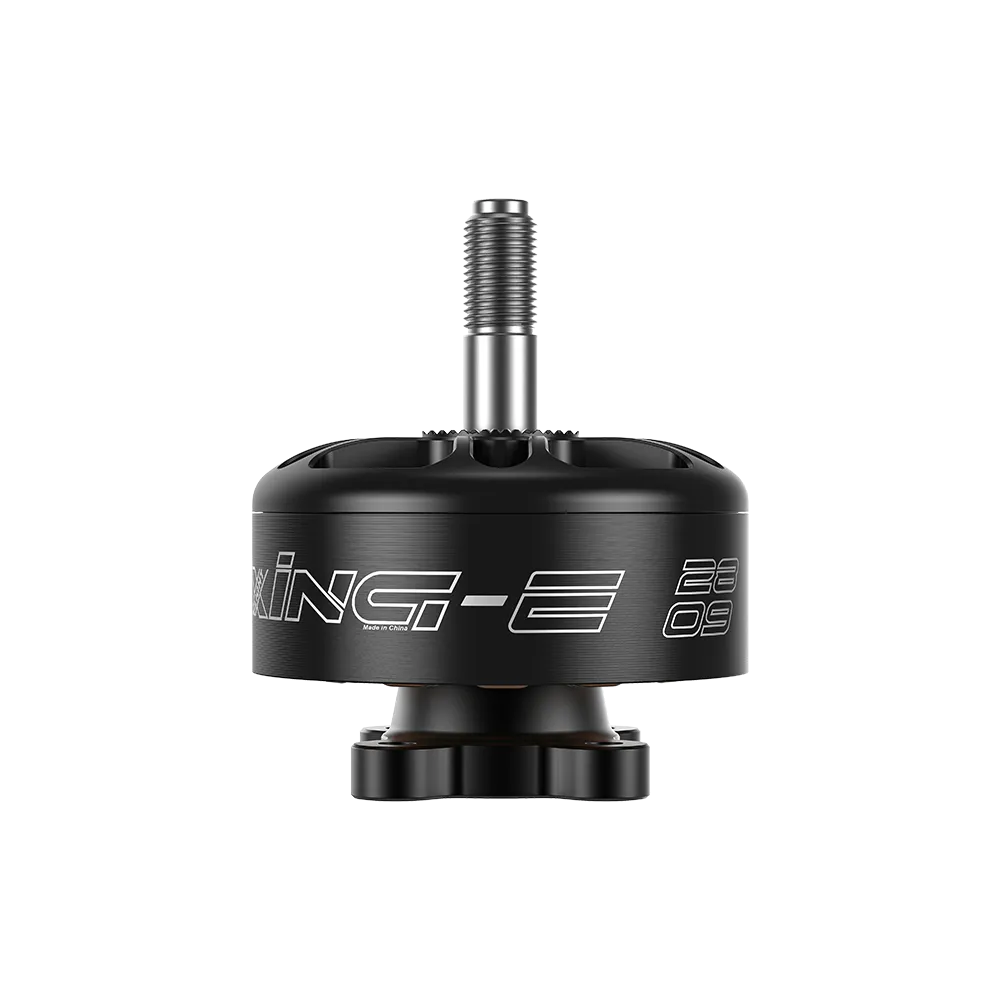

iFlight XING-E 2809 1250KV Cinelifter Motor

The iFlight XING-E 2809 1250KV is a high-torque motor engineered for 7-inch to 9-inch cinelifters, long-range macro quads, and heavy-payload platforms. Designed to reliably swing large propellers on a 6S powertrain, it provides the low-end authority required to carry full-size action cameras or high-capacity batteries without sacrificing flight efficiency.

Key features

• Optimised for heavy-lift FPV platforms, including 7-inch long-range cruisers and 8-inch cinematic lifters
• Durable 5mm steel prop shaft withstands high-torque loads and prop strikes
• Constructed with high-temperature copper windings and curved N52H magnets to maintain efficiency under sustained heavy throttle
• Standard 19x19mm M3 mounting pattern for broad frame compatibility

Specifications

• KV: 1250
• Stator size: 2809
• Configuration: 12N14P
• Input voltage: 6S LiPo
• Mounting pattern: 19x19mm (M3)
• Shaft diameter: 5mm
• Shaft protrusion: 15.5 mm
• Weight: 60.4g (including wire)
• Interphase resistance: 65 mOhm
• Peak current: 42.23 A
• Max power: 1147 W
• Lead: 260 mm, 18AWG
• In the box: motor, 4x M3x11 screws, M5 flange nut

This motor pairs best with 60A to 80A ESCs and aggressive 7-inch to 8-inch tri-blade propellers for smooth, stable cinematic flights.
