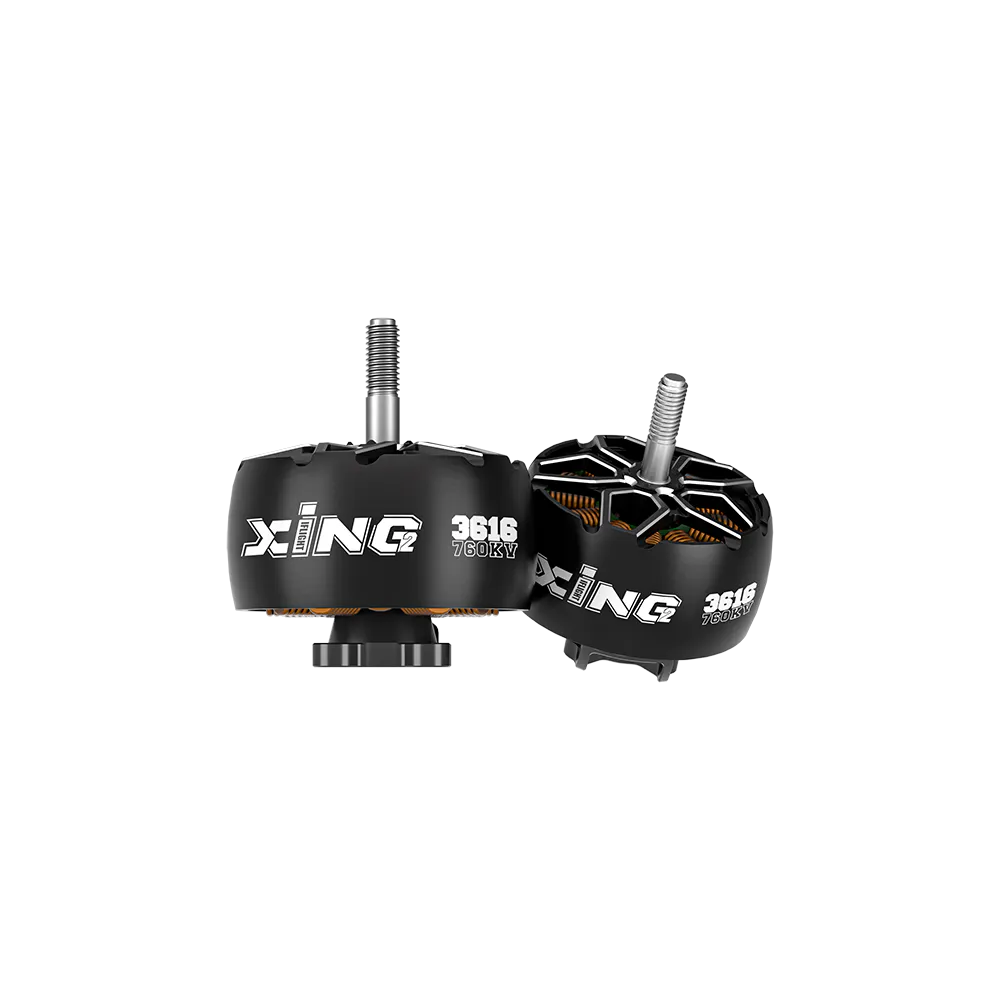

iFlight XING2 3616 760KV Cinelifter Motor

The iFlight XING2 3616 760KV is a large-stator brushless motor for heavy cinelifters and X-Class quads, where big props and long flights need torque more than top-end RPM. It brings the XING2 NextGen design to a 36 mm stator with a unibell rotor and a 5 mm shaft.

Key features

• Centre-slotted N52H curved arc magnets cut motor response time, so braking and acceleration follow PID corrections faster
• Minimal magnet air gap and thin stator laminations raise magnetic flux for more efficiency and power
• 12N14P configuration with multi-strand copper windings
• NSK/NMB bearings sized 12 × 6 × 4 mm
• 400 mm 16AWG leads reach the ESC on long-arm heavy-lift frames

Specifications

• Stator: 3616 (36 mm × 16 mm)
• KV: 760KV
• Configuration: 12N14P
• Rated input: 32 V
• Peak current: 78.57 A
• Max power: 2453 W
• Interphase resistance: 38.8 mΩ
• Dimensions: Ø45.5 × 51 mm
• Weight: 166.3 g including leads
• Shaft: 5 mm, 18 mm protrusion
• Motor mount: 19 × 19 mm, 3 mm holes
• Rotor: unibell
• Leads: 400 mm, 16AWG

Each listing is a single motor, so order four for a quad or eight for a coaxial X8 layout. Pair it with an ESC that handles the 78.57 A peak, and confirm your arms carry the 19 × 19 mm pattern before ordering.
