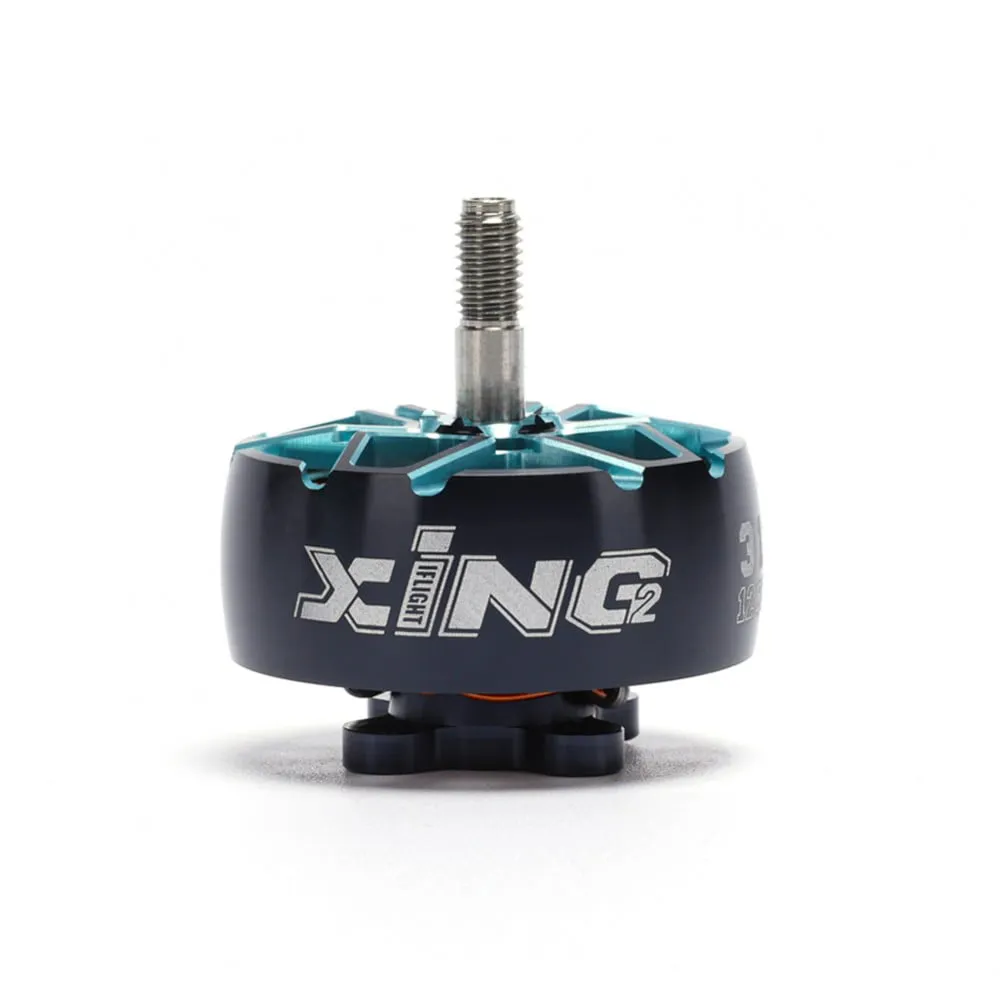

iFlight XING2 3110 Cinelifter Motor (1600KV / 900KV)

The iFlight XING2 3110 is a large-format cinelifter motor built for 7 to 9-inch heavy-lift frames carrying cinema payloads. Its oversized 3110 stator provides the torque to swing aggressive prop pitches without stator saturation, giving precise low-end throttle control during cinematic manoeuvres.

Key features

• Machined 7075 aluminium unibell with N52H curved arc magnets for a minimal air gap and sharp throttle response.
• XING O-ring above the upper bearing damps mechanical vibration before it reaches the flight controller's gyro.
• 5mm titanium alloy shaft with standard M5 prop threads for crash durability under heavy payload stress.
• NSK bearings for smooth, consistent rotation under the dynamic load of large propellers.

Specifications

• KV options: 900 KV, 1600 KV
• Configuration: 12N14P
• Stator size: 3110 (31 x 10 mm)
• Peak current: 65.54A (900KV), 65.06A (1600KV)
• Max power: 2143.8W (900KV), 1550.4W (1600KV)
• Mounting pattern: 19x19mm, M3
• Shaft diameter: 5 mm (titanium alloy), 15 mm protruding length
• Bearings: NSK 11 x 5 x 5 mm
• Magnets: N52H curved arc
• Dimensions: 38.72 x 39.6 mm
• Leads: 18AWG, 260 mm
• Weight: approx. 77 g (900KV) / 76 g (1600KV), including wire

The 900KV option is built around 8S power for 7-inch props, or efficient 6S cruising on 8 to 9-inch propellers. The 1600KV variant suits aggressive 6S thrust on 7-inch freestyle and tracking setups.
