AMAX Competition 2820 600KV Brushless Motor
AMAX
Cinelifter & X-Class Motors

AMAX Competition 2820 600KV Brushless Motor

₹7,019Incl. GST

SKU AMAX-COMP-2820-600KV

KV: 600KVStator Size: 2820Pack Size: 1Brand: AMAX

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

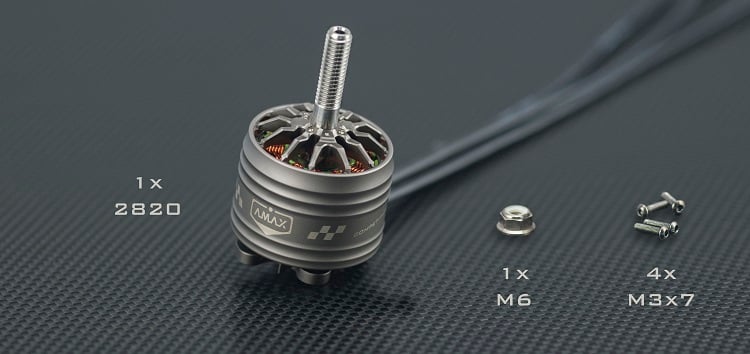

The AMAX Competition 2820 is a 600KV brushless motor with a 28 mm × 20 mm stator, built for large-prop FPV aircraft: heavy long-range quads and cinelifters carrying cinema cameras.

Key features

  • 2820 stator: 28 mm wide and 20 mm tall, a very tall stator that delivers the torque big props need at low RPM.

  • 600KV winding: low KV for large props, keeping current and heat manageable on long or payload-heavy flights.

  • Sold singly: each unit is one motor; order four for a quad, or eight for a coaxial X8 cinelifter.

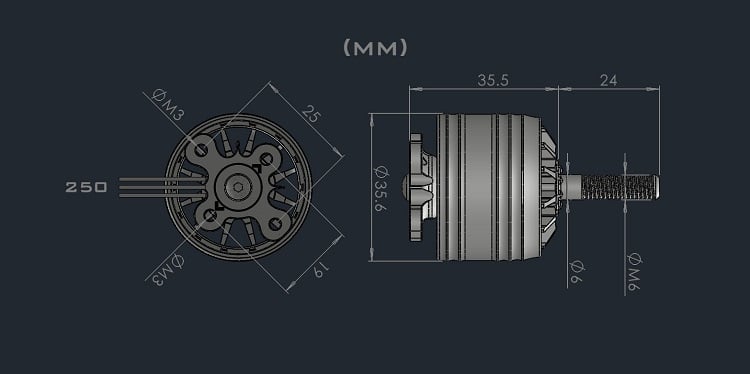

At 600KV this motor is meant for large props, typically 10 inches and up. Before committing to a full set, check that your ESC's current rating has headroom for big props, and confirm the motor's bolt pattern and prop-mount style against your frame arms and propellers.
