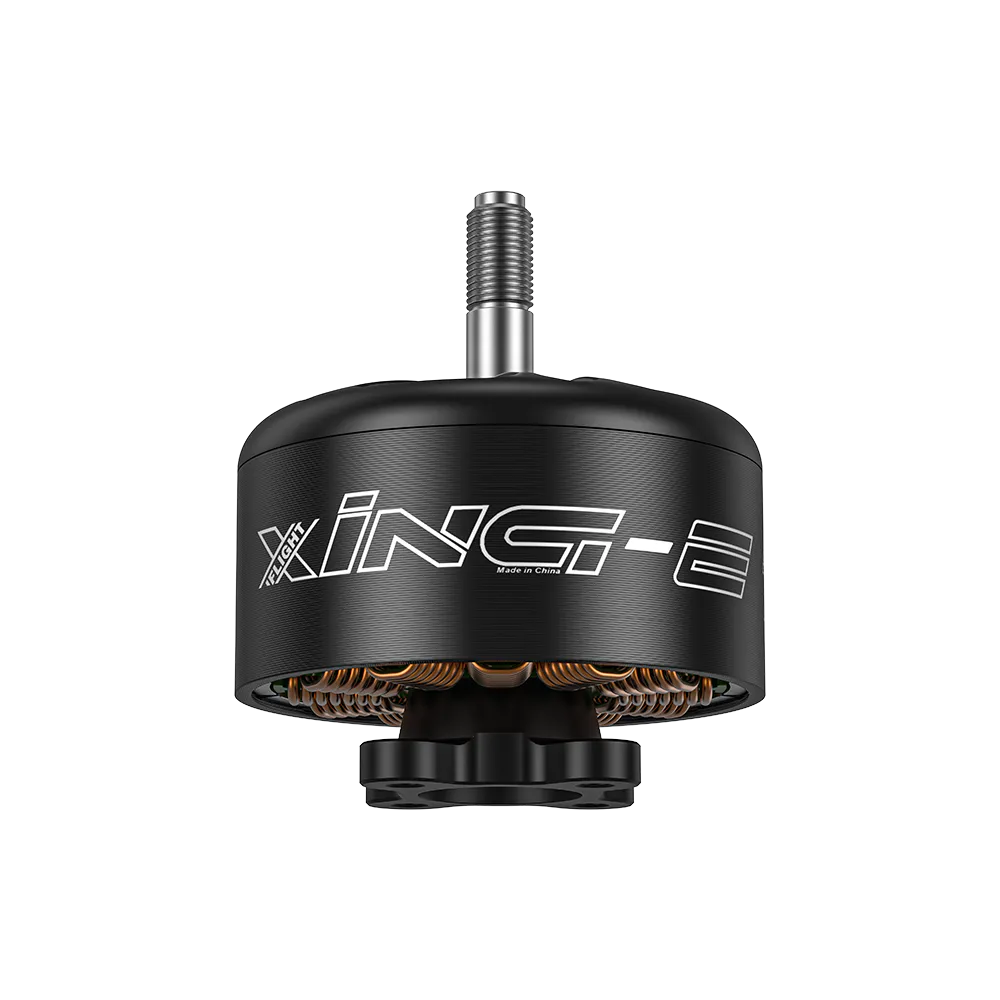

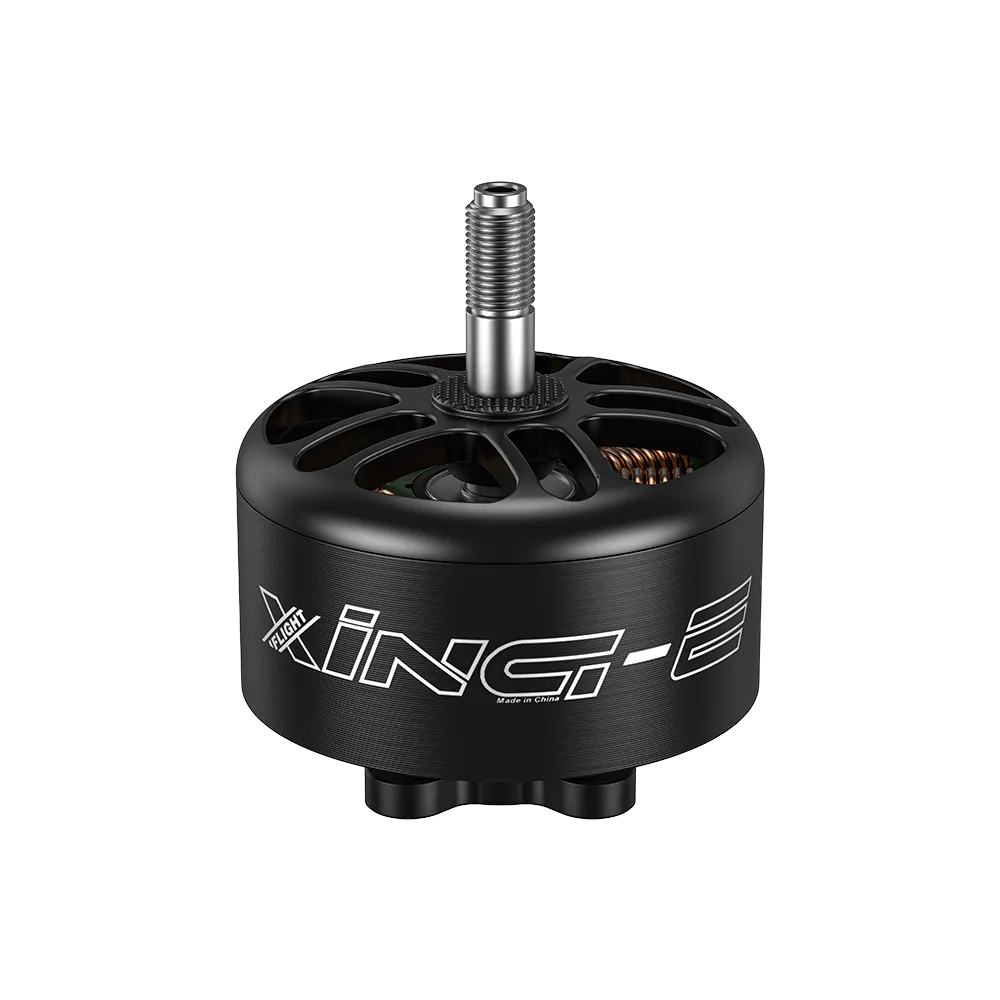

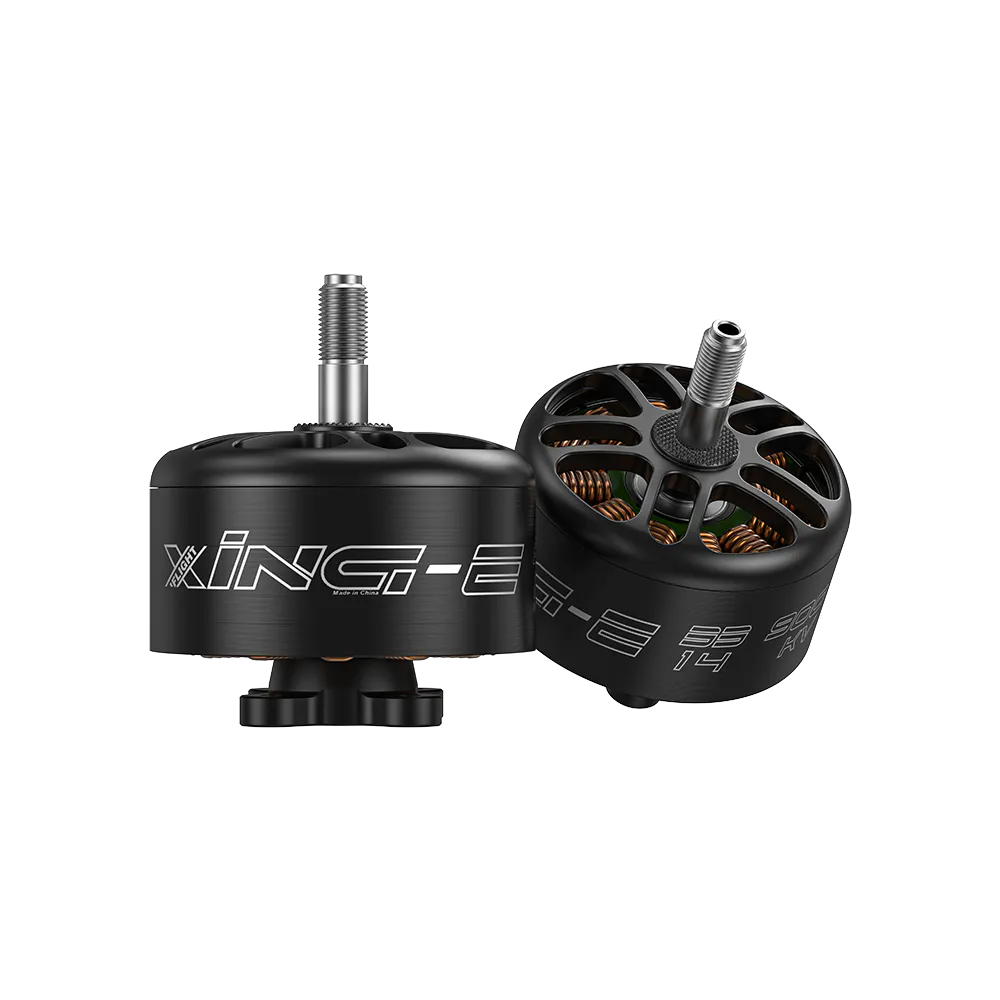

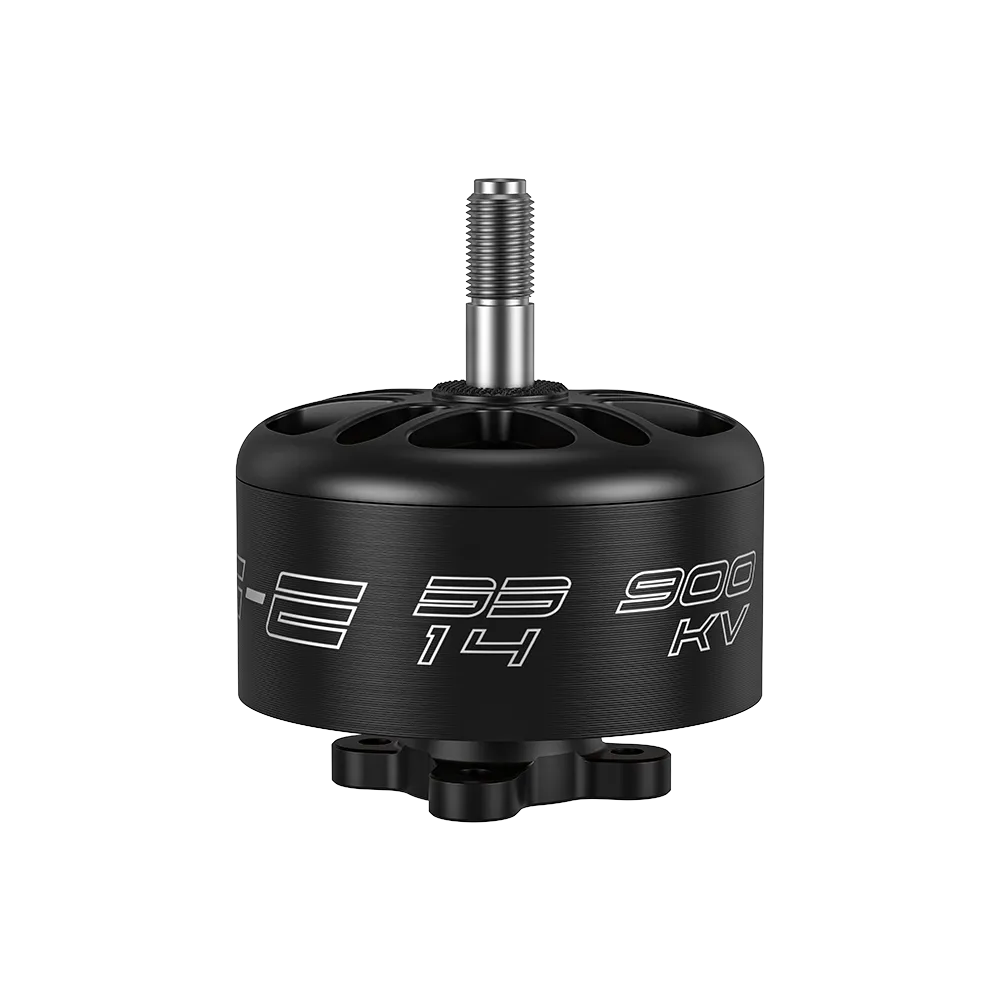

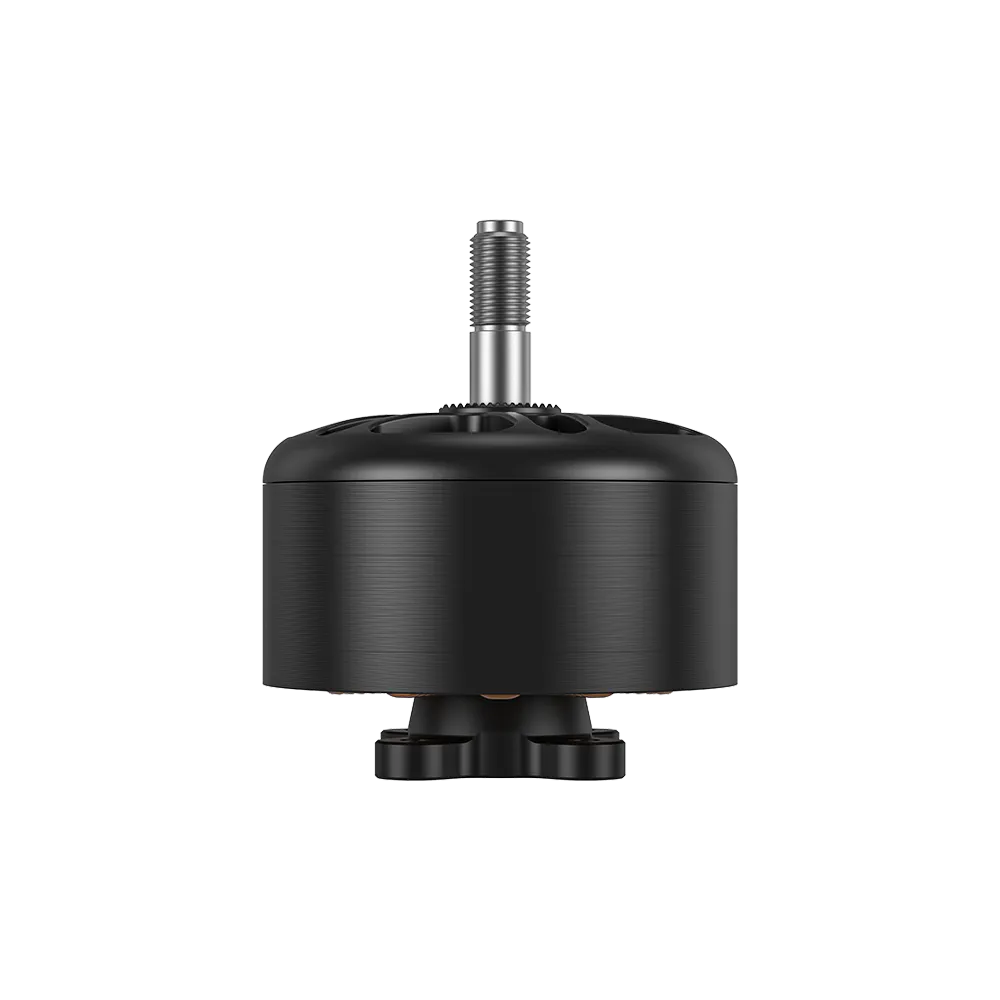

iFlight XING-E 3314 900KV 6S Cinelifter Motor

The iFlight XING-E 3314 900KV is a large-stator brushless motor for cinelifters and heavy long-range rigs on 6S. A 33 × 14 mm stator in a 12N14P layout, N52H curved magnets and a segmented bell are rated for up to 58.48A and 1366W peak, while the low 900KV winding suits large props turning at moderate RPM.

Key features

• High-power stator: 3314 size with single-strand copper winding and 48.1 mΩ interphase resistance.
• N52H curved magnets: high-temperature magnet grade in a segmented bell.
• 5 mm shaft with M5 flange nut: shaft protrusion is 15 mm or 17 mm, depending on production batch.
• 19 × 19 mm M3 mounting: four M3 × 10 screws included.
• 400 mm 16AWG leads: room to route along long arms to the ESC; trim to suit.

Specifications

• Model: XING-E 3314
• KV: 900KV
• Configuration: 12N14P
• Weight: 120 g with leads
• Diameter: 38.6 mm
• Interphase resistance: 48.1 mΩ
• Rated input: 24 V (6S)
• Peak current: 58.48 A
• Max power: 1366.1 W
• Mounting: 19 × 19 mm, M3
• Shaft: 5 mm, 15 mm or 17 mm protrusion
• Bearings: 11 × 5 × 5 mm
• Leads: 400 mm, 16AWG
• Magnets: N52H curved
• In the box: 1 × motor, 4 × M3 × 10 screws, 1 × M5 flange nut

With a 58.48A peak per motor, pick ESCs whose continuous rating covers what your chosen prop actually draws on 6S, and confirm the frame's motor mounts use the 19 × 19 mm M3 pattern before ordering a full set.
