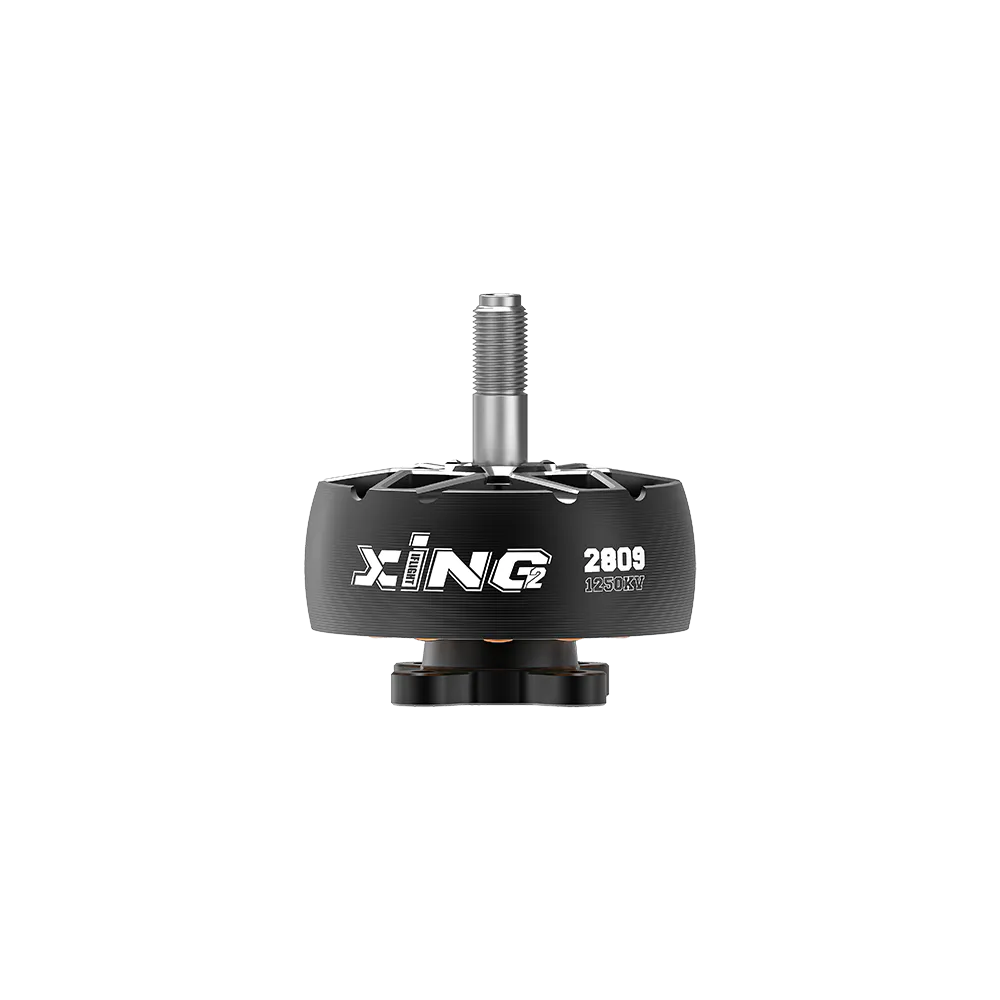

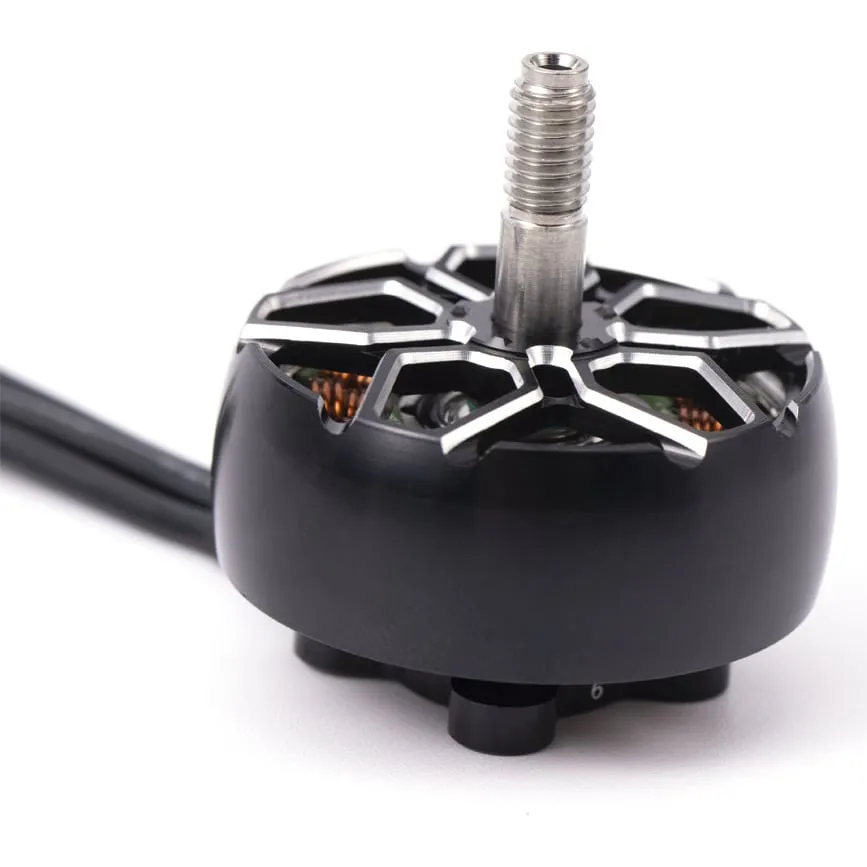

iFlight XING2 2809 FPV Cinelifter Motor Unibell

The iFlight XING2 2809 Unibell is a high-torque cinelifter motor built for 7 to 9-inch heavy-lift quads and long-range macroquads carrying camera or battery payloads. Centre-slotted N52H curved arc magnets cut response lag, giving the motor a locked-in feel under a loaded throttle.

Key features

• 7075 aluminium unibell construction resists cracking on hard landings
• 5mm titanium alloy shaft and NSK bearings with iFlight's O-ring gap protection extend service life under vibration

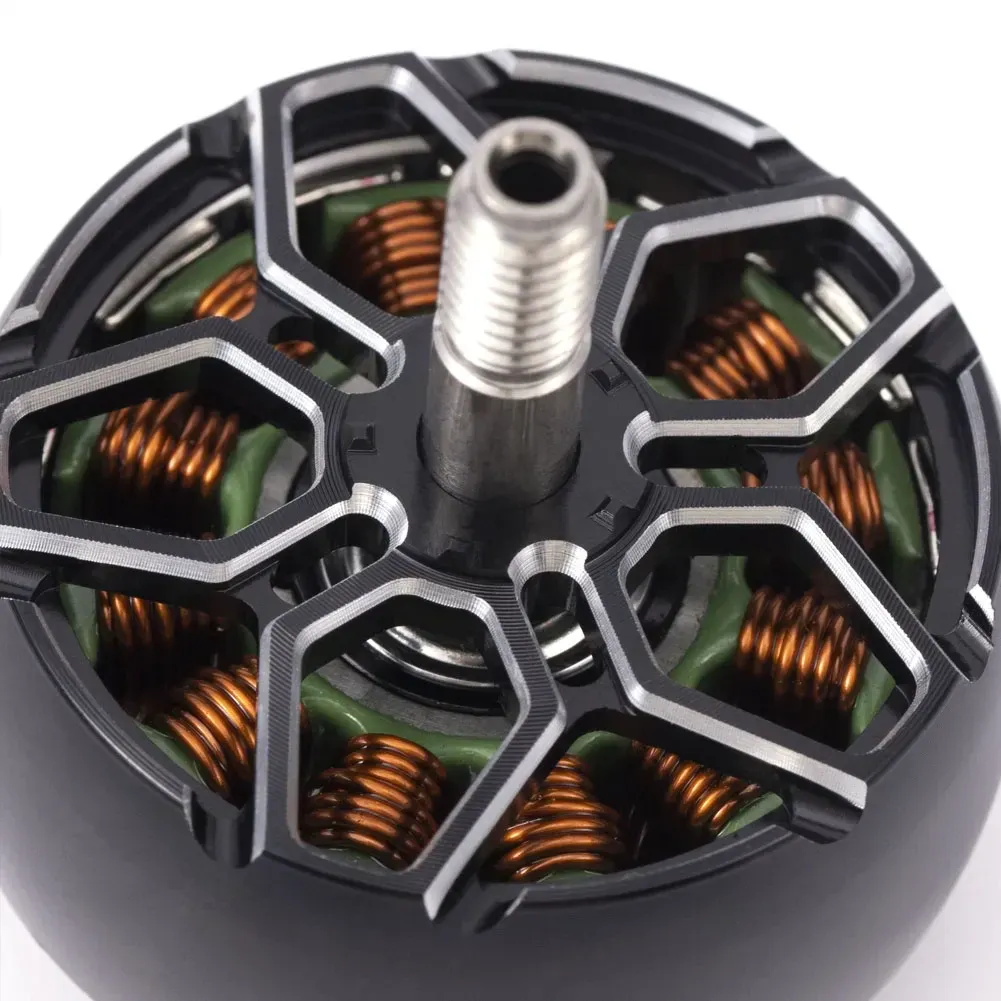

• 12N14P winding configuration tuned for smooth, efficient power delivery under load
• Available in 800KV for larger 8 to 9-inch props or 1250KV for 7-inch cinelifter builds

Specifications

• Stator size: 2809
• KV options: 800KV, 1250KV
• Configuration: 12N14P
• Input voltage: 6S
• Mounting pattern: 19x19mm (M3)
• Propeller shaft: 5mm (M5 thread)

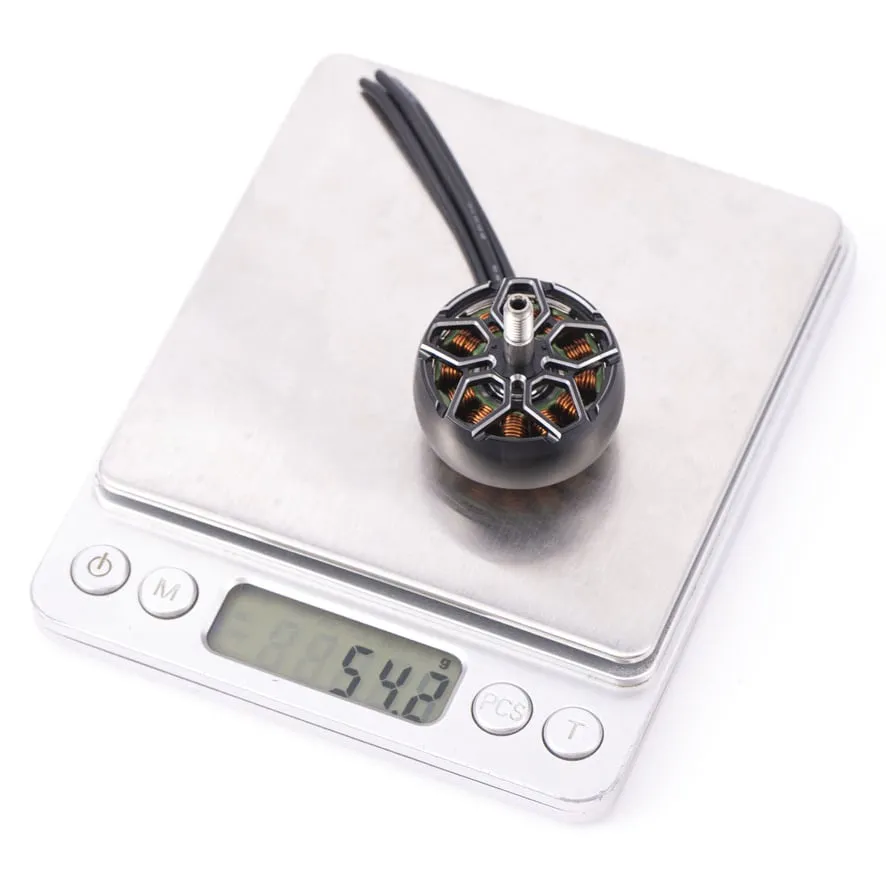

• Weight: approx. 60-61 g (including wire)
• Shaft protrusion: 15 mm
• Lead: 260 mm, 18AWG
• Bearings: NSK 11 x 5 x 5 mm
• Dimensions (1250KV): 35.33 x 21.7 mm
• Interphase resistance (1250KV): 65.46 mOhm
• Peak current (1250KV): 50 A
• Max power (1250KV): 1145 W

Match the 800KV version with larger, low-pitch props for efficient long-range cruising, and the 1250KV version with 7-inch props for punchier cinelifter response.
