XING 2806.5 1300KV FPV Cinelifter Motor

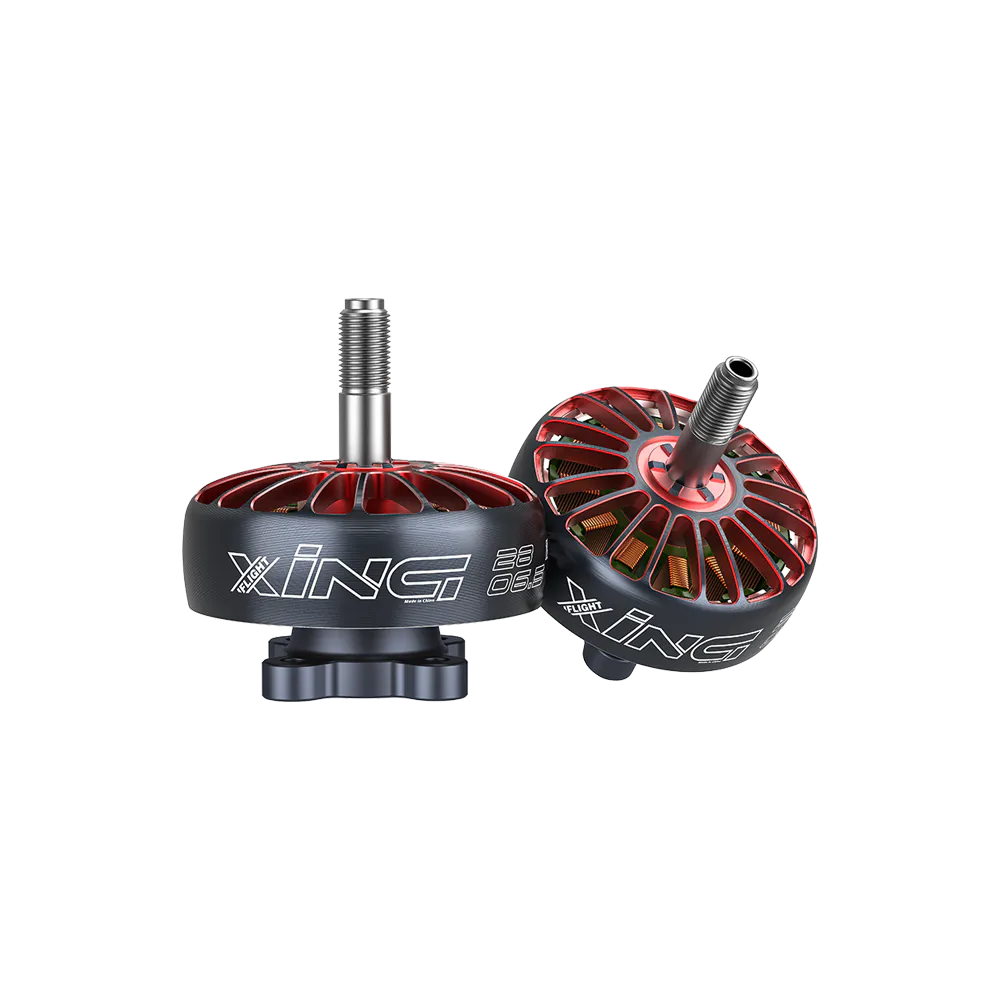

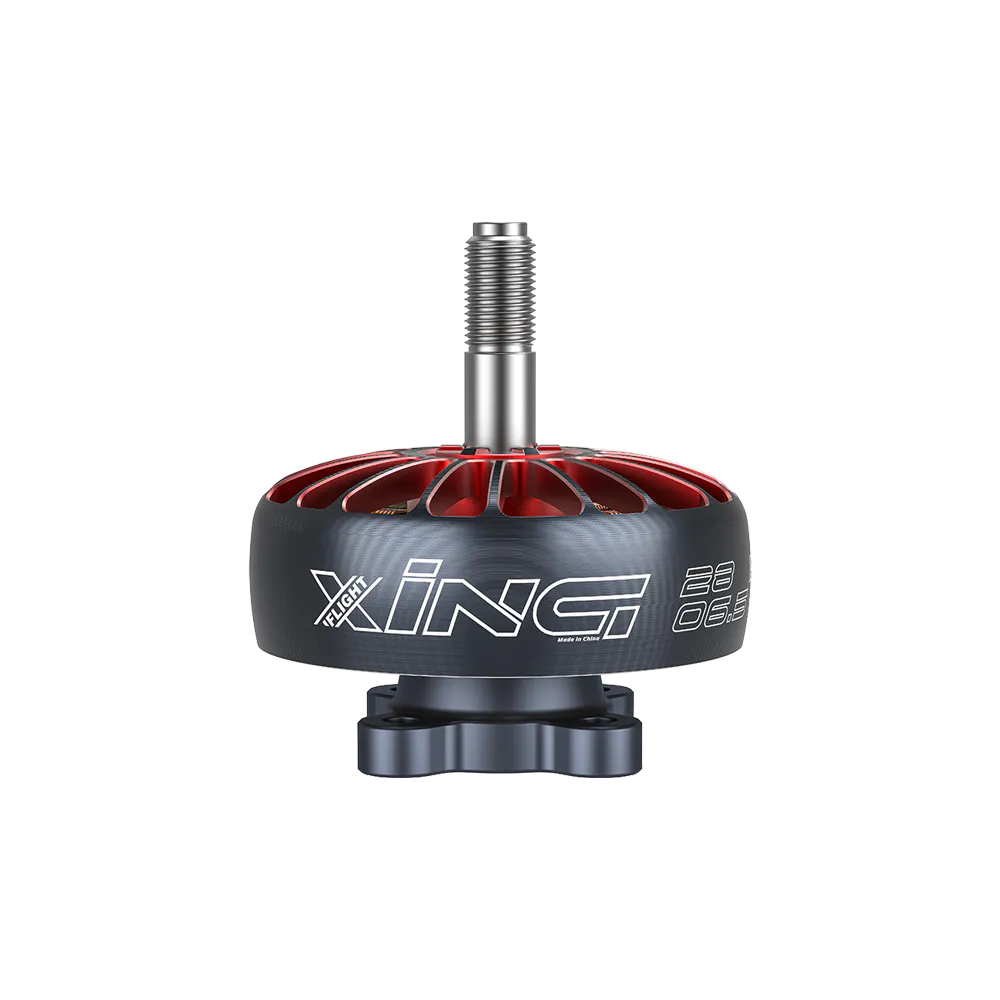

The iFlight XING 2806.5 1300KV brushless motor is engineered specifically for 7-inch long-range FPV drones and heavy-lift cinelifters. Optimised for a 6S LiPo power system, this large stator delivers the high torque and smooth power delivery required to carry heavy payloads, such as full-size action cameras or mirrorless rigs, without sacrificing cruise efficiency.

Key features

• High-strength 5mm titanium alloy shaft to survive hard impacts and handle heavy payload stress.

• Heat-resistant N52H arc magnets and a minimised air gap provide rapid, predictable throttle response.

• High-quality Japanese NSK bearings ensure smooth operation, reducing high-frequency vibrations in your HD cinematic footage.

• Extended 18AWG motor wires easily reach centre-mounted 4-in-1 ESCs on large 7-inch to 8-inch frames.

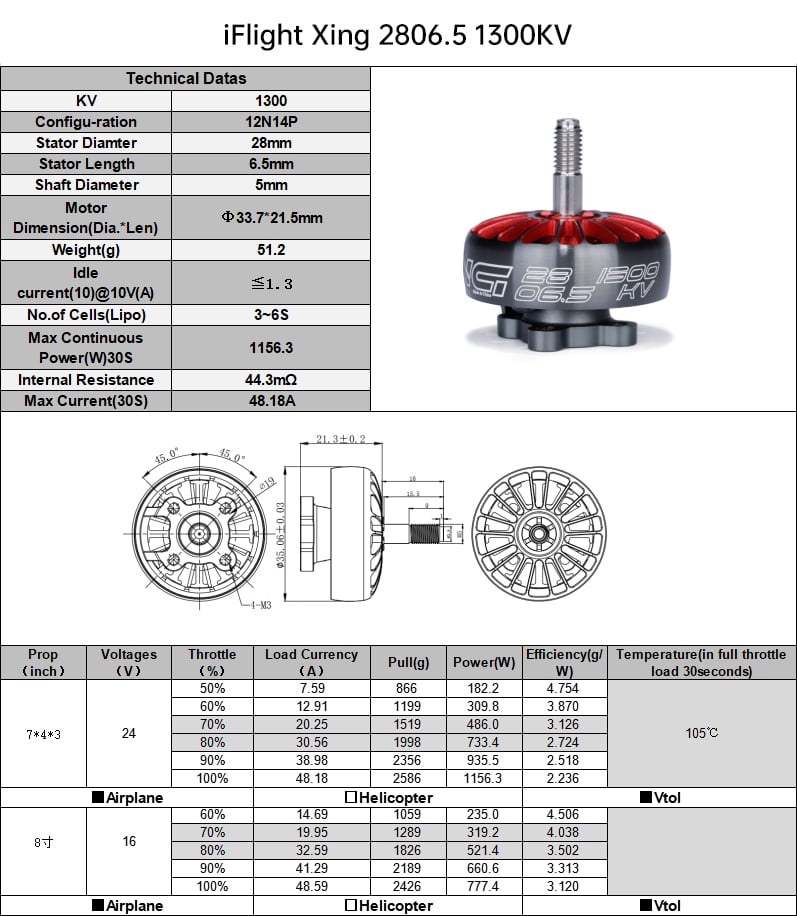

Specifications

• Stator size: 2806.5

• KV: 1300

• Rated voltage: 6S LiPo (22.2V nominal)

• Mounting pattern: 19x19mm (M3)

• Shaft diameter: 5mm

• Weight: 49.5g (including wires)

Best paired with 7x4x3 or 7.5-inch propellers on custom macro-quads or long-range cruisers like the Chimera7, ensuring steady flight characteristics even in turbulent mountain winds.
