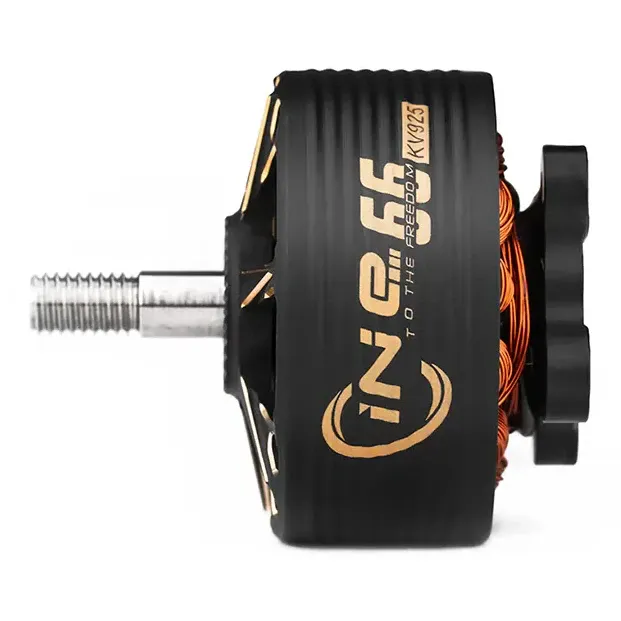

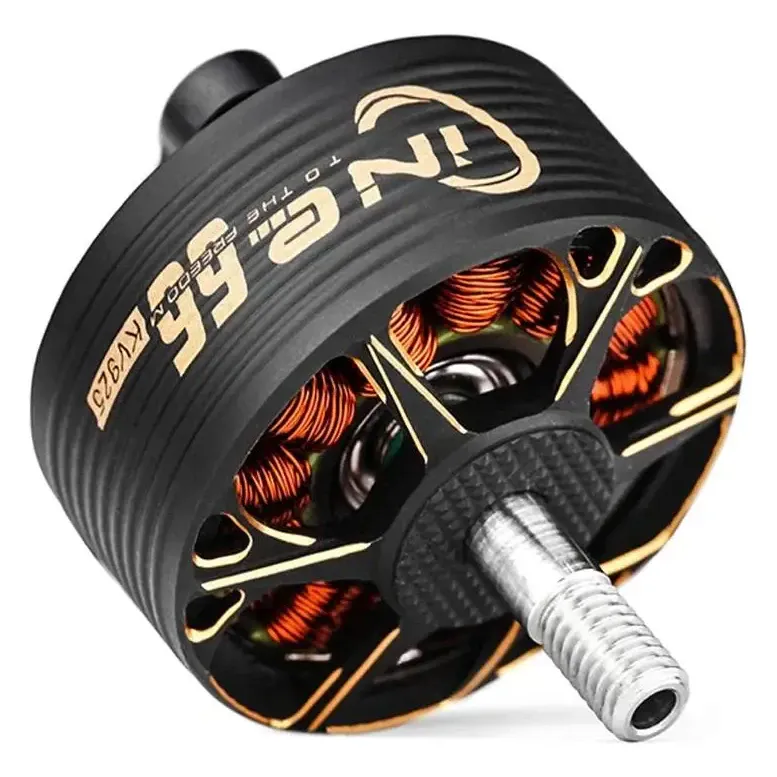

T-Motor Cine66 2812 Cinematic Motor 5-6S

The T-Motor Cine66 is a 2812-size brushless motor for 8–9 inch cinematic builds, including X8 coaxial cinelifters that carry cinema cameras. It runs on 5–6S LiPo and comes in 925KV or 1155KV. The 925KV version suits larger props and efficient cruising. The 1155KV version delivers more power and current for heavier lifts.

Key features

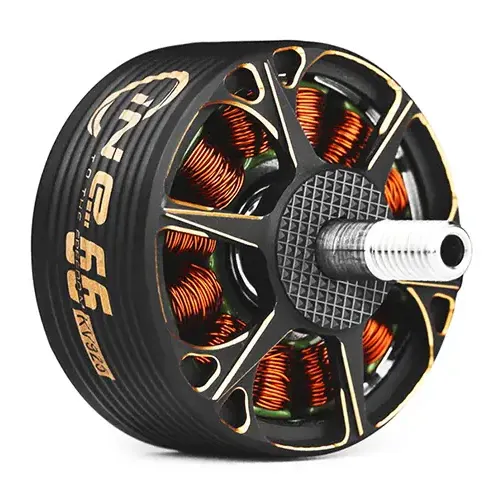

• Unibell construction, with a wave-shaped bell that improves heat dissipation

• Up to 3.3 kg of thrust per motor

• Hand-wound 12N14P stator with high-temperature wire

• 250 mm 18AWG leads that reach arm-mounted or central ESCs on large frames

• Same 2812 stator and dimensions in both windings, so you can switch KV on the same frame

Specifications

• Stator: 2812 (28 mm × 12 mm)

• KV options: 925KV, 1155KV

• Input: 5–6S LiPo

• Burst current: 50.5 A (925KV) / 54.5 A (1155KV)

• Max power (60 s): 1237 W (925KV) / 1320 W (1155KV)

• Internal resistance: 69 mΩ (925KV) / 47 mΩ (1155KV)

• Idle current (10 V): 1.05 A (925KV) / 1.41 A (1155KV)

• Configuration: 12N14P

• Shaft: 4 mm (inner)

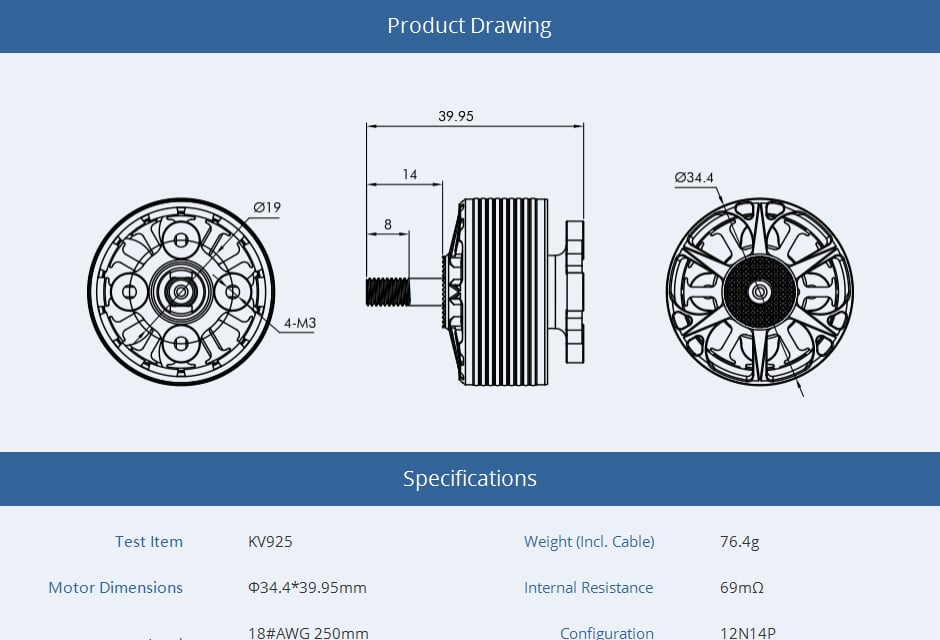

• Motor dimensions: 34.4 × 39.95 mm

• Leads: 250 mm, 18AWG

• Weight: 76.4 g (925KV) / 76.7 g (1155KV), including cables

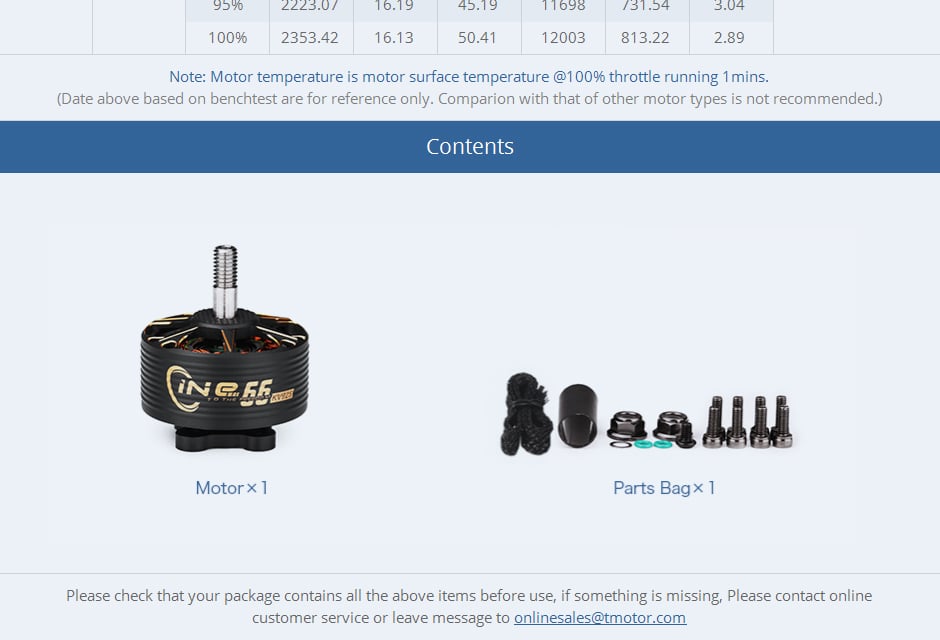

• In the box: 1 motor and hardware pack

Each listing is one motor, so order eight for an X8 cinelifter or four for a quad. Choose ESCs rated well above the burst current of your chosen KV.
