Simplifly MK5 Analog 5-inch FPV Freestyle Frame
₹2,899Incl. GST
SKU SF-MK5-ANALOG-FRAME
Prop Size: 5"Wheelbase: 225 mmMade in India: NoBrand: Simplifly
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

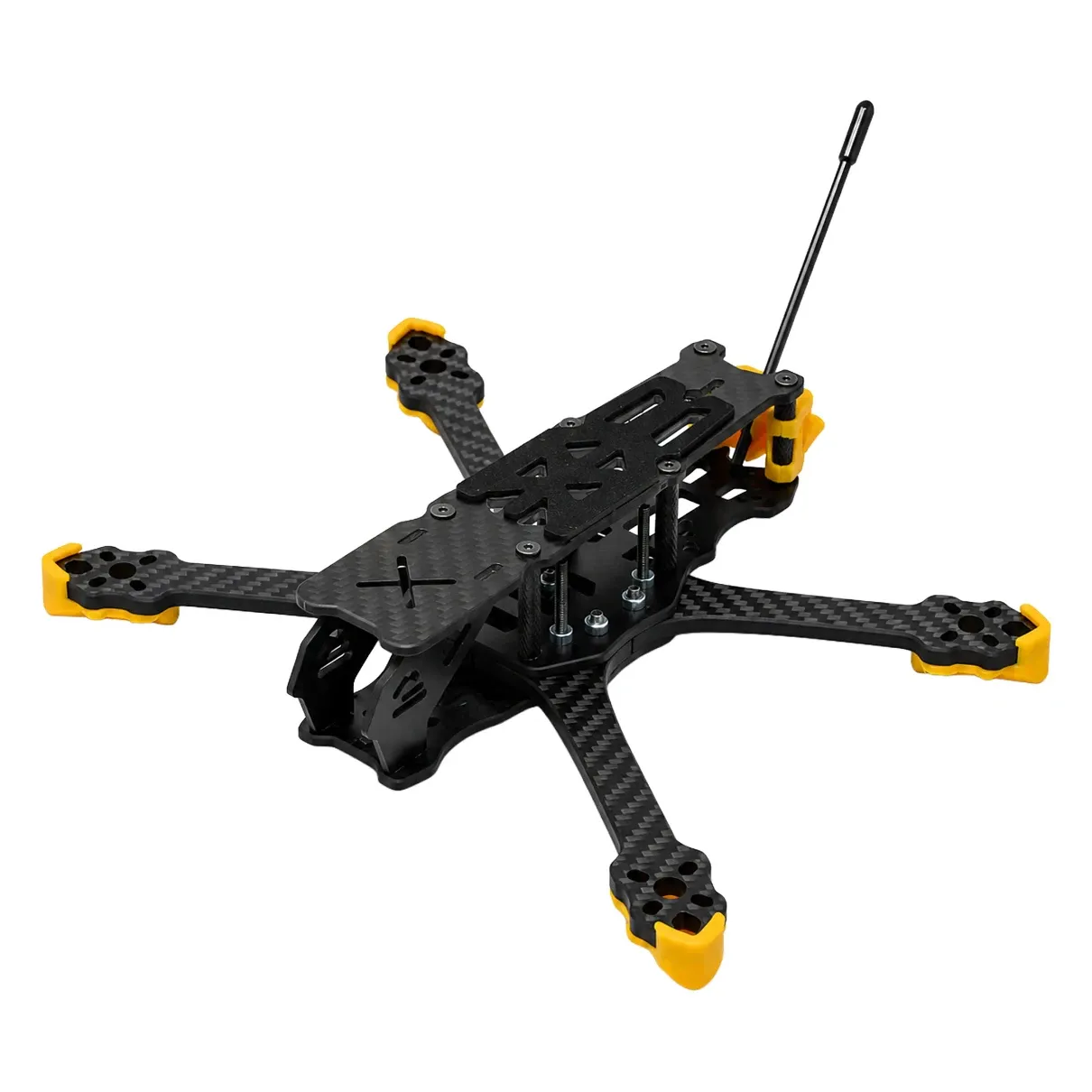

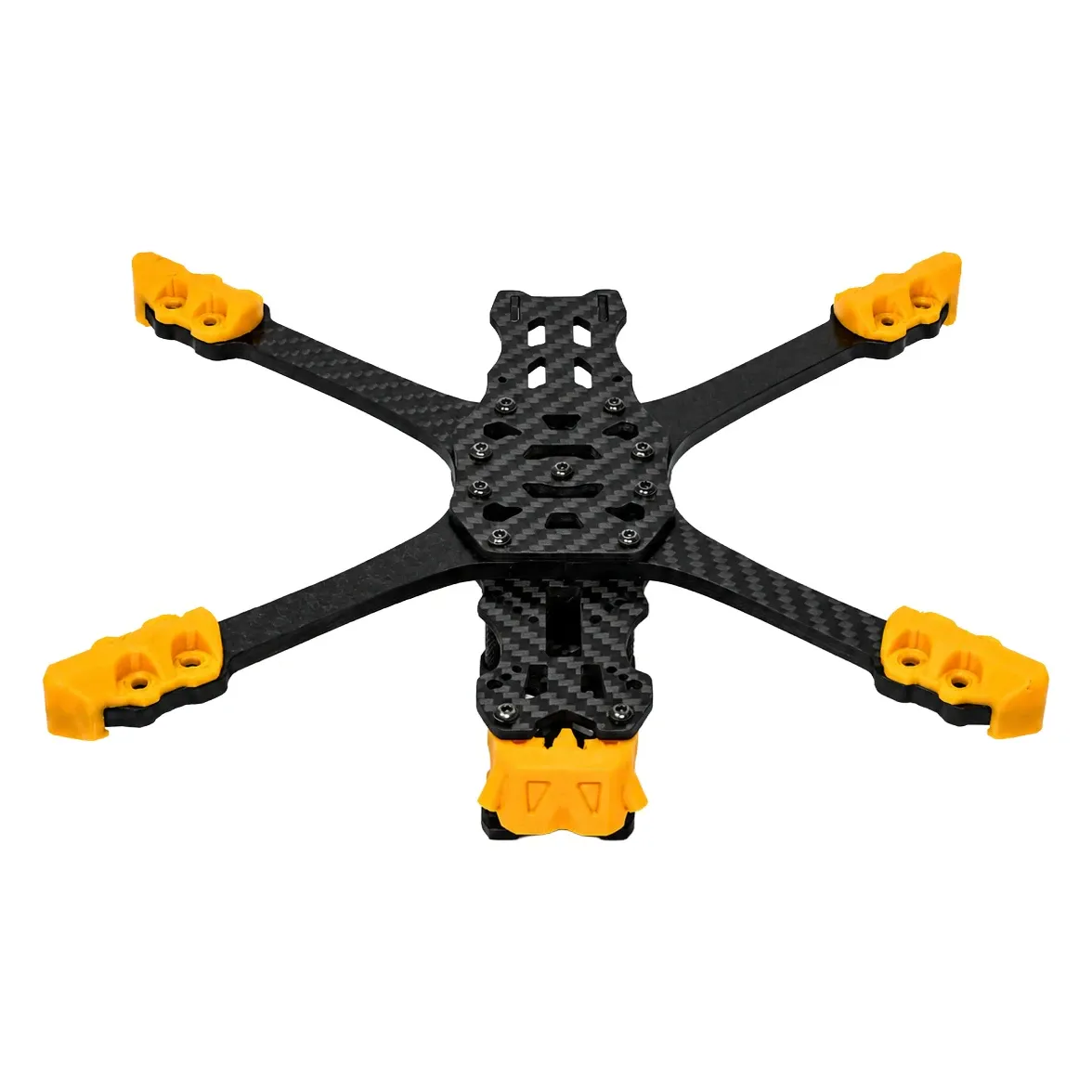

The Simplifly MK5 Analog is a 5-inch freestyle frame laid out for an analog camera and VTX, with room for a digital air unit if you upgrade later. Its 225mm motor-to-motor wheelbase and 5mm carbon fibre arms suit freestyle, cinematic cruising and racing builds.
Key features

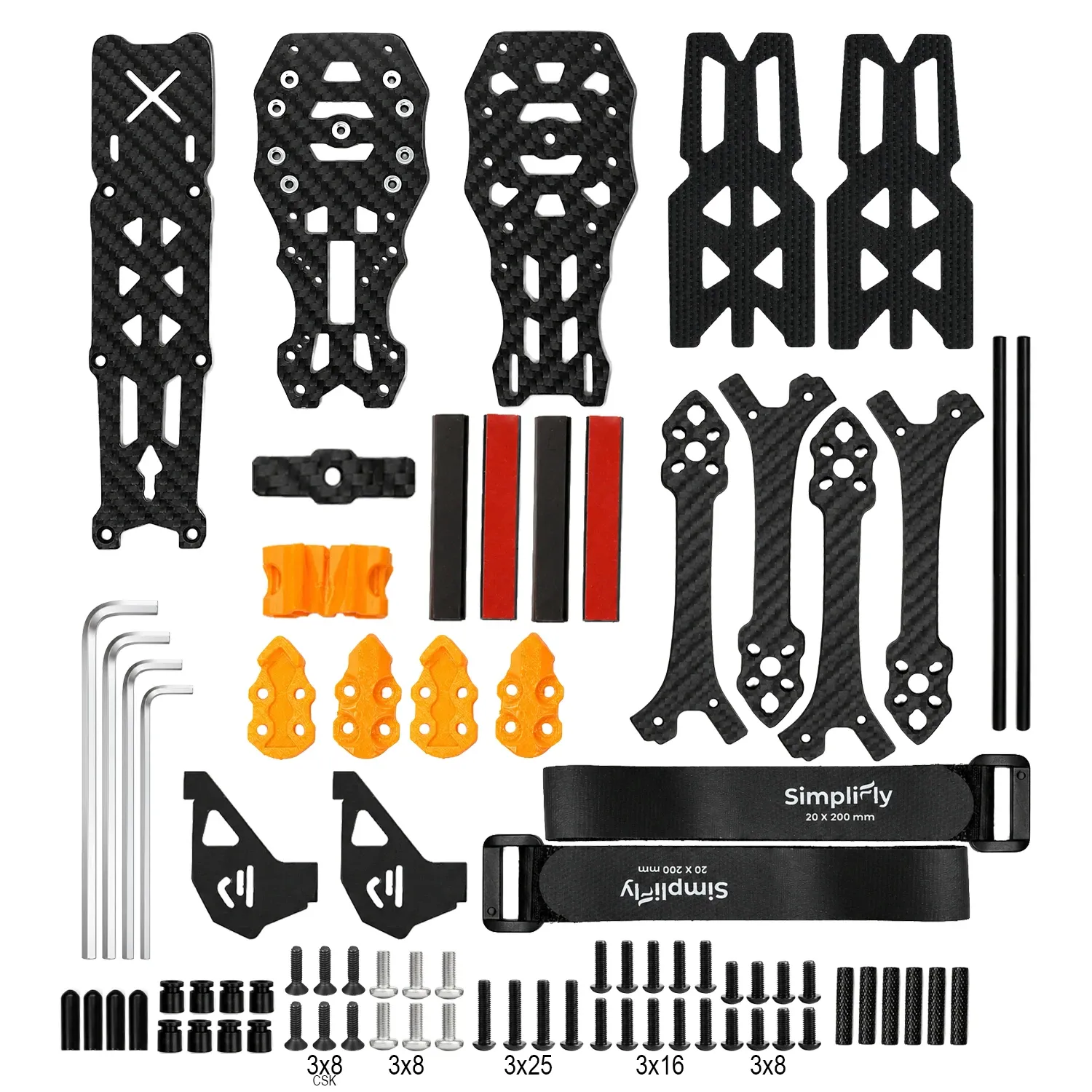

- 5mm carbon fibre arms with 3mm top and bottom plates for crash resistance
- Aluminium alloy side plates protect the camera and stack
- TPU parts absorb vibration and impact
- 30.5x30.5mm (M3) mounting for both the flight controller and the ESC
- Camera bay takes wide-lens FPV cameras
Specifications
- Wheelbase: 225mm
- Prop size: 5 inch
- Arm thickness: 5mm
- Top plate: 3mm
- Bottom plate: 3mm
- Stack mounting: 30.5 x 30.5 mm (M3)
- Material: carbon fibre, aluminium alloy side plates, TPU
Recommended setup: 2107.5 1960KV motors, a 40-50A 4-in-1 ESC and an F7 flight controller.
| Prop Size | 5" |
|---|---|
| Wheelbase | 225 mm |
| Made in India | No |
| Brand | Simplifly |
| Material | Aluminum, Carbon Fiber |
| Arm Thickness | 5 mm |
| Mounting Size | 30.5x30.5 |
