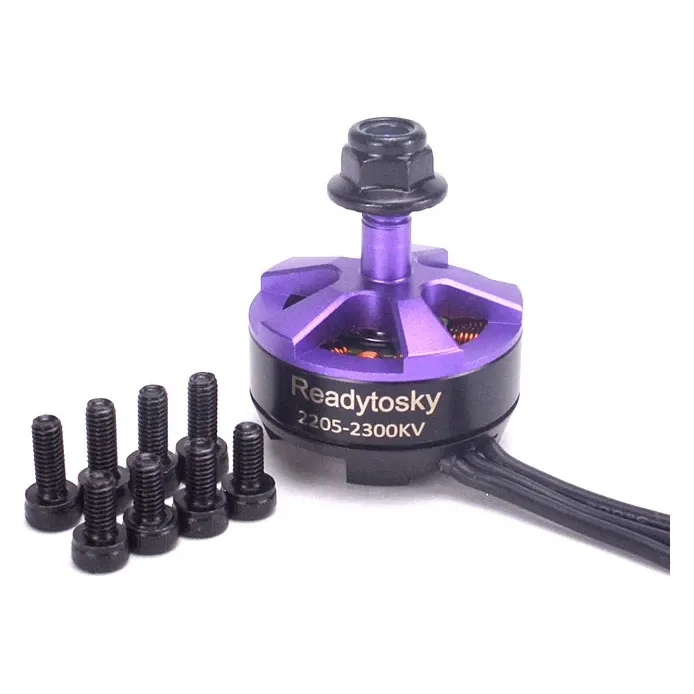

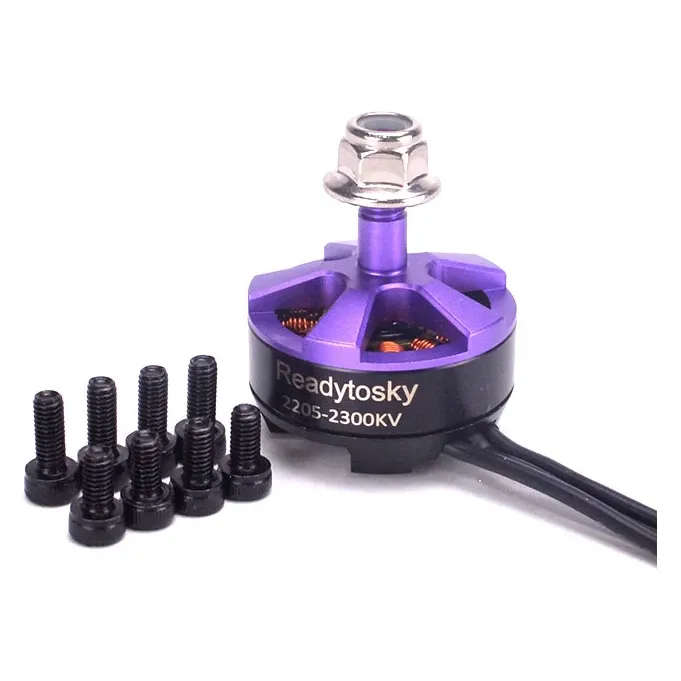

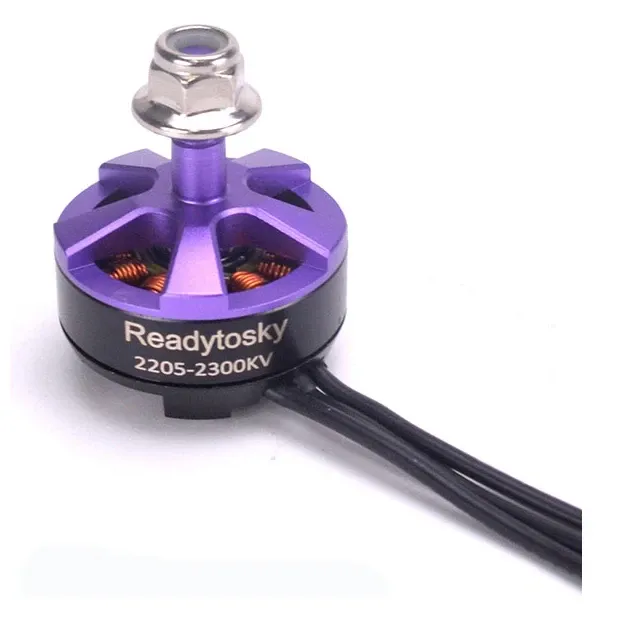

ReadyToSky 2205 2300KV 3-4S Brushless Motor

A 2205 2300KV brushless motor for 210-250 class FPV quads running 5-inch props on 3-4S. It is a straightforward replacement or upgrade for older racing and training builds, offered in CW and CCW thread versions so the prop nut self-tightens on every arm.

Key features

• CW and CCW thread versions: order two of each for a quad
• M5 prop shaft for standard 5-inch props
• M3 mounting screws on the common 16 x 19 mm pattern
• Sized for 210, 220 and 250 mm frames

Specifications

• Stator: 22 x 5 mm (2205)
• KV: 2300KV
• Input: 3-4S LiPo
• Shaft: M5
• Mounting: 16 x 19 mm, M3
• Frame size: 210-250 mm
• Props: 5 inch

Fit the CW and CCW motors to match your flight controller's motor layout, and keep to 3-4S: 2300KV on 5S or 6S goes beyond the motor's rating.
